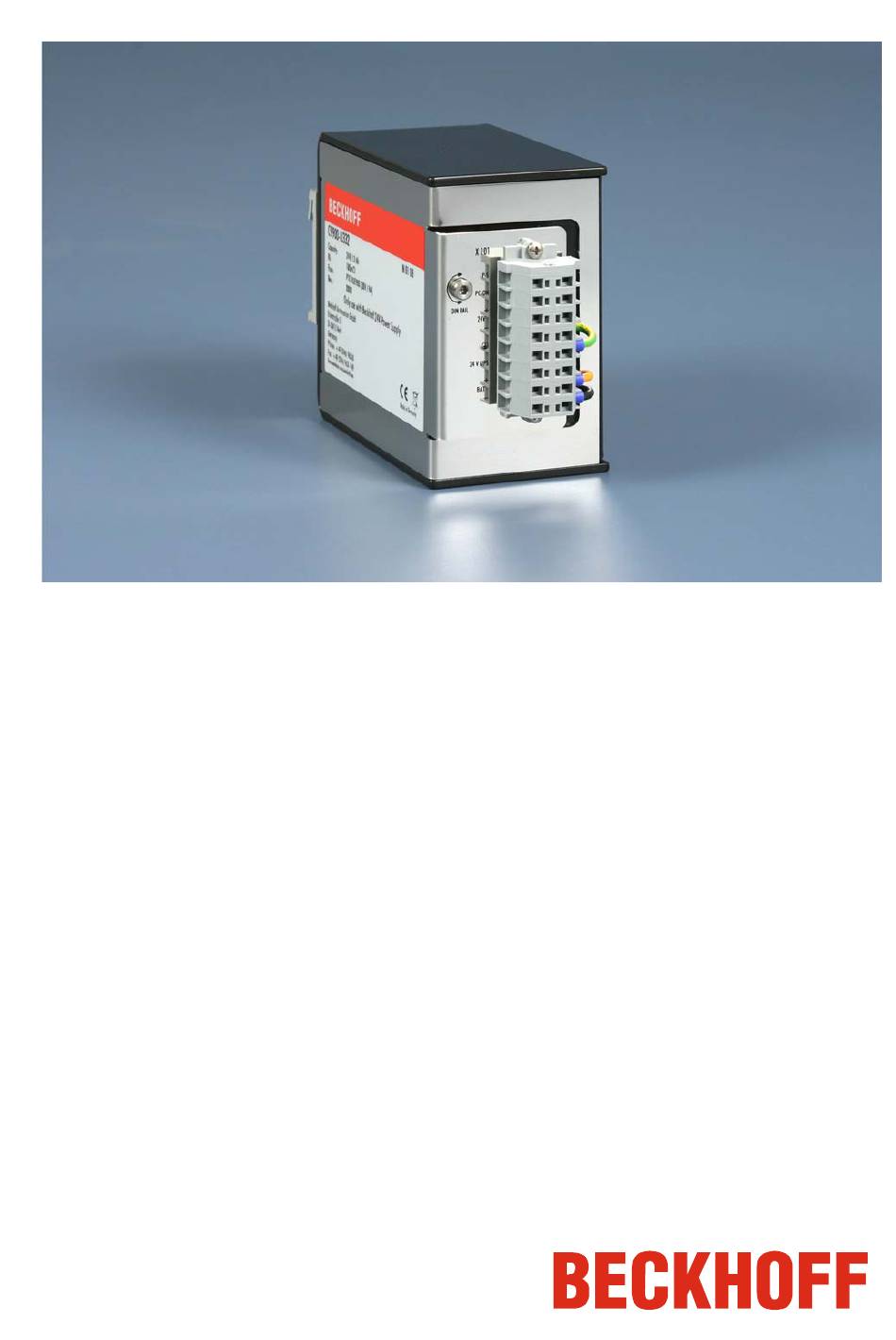

- Page 1 Installation and Operating instructions for C9900-U33x battery pack - C9900-U332 for vertical installation - C9900-U333 for horizontal installation Version: 1.0 Date: 2013-09-25...
-
Page 3: Table Of Contents
Pin assignment of the Connector 4 Operating Instructions Appropriate Use Operation Servicing and maintenance 4.3.1 Cleaning 4.3.2 Maintenance Emergency procedures Shutting down 4.5.1 Disposal 5 Assembly dimensions 6 Wiring diagram 7 Technical Data 8 Appendix Beckhoff Support and Service C9900-U33x... - Page 4 Table of contents 8.1.1 Beckhoff branches and partner companies 8.1.2 Beckhoff company headquarters Approvals for USA and Canada FCC Approvals for the United States of America FCC Approval for Canada C9900-U33x...
-
Page 5: Foreword
Modifications to hardware or software configurations other than those described in the documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH. 1.1.6 Delivery conditions In addition, the general delivery conditions of the company Beckhoff Automation GmbH apply. C9900-U33x... -
Page 6: Description Of Safety Symbols
Foreword 1.2 Description of safety symbols The following safety symbols are used in this operating manual. They are intended to alert the reader to the associated safety instructions. Acute risk of injury! If you do not adhere the safety advise adjoining this symbol, there is immediate danger to life and health of individuals! DANGER Risk of injury! -
Page 7: Basic Safety Measures
• the operation manual is in good condition and complete, and always available for reference at the location of the product. Do not open the housing of the battery pack! For technical support contact Beckhoff Service. Note 1.4.1 National regulations Depending on the type of machine and plant in which the Industrial PC is used, national regulations governing the controllers of such machines will apply, and must be observed by the operator. -
Page 8: Product Description

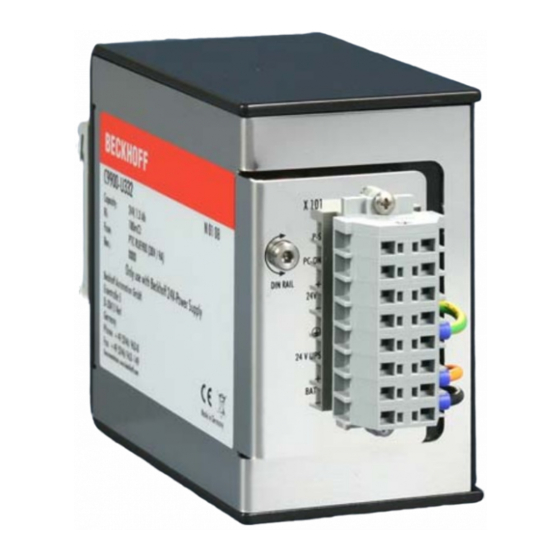

Product Description 2 Product Description 2.1 Product overview Front view of C9900-U332 Industrial PCs can be equipped with a 24 V power supply unit and an integrated UPS. The UPS supplies the PC with power if the mains power fails. This allows data to be saved on the hard disk or Flash, after which the PC can be shut down properly. -
Page 9: Installation
4. Please keep the associated paperwork. It contains important information for handling the unit. 5. Check the contents for visible shipping damage. If you notice any shipping damage or inconsistencies between the contents and your order, you should notify Beckhoff Service. C9900-U33x... -
Page 10: Mounting
Installation 3.2 Mounting The C9900-U33x battery pack is designed for installation in machine and plant technology control cabinets in conjunction with the C9900-P209, C9900-P214, C9900-P216 or C9900-P218 power supply unit. The battery pack C9900-U332 is designed for vertical installation and the battery pack C9900-U333 for horizontal installation. -
Page 11: Connecting The Battery Pack
Installation 3.3 Connecting the Battery Pack Connecting cables Please read the documentation for the external devices prior to connecting them! Attention During thunderstorms, plug connector must neither be inserted nor removed! Disconnect the devices from the power supply! When disconnecting a plug connector, always handle it at the plug. Do not pull the cable! 3.3.1 Pin assignment of the Connector The 8-pin terminal strip (X101) shown in the photograph is mounted on the battery pack housing for... -
Page 12: Operating Instructions
Operating Instructions 4 Operating Instructions 4.1 Appropriate Use The C9900-U33x battery pack is designed for installation in machine and plant technology control cabinets in conjunction with the C9900-P209, C9900-P214, C9900-P216 or C9900-P218 power supply unit. 4.2 Operation For operation, please read the appropriate power supply manual. 4.3 Servicing and maintenance 4.3.1 Cleaning Disconnect power supply... -
Page 13: Assembly Dimensions
Assembly dimensions 5 Assembly dimensions Notice mounting orientation The assembly of the unit must take place with the orientation diagrammed here. Warning Battery pack C9900-U332, vertical installation (Maximum device dimensions in mm) front view right view Battery pack C9900-U333, horizontal installation (Maximum device dimensions in mm) front view right view... -
Page 14: Wiring Diagram
Wiring diagram 6 Wiring diagram Risk of explosion! Do not use the battery pack in areas of explosive hazard! Danger Wiring according to the wiring diagram (the circuit of PC_ON and Power-Status is symbolical): Wiring diagram external switch and power supply Connection of the Battery Pack and UPS Output Connection of the battery pack and UPS Output only in combination with integrated UPS (order option). -
Page 15: Technical Data
Technical Data 7 Technical Data Risk of explosion! Do not use the battery pack in areas of explosive hazard! Danger Product name C9900-U33x Dimensions (B x H x T) C9900-U332: 68.7 x 106.6 x 143.8 mm C9900-U333: 106.6 x 68.7 x 143.8 mm Weight 2.1 kg Electrical data... -
Page 16: Appendix
Please contact your Beckhoff branch office or partner company for local support and service on Beckhoff products! The contact addresses for your country can be found in the list of Beckhoff branches and partner companies: www.beckhoff.com. You will also find further documentation for Beckhoff components there. - Page 17 Appendix 8.2 Approvals for USA and Canada 8.3 FCC Approvals for the United States of America FCC: Federal Communications Commission Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
