Mounting the Electronic Focus Accessory (EFA) for the
CDK12.5
The EFA kit for the CDK20 comes built into the back plate of the telescope, but the EFA
Kit for the CDK12.5 comes in a separate box that is mounted outside the telescope. This
is because the CDK12.5 doesn't have much room between the primary mirror and the
back plate.

Mounting the EFA Electronics Box

The EFA Electronics box can be attached to several places on the telescope back plate.
There are eight ¼-20 threaded holes on the back of the telescope. The EFA mounting
bracket, already attached to the electronics box, can be mounted to any one of the eight
¼-20 threaded holes. Use the supplied ¼-20 bolt to attach the EFA box as shown in
Picture 2.
Hand Control Jack
Telescope connector
jack
12VDC Power Input

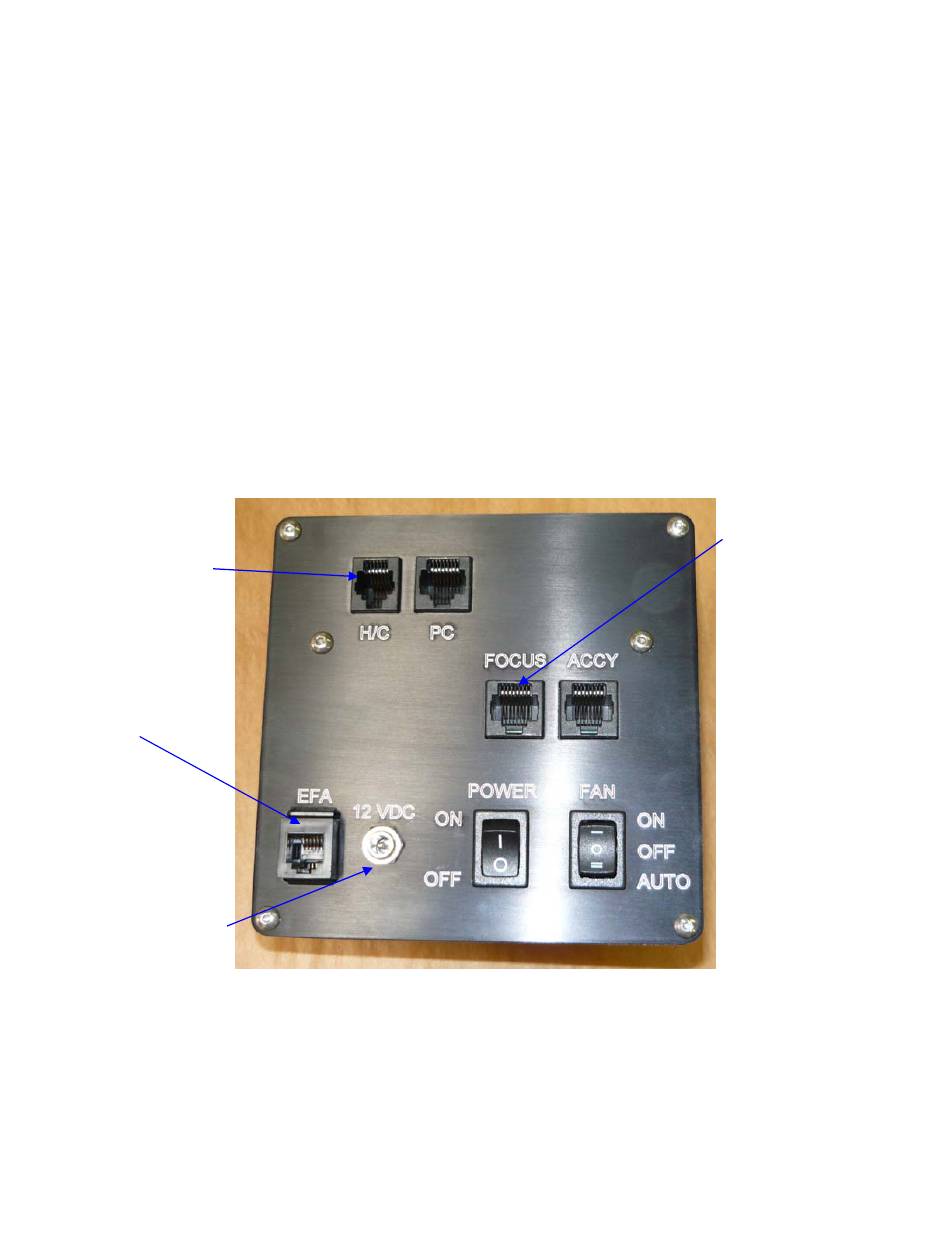

Picture 1: The EFA Control Box.
Focus Motor Jack
1
