PlaneWave Instruments Ascend Manual

A200 balance accessory

Advertisement

Quick Links

The Ascend
– A200 Balance Accessory - 600382

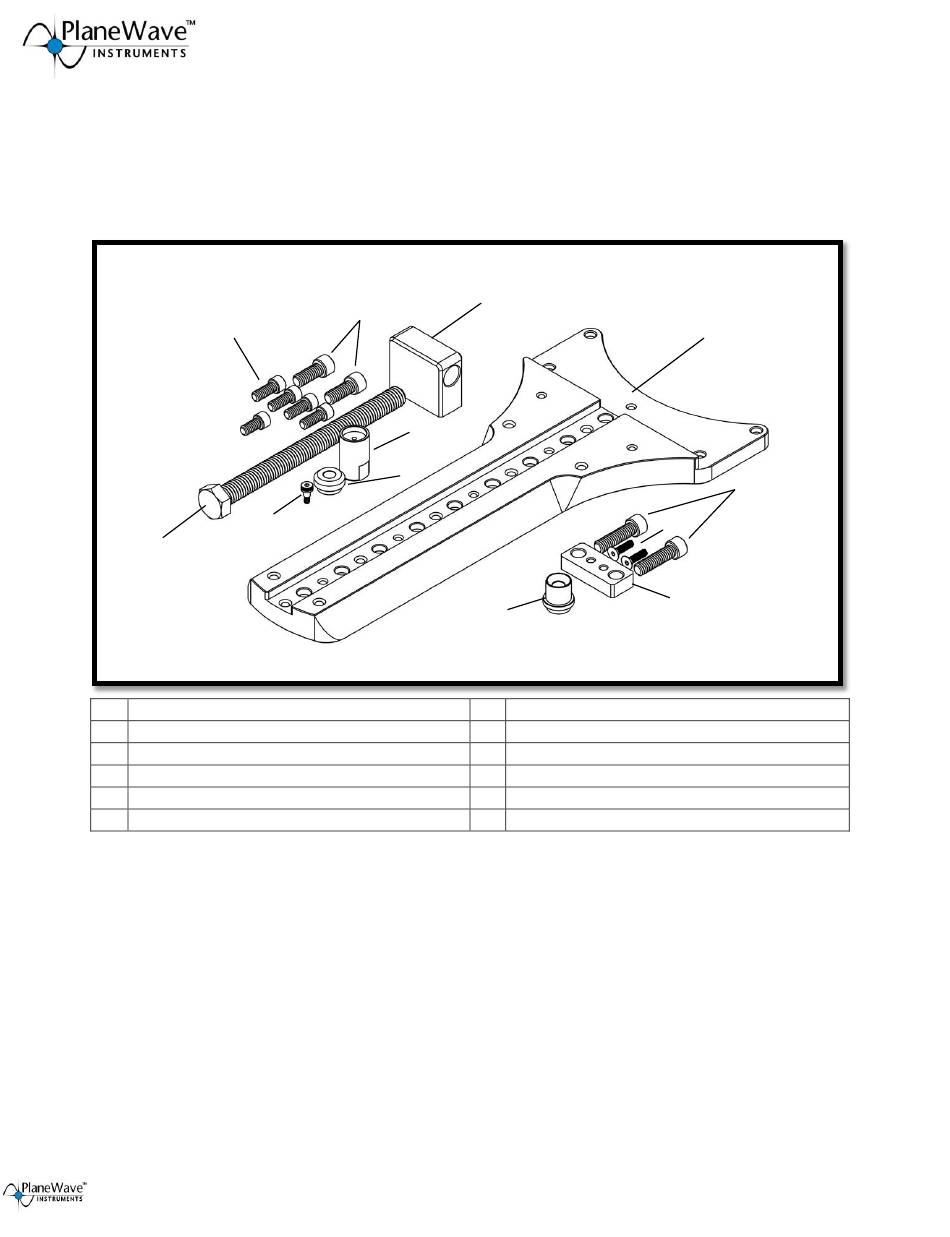

The Ascend accessory is designed to allow slow and controlled movement of you CDK telescope for precise
balance in declination. It can attach to either the front or back of the A200 mount's dovetail clamp (200919) and
includes the following parts:
10
3
1
Dovetail Mounting Bar
2
Threaded Block
3
Pushrod Bolt
4
Push Screw Cap
5
Push Screw Tip
6
Push Screw Tip CDK17
Installing on the Rear of the CDK 17/20/24
Note: It may be necessary to remove your CDK telescope from the A200 mount especially if installing the Ascend
accessory on both sides on the dovetail clamp.
1. Use the four ¼-20x5/8"screws (10) to attach the dovetail bar (1) to the bottom of the dovetail clamp
(see figure below).
9
4
5
7
1819 Kona Dr. Rancho Dominguez, CA 90220 310-639-1662
2
6
7
Shoulder Screw 6-32x3/16"
8
Threaded Block Spacer
9
5/16-18x1-1/8" Bolts (Qty 2)
10 ¼-20x5/8 Mounting Screws (Qty 5)
11 8x32-5/8" (Qty 2)
12 5/16-18x3/4" Mounting Screws (Qty 2)
1
12
11
8
0314

Advertisement

loading
Need help?

Need help?

Do you have a question about the Ascend and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for PlaneWave Instruments Ascend

  • Page 1 12 5/16-18x3/4” Mounting Screws (Qty 2) Installing on the Rear of the CDK 17/20/24 Note: It may be necessary to remove your CDK telescope from the A200 mount especially if installing the Ascend accessory on both sides on the dovetail clamp.
  • Page 2 9. Tighten the dovetail clamp and check balance. Repeat step #8 if necessary. Push screw Tip Push screw Cap Pushrod Ascend Accessory shown on rear of the CDK17/20/24 with optional counterweight assembly (600540) and counterweights (600377 & 600378) 1819 Kona Dr. Rancho Dominguez, CA 90220 310-639-1662 0314...
  • Page 3 Spacer Push Screw Tip for CDK17 Ascend Accessory shown on front of the CDK17 with optional counterweight assembly (600540) and counterweights (600377 & 600378) Installation for the Front of CDK20 When attaching the Acsend accessory to the front (pushing down) of the CDK20 you must attach the threaded block spacer (8) underneath the threaded block (2).
  • Page 4 For additional balancing, Planewave offers a counterweight assembly that attaches directly to the dovetail bar of the Ascend accessory. The counterweigh assembly comes with either a 6” bar (600541) or 3” bar (600540). Either bar can hold a 9 lb counterweight (600378) or 4.5 lb weight (600377) 1819 Kona Dr.
