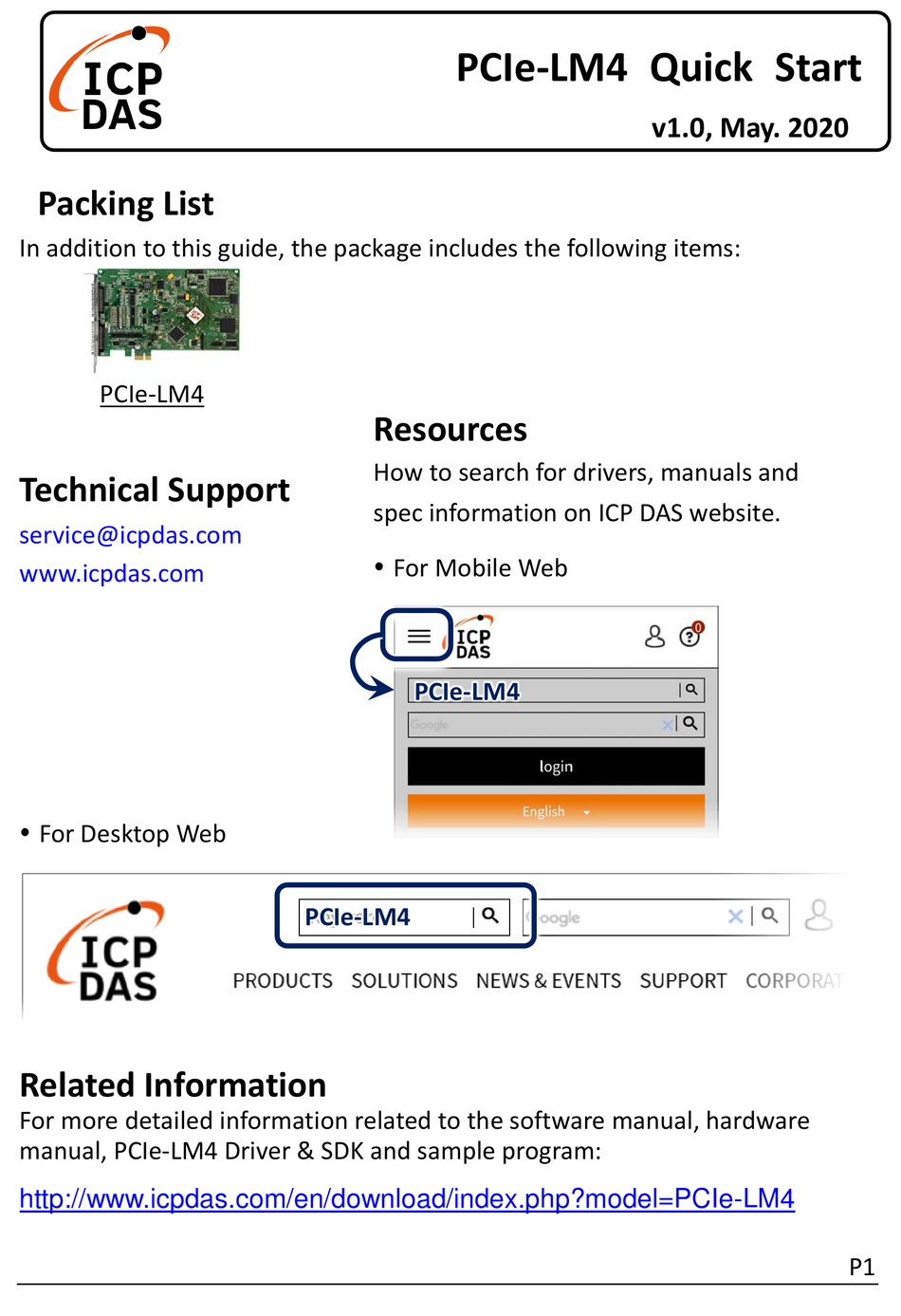

Packing List
In addition to this guide, the package includes the following items:

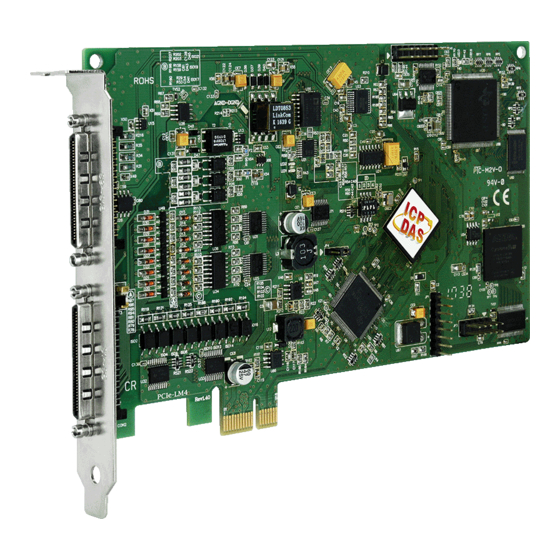

PCIe-LM4
Technical Support
service@icpdas.com
www.icpdas.com
 For Desktop Web
Related Information
For more detailed information related to the software manual, hardware
manual, PCIe-LM4 Driver & SDK and sample program:
http://www.icpdas.com/en/download/index.php?model=PCIe-LM4
PCIe-LM4 Quick Start
Resources
How to search for drivers, manuals and
spec information on ICP DAS website.
 For Mobile Web
PCIe-LM4
PCIe-LM4
v1.0, May. 2020
P1
