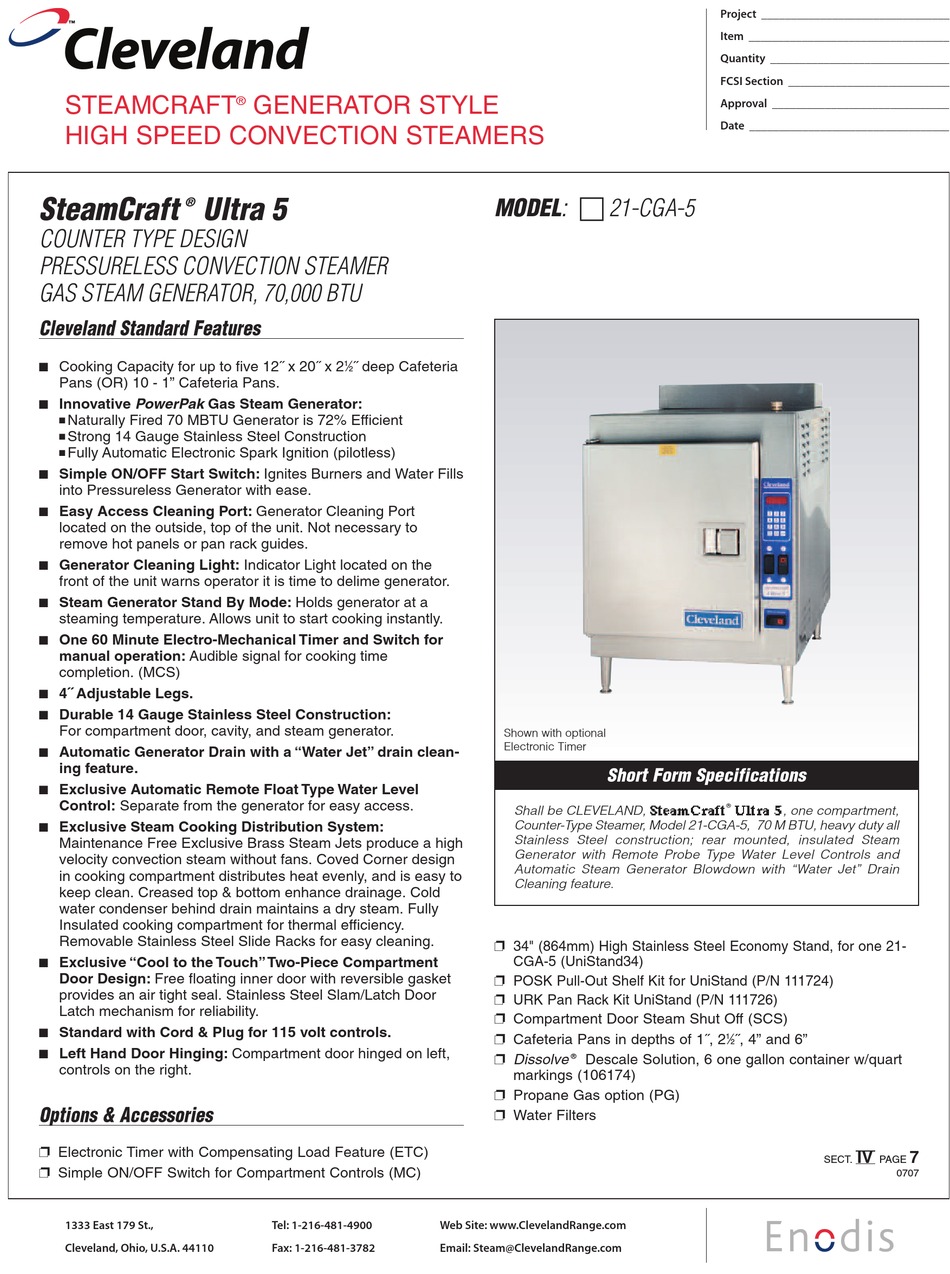

Cleveland 21-CGA-5 Specifications

™
Cleveland
STEAMCRAFT
HIGH SPEED CONVECTION STEAMERS
SteamCraft Ultra 5
®
COUNTER TYPE DESIGN
PRESSURELESS CONVECTION STEAMER
GAS STEAM GENERATOR, 70,000 BTU
Cleveland Standard Features
I
Cooking Capacity for up to five 12˝ x 20˝ x 2
Pans (OR) 10 - 1" Cafeteria Pans.
I
Innovative PowerPak Gas Steam Generator:
I
Naturally Fired 70 MBTU Generator is 72% Efficient
I
Strong 14 Gauge Stainless Steel Construction
I
Fully Automatic Electronic Spark Ignition (pilotless)
I
Simple ON/OFF Start Switch: Ignites Burners and Water Fills
into Pressureless Generator with ease.
I
Easy Access Cleaning Port: Generator Cleaning Port
located on the outside, top of the unit. Not necessary to
remove hot panels or pan rack guides.
I
Generator Cleaning Light: Indicator Light located on the
front of the unit warns operator it is time to delime generator.
I
Steam Generator Stand By Mode: Holds generator at a
steaming temperature. Allows unit to start cooking instantly.
I
One 60 Minute Electro-Mechanical Timer and Switch for
manual operation: Audible signal for cooking time
completion. (MCS)
I
4˝ Adjustable Legs.
I
Durable 14 Gauge Stainless Steel Construction:
For compartment door, cavity, and steam generator.
I
Automatic Generator Drain with a "Water Jet" drain clean-
ing feature.
I
Exclusive Automatic Remote Float Type Water Level
Control: Separate from the generator for easy access.
I
Exclusive Steam Cooking Distribution System:
Maintenance Free Exclusive Brass Steam Jets produce a high
velocity convection steam without fans. Coved Corner design
in cooking compartment distributes heat evenly, and is easy to
keep clean. Creased top & bottom enhance drainage. Cold
water condenser behind drain maintains a dry steam. Fully
Insulated cooking compartment for thermal efficiency.
Removable Stainless Steel Slide Racks for easy cleaning.
I
Exclusive "Cool to the Touch"Two-Piece Compartment
Door Design: Free floating inner door with reversible gasket
provides an air tight seal. Stainless Steel Slam/Latch Door
Latch mechanism for reliability.
I
Standard with Cord & Plug for 115 volt controls.
I
Left Hand Door Hinging: Compartment door hinged on left,
controls on the right.
Options & Accessories
Ë Electronic Timer with Compensating Load Feature (ETC)
Ë Simple ON/OFF Switch for Compartment Controls (MC)
1333 East 179 St.,
Cleveland, Ohio, U.S.A. 44110
® GENERATOR STYLE
1 ⁄ ˝ deep Cafeteria
2
Tel: 1-216-481-4900
Fax: 1-216-481-3782
MODEL: 21-CGA-5
Shown with optional
Electronic Timer
Short Form Specifications
Shall be CLEVELAND,
Counter-Type Steamer, Model 21-CGA-5, 70 M BTU, heavy duty all
Stainless Steel construction; rear mounted, insulated Steam
Generator with Remote Probe Type Water Level Controls and
Automatic Steam Generator Blowdown with "Water Jet" Drain
Cleaning feature.
Ë 34" (864mm) High Stainless Steel Economy Stand, for one 21-
CGA-5 (UniStand34)
Ë POSK Pull-Out Shelf Kit for UniStand (P/N 111724)
Ë URK Pan Rack Kit UniStand (P/N 111726)
Ë Compartment Door Steam Shut Off (SCS)
Ë Cafeteria Pans in depths of 1˝, 2
Ë Dissolve
® Descale Solution, 6 one gallon container w/quart
markings (106174)
Ë Propane Gas option (PG)
Ë Water Filters
Web Site: www.ClevelandRange.com
Email: Steam@ClevelandRange.com
Project ________________________________
Item __________________________________
Quantity _______________________________
FCSI Section ____________________________
Approval _______________________________
Date __________________________________
SteamCraft Ultra 5
®
, one compartment,
1 ⁄ ˝, 4" and 6"
2
SECT.
IV 7
PAGE
0707
