Cleveland SEL-30-T1 Operator's Manual

Cleveland SEL-30-T1 Operator's Manual

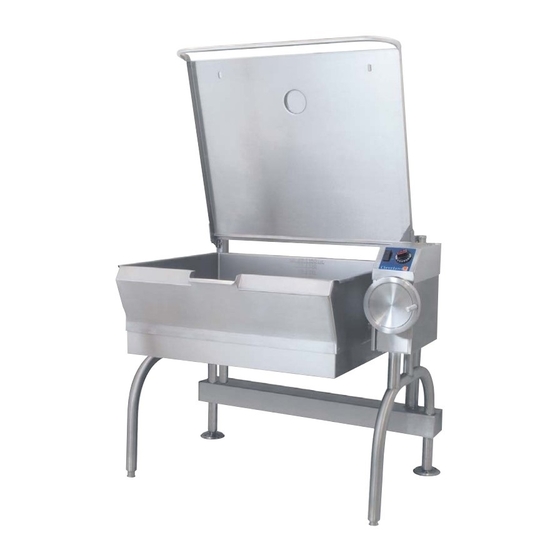

Electric t1 skillets
Hide thumbs Also See for SEL-30-T1:

Advertisement

Operators Manual
FOR MODELS
BUILT AFTER
MAY 2006:
SEL-30-T1
SEL-40-T1
For a complete Service Manual
refer to www.clevelandrange.com
Cleveland
Enodis
Installation, Operation & Service
Electric T1 Skillets
1333 East 179th St., Cleveland, Ohio, U.S.A. 44110
Phone: (216) 481-4900 Fax: (216) 481-3782
Visit our web site at www.clevelandrange.com
BULLET FOOT (FRONT) 078160-1
FLANGED FOOT (BACK) 078161-1
SE95051 Rev. 5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SEL-30-T1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Cleveland SEL-30-T1

  • Page 1 ™ Cleveland Enodis Electric T1 Skillets BULLET FOOT (FRONT) 078160-1 FLANGED FOOT (BACK) 078161-1 1333 East 179th St., Cleveland, Ohio, U.S.A. 44110 Phone: (216) 481-4900 Fax: (216) 481-3782 Visit our web site at www.clevelandrange.com SE95051 Rev. 5...
  • Page 2: For The User

    THE INSTALLATION AND CONNECTION MUST COMPLY WITH THE LOCAL AND NATIONAL ELECTRICAL CODES. ENSURE ELECTRICAL SUPPLY CONFORMS WITH ELECTRICAL CHARACTERISTICS SHOWN ON THE RATING LABEL ALL SERVICE MUST BE PERFORMED BY A QUALIFIED CLEVELAND RANGE TECHNI- CIAN. RETAIN THIS MANUAL FOR YOUR REFERENCE.
  • Page 3: Installation

    INSTALLATION GENERAL Installation of the unit must be accomplished by quali- fied electrical installation personnel working to all appli- cable local and national codes. Improper installation of product could cause injury or damage. This equipment is built to comply with applicable stan- dards for manufacturers.
  • Page 4: Wire Connection

    Wire must be suitable for at least 194°F (90°C). Refer to Specification Sheet for all electri- cal specifications. Cleveland strongly recommends the use of liquid tight fittings. Connection NOTE: Wiring diagram is located under the top cover of the unit's right console.
  • Page 5 OPERATING INSTRUCTIONS General Parts Drawing ITEM # DESCRIPTION Power Switch Power Indicator Light (red) Temperature Dial Heat Indicator Light (yellow) Hand Tilt Wheel Power Tilt Switch Reset Button Manual Tilt Override Faucet (not shown) Tangent Draw-Off Valve (not shown) CONTROL PANEL FUNCTION Lower position - power to the unit is OFF.
  • Page 6: Operating The Unit

    To raise pan, raise the cover and turn the crank clockwise. To lower pan, turn counter- clockwise. POWER TILT: Cleveland skillets can also be equipped with an optional electric power tilt mech- anism for raising and lowering the pan. To raise pan, raise the cover and press up on the tilt switch.
  • Page 7: Cleaning Instructions

    CLEANING INSTRUCTIONS CAUTION SURFACES MAY BE EXTREMELY HOT! CARE AND CLEANING Cooking equipment must be cleaned regularly to maintain its fast, efficient cooking performance and to ensure its continued safe, reliable operation. The best time to clean is shortly after each use (allow unit to cool to a safe temperature).
  • Page 8: Stainless Steel Equipment Care And Cleaning

    STAINLESS STEEL EQUIPMENT CARE AND CLEANING (Suppied courtesy of Nafem. For more information visit their web site at www.nafem.org) Contrary to popular belief, stainless steels ARE susceptible to rusting. Corrosion on metals is everywhere. It is recognized quickly on iron and steel as unsightly yellow/orange rust.
  • Page 9: Service Parts

    SERVICE PARTS WARRANTY Our Company supports a worldwide network of Maintenance and Repair Centers. Contact your nearest Maintenance and Repair Centre for replacement parts, service, or information regarding the proper mainte- nance and repair of your cooking equipment In order to preserve the various agency safety certification (UL, NSF, ASME/Ntl. Bd., etc.), only factory-sup- plied replacement parts should be used.
  • Page 10: Frame / Lid Assembly

    FRAME / LID ASSEMBLY 20 21 22 ITEM NO. PART NO. DESCRIPTION SK00392-1 SK00392-3 SK2457192 SK2457193 KE50187-1 SK00394-1 SK2452300 FA95087-1 FA20008 KE53573-1 FA15019-4 FA21501-2 KE00099 KE50249-1 FA31029 FA11054 SK2459299 FA21024 FA31030 FA30055 SK00054 SK2211200 FA95081-1 SK50179 FA30504 FRAME WELDMENT (30 GALLON) ........1 FRAME WELDMENT (40 GALLON) .
  • Page 11 2" TANGENT DRAW-OFF VALVE ITEM NO. PART NO. 1. - 7. KE50972-B FA95049 KE527551 KE52754 KE52753 KE52752 FA00111 KE52751 DESCRIPTION DRAW-OFF ASSEMBLY ..........1 WING NUT .
  • Page 12: Tilt Components

    TILT COMPONENTS 9 47 18 19 23 22 100 23 75 45 29 51 POWER TILT 43 42 41 MANUAL TILT 33 29 51 15 16 22 23 20 *116 50 24 22 23 20 *116 24 25...
  • Page 13 TILT COMPONENTS ITEM NO. PART NO. REF.SK00387 KE002590 KE55513 KE602239 KE602587 KE602598 SK2474500 REF.SK00410 FA95055-13 FA15019-6 FA21024 KE002527 FA15021 FA31500 FA11526 FA31011 FA21506 FA11135 KE602573 FA21008 FA31029 FA21024 FA31030 KE600284-4 FA31031 KE002215 FA19196 KE002509 KE54738-5 FA19505 KE602511 KE602032 KE601725 KE52832-5 KE50582-5 KE50583-1 KE50582-4...
  • Page 14: Control Box Assembly

    CONTROL BOX ASSEMBLY SECTION A - A ITEM NO. PART NO. SK2138700 SK2360700 SK2360701 KE51005 SK2498399 SK2166800 SK2167000 SK2167100 INCLUDES SK2167200 SK2167300 SK2382800 FA21006 FA32022 FA40000-6 SK50903-1 SK50905-1 SK2142002 SK2159300 SK2491500 SK95063 SK90126-2 KE95604-3 KE95604-4 SK2474102 KE53137-3 KE53184 KE53138-1 KE50579-2 FA05002-34 KE50580 DESCRIPTION...
  • Page 15 COMPONENT PLATE ASSEMBLY ITEM NO. PART NO. KE602092 KE53838-10 KE51139 KE50753-10 KE50581 SK2475500 KE53838-25 KE53444 KE50473 FA904 KE52936-8 FA15018-8 SK2475600 SK2475700 F904 KE50577 KE50576 KE50750-7 KE52936-6 4 13 6 15 16 DESCRIPTION COMPONENT PLATE ..........1 TRANSFORMER .
  • Page 16: Pan Mount Assembly

    PAN MOUNT ASSEMBLY ITEM PART DESCRIPTION HEATING ELEMENTS ... .6 30 GALLON SK50845-1 ELEMENT, 2.00 KW, 480 VAC SK50845-2 ELEMENT, 2.67 KW, 416 VAC SK50845-3 ELEMENT, 2.00 KW, 416 VAC SK50845-4 ELEMENT, 2.67 KW, 240 VAC ELEMENT, 2.00 KW, 208 VAC...
  • Page 17: Maintenance

    MAINTENANCE Any maintenance or service involving disassembly of components should be made by a qualified service technician. Ensure electrical HINGE ADJUSTMENT INSTRUCTIONS FULLY LIFT COVER TO RELEASE SPRING TENSION SPRING LUBRICATION PROCEDURE Lubricate the following parts every three months to insure smooth operation and reduce wear.
  • Page 18: Sequence Of Operations

    SEQUENCE OF OPERATIONS When using these instructions refer to the SEL-TI wiring schematic. Supply Voltage is sent to the primary of the 120 VAC transformer. Supply voltage is sent to the normally open con- tacts of the Heat Contactors, C1 and C2. 120 VAC is sent from the secondary of the 120VAC transformer through the 3 amp fuse to ■...
  • Page 19: Spare Parts List

    SPARE PARTS LIST PART NO. DESCRIPTION HEATING ELEMENTS ................... . 6 30 GALLON SK50845-1 ELEMENT, 2.00 KW, 480 VAC...
  • Page 20: Wiring Diagram

    WIRING DIAGRAM TILT LIMIT SWITCH TILT SWITCH ELECTRICAL COMPONENT PART #s FUSE 3A KE52936-6 FUSE 1.25A KE52936-8 RELAY 1 SK2475500 HEATING ELEMENTS - SEE "PAN MOUNT ASSEMBLY" ON/OFF SWITCH SK2474102 HIGH LIMIT KE55069-7 THERMOSTAT SK2142002 SENSOR SK50933-1 HEAT INDICATOR SK50905-1 CIRCUIT BREAKER KE50579-2 TILT LIMIT SWITCH...

This manual is also suitable for:
