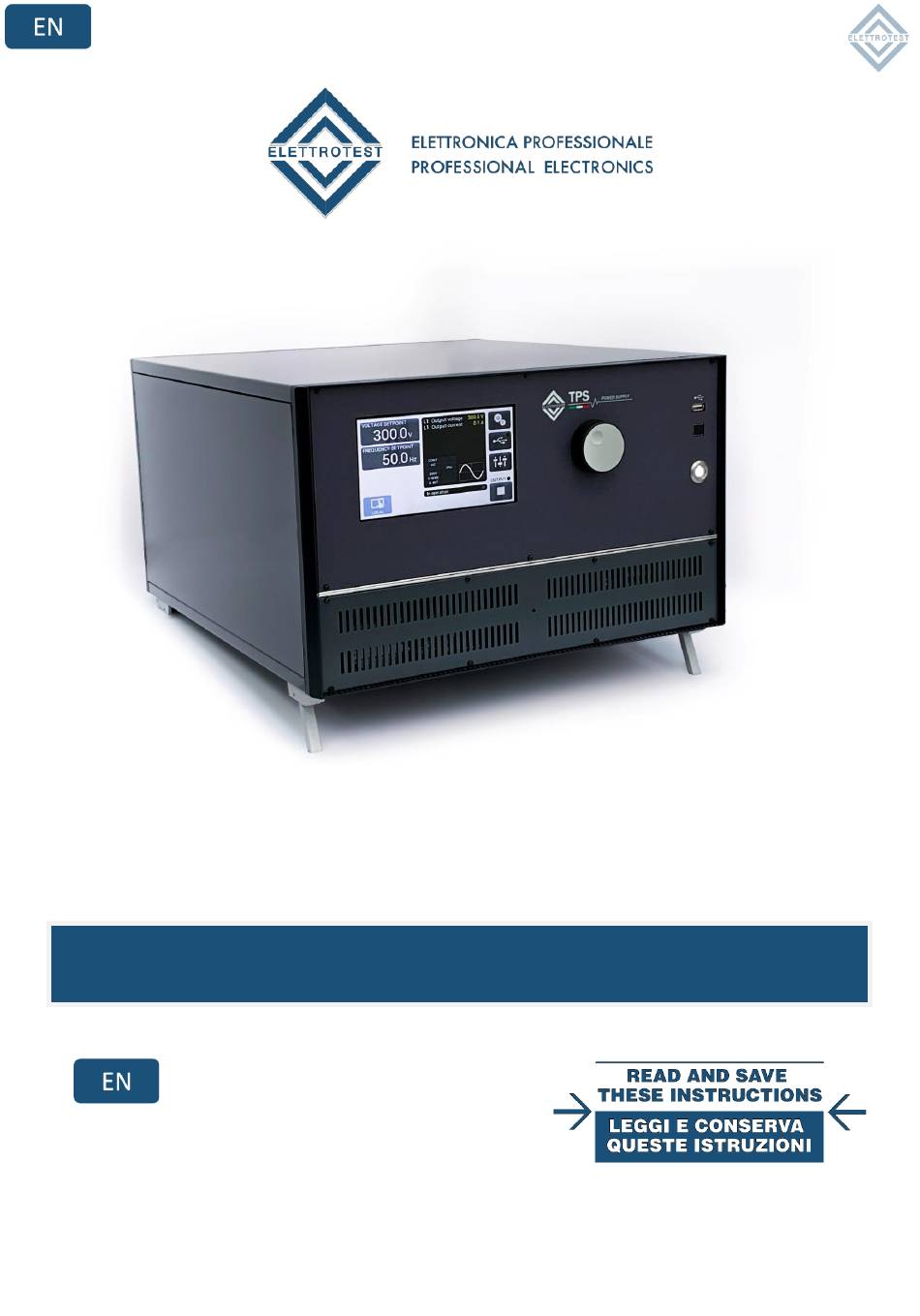

- Page 1 TPS/M/D USER MANUAL USER MANUAL TPS/M 62000595 REV 03_ – 01/06/2021...
- Page 2 TPS/M is an high performance variable voltage generator (amplitude and frequency) in order to simulate and electrical line for test for different application (laboratory , test line, production line) Responsability: Elettrotest disclaims any responsibility for damage to people or things caused by an improper use of its products . Mandatory Verify voltage, power and frequency compatibility between TPS range and electrical specification of equipment under test (EUT).
- Page 3 • Keep the ventilation holes on the front and rear free from obstruction. • Do not make dielectric strengths test on the input or output of the equipment. Contact Elettrotest if you need to do specific test ELECTRIC RISK There are dangerous voltages inside TPS and over the output connector.
- Page 4 DISPOSAL INFORMATION FOR USERS ON THE CORRECT HANDLING OF WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE) In reference to European Union directive 2012/19/EU issued on 24 July 2012 and the related national legislation, please note that: • WEEE cannot be disposed of as municipal waste and such waste must be collected and disposed of separately;...
-
Page 5: Table Of Contents
2.2.2. RCD PROTECTION ......................20 2.2.3. MAGNETO-THERMAL PROTECTION ................21 2.2.4. LINE FUSES ........................21 2.2.5. INTERNAL FUSES TPS/M/D 1K5 ..................21 2.2.6. INTERNAL FUSES TPS/M/D 3K ..................21 2.2.7. INTERNAL FUSES TPS/M/D 6K ..................21 2.2.8. INTERNAL FUSES TPS/M/D 9K ..................22 2.2.9. - Page 6 LOCAL OPERATION ........................27 4.1. POWER ON .......................... 27 4.2. HOME PAGE ......................... 28 4.3. VOLTAGE SETPOINT ......................29 4.4. FREQUENCY SETPOINT ......................29 4.5. SETTINGS MENU ........................29 4.5.1. OPERATION SETTINGS ....................31 4.5.1.1.1. SENSE MODE ......................32 4.5.1.1.2. OUTPUT MODE ..................... 32 4.5.1.1.3.
-
Page 7: Introduction
1. INTRODUCTION TPS is a power source that supplies sinusoidal stable voltage. Its output voltage is adjustable in frequency, amplitude and phase. It also has the ability to generate very precise and stabilized DC voltage. 1.1. MAIN FEATURES 1.1.1. Output voltage The output voltage is guaranteed perfectly DC or sinusoidal, with a distortion of less than 0.3% regardless of the load. -
Page 8: User Interface
1.1.3. User interface TPS is intended to have an user friendly interface. It is also featured the possibility of an host computer control, thus allowing to perform tests automatically. TPS allows various usage selections: wires drop compensation, working frequency. Furthermore, TPS gives the user clear information on the status of the output. -
Page 9: Models
0°C - 35°C User Interface 7” Touch Screen Display Communication Interface RS232, RS485 , ETHERNET Communication Protocol Elettrotest, SCPI, Modbus RTU , Modbus TCP/IP Protection Overtemperature, Overvoltage, Undervoltage, Inverter Current Limitation Programmable and selectable from PEAK & AVG Efficiency Better than 88% at full power INPUT 400Vac ±... -
Page 10: Technical Specifications
1.3. TECHNICAL SPECIFICATIONS 1.3.1. INRUSH CURRENT VS TIME 3.50 Inrush 3.00 2.50 2.00 1.50 Count. 1.00 0.50 0.00 10.0 20.0 30.0 40.0 50.0 60.0 Time (sec) USER MANUAL TPS/M 62000595 REV 03_ – 01/06/2021... -
Page 11: Mechanical Drawings
1.4. MECHANICAL DRAWINGS 1.4.1. TPS/M/D 1K5 ELETTROTEST PROFESSIONAL ELECTRONICS ELETTROTEST VOLTAGE FREQUENCY ALARMS MODE SET VOLT FREQ. SET SENSE SUPPLY SYSTEM PROG OVERVOLTAGE OVER TEMP UNDERVOLTAGE INVERTER VOLT DISPLAY VOLT FREQ. REF OUTPUT CURRENT VOLTAGE V LIMIT OUT 1... -
Page 12: Tps/M/D 3K
1.4.2. TPS/M/D 3K ELETTROTEST PROFESSIONAL ELECTRONICS ELETTROTEST VOLTAGE FREQUENCY ALARMS MODE SET VOLT FREQ. SET SENSE SUPPLY SYSTEM PROG OVERVOLTAGE OVER TEMP UNDERVOLTAGE INVERTER VOLT DISPLAY VOLT FREQ. REF OUTPUT CURRENT VOLTAGE V LIMIT OUT 1 OUT 1 OUT 1... -
Page 13: Tps/M/D 6Kva
1.4.3. TPS/M/D 6KVA USER MANUAL TPS/M 62000595 REV 03_ – 01/06/2021... -
Page 14: Tps/M/D 9Kva
1.4.4. TPS/M/D 9KVA USER MANUAL TPS/M 62000595 REV 03_ – 01/06/2021... -
Page 15: Notes For Users
1.5. NOTES FOR USERS 1.5.1. FRONT PANEL Item Name Description Touch Screen Input programming data or options by using touch screen interface USB Type A Interface USB Type A for storage key USB Type B Interface USB type B for uprgrade firmware Power Switch Press this button to switch on/off power part Knob... -
Page 16: Installation
• Connect cable load with appropriate dimension and p ut the ferrite core on the load cable with 3 turns close to TPS/M/D • Optionally: Connect the sense wires • Keep free under and lateral area for ventilation 1. -
Page 17: Tps/M/D 3K
Reclose the terminal cover securing it on the two lateral hooks. • Connect cable load with appropriate dimension and p ut the ferrite core on the load cable with 3 turns close to TPS/M/D • Optionally: Connect the sense wires •... -
Page 18: Tps/M/D 6K
• Connect cable load with appropriate dimension and p ut the ferrite core on the load cable with 3 turns close to TPS/M/D • Reclose the terminal cover joining it on the two lateral hook 1. 4 wire sense voltage 2. -
Page 19: Tps/M/D 9K
• Reclose the cable glands. • Connect cable load with appropriate dimension and p ut the ferrite core on the load cable with 3 turns close to TPS/M/D • Reclose the terminal cover joining it on the two lateral hook 4 wire sense... -
Page 20: Protection Device
2.2. PROTECTION DEVICE 2.2.1. GENERAL DIAGRAM Mandatory Safety protection (Magneto-thermal and differential) are mandatory according to the nominal TPS characteristic. An additional adequate protection must be add when electrical components (cable, Equipment under test – EUT) cannot support TPS performance. 2.2.2. -
Page 21: Magneto-Thermal Protection
(see section 1.2). 2.2.4. LINE FUSES Fuses can be used to protect power line of the TPS. It's recommended to use delayed fuses according to the nominal input characteristic (see section 1.2). 2.2.5. INTERNAL FUSES TPS/M/D 1K5 Item Name Description... -
Page 22: Internal Fuses Tps/M/D 9K
2.2.8. INTERNAL FUSES TPS/M/D 9K Item Name Description Size Current Type Voltage F1, F2, F3 Mainline Input 10x38 500V Input Aux supply 10x38 400V Aux Supply 5x20 3.15A 250V Safety Circuit 5x20 1.25A 250V The layout may be different and depends the model design 2.2.9. -
Page 23: Accessory Tps/M/D 6K
2.2.11. ACCESSORY TPS/M/D 6K Item Description FUSE 10x38 16A GL 500V FUSIBILE 5x20 3.15A AT 250V FUSIBILE 5x20 1.25A AT 250V MULTICONTACT KT425-SL RED MULTICONTACT KT425-SL BLACK MULTICONTACT LS425-SL MULTICONTACT KBT6-AR-N/10-S RED MULTICONTACT KBT6-AR-N/10-S BLACK Ferrite Bead USB KEY 2.2.12. ACCESSORY TPS/M/D 9K... -
Page 24: Wiring Diagram
2.3. WIRING DIAGRAM 2.3.1. 2 WIRE CONFIGURATION USER MANUAL TPS/M/D 62000447 REV 00_ – 31/08/2021... -
Page 25: Wire Configuration
2.3.2. 4 WIRE CONFIGURATION USER MANUAL TPS/M/D 62000447 REV 00_ – 31/08/2021... -
Page 26: Remote Control
Use a serial cable according to the standard defined in the figure below. WIRING CONNECTION DB9 Poles Female DB9 Poles Male 3.3. RS485 pinout It is 2 wire configuration DB9 Poles Female USER MANUAL TPS/M/D 62000447 REV 00_ – 31/08/2021... -
Page 27: Local Operation
(see section 1.5.1) is in position ON, will be displayed the boot page with logo and the revision of firmware installed and the start up procedure will be completed with the home page view USER MANUAL TPS/M/D 62000447 REV 00_ – 31/08/2021... -
Page 28: Home Page
Allows access to the settings menu page USB button Allows access to the USB menu page Slide button Allows access to special functions page Information bar Displays information for the user Output button Allows to enable the output USER MANUAL TPS/M/D 62000447 REV 00_ – 31/08/2021... -
Page 29: Voltage Setpoint
Then press “Enter” to confirm the new setting. 4.5. SETTINGS MENU By clicking on the button , allows to access the Settings Menu page USER MANUAL TPS/M/D 62000447 REV 00_ – 31/08/2021... - Page 30 Allows to access the User Settings page Remote Setting button Allows to access the Remote Settings page Operation Setting button Allows to access the Operation Settings page Limitation Settings button Allows to access the Limitation Settings page USER MANUAL TPS/M/D 62000447 REV 00_ – 31/08/2021...
-
Page 31: Operation Settings
• 300V OUTPUT MODE BUTTON THIS MACHINE HAS ONLY 1PH MODE Allow to change the AC/DC mode from • DC AC/DC MODE BUTTON • AC CURRENT MODE THIS MACHINE HAS ONLY INRUSH MODE USER MANUAL TPS/M/D 62000447 REV 00_ – 31/08/2021... -
Page 32: Sense Mode
1200/9600/19200 1200/9600/19200 Moxa driver interface) TPC communication) ✓ ✓ ✓ ✓ Modbus (Baud rate select by (protocol encapsulated on 1200/9600/19200 1200/9600/19200 Moxa driver interface) TPC communication) ✓ Modbus TCP/IP USER MANUAL TPS/M/D 62000447 REV 00_ – 31/08/2021... -
Page 33: Ethernet Settings
4.5.2.1.1. ETHERNET settings 4.5.2.1.2. RS 232 settings 4.5.2.1.3. RS485 settings USER MANUAL TPS/M/D 62000447 REV 00_ – 31/08/2021... -
Page 34: User Settings
Sound Feedback button Allows to enable o disable sound feedback Brightness button Allows to change the display brightness Language button Allows to change the menu language Theme button Allows to change the interface colours USER MANUAL TPS/M/D 62000447 REV 00_ – 31/08/2021... -
Page 35: Output Current Limit
Enable or disable the peak limit 4.5.4.1.1. Peak limit Output current is limited instantaneously without delay at the limitation set. Only an initial transient peak remains, due to the output capacitor discharge. USER MANUAL TPS/M/D 62000447 REV 00_ – 31/08/2021... - Page 36 Limitations is enable both AC and DC mode USER MANUAL TPS/M/D 62000447 REV 00_ – 31/08/2021...
-
Page 37: Usb Store
Check Table of the data saved on the usb 4.7. OPERATION MENU By clicking on the button , allows to access the Operation menu page USER MANUAL TPS/M/D 62000447 REV 00_ – 31/08/2021... -
Page 38: Alarms
Not linear loads with an overload less than the nominal one but with a very high crest factor current allow the current defence. CURRENT ALARM does not cause any stop. USER MANUAL TPS/M/D 62000447 REV 00_ – 31/08/2021... -
Page 39: Voltage Allarm
The alarm appears in case of high temperature inside of TPS. TPS stops and the OVERTEMPERTURE alarm is active 4.7.1.7. INVERTER ALARM In case of bad operations of the overload sections (inverter) TPS stops and the INVERTER alarm is active USER MANUAL TPS/M/D 62000447 REV 00_ – 31/08/2021... -
Page 40: Table Of The Data Saved On The Usb
The number of minutes with the output active from Running [min] the last turn on of the machine The number of seconds with the output active from the Running [sec] last turn on of the machine USER MANUAL TPS/M/D 62000447 REV 00_ – 31/08/2021... -
Page 41: Guarantee
Naturally are not admitted handlings not anticipated in the present handbook. The instrument has consigned complete of CERTIFICATE of CALIBRATION, that guarantees the integrity of the same. Such document must accompany the apparatus in case of periodic verification always. USER MANUAL TPS/M/D 62000447 REV 00_ – 31/08/2021... - Page 42 Elettrotest Spa is committed to a program of continuous improvement of products and information to the customer. Therefore, the company reserves the right to make changes to the documentation and specifications without notice and assumes no responsibility for any incorrect information.
