Hobo U12 Quick Start Manual

Hobo U12 Quick Start Manual

4-external channel outdoor/industrial data logger

Advertisement

Quick Links

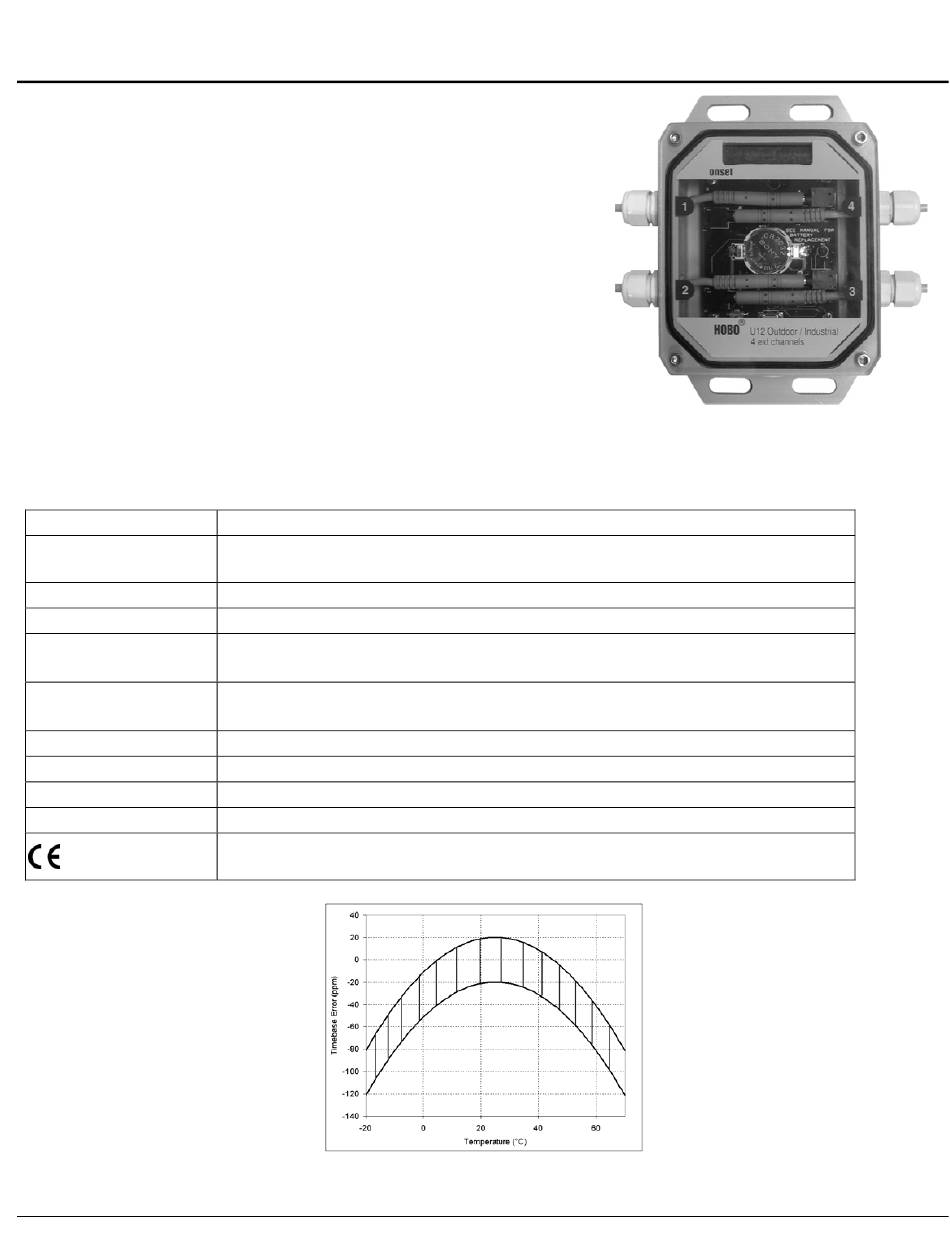

HOBO
U12 4-External Channel
®
Outdoor/Industrial Data Logger
(Part # U12-008)
Inside this package:

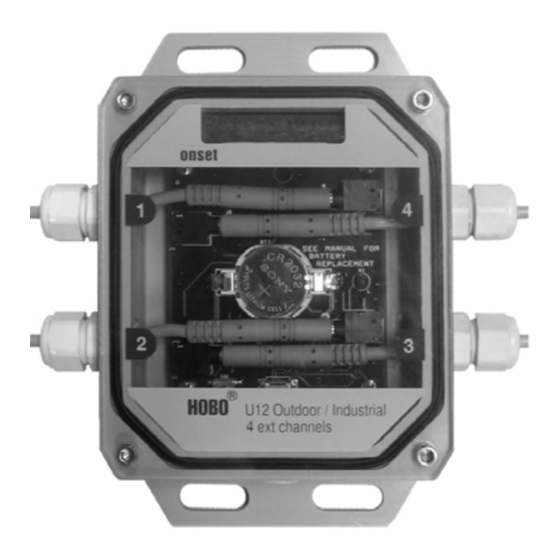

HOBO U12 4-External Channel Outdoor/Industrial Data Logger
Desiccant pack
Mounting/spare parts kit: Allen wrench, dome plug and O-ring, four
mounting screws, and four flat washers
Thank you for purchasing a HOBO data logger. With proper care, it will give
you years of accurate and reliable measurements.
The HOBO U12 4-External Channel Outdoor/Industrial data logger has a 12-
bit resolution and can record up to 43,000 measurements or events. The four
external channels accept a variety of sensors, including temperature and split-
core AC current sensors as well as 4-20 mA and voltage input cables (sold
separately). The logger uses a direct USB interface for launching and data
readout by a computer.
An Onset software starter kit is required for logger operation. Visit www.onsetcomp.com for compatible software.

Specifications

Measurement range
Accuracy
(logger only)
Resolution
Time accuracy
Operating range
Operating temperature
Battery life
Memory
Weight
Dimensions
© 2009 Onset Computer Corporation
Part #: MAN-U12008, Doc #: 13132-A
External input channels (see sensor manual): 0 to 2.5 DC Volts
± 2 mV ± 2.5% of absolute reading
± 2 mV ± 1% of reading for logger-powered sensors
0.6mV
± 1 minute per month at 25°C (77°F), see Plot A
-20 to 70°C (-4° to 158°F)
Weatherproof case tested to NEMA 6 standard
Logging: -20° to 70°C (-4° to 158°F)
Launch/readout: 0° to 50°C (32° to 122°F), per USB specification
1 year typical use (see "Battery" details on last page)
64K bytes (43,000 12-bit measurements)
200 g (7 oz)
140 x 137 x 32 mm (5.5 x 5.38 x 1.25 inches)
The CE Marking identifies this product as complying with all relevant directives in
the European Union (EU).
Plot A
