DQ & MQ-Rack User Guide

Main Display.......................................................................

The main display is always visible when the Menu System is in a locked state.
On the MQ-Rack it indicates:
Link: whether the rack and the console are linked.
96k/48k: the current sample rate of the rack.
S: the clock source to which the rack is syncing.
Outs: which MADI input has control/access to the output sockets.
Lock: this reports whether the incoming MADI clock is stable (LOCK) or not (NO LOCK).
On the DQ-Rack it indicates:
SR: sample rate at which the rack is running at.
Mode: whether the rack is in switched or redundant connection mode.
Link: this shows if the rack is receiving control information from the connected device. When receiving control
data, the rack will display OK and when not receiving control data it will display NO CTRL.
Note: On a DQ-Rack, the DANTE device name (which can be set in DANTE Controller) is displayed at the
top of the system setting LCD screen when in a locked state.

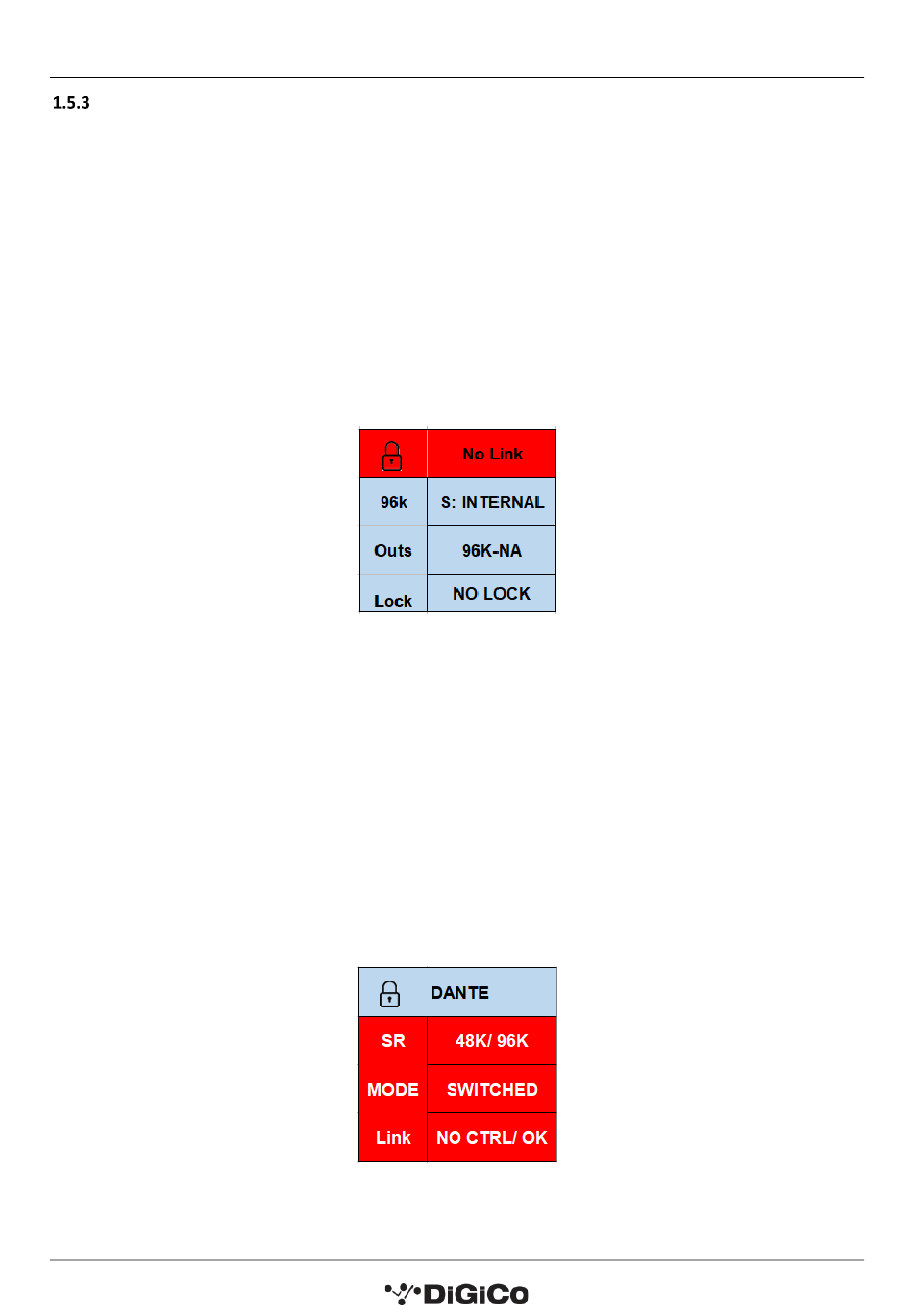

MQ-Rack Main Display
DQ-Rack Main Display
1.5 Using the Q-Rack Menu System
11
