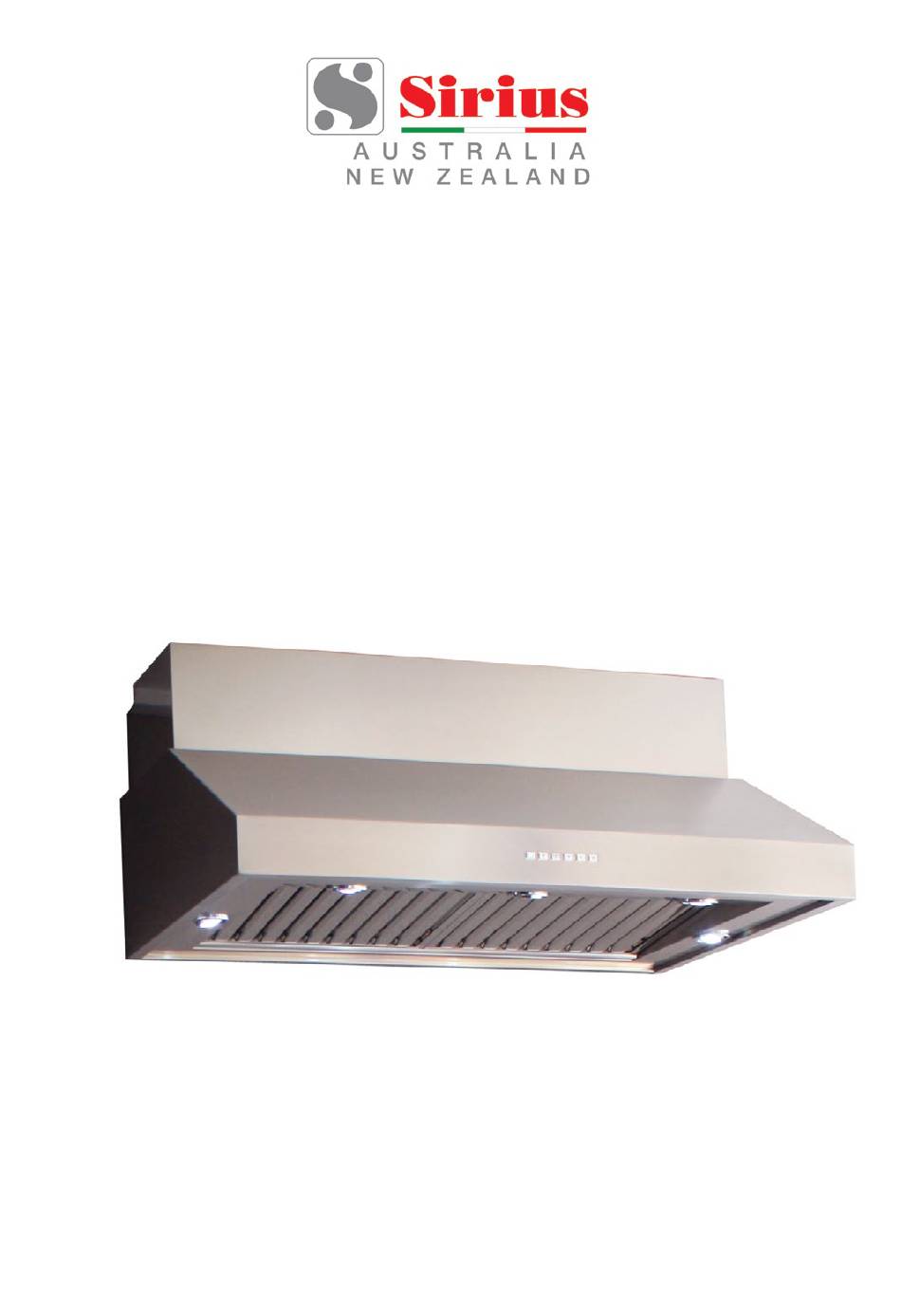

- Page 1 Congratulations on your purchase! Thank you for choosing a Sirius product. SLEM83 ALFRESCO RANGEHOOD OFFBOARD INSTALLATION INSTRUCTIONS SLEM83 BBQ 1200 EAN #9351116001162 www.siriusbrand.com...
-
Page 2: Table Of Contents
BEFORE YOU INSTALL INSTALLING THE RANGEHOOD OPERATION MAINTENANCE REMOTE CONTROL / OPERATION SLEM83 WIRING DIAGRAM BRACKET TEMPLATE WARRANTY... -
Page 3: Before You Install
BEFORE YOU INSTALL - DUCTING INFORMATION Sirius warranty covers only Sirius product. If you choose to install a non-Sirius branded accessory such as flexible ducting, Sirius will only warrant the rangehood and motor. If installation is found to be the cause of failure or issue then charges will apply for service and parts. Flexible ducting is not permitted under any circumstances. - Page 4 ensuring omnipolar disconnections from the grid, WARNING with an opening distance between the contacts of at least 3mm, then such disconnecting devices must be Min. 1200mm - Max. 1600mm distance for supplied within the fixed installation. barbecues. If the fixed appliance is endowed with a supply cord If the rangehood is positioned above the max height and a plug, the appliance has to be put in a place recommended, warranty may be compromised...
-
Page 5: Installing The Rangehood
WARNING: Failure to install the screws or fixing WARNING device in accordance with these instructions may result in electrical hazards. 1. The rangehood is quite heavy, so two people will be needed for installation. SL83 FRESCO RANGEHOOD INSTALLATION - OFFBOARD MOTOR CAUTION 2. - Page 6 (1200mm rangehood Fig. 4) 5. Insert the supplied plastic dowels to the pre-drilled holes and fix bracket to the wall with the supplied screws. (Note: Please use a spirit level to make sure the bracket is perfectly level.) 6. Once the bracket is secure, using two people, lift the hood and drop the horizontal support bar onto the fixed bracket (Fig.
-
Page 7: Operation
(see www.siriusbrand.com for approved Manual control buttons: ducting) to the outlet collar on the rangehood and SLEM83 BBQ 1200 secure in place with a ring clamp if you are using semi rigid ducting. If you are using solid/rigid A: Light switch on/off ducting, an external duct connector is required. -
Page 8: Remote Control / Operation
REMOTE CONTROL OPERATION MODE Standard configuration: Working: Standard configuration requires all rangehood radio 6 channel control for rangehood remote. control systems to be provided with the same transmission code. In the event two rangehoods are • When the rangehood is first turned on, hold the installed in the same room or nearby, each system lighting button for 5 seconds. -
Page 9: Slem83 Wiring Diagram
SLEM83 BBQ 1200 WIRING DIAGRAM... -
Page 10: Bracket Template
BRACKET TEMPLATE... -
Page 11: Warranty
WARRANTY INFORMATION Dear Customer, Thank you for choosing this Sirius Rangehood. We are sure that it will provide you with many years of excellent service. At Arisit Pty Limited we are dedicated to ensuring that our customers receive the best possible after-sales care. The Sirius ‘Protection Plan’... - Page 12 Your Warranty Register now to qualify. Terms & Conditions This warranty will not apply where: Division or travel costs for a technician or The fault is caused by accident, Authorised Service Agent shall be for the misuse, an infestation of insect account of the Purchaser.
