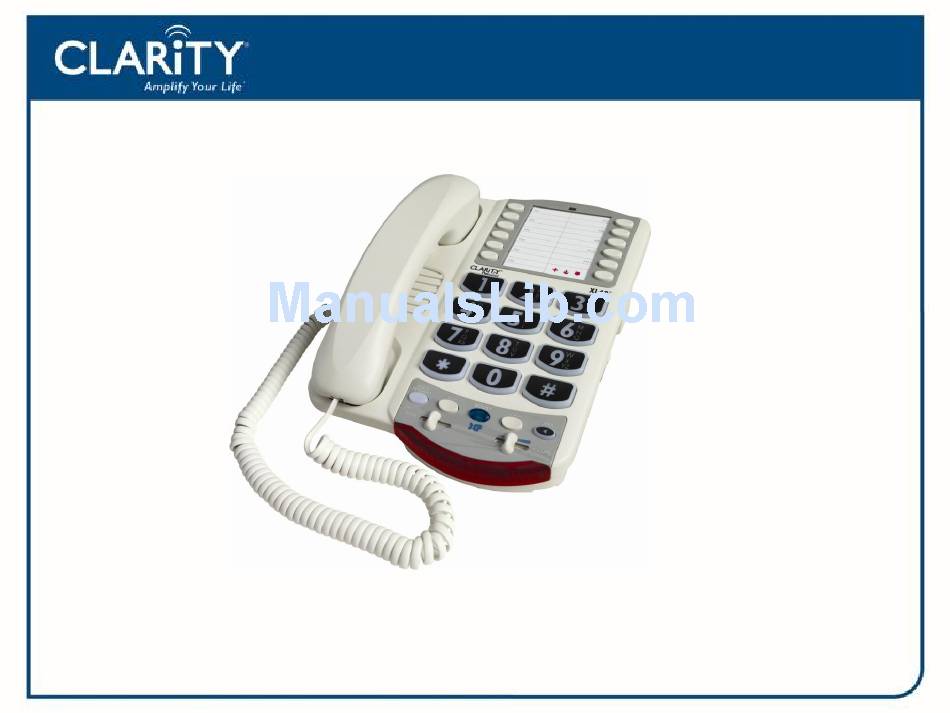

  • Page 1 XL40D...
  • Page 2 The Clarity Professional XL40D offers our patented Digital Clarity Power that uses digital technology to enhance the volume and clarity of your phone conversations. Up to 50 decibels of amplification, the XL40D is ideal for those with severe hearing loss or low vision.

  • Page 3: New Features

    • Upgraded from 40dB to 50dB • Digital Clarity Power™ • ClarityLogic ™ enabled • Four Tone Settings: Low Frequency, Flat Amplification, Clarity Power and MBC Low • Talking Keypad • Speakerphone • Outgoing Speech Amplification up to 15 decibels •...
  • Page 4 Parts Checklist XL40D XL40D Base Handset Mounting Bracket Coiled Handset Cord Telephone Cords AC Adapter User Guide Quick Start Guide...
  • Page 5 Product Layout XL40D Volume Slider Boost Button Tone Selector Switch Speaker Button Memory Buttons...

  • Page 6: Product Layout

    Product Layout XL40D 1. Voice Mail/Missed Call Indicator The light will illuminate green for a new Voice Mail. When there is no new voice mail the light will display red when the Ringer is OFF. 2. Missed Call Indicator This light will illuminate when there is a missed call.
  • Page 7 Product Layout XL40D 1. Ringer Tone 2. Ring Volume 3. Ringer On/Off 4. Headset Port 5. Outgoing Speech Amplification 6. Neckloop Port...
  • Page 8 Product Layout XL40D 7. Bedshaker Port 8. Phone Line 9. AC Adapter...
  • Page 9 Bottom View Product Layout XL40D 1. Talk Keypad Switch 2. Boost Override Switch 3. Missed Call Switch 4. Voice Mail Switch 5. Tone/Pulse Switch...

  • Page 10: Installation

    1. Connect telephone line to “Line” jack of phone and to the wall jack 2. Connect handset cord to telephone 3. Connect AC Adapter to telephone, and then to wall outlet. Installation XL40D...
  • Page 11 Volume Control. BOOST also activates the Tone Settings On the bottom of the XL40D, there is a Volume Reset Override switch. When this is set to “On” the Boost function is automatically enabled every time the phone is picked up.
  • Page 12 The XL40D offers four different tone settings to provide an experience that may be customized to fit a specific users need. The illustration above shows how the four settings relate to each other and the amount of amplification they give to the different frequencies of sound.
  • Page 13 The first tone setting is one that emphasizes the low frequency sounds. This is for those who have a hard time hearing lower pitched sounds. This type of hearing need is common with those who have noise-induced hearing loss. DCP: Tone Settings XL40D...
  • Page 14 The second tone is a flat amplification of all sounds. For the user who wants full volume amplification for every type of sound. Suggested if the user wears a digital hearing aid while using the phone. DCP: Tone Settings XL40D...
  • Page 15 The third tone setting is our set Clarity Power that begins to focus more on the higher frequency sounds and add speech intelligibility. It is a medium between tone setting two (2) and four (4). DCP: Tone Settings XL40D...
  • Page 16 The fourth tone setting provides full emphasis on speech intelligibility using Clarity’s Multi-Band Compression. This is for the user who may be able to hear the words being spoken, but does not understand or cannot distinguish what is being said.
  • Page 17 A simplified and easy to use customer support service. 1. While talking to a Clarity representative, the telephone sends information such as its model name and settings to Clarity. 2. The representative is immediately aware of the type and current settings of the phone.
  • Page 18 1. You call 1-877-LOGIC24 from your XL40D 2. The call travels a standard telephone line to our server 3. The server then answers the call and evaluates the status of the phone and then sends the voice and gathered data to a representative.
  • Page 19 ClarityLogic Memory Dial For your convenience, Clarity has pre-programmed the customer support number into M1 of the phone. If you do not wish to have this number stored in your phone, any new number can be programmed to that button.

  • Page 20: Program Memory

    2. Press and hold the desired memory location. A beep will sound. 3. Enter the telephone number you wish to store. 4. Press the Hold/Program button to save the desired number. 5. Place the handset back into the cradle. Program Memory XL40D...
  • Page 21 Notification Accessory XL40D The Bed Shaker is an optional accessory that can be connected to the phone and will begin to vibrate when the phone rings.

  • Page 22: Technical Specifications

    Full range: 300 to 3000Hz using one slide control. Dimensions Size: 9 1/2” x 7” x 3 1/4” (24.13cm x 17.78cm x 8.25cm) Weight: 2.52 lbs. (1.14 kg) Power Requirements AC Adapter: 9VDC, 500 mA Batteries: 4 AA alkaline batteries (not included) Technical Specifications XL40D...
