12.1.3 BVA2.0 Indoor Unit Control Board

3
2
1
10
9

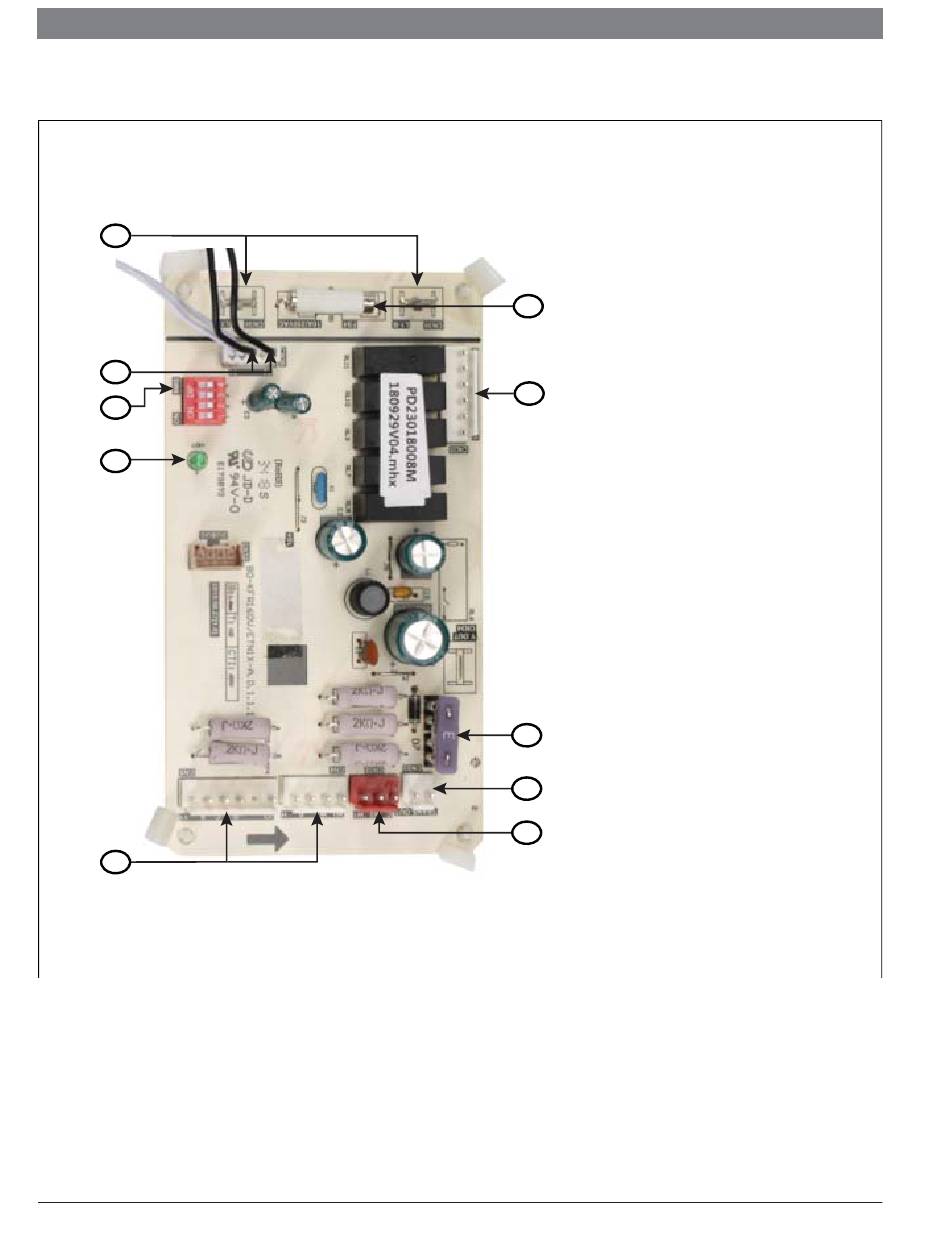

Figure 15 BVA2.0 Indoor unit control board
Bosch Thermotechnology Corp. | 07.2021
4
No. Function Description
1 SW6 Dipswitches
5
2 T2 Sensor
3 High Voltage Connection
4 Non-replaceable Fuse
5 Indoor Blower Connection
6 Replaceable Fuse
7 Transformer Connection
8 Electric Heat Kit Connection
9 Thermostat Connection
10 Status LED
6
7
8
Bosch IDS 2.0 | 39
