Hitron CDA3-20 Quick Installation Manual

QUICK
INSTALLATION
GUIDE
FOR YOUR CABLE MODEM
STEP BY STEP
INSTRUCTIONS
TO CONNECT CABLE INTERNET MODEM (HITRON CDA3-20)
Purchased a Wi-Fi Router from Flash Services?
Follow the Modem & Wi-Fi Router Combo Quick
Installation Guide included with your router.
IMPORTANT!
Wait until your
internet installation/
activation date and
time, then follow the
steps in this guide.
STEP

Connect your Coaxial Cable to the Modem

• Locate the coaxial cable in your home.
(connected to the cable outlet).
• Connect it to the cable port,
(located on the back of the modem), using
3 clockwise rotations or until securely fastened.
Coaxial cable is not
included in the box
Coaxial cable
second end in the modem
Cable Port
CABLE MODEM
INCLUDED
EQUIPMENT:
Locate Coaxial cable
wall outlet connection
in your home
ETHERNET CABLE
STEP

Power on your Modem

• Plug the modem power adapter into the back of the modem.
• Connect the other end into the nearest power outlet.
• The "Power" LED on the front of the modem
should be blue.
Power adapter is
included in the box

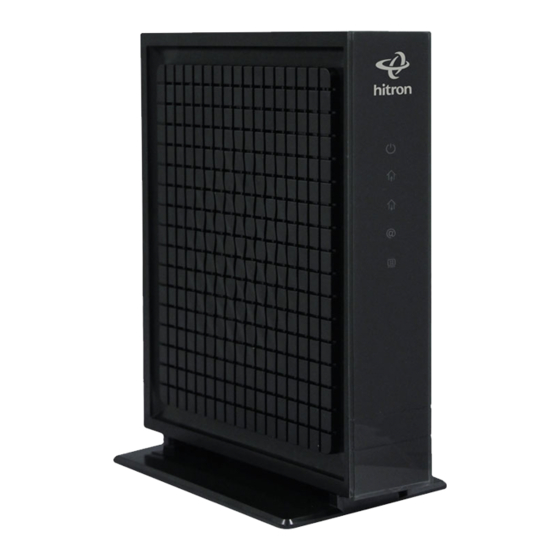

INTERNET MODEM
(HITRON CDA3-20)
ENGLISH
MODEM POWER ADAPTER
