- Page 1 CODA User Manual Cable Modem...
-
Page 2: Table Of Contents
Connecting to the Internet Activating your Internet Service Perform a Speed Test Connect your Cable Modem to a Router after Installation and Activation Chapter 4 FAQs and Troubleshooting Troubleshooting Specifications Limited Warranty Support User Manual - CODA - Cable Modem... -
Page 3: Chapter 1 Hardware Overview

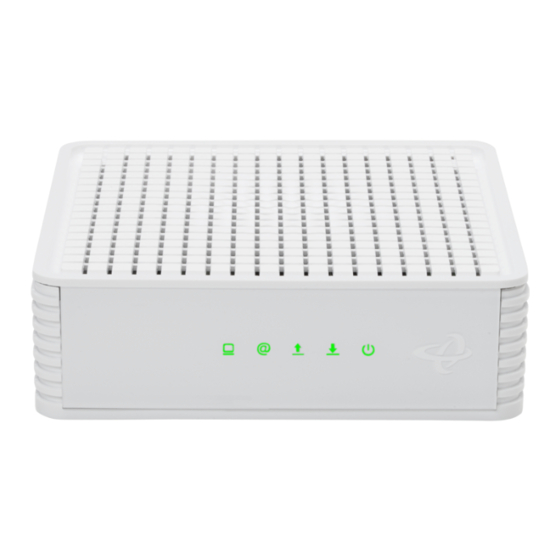

Hitron’s CODA DOCSIS 3.1 Cable Modem provides an ultra-fast high-speed cable Internet connection with speeds up to 2 Gbps*. Use your CODA to directly connect a computer or a router to your Cable Internet service through an Ethernet connection. The Hitron CODA cable modem is certified by all major cable Internet providers. -
Page 4: Minimum System Requirements
DOCSIS 3.0 32x8 channel bonding / DOCSIS 3.1 2x2 multi-carrier OFDM • Full-featured, high-bandwidth cable modem • Full capture bandwidth • IPv4 and IPv6 support • Well-defined LEDs clearly display device and network status. User Manual - CODA - Cable Modem... -
Page 5: Front Panel
Internet Service Provider Downstream...Solid Green Blue when connected to a downstream channel LAN...Solid Green when a device is connected to one of the Power...Green when powered on. Ethernet ports. Figure 2: CODA Cable Modem Front Panel... - Page 6 The CODA cable modem is offline. Upstream Green, blinking The CODA is searching for an upstream frequency on the CABLE connection. Green, steady The CODA has successfully located and locked onto a single upstream frequency on the CABLE connection.
-
Page 7: Rear Panel
Reset opening of the back of your CODA modem. 2. Press and hold the Reset button for 10 seconds or more to restore* the CODA back to its factory default settings. *NOTE: If you restore the CODA, any modified settings cannot be recovered. -
Page 8: Product Label
You may have to provide the following information listed on your cable modem product label: • Model name (CODA) • Serial number (S/N) • MAC address (CM MAC) Figure 4: Product Label User Manual - CODA - Cable Modem... -
Page 9: Chapter 2 Connecting The Cable Modem
Chapter 2 Connecting Your Modem Where to Place your Cable Modem Caution: This product is for indoor use only. Do not route the Ethernet cable(s) outside of the building. Exposure of the cables to lightning could create a safety hazard and damage the product. Do not locate the cable modem where it will be exposed to moisture or excessive heat. -
Page 10: Connect Your Cable Modem To A Computer
Coax Ethernet Power Figure 5: Connect your CODA cable modem directly to a computer Note: Before you connect the cable modem and contact your cable Internet service provider, you should have your cable account number, account phone number, and login information (your email address or user name and password) available. - Page 11 Chapter 2 Connecting Your Modem Connect the power adapter provided in the package to the Power port on the cable modem and plug the other end of the power adapter into an electrical outlet. When the start-up procedure is completed, the Power LED lights will be solid green.
-
Page 12: Chapter 3 Connecting To The Internet
Internet service. ii. If the cable modem is visible to your cable Internet provider, reboot your cable modem and check your online status again. User Manual - CODA - Cable Modem... -
Page 13: Perform A Speed Test
During the installation and activation, you must connect the cable modem directly to a computer. But after installation and activation, you can connect the cable modem to a router. Coax Ethernet Power Figure 6:. Connect your CODA cable modem to a router... - Page 14 Wait until the router is ready (check your router’s instruction manual to determine when its ready). Connect a computer to the router over a WiFi connection or with an Ethernet cable to a LAN port on the router. User Manual - CODA - Cable Modem...
-
Page 15: Chapter 4 Faqs And Troubleshooting
Reboot (or restart) the cable 1. Insert the end of a paper clip or other small object with a modem Resets your cable narrow tip into the Reset opening on the back of your CODA modem to your existing modem. -
Page 16: Limited Warranty
Chapter 4 FAQs and Troubleshooting Limited Warranty This product is backed by a Hitron limited 180 day Hardware Warranty when purchased from a Hitron authorized reseller. Go to https://us.hitrontech.com/legal/limited-warranty-statement/ for more information. Support Basic technical support provided for 90 days from purchase date, when purchased from a Hitron authorized reseller. - Page 17 Notes...
- Page 18 The information in this User’s Guide is accurate at the time of writing. This User’s Guide is provided “as is” without express or implied warranty of any kind. Neither Hitron Technologies nor its agents assume any liability for inaccuracies in this User’s Guide, or losses incurred by use or misuse of the information in this...
