  • Page 1 LanTEK IV The Future of Cable Certification Quick Reference Guide Proof of Performance Proof of Performance...
  • Page 2 LanTEK IV Quick Reference Guide © IDEAL INDUSTRIES Networks Ltd 2019 The information contained in this document is the property of IDEAL INDUSTRIES Networks Ltd. and is supplied without liability for errors and omissions. No part of this document may be reproduced or used except as authorized by contract or other written permission from IDEAL INDUSTRIES Networks Ltd.
  • Page 3 Contents Introduction Getting Started Help Options Job Menu Key Functions Home Screen Settings Creating a Job Connecting to Wi-Fi SYNC Creating a test report Proof of Performance...

  • Page 4: Getting Started

    INTRODUCTION The LanTEK IV and IDEAL AnyWARE are a Cable Certification System. This guide will give you an overview of the key features of LanTEK IV and how to start using AnyWARE to managed your project and test result. GETTING STARTED Before you start using your LanTEK IV follow the steps below to ensure you can take advantage of all the features your LanTEK IV has to offer.
  • Page 5 Link your LanTEK IV to your IDEAL AnyWARE Account by logging into your IDEAL AnyWARE account. • Select Menu: Click Devices: Add Device: • Enter your Device ID and select submit. The LanTEK IV device ID is found in the settings menu (below). Proof of Performance...

  • Page 6: Help Options

    HELP OPTIONS LanTEK IV and AnyWARE cloud have a comprehensive on-board help which will guide you through how to use the features. This can be accessed as follows; Help on the LanTEK IV Help on the AnyWARE Cloud Icon on the Menu Bar...

  • Page 7: Key Functions

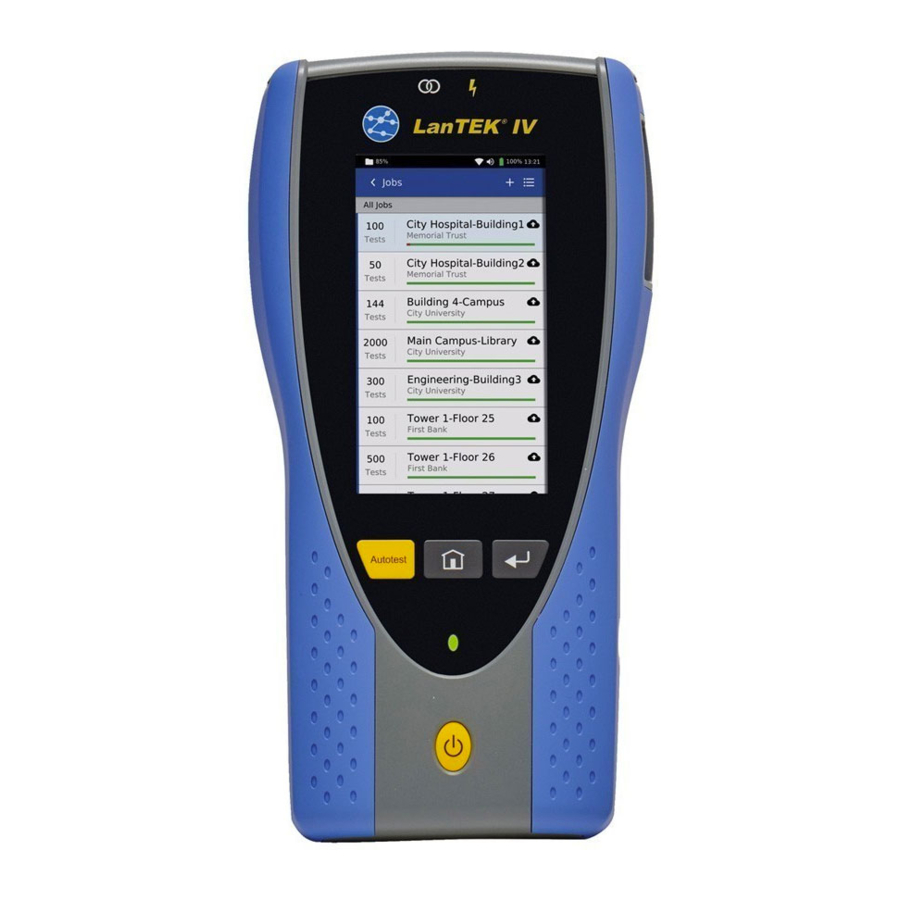

    KEY FUNCTIONS LanTEK High voltage warning Disconnect cable Status Connection immediately Blue when both units are connected USB Type A USB Type C Touch Screen Talkset Jack Display Contextual LED Home button (press indicators - to return to active colour indicates job test list) status Charging Port...

  • Page 8: Home Screen

    HOME SCREEN The LanTEK IV home screen has been designed to display the details of the current project. Settings and Help Test Count is the number of tests saved/ total memory Active job name, total number capacity of tests and progress bar...
  • Page 9 Autotest settings are your LanTEK IV with preferred set-up for a Job. AnyWARE cloud LanTEK IV will use these settings as default for all new jobs to reduce set-up time Set the date/time and measurement units Set operator name...
  • Page 10 ADDING JOBS/TESTS To create a job select JOBS from the menu bar and then select: Enter job name and if required, select the job identifiers (optional). This will allow tests to be grouped specifically by building, floor, etc. Select when complete. Select the newly created job from the jobs screen.
  • Page 11 ADDING JOBS/TESTS Select standard Choose the Choose type of appropriate link standard Optional Step, During the set-up the Cable and Connector manufacture can be selected to add more Select when detail to the finishing completed report Proof of Performance...
  • Page 12 CONNECTING TO WI-FI To connect LanTEK IV to Wi-Fi, firstly select the Settings menu: Select Wi-Fi from the Settings menu and switch toggle to turn on Wi-Fi. Select your chosen Network and enter password (if required). Wi-Fi successfully connected www.idealnetworks.net...
  • Page 13 Selecting SYNC will allow you to download pre-configured jobs or upload completed jobs to the cloud. If you are using the IDEAL AnyWARE desktop SYNC will also allow you to download results to USB. To SYNC your LanTEK IV: Select SYNC Choose download or Jobs that have been upload.

  • Page 14: Download Report

    CREATING A TEST REPORT Jobs can be reviewed and edited using IDEAL AnyWARE Cloud or Desktop, Jobs synced via Wi-Fi will automatically be added to jobs menu of the cloud. Key: Upload jobs from Download View, download and USB using the Cloud report email PDF reports and Desktop Swipe...
  • Page 15 IDEAL INDUSTRIES NETWORKS LIMITED Stokenchurch House, Oxford Road, Stokenchurch, High Wycombe, Buckinghamshire, HP14 3SX, UK. Specification subject to change without notice. IDEAL NETWORKS, LanTEK, FiberTEK, Tel. +44 (0)1925 428 380 | Fax. +44 (0)1925 428 381 E&OE VisiLINQ and the IDEAL AnyWARE logos uksales@idealnwd.com...
