Lifetime 60324 Assembly Instructions Manual
  1. Manuals
  2. Brands
  3. Lifetime Manuals
  4. Outdoor Storage
  5. 60324
  6. Assembly instructions manual

Lifetime 60324 Assembly Instructions Manual

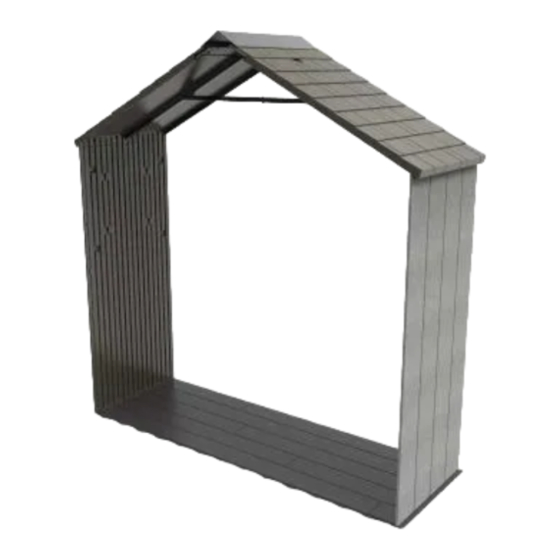

30" (76,2 cm) expansion kit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

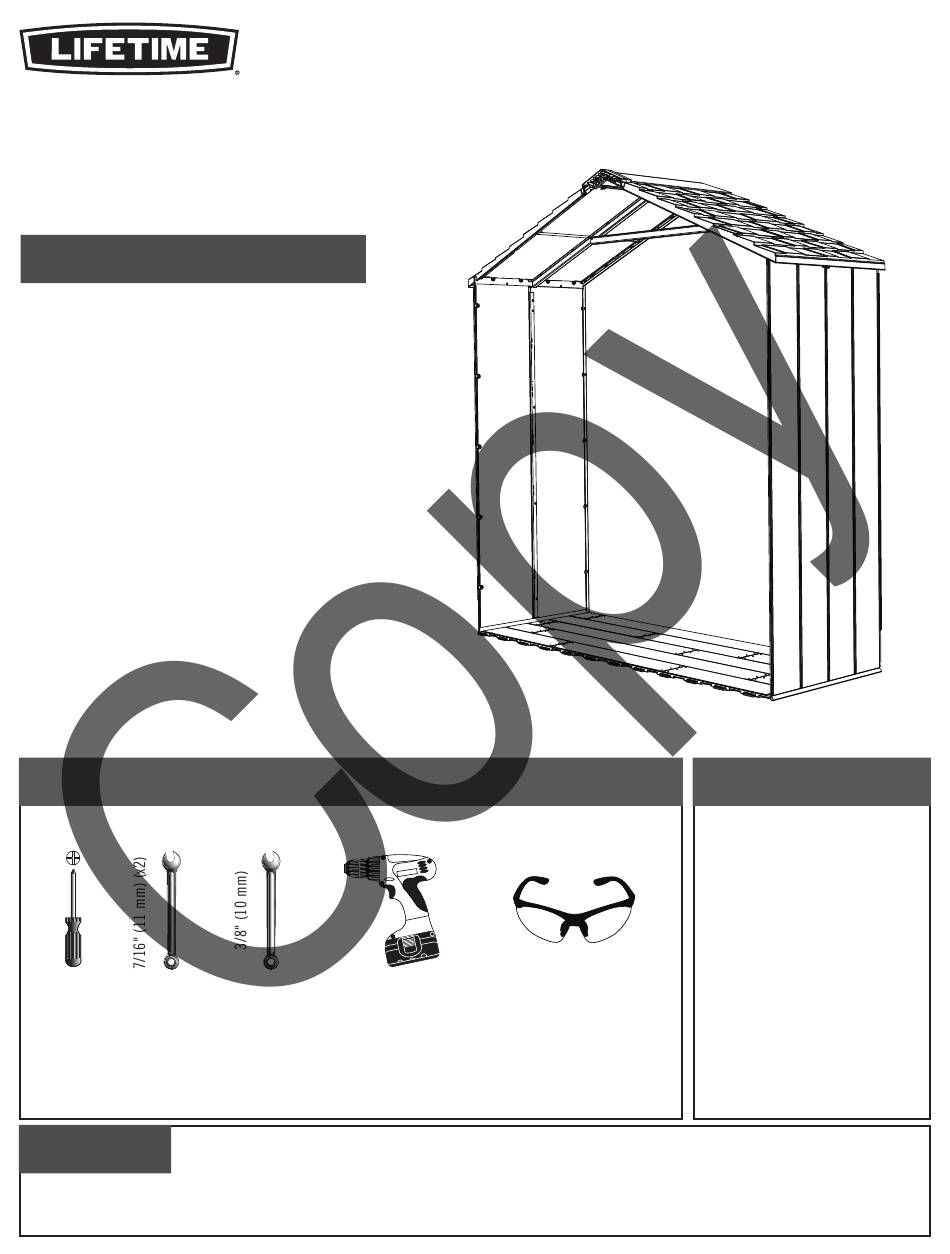

30" (76,2 cm)
EXPANSION KIT
MODEL #60091
MODEL 60324
BEFORE ASSEMBLY:
• Assemble on a level surface
• 3+ people recommended for setup
For Customer Service in mainland Europe:
E-mail: cs@lifetimeproducts.eu
FOR DOMESTIC USE ONLY!
IMPORTANT: RETAIN FOR FUTURE REFERENCE. READ CAREFULLY.
TOOLS REQUIRED
QUESTIONS?
CONTACT LIFETIME CUSTOMER SERVICE:
Call: 1-800-225-3865
7:00 am–5:00 pm (Monday–Friday) MST
and 9:00 am–1:00 pm Saturday MST
Live Chat: www.lifetime.com
(click on "Ask An Expert" tab)
Video Instructions:
www.youtube.com/lifetimeproducts
ASSEMBLY INSTRUCTIONS
Pour le français, voir la page 2. Para el español, ver la página 3.
Icon Legend...............................4
Warnings & Notices.....................5
Alerts.................................6
Parts Identifi er............................7
Shed Disassembly.......................8
Truss Assembly.........................11
Floor Assembly..........................15
Wall & Roof Assembly.................17
Shed Anchoring........................25
Cleaning & Care........................31
Registration........................32
Warranty.............................33
MODEL# AND PRODUCT ID
Model Number: 60324
Product ID:
TABLE OF CONTENTS
(you will need both when contacting us)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 60324 and is the answer not in the manual?

Questions and answers

Related Manuals for Lifetime 60324

Summary of Contents for Lifetime 60324

  • Page 1 Wall & Roof Assembly....17 Shed Anchoring......25 Cleaning & Care......31 Registration......32 Warranty......33 QUESTIONS? CONTACT LIFETIME CUSTOMER SERVICE: MODEL# AND PRODUCT ID Call: 1-800-225-3865 Live Chat: www.lifetime.com (you will need both when contacting us) (click on “Ask An Expert” tab) Model Number: 60324 7:00 am–5:00 pm (Monday–Friday) MST...
  • Page 2 Nettoyage et entretien....31 Enregistrement.....32 Garantie.........34 ® QUESTIONS ? CONTACTER LES SERVICES À LA CLIENTÈLE LIFETIME t’Chat en direct: www.lifetime.com N° DE MODÈLE ET RÉFÉRENCE DU PRODUIT Composer le 1-800-225-3865 (vous aurez besoin des deux lorsque vous nous contactez) (cliquer sur la languette « Ask An Expert ») N°...

  • Page 3: Table Of Contents

    Anclaje de la caseta....25 Limpieza y cuidado....31 Registro......32 Garantía......35 ¿PREGUNTAS? ® PONERSE EN CONTACTO CON LOS SERVICIOS DE CLIENTES LIFETIME Chat en vivo: www.lifetime.com MODEL E ID DEL PRODUCTO Marcar: 1-800-225-3865 (necesitará los dos al contactarnos) Número de modelo: 60324 (cliquear en la lengüeta «Ask An Expert»)

  • Page 4: Leyenda De Íconos

    ICON LEGEND / LÉGENDE DES ICÔNES / LEYENDA DE ÍCONOS • Indicates special heed should be taken when reading. • Indique qu’une attention spéciale doit être portée à la lecture. • Indica que uno debe prestar atención al leer. • Indicates the parts to be used for a section. •...

  • Page 5: Notifi Caciones Y Avisos

    WARNINGS & NOTICES / AVERTISSEMENTS ET AVIS / ADVERTENCIAS Y AVISOS English: • Failure to follow these warnings may result in serious injury or property damage and will void warranty. • To ensure safety, do not attempt to assemble this product without following the instructions carefully. •...

  • Page 6: Alertas

    ALERTS / ALERTES / ALERTAS English: If you are assembling a new shed: • Check contents of boxes and compare to parts listed on the next page. • Follow instructions that came with your shed, but add the parts that came with this kit at the appropriate points in the assembly, e.g., insert the Floor Panel when assembling the Floor.

  • Page 7: Identifi Cador De Piezas

    PARTS IDENTIFIER / IDENTIFICATEUR DE PIÈCES / IDENTIFICADOR DE PIEZAS HARDWARE REQUIRED / QUINCAILLERIE REQUIS / HERRAJE REQUERIDO Hardware Bag / Sac de quincaillerie Bolsa de herraje PARTS REQUIRED / PIÈCES REQUISES / PIEZAS REQUERIDAS Metal Parts / Pièces en métal Piezas de metal 26 11/16”...

  • Page 8: Desensamble De La Caseta

    SHED DISASSEMBLY / DÉMONTAGE DE L’ABRI / DESENSAMBLE DE LA CASETA HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO Hardware Bag / Sac de quincaillerie Bolsa de herraje PARTS REQUIRED / PIÈCES REQUISES / PIEZAS REQUERIDAS Plastic Parts / Pièces en plastique Piezas de plástico TOOLS REQUIRED / OUTILS REQUIS / INSTRUMENTAL REQUERIDO...
  • Page 9  SECTION 1 (CONTINUED) / SECTION 1 (SUITE) SECCIÓN 1 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS • Remove the Screws (x26) from the two End Caps and Skylight, and set them aside. •...
  • Page 10  SECTION 1 (CONTINUED) / SECTION 1 (SUITE) SECCIÓN 1 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS • Remove the Screws (x20) from the two rear side Wall Panels, remove the Panels and set them aside. •...

  • Page 11: Ensamble De La Cercha

    TRUSS ASSEMBLY / ASSEMBLAGE DES FERMES / ENSAMBLE DE LAS CERCHAS HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO Hardware Bag / Sac de quincaillerie Bolsa de herraje ETC (x4) ADJ (x2) CXK (x8) ADY (x4) 8 1/4” 8 1/4 in/po (20,96 cm) ADH (x1) PARTS REQUIRED / PIÈCES REQUISES / PIEZAS REQUERIDAS Metal Parts /...
  • Page 12 • En caso de problemas con esta sección, seguir el código debajo para ver un video sobre el ensamble en esta sección. http://go.lifetime.com/7truss • Align the holes in a Connector (ETD) with those in the ends of the Truss Channels (AFH).
  • Page 13  SECTION 2 (CONTINUED) / SECTION 2 (SUITE) SECCIÓN 2 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS ETC (x4) ADY (x4) CXK (x8) • Align the holes in a Truss Brace (AFG) with those in •...
  • Page 14  SECTION 2 (CONTINUED) / SECTION 2 (SUITE) SECCIÓN 2 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS 3/8 in/po (10 mm) 7/16 in/po (11 mm) (x2) 8 1/4 in/po (20,96 cm) 8 1/4” ADH (x1) ADJ (x2) •...

  • Page 15: Ensamble Del Piso

    FLOOR ASSEMBLY / ASSEMBLAGE DU PLANCHER / ENSAMBLE DEL PISO HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO Blister Pack / Blister Blíster BQC (x4) PARTS REQUIRED / PIÈCES REQUISES / PIEZAS REQUERIDAS Plastic Part / Pièce en plastique Pieza de plástico AFX (x1) TOOLS REQUIRED / OUTILS REQUIS / INSTRUMENTAL REQUERIDO...
  • Page 16  SECTION 3 (CONTINUED) / SECTION 3 (SUITE) SECCIÓN 3 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS BQC (x8) • Attach the new Center Floor Panel (AFX) to the Floor, and then reattach the rear of the shed to the Center Floor Panel. •...

  • Page 17: Tejado

    WALL & ROOF ASSEMBLY / ASSEMBLAGE DES MURS ET DU TOIT / ENSAMBLE DE LOS MUROS Y DEL TEJADO HARDWARE REQUIRED / QUINCAILLERIE REQUIS / HERRAJE REQUERIDO Hardware Bag / Sac de quincaillerie Bolsa de herraje ADV (x24) ADZ (x120) •...
  • Page 18  SECTION 4 (CONTINUED) / SECTION 4 (SUITE) SECCIÓN 4 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x10) • Attach a Wall Support Channel (AFM) to a Wall Panel (AHD) using fi ve (5) Screws (ADZ). Repeat this step for the second Wall Panel.
  • Page 19  SECTION 4 (CONTINUED) / SECTION 4 (SUITE) SECCIÓN 4 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x30) • Attach two Wall Panels (AHD) and the other Panels removed to the Floor and each other using the Screws (ADZ) removed earlier and from the new hardware bag.
  • Page 20  SECTION 4 (CONTINUED) / SECTION 4 (SUITE) SECCIÓN 4 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x16) ADV (x8) • Set the ends of the Truss you removed earlier into the notches at the top of the Wall Panels.
  • Page 21  SECTION 4 (CONTINUED) / SECTION 4 (SUITE) SECCIÓN 4 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x16) ADV (x8) • Set the ends of the new Truss into the notches at the top of the next pair of Wall Panels.
  • Page 22  SECTION 4 (CONTINUED) / SECTION 4 (SUITE) SECCIÓN 4 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x16) ADV (x8) • Insert a Support Tube (BYY) into the notches of a Roof Panel (AGQ). Repeat this step for the other Roof Panel included with this kit.
  • Page 23  SECTION 4 (CONTINUED) / SECTION 4 (SUITE) SECCIÓN 4 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x8) • Slide the Long Truss Assembly onto the peak of the Roof with the Connector just over the rear-most Truss. Attach the Connector to the Roof Panels and Gable.
  • Page 24  SECTION 4 (CONTINUED) / SECTION 4 (SUITE) SECCIÓN 4 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x24) 4.11 • Attach the Skylights to the Roof Panels at the following locations: • Fixer les lucarnes aux panneaux de toit aux endroits suivants : •...

  • Page 25: Anclaje De La Caseta

    SHED ANCHORING / ANCRAGE DE L’ABRI / ANCLAJE DE LA CASETA HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO NO HARDWARE INCLUDED FOR THIS SECTION AUCUNE QUINCAILLERIE INCLUSE POUR CETTE SECTION NINGÚN HERRAJE INCLUIDO PARA ESTA SECCIÓN PARTS REQUIRED / PIÈCES REQUISES / PIEZAS REQUERIDAS NO PARTS REQUIRED FOR THIS SECTION AUCUNE PIÈCE REQUISE POUR CETTE SECTION NINGUNA PIEZA REQUERIDA PARA ESTA SECCIÓN...
  • Page 26  SECTION 5 (CONTINUED) / SECTION 5 (SUITE) SECCIÓN 5 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS 5/16 in/po (8 mm) • To anchor your shed, you must purchase the correct anchoring hardware. For a concrete platform, we recommend using a hammer drill, 5/16"...
  • Page 27  SECTION 5 (CONTINUED) / SECTION 5 (SUITE) SECCIÓN 5 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS 5/16 in/po (8 mm) • To anchor your shed, you must purchase the correct anchoring hardware. For a wood-framed platform, we recommend using a drill, 5/16"...
  • Page 28 NOTES / REMARQUES / NOTAS...
  • Page 29 NOTES / REMARQUES / NOTAS...
  • Page 30 NOTES / REMARQUES / NOTAS...

  • Page 31: Limpieza Y Cuidado

    CLEANING & CARE Congratulations on your Lifetime product purchase. By following the instructions below, your new Lifetime product should provide you with years ® of service and enjoyment. The polyethylene panels are stain and solvent resistant. Most stains can be removed using a mild soap and a soft-bristled brush.

  • Page 32: Registro

    REGISTER today! ENREGISTRER CE PRODUIT EN LIGNE À WWW.LIFETIME.COM Chez Lifetime®, nous nous engageons à fournir des produits innovateurs de qualité. Lors de votre inscription, vous aurez l’occasion de nous faire parvenir vos commentaires. Votre opinion est importante pour nous.
  • Page 33 All merchandise is sold on this condition, and no representative of the company may waive or change this policy. 5. This product is not intended for institutional or commercial use; Lifetime Products, Inc. does not assume any liability for such use. Institutional or commercial use will void the warranty.
  • Page 34 2. Cette garantie n’est pas transférable et est expressément limitée à la réparation ou au remplacement du produit défectueux. Si le produit est déclaré défectueux selon les termes de cette garantie, Lifetime Products, Inc. réparera ou remplacera les ©...

  • Page 35: Garantía

    NO ESTÁN DISPONIBLES O SON OBSOLETAS. 1. El comprador original recibe la garantía de que las casetas Lifetime estarán libres de defectos de material o de mano de obra por un período de 10 años a contar desde la fecha de la compra original. La palabra “defectos” se defi ne como imperfecciones que perjudican el uso del producto.
  • Page 36 ® MEJORAR LA COMPRA DE LIFETIME AGREGANDO ACCESORIOS U OTROS MARAVILLOSOS PRODUCTOS Para comprar accesorios u otros productos de Lifetime®, visitarnos en: www.lifetime.com O marcar al: 1-800-424-3865 De lunes hasta viernes 7:00 h–17:00 h Horario Éstandar de la Montaña (MST) y sábados 9:00 h–13:00 h (MST) www.lifetime.com...
