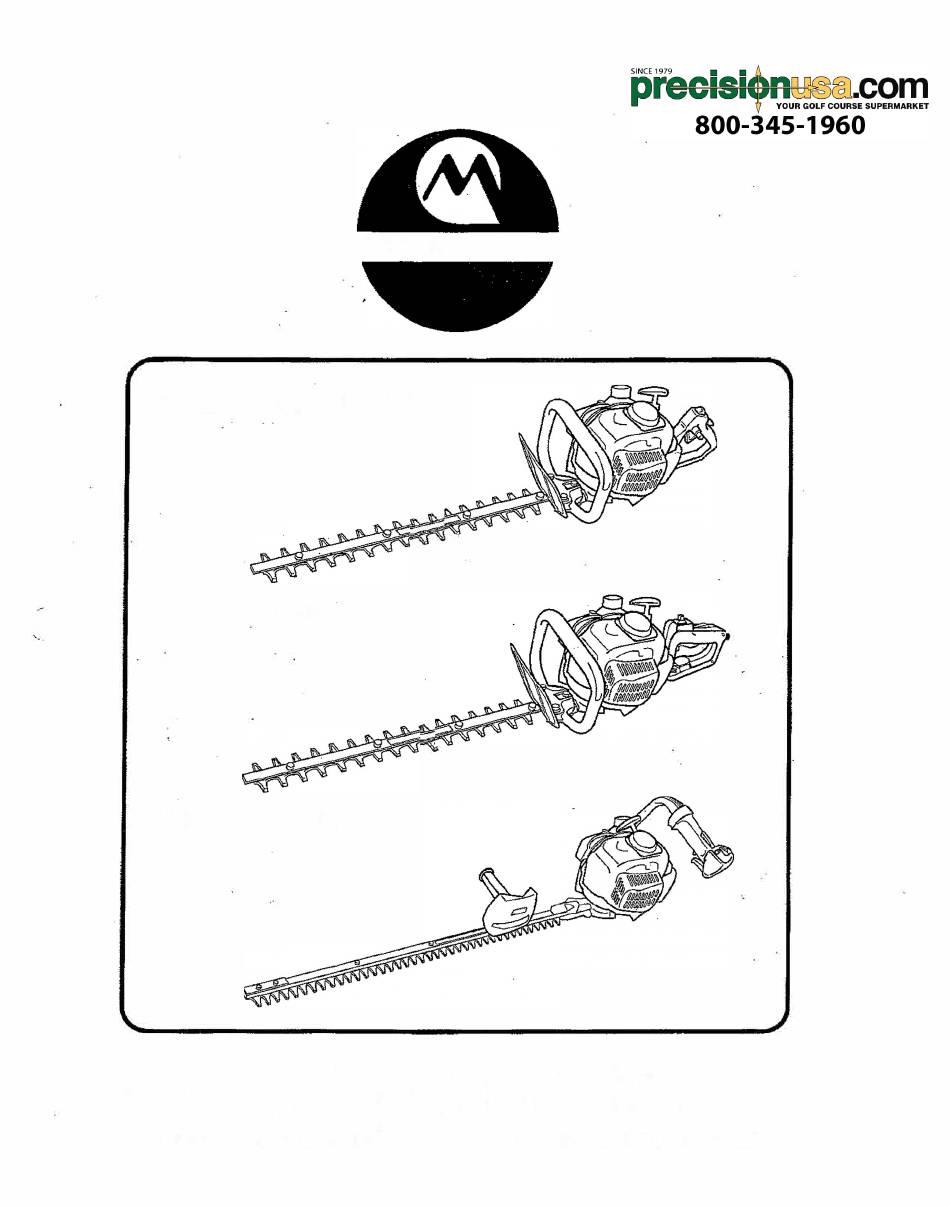

- Page 1 MARUYAMA HT2320D,HT2320DL HT2320D-R . HT2320, HT2320L Owner's/Operator's Manual Completely read and understand this manual before using this product.
- Page 2 All other engines refer to engine manufacturer's warrant y statement. An y part of a Maruyama p roduct found to be defective within the applicable warranty period shall, at Maru y ama's o p tion, be re p alred or replaced without char g e. Warrant y consideration is obtained b y deliverin g an y Maru y ama p roduct believed to be defective to an Aulhorized Maru y ama Servicing Dealer within the a p plicable warrant y p eriod.
- Page 3 This warranty provides you with specific legal rights, which may vary from state to state. It is the Owner's and Dealer's responsibility to make sure the Warranty Registration Card is properly filled out and mailed to Maruyama U.S., Inc. Proof of purchase and registration will be required in order to obtain war ranty service.
-
Page 4: Manufacturer's Warranty Coverage
Also included may be hoses, belts, and connectors and other emission related assemblies. Where a warrantable condition exists, Maruyama Manufacturing Company, Inc. wil l repair your small off-road engine at no cost to you, including diagnosis {if the diagnostic work is performed at an authorized dealer), parts, and labor. -
Page 5: Owner's Warranty Responsibilities
Maruyama Manufacturing Company, Inc. is liable for damages to other engine components caused by the... -
Page 6: Maintenance Requirements
Maruyama Manufacturing Company, Inc. specifications that adversely affect performance and/or durability, and alter ations or modifications not recommended or approved in wrtting by Maruyama Manufacturing Company, Inc., and ((b)replacement of parts and other services and adjustments necessary for required mainte... -
Page 8: Product Description
PRODUCT DESCRIPTION STARTER GRIP MODELS:HT2320D AND HT2320DL ENGINE STOP SWITCH FRO,�T HANDLE BLADE REAR HANDLE FUEL TANK HT2320D-R REAR HANDLE STOP SWITCH THROTTLE TRIGGER LOCK LEVER LEFT HANDLE STARTER GRIP STOP MODELS:HT2320 AND HT2320L SWITCH ENGINE RIGHT HANDLE THROTTLE TRIGGER... - Page 9 WARNING Operator safety 1 . Read and understand this Owner's/Operator's Manual before using this product. Be thoroughly familiar with the proper use of this product. 2. Always wear eye protection that complies wtth ANSI (American National Standards Institute) ZB7-1. 3. Wear hearing protection. 4.
- Page 10 Inspect the Hedge Trimm er cutting blades and guide. Replace any parts that are cracked, chipped, or damaged before using the Hedge Trimmer. 4. Never use replacement parts that are not approved by Maruyama U.S., Inc. Maintain the Hedge Trimmer in accordance with the recommended maintenance intervals and procedures in the maintenance section, pages 16 to 19.
- Page 13 For your fuel pr emix, only use Maruyama 50:1 2-Cycle Oil or a quality oil designed for 2-cycle air-cooled engine.
-
Page 15: Starting And Stopping Procedure
Keep all bystanders, children and animals away from the working area. STARTING THE ENGINE PRIMER BULB The carburetors on MARUYAMA engines contain a choke system. 1 . Push and release the fuel primer bulb located on the bottom of the carburetor until air bubble free fuel is seen... -
Page 17: Operating The Power Hedge Trimmer
The MARUYAMA Hedge Trimmer is designed for cutting and trimming foliage and small branches up to 1/4 inches (6mm) in diameter. Al t hough the MARUYAMA Hedge Trimmer is capable of cutting larger diameter branches, wear and tear of the machine would be proportionally increased. -
Page 18: Spark Plug
release the hose. While still holding on to the fuel hose, attach the new fuel filter. Drop the fuel fil. ter back into the fuel tank. Make sure that the fuel filter is not stuck in a corner of the tank and that the fuel hose is not doubled over (kinked} before refueling.
