The sub-cable color-coded jackets and shields should be left on the sub-cables as close to the connector as
practical to provide the required shielding and to identify the sub-cables. Guidelines for preparing the cable
for connection to the WX-950 mating connector (see paragraph 2-8) are shown in figure 2-9. Ground the
overall shield at both ends. The WX-950 End should be grounded within the mating connector assembly.
Ground the sub-cable shields only at the mating connector subassembly. Cable routing and length are not
critical to system operation.
Tables 2-2 and 2-3 provide heading source interconnect information. Refer to the applicable manufacturers
publication for specific interconnect guidelines to be followed.
Every effort has been made to correctly identify the pin numbers and signal names used
by the various manufacturers. However, Goodrich Avionics Systems cannot be
responsible for changes made by others. Please consult the appropriate manufacturers
documentation for the latest information.
SIGNAL
DRIVE MOTOR 1
HDG FLAG +
HDG FLAG -
UNREG +15
DRIVE MOTOR 3
SIGNAL GND*
2-14
Rev. C
WX-950
Installation Manual

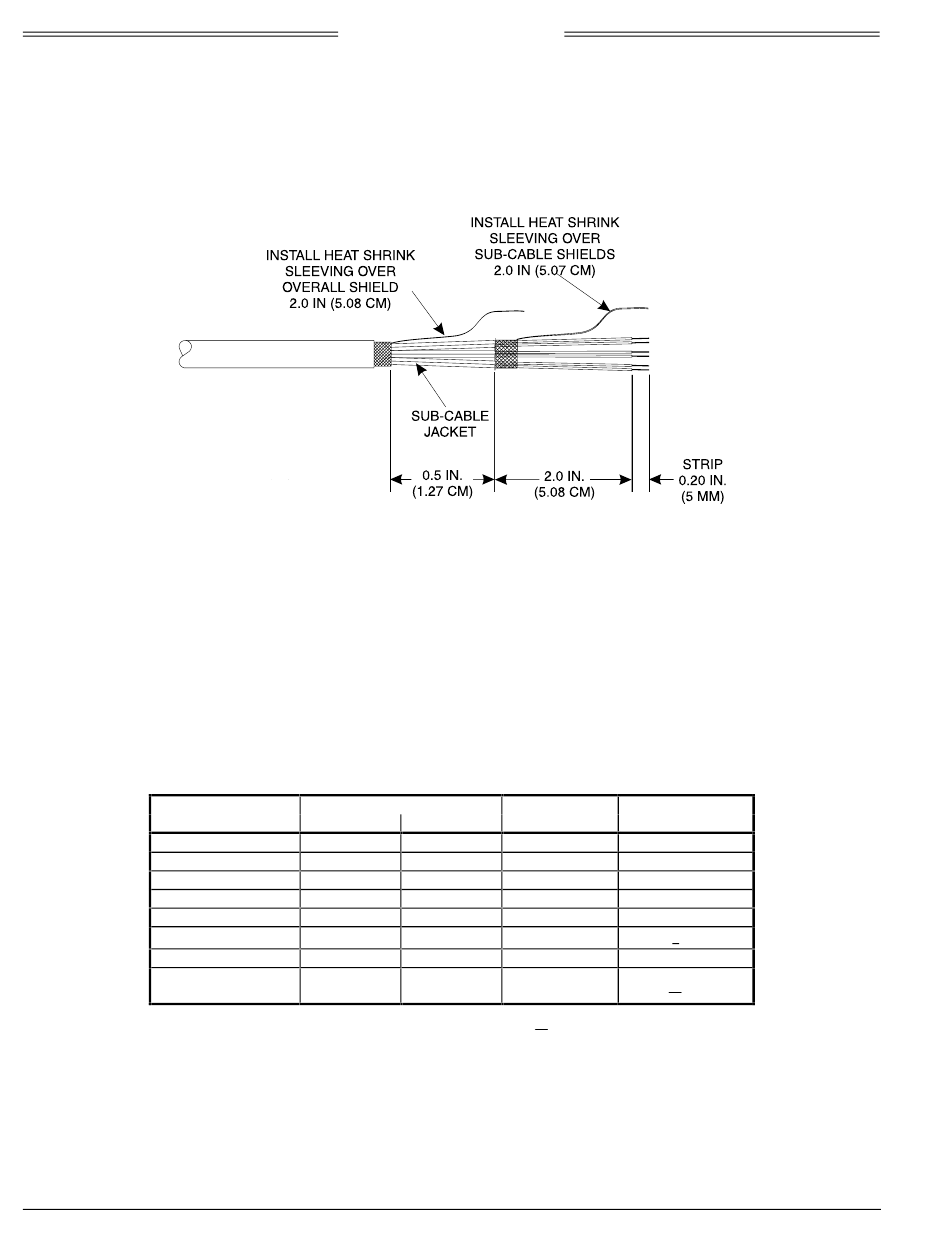

Figure 2-9. Heading Input Cable Preparation
NOTE
Table 2-2. Stepper Input Connections
(KI-525 Indicator)
WIRE COLOR
SUB-CABLE WIRE
WHITE WHITE
WHITE BLUE
WHITE ORANGE
ORANGE WHITE
ORANGE BLUE
BLUE WHITE
BLUE BLUE
*Connect outer shield at KI-525, P1- j (TOP)
BACKSHELL KI-525
PIN NUMBER INDICATOR
5 N/C
4 N/C
17 P2-A (BOTTOM)
6 FLAG +
19 FLAG -
16 P1-v (TOP)
3 P2-H (BOTTOM)
GROUND
P1- j (TOP)
