2.7.1 Antenna Cable

Antenna cables, with the antenna connector pre-wired to one end, are available in 6, 12, 25, 50 and 75 ft.
lengths (see table 1-2). To meet different space requirements the antenna connector can be ordered with
either a straight or right-angle backshell (see figure 2-6). Most installations will require the right-angle
backshell. Cut cable to the desired length and prepare in accordance with the guidelines shown in
figure 2-7.
The antenna cable may be susceptible to interference from outside sources and routing is subject to the
following guidelines.
•
Cable routing should be kept as short and direct as practical.
•
The cable should not be bundled with any other aircraft cable except for short distances, and
then only when absolutely necessary.
WX-950
Installation Manual

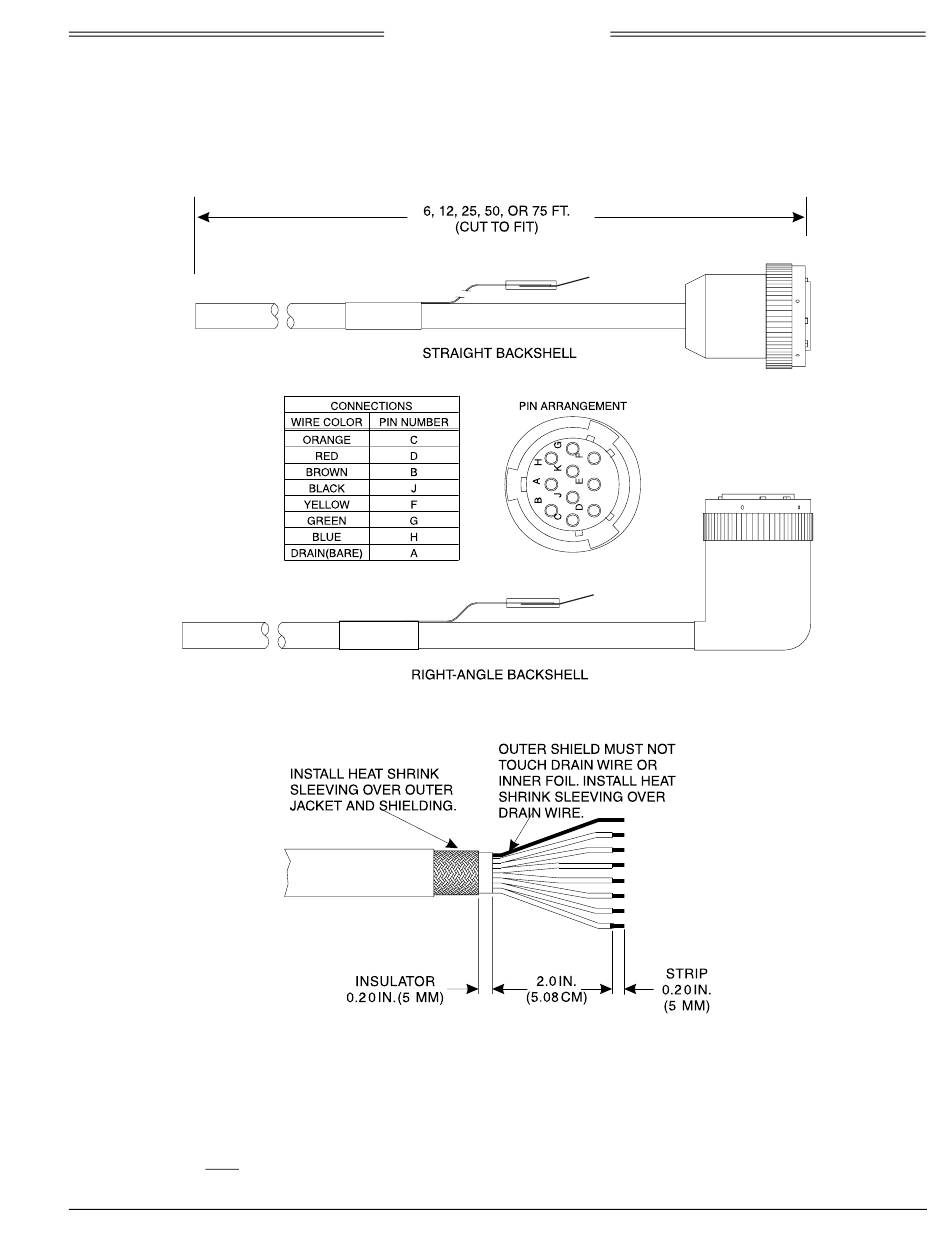

Figure 2-6. Antenna Cable
Figure 2-7. Antenna Cable Preparation
