2.8 MATING CONNECTOR ASSEMBLY
All system cables are terminated at the mating connector assembly (see figure 2-10). This connector
assembly also contains jumpers to select system configuration. The locking mechanism has been designed
to allow blind mating to the 25-pin D-sub-miniature connector on the back panel of the display/processor.
When terminating wires observe specified color designations. Tie points are identified on the cable
termination PCB. If necessary, this PCB can be removed to simply making the solder connections. After the
wiring connections have been completed, use the interconnect diagram to verify continuity between each
pin and its opposite end termination. Tables 2-4 and 2-5 provides this information for the antenna and
heading inputs.
2-16
Rev. C
WX-950
Installation Manual

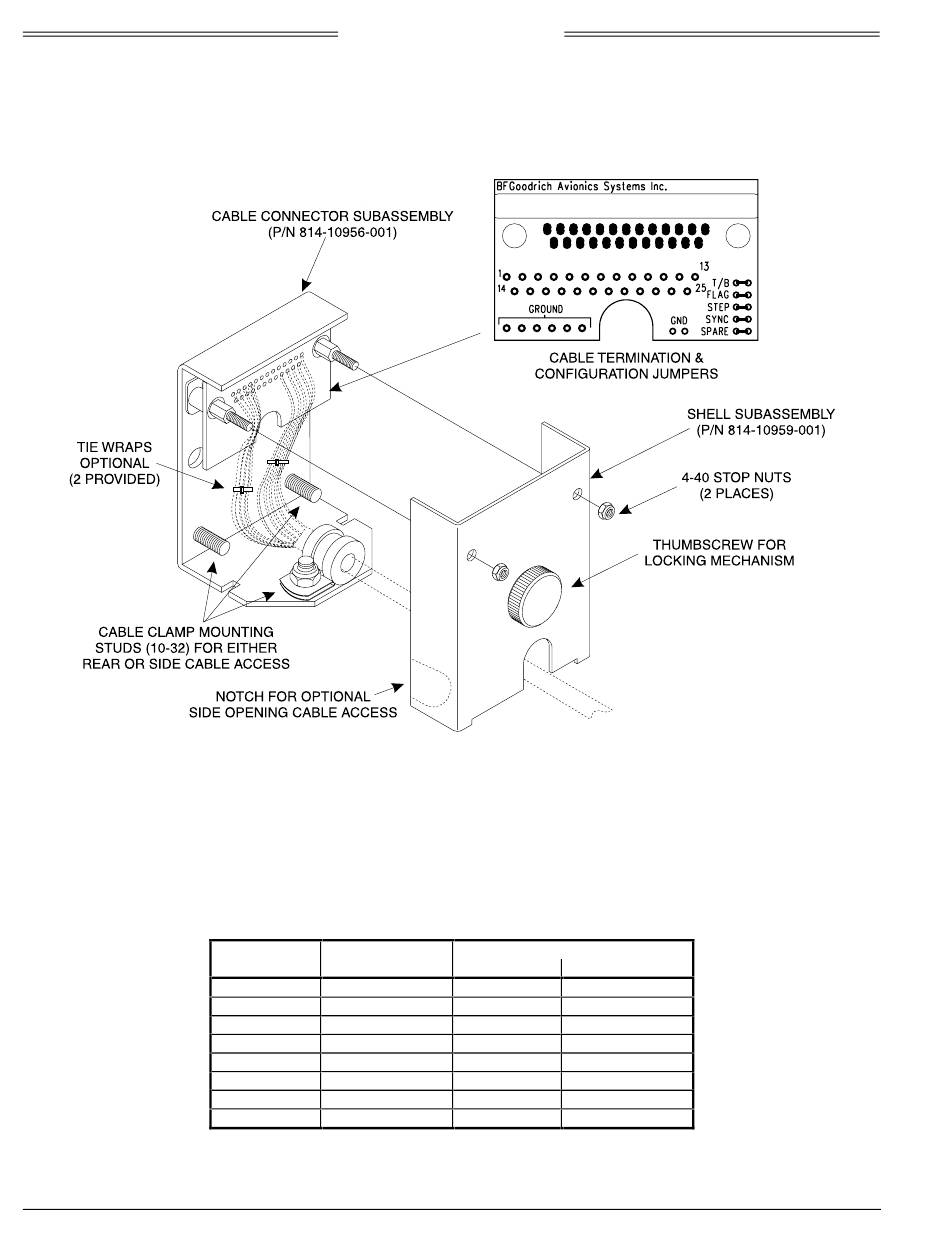

Figure 2-10 Mating Connector
Table 2-4. Antenna Cable Connections
SIGNAL
WIRE COLOR
XLOOP
ORANGE
+12V
RED
SENSE
BROWN
ANTREF
BLACK
-12
YELLOW
YLOOP
GREEN
ANTTEST
BLUE
ANTCOM
DRAIN
CONNECTOR PIN NUMBER
BACKSHELL
ANTENNA
24
C
12
D
13
B
23
J
11
F
25
G
10
H
22
A
