Assembly

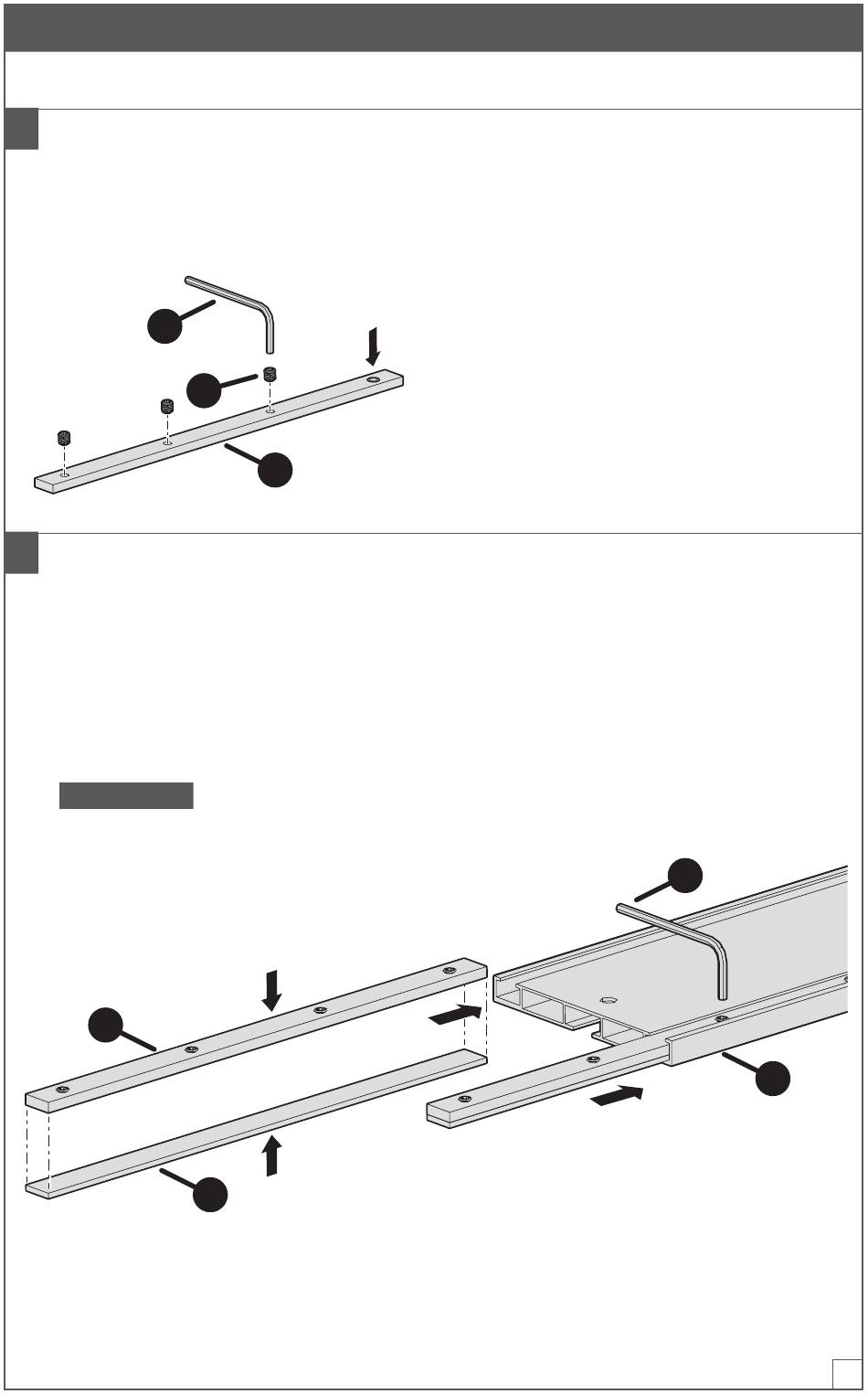

1
Prepare the Upper Connector Bars
a. Thread all of the set screws (AA) into
the upper connector bars (A).
b. Use the hex wrench (DD) to thread
into place.
DD
2
Assemble the Connector Bars
a. Place an upper connector bar (A) over a lower connector bar (B) and slide this
assembly into the channel of the guide rail with GripMaxx
about half of the connector bar assembly out of the channel.
b. Repeat for the other channel of the guide rail with GripMaxx
c. Partially snug the screws in the connector bars using the hex wrench (DD). This
ensures the connector bars fit snugly into place in the channels.
ATTENTION
A
AA
A
Do not fully tighten the set screws. This will occur in step 3.
B
clamp (C), leaving
clamp (C).
DD
C
5
