Outline Construction And Installation - Microsensor MPM4881 Operation Manual

② Reset max. pressure ： Press button P3 and H3 at the
same time

4 Outline Construction and Installation

（1）Construction and Outline Dimension

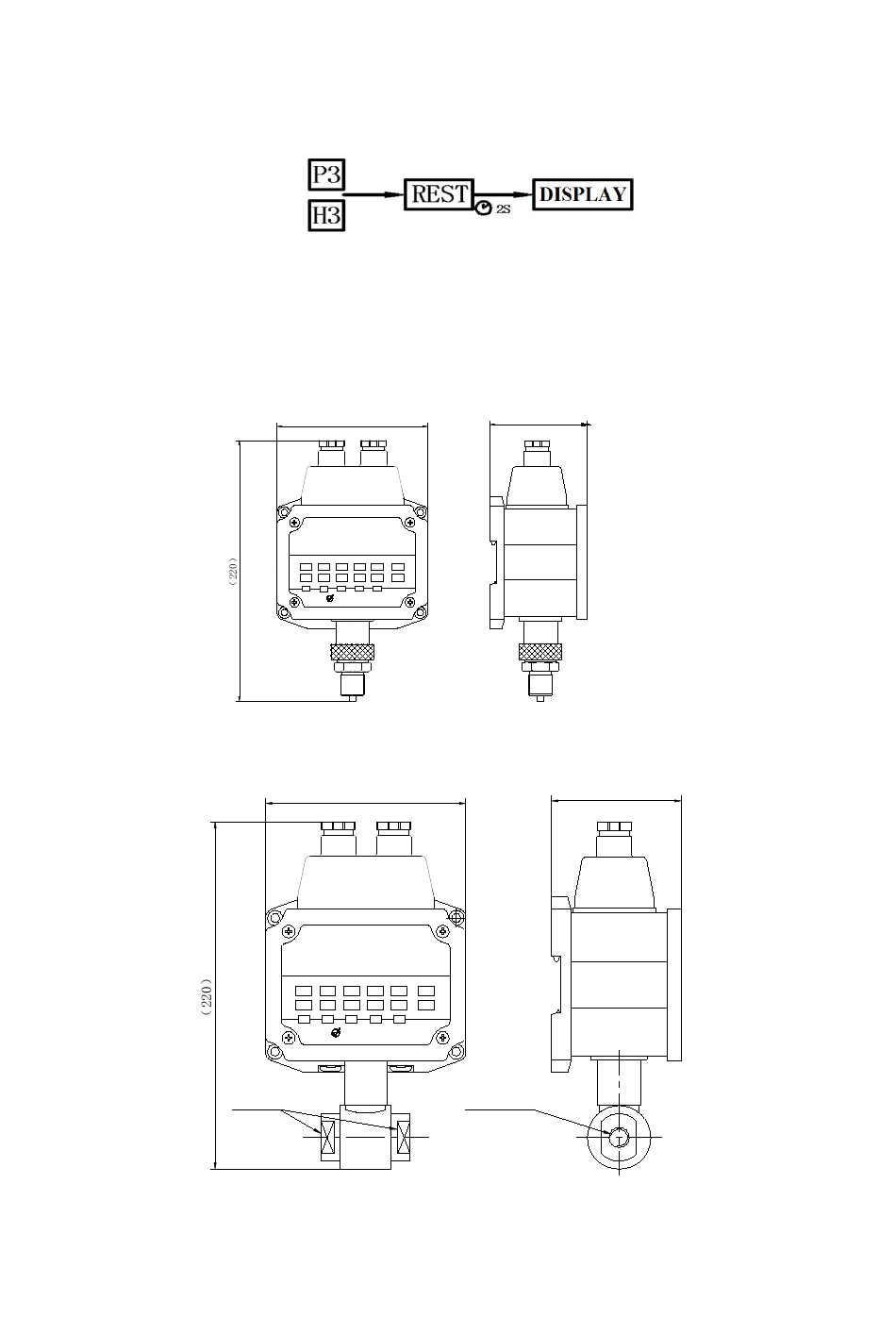

Chart 1: MPM4881 Outline Construction and Dimension
SW22
Chart 2: MDM4881 Outline Construction and Dimension
126
MPM4881
+
P1 P2 P3 P4 P5
-
H1 H2 H3 H4 H5
麦克传感器有限公司
MICRO SENSOR CO,.LTD.
麦克 MI CR O
126
MDM4881
+
P1 P2 P3 P4 P5
-
H1 H2 H3 H4 H5
麦克传感器有限公司
MICRO SENSOR CO,.LTD.
麦克 MI CR O
7
81.5
81.5
G1/4 female
Unit: mm
