    PLUS OVENS - GAS Kasap Tip Dik Buzdolapları CONTENTS GENERAL INFORMATION Page PRODUCT DESCRIPTION Page TECHNICAL INFORMATION Page TRANSPORTATION Page UNPACKING Page INSTALLATION Page SAFETY INSTRUCTIONS Page OPERATION Page CLEANING & MAINTENANCE Page TROUBLESHOOTING Page INJECTOR CHANGE AND GAS SETTING Sayfa 9 GAS CONNECTION IMAGES Sayfa 10...

  • Page 2: Ageneral Information

    PLUS OVENS - GAS Kasap Tip Dik Buzdolapları GENERAL INFORMATION Before installing the appliance, read operation and maintenance instructions carefully.Wrong installation and part changing may damage the product or may cause injury on people.These are not in our company’s responsibility to damage the appliance intentionally,negligence,detriments because of disobeying instructions and regulations,wrong connections.Unauthorized intervention to appliance invalidates the warranty.

  • Page 3: A1 Product Description

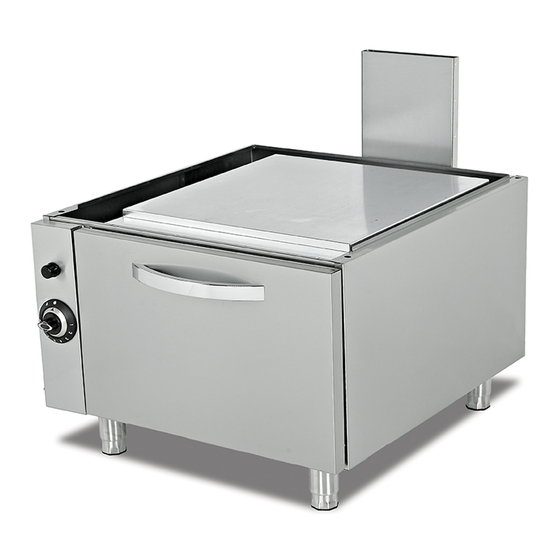

    PRODUCT DESCRIPTION * This product is a Ovens – Gas that provides high efficiency has been designed to be used in industrial kitchens. Packaging Product Code Dimensions (mm) Weight (kg) Dimensions (mm) EMP.7FRG01 800X680X565 840x770x670 EMP.7FRG02 1200X680X565 1230x770x670 EMP.7FRG03 1200X680X565 1230x770x670 EMP.9FRG01...

  • Page 4: A3 Transportation

    PLUS OVENS - GAS TRANSPORTATION * This appliance can not be moved by hand from area to area. Therefore Use a hauling truck (forklift or pallet jack) to move the appliance. ( The lifting arms of the of forklift or pallet jack Kasap Tip Dik Buzdolapları...

  • Page 5: Csafety Instructions

    PLUS OVENS - GAS Kasap Tip Dik Buzdolapları SAFETY INSTRUCTIONS *Do not use the appliance in insufficient lighted place. *Do not touch the moving attachments while the appliance operates. *Do not install the appliance in the presence of flammable or explosive materials. *Do not operate the appliance when the machine is empty.

  • Page 6: Doperation

    PLUS OVENS - GAS OPERATION *Control Panel; Kasap Tip Dik Buzdolapları A- Lighter Position B- Gas Off Position C- Pilot Flame Position D- Fire Levels *Operating;  Lift the front side of the bottom cast of oven  Press oven gas button and provide the pilot to be in flame position and fire the pilot. ...

  • Page 7: Ecleaning & Maintenance

    PLUS OVENS - GAS Kasap Tip Dik Buzdolapları CLEANING & MAINTENANCE  CLEANING AND MAINTENANCE AFTER EVERY USE  Turn off the gas connection before cleaning.  Clean the outer surface of the appliance with moist cloth.  Do not use abrasive cleaning chemicals as these can leave harmful residues. ...

  • Page 8: Ftroubleshooting

    PLUS OVENS - GAS TROUBLESHOOTING Kasap Tip Dik Buzdolapları Check if the gas connection is done or not. If there is no gas entrance to safety and THE APPLIANCE DOESN’T OPERATE firing part,the appliance is not operated. If the hoses that have gas entrance lose gas due to slit,hole.etc.,the appliance is not operated.

  • Page 9: Ginjector Change And Gas Setting

    PLUS OVENS - GAS Kasap Tip Dik Buzdolapları INJECTOR CHANGE AND GAS SETTING BURNER FOR GAS RANGES WITH OVEN - INJECTOR CHANGE CHART SMALL MEDIUM LARGE OVEN Pilot Injector Injector Injector Injector Injector Injector Group  mm  mm  mm ...

  • Page 10: Hgas Connection Images

    PLUS OVENS - GAS GAS CONNECTION IMAGES Kasap Tip Dik Buzdolapları Image 3 Image 4...
  • Page 11 PLUS OVENS - GAS Kasap Tip Dik Buzdolapları GAS CONNECTION IMAGES Image 5 Image 6...

  • Page 12: Ispare Part List-Exploding Drawing

    PLUS OVENS - GAS SPARE PART LIST-EXPLODING DRAWING Kasap Tip Dik Buzdolapları 9FRG.01-7FRG01...
  • Page 13 PLUS OVENS - GAS Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING PRODUCT CODE: EMP.9FRG01 NUMBER PRODUCT NAME PRODUCT CODE PIPE Y.EMP.9FRG01.001 BASE FRAME Y.EMP.9FRG01.002 SHELF Y.EMP.9FRG01.003 WICK Y.EMP.9FRG01.004 HINGE Y.EMP.9FRG01.005 Y.EMP.9FRG01.006 HANDLE Y.EMP.9FRG01.007 LIGHTER Y.EMP.9FRG01.008 SWITCH Y.EMP.9FRG01.009 PANEL Y.EMP.9FRG01.010 PİLOT Y.EMP.9FRG01.011 BURNER BRACKET...
  • Page 14 PLUS OVENS - GAS SPARE PART LIST-EXPLODING DRAWING Kasap Tip Dik Buzdolapları PRODUCT CODE: EMP.7FRG01 NUMBER PRODUCT NAME PRODUCT CODE PIPE Y.EMP.7FRG01.001 BASE FRAME Y.EMP.7FRG01.002 SHELF Y.EMP.7FRG01.003 WICK Y.EMP.7FRG01.004 HINGE Y.EMP.7FRG01.005 Y.EMP.7FRG01.006 HANDLE Y.EMP.7FRG01.007 LIGHTER Y.EMP.7FRG01.008 SWITCH Y.EMP.7FRG01.009 PANEL Y.EMP.7FRG01.010 PİLOT...
  • Page 15 PLUS OVENS - GAS Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING 9FRG02-7FRG02...
  • Page 16 PLUS OVENS - GAS SPARE PART LIST-EXPLODING DRAWING Kasap Tip Dik Buzdolapları PRODUCT CODE :EMP.9FRG02 NUMBER PRODUCT NAME PRODUCT CODE PIPE Y.EMP.9FRG02.001 BASE FRAME Y.EMP.9FRG02.002 SHELF Y.EMP.9FRG02.003 WICK Y.EMP.9FRG02.004 HINGE Y.EMP.9FRG02.005 Y.EMP.9FRG02.006 HANDLE Y.EMP.9FRG02.007 LIGHTER Y.EMP.9FRG02.008 SWITCH Y.EMP.9FRG02.009 PANEL Y.EMP.9FRG02.010 PİLOT Y.EMP.9FRG02.011 BURNER BRACKET...
  • Page 17 PLUS OVENS - GAS Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING PRODUCT CODE:EMP.7FRG02 NUMBER PRODUCT NAME PRODUCT CODE PIPE Y.EMP.7FRG02.001 BASE FRAME Y.EMP.7FRG02.002 SHELF Y.EMP.7FRG02.003 WICK Y.EMP.7FRG02.004 HINGE Y.EMP.7FRG02.005 Y.EMP.7FRG02.006 HANDLE Y.EMP.7FRG02.007 LIGHTER Y.EMP.7FRG02.008 SWITCH Y.EMP.7FRG02.009 PANEL Y.EMP.7FRG02.010 PİLOT Y.EMP.7FRG02.011 BURNER BRACKET Y.EMP.7FRG02.012...
  • Page 18 PLUS OVENS - GAS SPARE PART LIST-EXPLODING DRAWING Kasap Tip Dik Buzdolapları 9FRG03-7FRG03...
  • Page 19 PLUS OVENS - GAS Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING ÜRÜRN KODU : EMP.9FRG03 ÜRÜN ADI ÜRÜN KODU PIPE Y.EMP.9FRG03.001 BASE FRAME Y.EMP.9FRG03.002 SHELF Y.EMP.9FRG03.003 WICK Y.EMP.9FRG03.004 HINGE Y.EMP.9FRG03.005 Y.EMP.9FRG03.006 HANDLE Y.EMP.9FRG03.007 LIGHTER Y.EMP.9FRG03.008 SWITCH Y.EMP.9FRG03.009 PANEL Y.EMP.9FRG03.010 PİLOT Y.EMP.9FRG03.011 BURNER BRACKET...
  • Page 20 PLUS OVENS - GAS SPARE PART LIST-EXPLODING DRAWING Kasap Tip Dik Buzdolapları ÜRÜRN KODU : EMP.7FRG03 ÜRÜN ADI ÜRÜN KODU PIPE Y.EMP.7FRG03.001 BASE FRAME Y.EMP.7FRG03.002 SHELF Y.EMP.7FRG03.003 WICK Y.EMP.7FRG03.004 HINGE Y.EMP.7FRG03.005 Y.EMP.7FRG03.006 HANDLE Y.EMP.7FRG03.007 LIGHTER Y.EMP.7FRG03.008 SWITCH Y.EMP.7FRG03.009 PANEL Y.EMP.7FRG03.010 PİLOT Y.EMP.7FRG03.011 BURNER BRACKET...
