Chapter

SLM248P

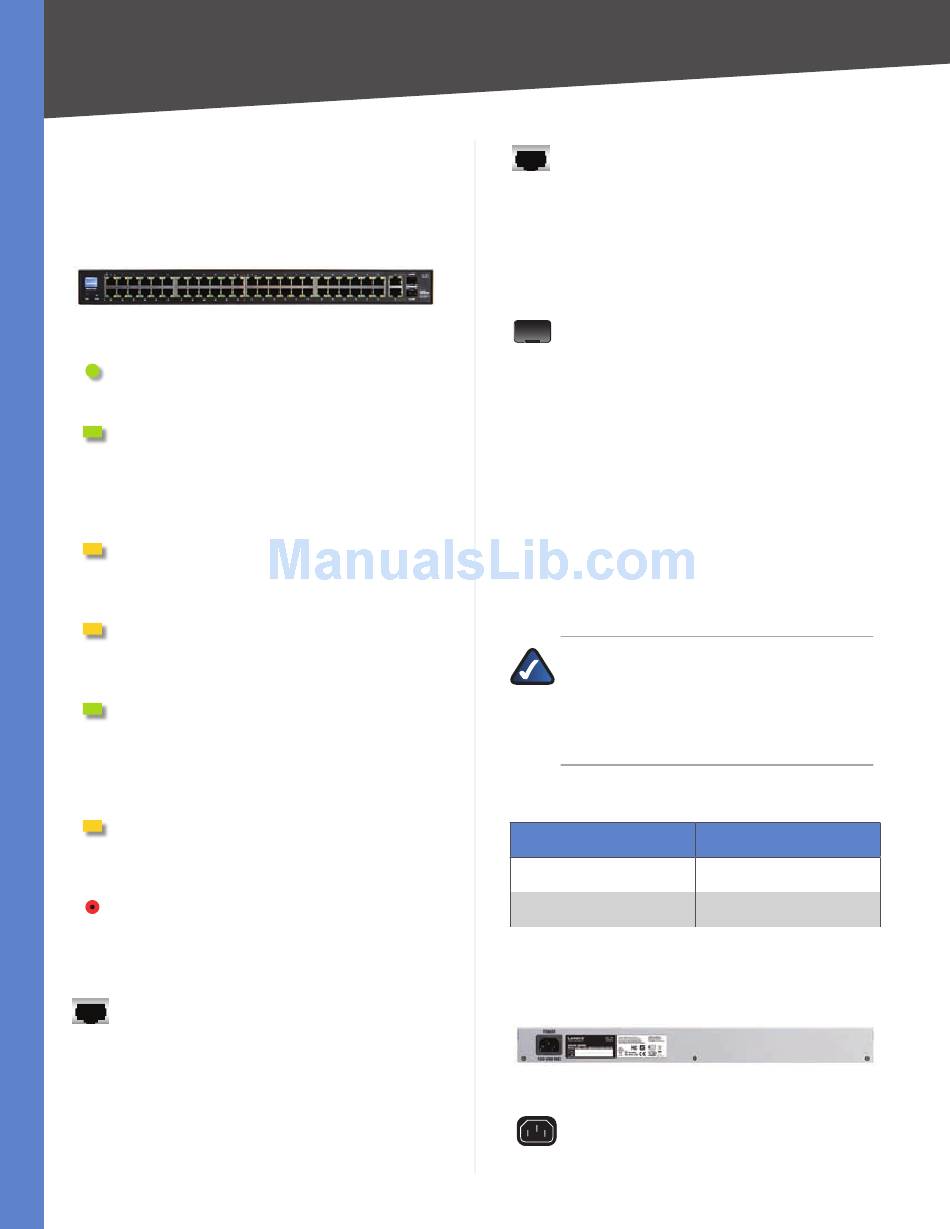

Front Panel

The Switch's LEDs and ports are located on the front
panel.
Front Panel of the SLM248P
SYSTEM
(Green) Lights up to indicate that the
Switch is powered on. Blinks while the Switch is
performing a system self-test.
LNK/ACT (-48) (Green) Lights up to indicate
a functional 10/100 Mbps network link through
the corresponding port (1 through 48) with
an attached device. Blinks to indicate that the
Switch is actively sending or receiving data over
that port.
PoE (-, -6) (Amber) Blinks to indicate that
power is being supplied to an attached powered
device on the corresponding port (1 through 12,
25 through 36).
00M (-4, 7-48)
indicate a functional 100 Mbps connection
on the corresponding port (13 through 24, 37
through 48) with an attached device.
LNK/ACT (G-G) (Green) Lights up to indicate
a functional 10/100/1000 Mbps network link
through the corresponding port (G1 through G2)
with an attached device. Blinks to indicate that
the Switch is actively sending or receiving data
over that port.
Gigabit (G-G) (Amber) Lights up to indicate
a functional 1000 Mbps connection on the
corresponding port (G1 through G2) with an
attached device.
Reset Press and hold the Reset Button for less
than ten seconds to reboot the Switch. Press and
hold the Reset Button for more than ten seconds
to reset the Switch's settings to the factory
defaults.
Ethernet -48
The Switch is equipped with 48
auto-sensing, Ethernet network ports, which
use RJ-45 connectors. The Fast Ethernet ports
support network speeds of 10 Mbps or 100 Mbps.
They can operate in half- and full-duplex modes.
Auto-sensing technology enables each port to
automatically detect the speed of the device
connected to it (10 Mbps or 100 Mbps), and
adjust its speed and duplex accordingly.
Business Series Smart Gigabit Ethernet Switch
(Amber) Lights up to
G-G The Switch is equipped with 2 auto-
sensing Gigabit Ethernet network ports, which
use RJ-45 connectors. The Gigabit Ethernet ports
support network speeds of 10 Mbps, 100 Mbps, or
1000 Mbps. They can operate in half- and full-duplex
modes. Auto-sensing technology enables each port
to automatically detect the speed of the device
connected to it (10 Mbps, 100 Mbps, or 1000 Mbps),
and adjust its speed and duplex accordingly.
miniGBIC (-) The miniGBIC (gigabit interface
converter) port is a connection point for a
miniGBIC expansion module, so the Switch can
be uplinked via fiber to another switch. The
MiniGBIC port provides a link to a high-speed
network segment or individual workstation at
speeds of up to 1000 Mbps.
To establish a Gigabit Ethernet connection using
a miniGBIC port, you will need to install a MGBT1,
MGBSX1, or MGBLH1 Gigabit expansion module
and use Category 5e cabling or fiber optic cabling.
To establish a Fast Ethernet connection using a
miniGBIC port, you will need to install a MFEFX1
(100BASE-FX) or MFELX1 (100BASE-LX) 100SFP
Transceiver and use fiber optic cabling.
NOTE: On the SLM248P, MiniGBIC ports are
shared with Gigabit Ethernet ports. If a miniGBIC
port is used, then the shared Gigabit Ethernet
port on the Switch cannot be used. The following
table defines the shared port mapping of the
SLM248P Switch.
SLM48P Shared Port Mapping
miniGBIC Port
miniGBIC 1
miniGBIC 2

Back Panel

The power port is located on the back panel of the Switch.
Back Panel of the SLM248P
POWER The Power port is where you connect
the AC power.
Product Overview
Gigabit Port
Port G1
Port G2
