Echo WT-1610HSP Operator's Manual

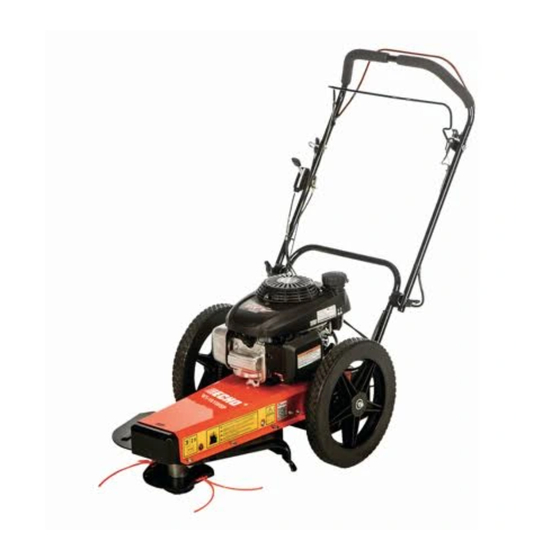

Wheel trimmer
Hide thumbs Also See for WT-1610HSP:
Table of Contents

Advertisement

Quick Links

Download this manual
99922205556
© 06/2020 ECHO Incorporated
OPERATOR'S MANUAL
WHEEL TRIMMER
WT-1610HSP
WARNING
Read and understand all provided literature before use.
Failure to do so could result in serious injury.
WARNING
Cancer and Reproductive Harm
www.P65Warnings.ca.gov
www.echo-usa.com

Advertisement

Table of Contents
loading

Related Manuals for Echo WT-1610HSP

Summary of Contents for Echo WT-1610HSP

  • Page 1 OPERATOR’S MANUAL WHEEL TRIMMER WT-1610HSP WARNING Read and understand all provided literature before use. Failure to do so could result in serious injury. WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov 99922205556 www.echo-usa.com © 06/2020 ECHO Incorporated...
  • Page 2 Register your ECHO equipment on-line at www.echo-usa.com or by filling out the product registration sheet included in this manual. Registering your product confirms warranty coverage and provides a direct link to ECHO if we find it necessary to contact you.
  • Page 3 ECHO brand rental of a like product during the time warranty service is outdoor product.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS SAFETY ................................... 1 1.1 SAFETY ALERT SYMBOL ..............................1 1.2 FIRE HAZARD INFORMATION ............................1 1.3 BEFORE OPERATING ................................1 1.4 OPERATION SAFETY ................................2 1.5 MAINTENANCE/STORAGE SAFETY ..........................2 1.6 SAFETY DECAL LOCATIONS ............................. 3 ASSEMBLY................................4 2.1 ADJUST THE HANDLE BAR ..............................

  • Page 5: Safety

    SAFETY Section The engine on your power equipment, like most outdoor 1.1 SAFETY ALERT SYMBOL power equipment, is an internal combustion engine that burns gasoline or diesel fuel (hydrocarbons). If operating your power equipment in affected areas, it must be equipped with a spark arrestor in continuous effective working order.

  • Page 6: Operation Safety

    SAFETY 6. Do not operate this machine if you 1.4 OPERATION SAFETY are under the influence of alcohol, medications, substances that 1. Keep hands and feet out of cutting area while machine can affect your vision, balance or is operating to avoid serious personal injury. Stop and judgement.

  • Page 7: Safety Decal Locations

    SAFETY 1.6 SAFETY DECAL LOCATIONS Familiarize yourself with all of the safety and operational decals on the machine and the associated hazards. See the engine owner’s manual or contact the engine manufacturer for engine safety instructions and decals. Make certain that all safety and operating decals on this machine are kept clean and in good condition.

  • Page 8: Assembly

    ASSEMBLY Section 2.1 ADJUST THE HANDLE BAR 2.3 FILL THE FUEL TANK 1. Open shipping box and remove packing material. WARNING 2. Loosen T-handles on handle bar. Raise upper portion of handle bar to desired position. Tighten T-handles. Gasoline and diesel fuels are highly 3.

  • Page 9: Features & Controls

    FEATURES & CONTROLS Section Understanding how your machine works will help you achieve the best results when using your trimmer. The following descriptions define the features and controls of your machine. REFER TO ENGINE OWNER’S MANUAL FOR FURTHER ENGINE OPERATING INSTRUCTIONS. 1.

  • Page 10: Operation

    OPERATION Section As with any other piece of outdoor power equipment, WARNING getting the feel for how your machine operates and getting to know the best techniques for particular jobs are Allow the machine to come to complete stop before important to overall good performance.

  • Page 11: Self-Propelled Operation

    OPERATION 4.4 SELF-PROPELLED OPERATION The Wheeled Trimmer can be used in either push or self-propelled mode. Check engine oil level before starting (see Engine Owners Manual). 1. Pull back on the self-propelled bail located in front of the handlebar to start moving forward. 2.

  • Page 12: Service & Maintenance

    SERVICE & MAINTENANCE Section 5.1 MAINTENANCE SCHEDULE The items listed in this service and maintenance schedule are to be checked, and if necessary, corrective action taken. This schedule is designed for units operating under normal conditions. If the unit is operating in adverse or severe conditions, it may be necessary for the items to be checked and serviced more frequently.

  • Page 13: Cutting Height Adjustment

    SERVICE & MAINTENANCE WARNING BEFORE INSPECTING OR SERVICING ANY PART OF THIS MACHINE, SHUT OFF POWER SOURCE, DISCONNECT SPARK PLUG WIRE FROM SPARK PLUG AND MAKE SURE ALL MOVING PARTS HAVE COME TO A COMPLETE STOP. 5.3 CUTTING HEIGHT ADJUSTMENT The standard cutting height is 2-3/4 inches.

  • Page 14: Drive Belt Checking, Tensioning, And Replacement

    SERVICE & MAINTENANCE WARNING BEFORE INSPECTING OR SERVICING ANY PART OF THIS MACHINE, SHUT OFF POWER SOURCE, DISCONNECT SPARK PLUG WIRE FROM SPARK PLUG AND MAKE SURE ALL MOVING PARTS HAVE COME TO A COMPLETE STOP. 5.5 DRIVE BELT CHECKING, TENSIONING, AND REPLACEMENT Check the condition of the drive belt annually or after 20 7.

  • Page 15: Transmission Belt/Chains Tensioning And Replacement

    SERVICE & MAINTENANCE WARNING BEFORE INSPECTING OR SERVICING ANY PART OF THIS MACHINE, SHUT OFF POWER SOURCE, DISCONNECT SPARK PLUG WIRE FROM SPARK PLUG AND MAKE SURE ALL MOVING PARTS HAVE COME TO A COMPLETE STOP. 5.6 TRANSMISSION BELT/CHAINS TENSIONING AND REPLACEMENT See Figure 5.1 for illustration.

  • Page 16: Troubleshooting

    Before performing any of the corrections in this troubleshooting chart, refer to the appropriate information contained in this manual for the correct safety precautions and operating or maintenance procedures. Contact your dealer or ECHO for service problems with the machine.
  • Page 17 TROUBLESHOOTING PROBLEM POSSIBLE CAUSES REMEDY Air filter dirty Clean or replace Fuel filter dirty Replace Fuel vent plugged Clean or replace Engine runs, but dies or does not accelerate Spark plug dirty/worn Clean and adjust or replace properly Carburetor vibration Adjust Cooling system dirty/plugged Clean...

  • Page 18: Specifications

    SPECIFICATIONS Section DESCRIPTION ENGLISH METRIC Engine Honda GCV 160cc Drive Self-propelled Fuel capacity 0.98 quarts (0.25 gallon) Start Recoil Cutting width 24" 61 cm Cutting height 1-7/8" and 2-3/4" 4.8 cm and 7 cm Nylon cutting string 20" 0.155" Cross-Fire 50.8 cm 0.39 cm Cross-Fire ®...

  • Page 19: Bolt Torque

    SPECIFICATIONS 7.1 BOLT TORQUE The tables below are for reference purposes only and their use by anyone is entirely voluntary, unless otherwise noted. Reliance on their content for any purpose is at the sole risk of that person and any loss or damage resulting from the use of this information is the responsibility of that person.

  • Page 20: Options

    OPTIONS Section PART NUMBER DESCRIPTION 102225155 STRING, .155 DIA, CROSS-FIRE (50 Count / 21” Strips) ® 311155066 STRING, .155 DIA, CROSS-FIRE (1 LB. DONUT) 314155056 STRING, .155 DIA, CROSS-FIRE (3 LB. SPOOL) 102225175 STRING, .175 DIA, CROSS-FIRE (50 Count /21” Strips) 311175067 STRING, .175 DIA, CROSS-FIRE (1 LB.

  • Page 21: Product Registration

    It’s FAST and EASY! NOTE: your information will never be sold or misused by ECHO, Inc. Registering your purchase enables us to contact you in the unlikely event of a service update or product recall, and verifies your ownership for warranty consideration.
  • Page 22 WHEELED TRIMMER...
  • Page 24 ECHO INCORPORATED 400 Oakwood Road Lake Zurich, IL 60047 www.echo-usa.com Serial Range: 120WTH000001 - 120WTH999999 78800-00...
