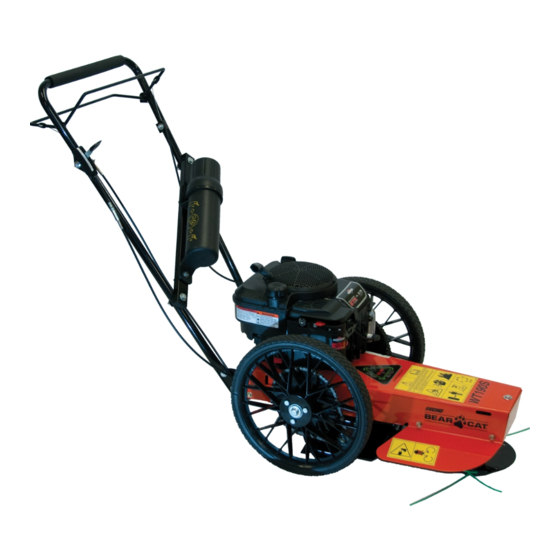

Echo WT160S Parts Manual
Wheeled trimmer
Hide thumbs
Also See for WT160S:
- Owner's manual (32 pages) ,
- Parts manual (18 pages) ,
- Specification sheet (1 page)
Advertisement
Table of Contents
- 1 Serial Number
- 2 Table of Contents
- 3 WT190 Drive Assembly
- 4 WT190 Handlebar Assy
- 5 WT190 Head Assembly
- 6 WT160S & WT190S Drive Assembly
- 7 WT160S & WT190S Handlebar Assembly
- 8 WT160S & WT190S Head Assembly
- 9 WT160T & WT190T Drive Assembly
- 10 WT160T & WT190T Handlebar Assembly
- 11 WT160T & WT190T Head Assembly
- 12 Decals
- 13 Service PARTS
- Download this manual
See also:
Owner's Manual
Advertisement
Table of Contents
Related Manuals for Echo WT160S
Summary of Contents for Echo WT160S

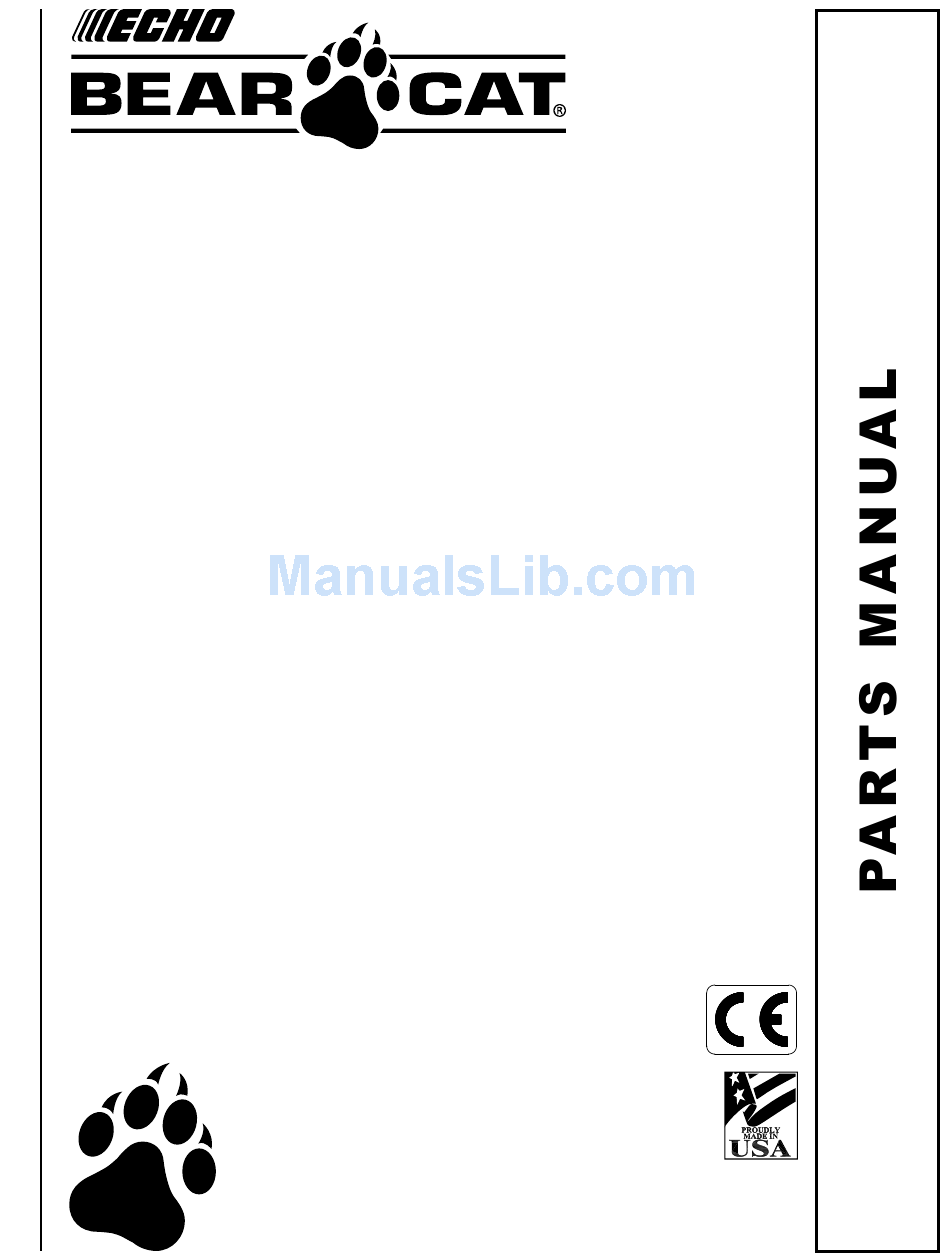

- Page 1 WHEElED trImmEr WT160S - 160 cc SELF-PROPELLED WT160T - 160 cc PuSh W/TILT WT190 - 190 cc PuSh WT190S - 190 cc SELF-PROPELLED WT190T - 190 cc PuSh W/TILT PN: 12330 Rev. 071510 Companion to 12331 SN Range: A05370 to A10061...
-
Page 2: Serial Number
If you have any questions or comments about this manual, please call us toll-free at 1-800-247-7335. If you have any questions or problems with your machine, please call or write your local authorized EChO Bear Cat Dealer. This document is based on information available at the time of its publication. EChO Bear Cat is continually making improvements and developing new equipment. -
Page 3: Table Of Contents
WT190 DRIvE ASSEMBLy ..................2 WT190 hANDLEBAR ASSy..................4 WT190 hEAD ASSEMBLy ..................6 WT160S & WT190S DRIvE ASSEMBLy ..............8 WT160S & WT190S hANDLEBAR ASSEMBLy ............10 WT160S & WT190S hEAD ASSEMBLy ..............12 WT160T & WT190T DRIvE ASSEMBLy ..............14 WT160T &... -
Page 4: Wt190 Drive Assembly
WT190 drive aSSemBly 7/10 Push WHEELED TRIMMER... - Page 5 7/10 WT190 drive aSSemBly Push aSSemBly, WT190 drive iTem ParT numBer deSCriPTion 12319 PuLLEy, 5.0 x 7/8 AB 14560-00 DECAL, 6.5 hP INFORMATION 15131 SCREW, 5/16-18 x 5/8 SQ hD SET 15154 BOLT, 5/16 x 2-1/2 hEx hD gR5 ZP 15219 BOLT, 5/16 x 1 hhCS gR5 NC ZP 15250...
-
Page 6: Wt190 Handlebar Assy
WT190 handleBar aSSy. 7/10 Push WHEELED TRIMMER... - Page 7 7/10 WT190 handleBar aSSy. Push aSSemBly, WT190 handleBar iTem ParT numBer deSCriPTion 12324 CABLE, BRAKE CONTROL 12326 PAD, FOAM hANDLEBAR 15030 WAShER, 1/4 FLAT ZP 15176 SCREW, 11/32 x 7/8 hWh AB ThREAD ZP 15219 BOLT, 5/16 x 1 hhCS gR5 NC ZP 15250 WAShER, 5/16 FLAT ZP 15342...
-
Page 8: Wt190 Head Assembly
WT190 head aSSemBly 7/10 Push WHEELED TRIMMER... - Page 9 7/10 WT190 head aSSemBly Push aSSemlBy, WT190 head iTem ParT numBer deSCriPTion 12254 DECAL, gRINDER DANgER 12314 BEARINg, 3/4 BALL 12317 BELT, 4L 53 ARAMID 12348 STRINg, .155 x 20-1/2 14184-00 DECAL, 101 DB 15003 BOLT, 5/16 x 3/4 hEx hD gR5 ZP 15098 WAShER, 3/4 SAE FLAT ZP 15176...
- Page 10 WT160S & WT190S 7/10 Self-Propelled drive aSSemBly WHEELED TRIMMER...
-
Page 11: Wt160S & Wt190S Drive Assembly
WT160S & WT190S 7/10 Self-Propelled drive aSSemBly aSSemBly, Wheeled Trimmer drive WT160S WT190S iTem ParT numBer deSCriPTion 12319 PuLLEy, 5.0 x 7/8 AB 12512 ENgINE, 5.5 hP hONDA gCv 18945-00 ENgINE, 6.5 hP QuANTuM hD 49 STATE 12568 PuLLEy, 7-1/2 x 12MM A gROOvE... - Page 12 WT160S & WT190S 7/10 Self-Propelled handleBar aSSemBly WHEELED TRIMMER...
-
Page 13: Wt160S & Wt190S Handlebar Assembly
12856 CABLE, SP CONTROL 15030 WAShER, 1/4 FLAT ZP 15093 BOLT, 1/4 x 2 hEx hD gR5 ZP (WT160S ONLy) 15094 BOLT, 1/4 x 1-3/4 hhCS gR5 ZP (WT190S ONLy) 15176 SCREW, 11/32 x 7/8 hWh AB ThREAD ZP 15197... - Page 14 WT160S & WT190S 7/10 Self-Propelled head aSSemBly WHEELED TRIMMER...
-
Page 15: Wt160S & Wt190S Head Assembly
WT160S & WT190S 7/10 Self-Propelled head aSSemBly aSSemBly, WT160S & WT190S head iTem ParT numBer deSCriPTion 12252 DECAL, vAC DEBRIS 12254 DECAL, gRINDER DANgER 12314 BEARINg, 3/4 BALL 12348 STRINg, .155 x 20-1/2 12573 BELT, 3L x 52 14182-00 DECAL, 98 DB... - Page 16 WT160T & WT190T 7/10 Push w/Tilt drive aSSemBly WHEELED TRIMMER...
-
Page 17: Wt160T & Wt190T Drive Assembly
WT160T & WT190T 7/10 Push w/Tilt drive aSSemBly aSSemBly, WT160T & WT190T drive WT160T WT190T iTem ParT numBer deSCriPTion 12177 SPRINg, hEAvy DuTy COMPRESSION 12275 FITTINg, 1/4 SELF-TAP gREASE 12319 PuLLEy, 5.0 x 7/8 AB 12325 gRIP, TILT CONTROL 12512 ENgINE, 5.5 hP hONDA gCv 18945-00 ENgINE, 6.5 hP QuANTuM hD 49 STATE... - Page 18 WT160T & WT190T 7/10 Push w/Tilt handleBar aSSemBly WHEELED TRIMMER...
-
Page 19: Wt160T & Wt190T Handlebar Assembly
WT160T & WT190T 7/10 Push w/Tilt handleBar aSSemBly aSSemBly, WT160T & WT190T handleBar iTem ParT numBer deSCriPTion 12324 CABLE, BRAKE CONTROL 12326 PAD, FOAM hANDLEBAR 15030 WAShER, 1/4 FLAT ZP 15176 SCREW,11/32 x 7/8 hWh AB ThREAD ZP 15197 BOLT, 1/4 x 2-1/4 hCS gR5 ZP (WT160T MODELS) 15342 BOLT, 1/4 x 1-1/2 hCS gR5 ZP (WT190T MODELS) 15219... - Page 20 WT160T & WT190T 7/10 Push w/Tilt head aSSemBly WHEELED TRIMMER...
-
Page 21: Wt160T & Wt190T Head Assembly
WT160T & WT190T 7/10 Push w/Tilt head aSSemBly aSSemBly, WT160T & WT190T head iTem ParT numBer deSCriPTion 12254 DECAL, gRINDER DANgER 12314 BEARINg, 3/4 BALL 12317 BELT, 4L 53 ARAMID 12348 STRINg, .155 x 20-1/2 14182-00 DECAL, 98 DB (WT160TxS MODEL) 14148-00 DECAL, 101 DB (WT190TxS MODEL) 15003... -
Page 22: Decals
7/10 iTem ParT numBer deSCriPTion 12254 DECAL, CuTTER DANgER 12755 DECAL, 5.5 hP INFORMATION (WT160S, WT160T) 14560-00 DECAL, 6.5 hP INFORMATION (WT190) 14563-00 DECAL, 6.5 hP TILT INFORMATION (WT190T) 14564-00 DECAL, 6.5 hP SP INFORMATION (WT190SE,WT190S) 14184-00 DECAL, 101 DB 17913 DECAL, SMALL BEARCAT (DOMESTIC &... -
Page 23: Service Parts
7/10 ServiCe ParTS ServiCe ParTS ParT numBer deSCriPTion 12388 STRINg, 1 LB. x .130 ROuND 12389 STRINg, 1 LB. x .130 SQuARE 12390 STRINg, 1 LB. x .155 ROuND 12391 STRINg, 1 LB. x .155 SQuARE 72777 .130 ROuND STRINg (QTy 10) 72778 .130 SQuARE STRINg (QTy 10) 72779... - Page 24 Bear CaT www.bearcatproducts.com 237 NW 12th Street, West Fargo, ND 58078-0849 Phone: 701.282.5520 • Toll Free: 800.247.7335 • Fax: 701.282.9522 E-mail: service@bearcatproducts.com • sales@bearcatproducts.com...
