READ AND SAVE THIS MANUAL. This manual contains important safety precautions which should be read and understood before operating the product. Failure to
do so could result in serious injury. This manual should remain with the product.
Specifications, descriptions and illustrations in this manual are as accurate as known at the time of publication, but are subject to change without notice.
REV 20200821
REGISTER YOUR PRODUCT ONLINE
at championpowerequipment.com

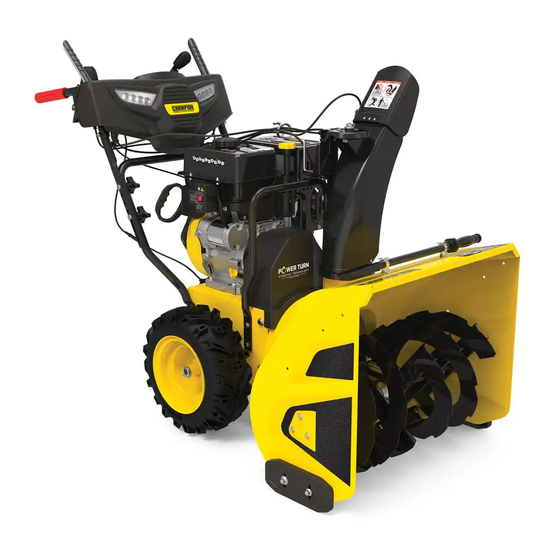

OPERATOR'S MANUAL
MODEL #100535
27 IN. 2-STAGE SNOWBLOWER
or visit championpowerequipment.com
Champion Power Equipment, Inc., Santa Fe Springs, CA USA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 100535 and is the answer not in the manual?

Questions and answers

Related Manuals for Champion Power Equipment 100535

Summary of Contents for Champion Power Equipment 100535

  • Page 1 This manual should remain with the product. Specifications, descriptions and illustrations in this manual are as accurate as known at the time of publication, but are subject to change without notice. REV 20200821 Champion Power Equipment, Inc., Santa Fe Springs, CA USA...

  • Page 2: Table Of Contents

    100535 - 27 IN. 2-STAGE SNOWBLOWER TABLE OF CONTENTS TABLE OF CONTENTS Maintenance ..........Engine Maintenance ..........Introduction ........... Lubrication ............

  • Page 3: Introduction

    100535 - 27 IN. 2-STAGE SNOWBLOWER INTRODUCTION SAFETY DEFINITIONS Congratulations on your purchase of a Champion Power Equipment The purpose of safety symbols is to attract your attention to (CPE) product. CPE designs, builds, and supports all of our possible dangers. The safety symbols, and their explanations, products to strict specifications and guidelines.

  • Page 4: Important Safety Instructions

    100535 - 27 IN. 2-STAGE SNOWBLOWER IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS  WARNING Sparks can result in fire or electrical shock.  WARNING When servicing the engine: Cancer and Reproductive Harm – www.P65Warnings.ca.gov Disconnect the spark plug wire and place it where it cannot contact the plug.

  • Page 5: Training

    IMPORTANT SAFETY INSTRUCTIONS 100535 - 27 IN. 2-STAGE SNOWBLOWER Training – Only fill or drain gasoline outdoors in a well-ventilated area. – DO NOT pump gasoline directly into the snowblower at the gas 1. Read the Operator’s Manual completely before attempting to station.

  • Page 6: Operation

    IMPORTANT SAFETY INSTRUCTIONS 100535 - 27 IN. 2-STAGE SNOWBLOWER Operation 18. Keep all nuts, bolts and screws tight to be sure the equipment is in safe working condition prior to operation. 1. Do not put hands or feet near or under rotating parts. Keep 19.

  • Page 7: Safety Labels

    100535 - 27 IN. 2-STAGE SNOWBLOWER IMPORTANT SAFETY INSTRUCTIONS Safety Labels These labels warn you of potential hazards that can cause serious injury. Read them carefully. If a label comes off or becomes hard to read, contact Technical Support Team for possible replacement.

  • Page 8: Safety Symbols

    IMPORTANT SAFETY INSTRUCTIONS 100535 - 27 IN. 2-STAGE SNOWBLOWER Safety Symbols Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to more safely operate the product.
  • Page 9 IMPORTANT SAFETY INSTRUCTIONS 100535 - 27 IN. 2-STAGE SNOWBLOWER SYMBOL MEANING Hot Surface. To reduce the risk of injury or damage, avoid contact with any hot surface. Open Flame Alert. Fuel and its vapors are extremely flammable and explosive. Keep fuel away from smoking, open flames, sparks, pilot lights, heat, and other ignition sources.

  • Page 10: Operation Symbols

    IMPORTANT SAFETY INSTRUCTIONS 100535 - 27 IN. 2-STAGE SNOWBLOWER Operation Symbols Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to more safely operate the product.

  • Page 11: Quickstart Label Symbols

    100535 - 27 IN. 2-STAGE SNOWBLOWER IMPORTANT SAFETY INSTRUCTIONS Quickstart Label Symbols Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to more safely operate the product.

  • Page 12: Controls And Features

    100535 - 27 IN. 2-STAGE SNOWBLOWER CONTROLS AND FEATURES CONTROLS AND FEATURES Read this operator’s manual before operating your snowblower. Familiarize yourself with the location and function of the controls and features. Save this manual for future reference. Snowblower 10. Clean Out Tool 1.
  • Page 13 CONTROLS AND FEATURES 100535 - 27 IN. 2-STAGE SNOWBLOWER Parts Included Accessories 6 ft. (1.8 m) Electric Start Power Cord ......

  • Page 14: Assembly

    100535 - 27 IN. 2-STAGE SNOWBLOWER ASSEMBLY ASSEMBLY 2. Connect the upper and lower handle with bolts (2-1), washers (2-2) and locking knobs (2-3) (Fig. 2). The top handle can Your snowblower requires some assembly. This unit ships from adjust to 4 positions. You can come back later and adjust to a our factory with oil.

  • Page 15: Add Engine Oil

    ASSEMBLY 100535 - 27 IN. 2-STAGE SNOWBLOWER 4. Put the snow discharge chute cable wire form on the snow  NOTICE discharge support using the washer (4-1) and nut (4-2). Securely tighten the assembly (Fig. 4) using included tool or The recommended oil type for typical use is 0W-30 your own 16mm wrench.

  • Page 16: Add Fuel

    ASSEMBLY 100535 - 27 IN. 2-STAGE SNOWBLOWER 4. If the oil level is near or below the lower limit mark on 2. Add fuel to the bottom of the fuel level limit in the neck of the the dipstick, remove the oil cap/dipstick, and fill with the fuel tank.

  • Page 17: Operation

    100535 - 27 IN. 2-STAGE SNOWBLOWER OPERATION   NOTICE WARNING The snowblower engine works well with 10% or less ethanol Always check the engine oil level before operation. Using the blend gasoline. When using ethanol-gasoline blends there are snowblower without oil can seriously damage the engine and some issues worth noting: void your warranty.

  • Page 18: Stopping The Engine

    OPERATION 100535 - 27 IN. 2-STAGE SNOWBLOWER 3. To start a cold engine: (Fig. 10). 6. To start a cold engine: When the engine starts, move the choke to RUN position. 3a. Move the fuel valve lever to the ON position.

  • Page 19: Control Levers

    OPERATION 100535 - 27 IN. 2-STAGE SNOWBLOWER Control Levers Auger control handle. Located on the right side handle. Self-drive control handle. Located on the left side handle (figure 13). Pushing this lever towards the handle causes the auger and impeller to When the snowblower has been put activate.

  • Page 20: Adjusting The Snow Discharge Direction And Height

    OPERATION 100535 - 27 IN. 2-STAGE SNOWBLOWER Adjusting the Snow Discharge Direction and Adjusting the Snow Shoes Height Set the height of the auger housing above the ground using the shoes. Change discharge direction: Adjust the shoes to suit the ground conditions: Discharge chute rotation lever controls the chute either left or right (Fig.

  • Page 21: After Use

    100535 - 27 IN. 2-STAGE SNOWBLOWER MAINTENANCE 2. This allows the operator to keep driving the snowblower while – Injury from moving parts — read the instructions before you they now use their right hand to make any adjustments to the begin, and make sure you have the tools and skills required.

  • Page 22: Long-Term Storage

    100535 - 27 IN. 2-STAGE SNOWBLOWER LONG-TERM STORAGE LONG-TERM STORAGE Never store the machine with gasoline in the fuel tank in a confined area with poor ventilation. Gasoline fumes could reach open flames, sparks, cigarettes, etc. To avoid the engine freezing and problems starting the engine, leave the engine running for 5-10 minutes after your work has been completed.

  • Page 23: Specifications

    SPECIFICATIONS 100535 - 27 IN. 2-STAGE SNOWBLOWER SPECIFICATIONS Oil Specifications DO NOT OVERFILL. Snowblower Specifications Type ............0W-30 Model ............

  • Page 24: Troubleshooting

    100535 - 27 IN. 2-STAGE SNOWBLOWER TROUBLESHOOTING TROUBLESHOOTING Problem Cause Solution Repeat start attempts with throttle choke Engine flooded. OFF. Engine fails to start. Water in fuel. Drain tank and refill with fresh fuel. Check carefully the start procedure Other.
