OPERATOR'S MANUAL
MODEL #100679

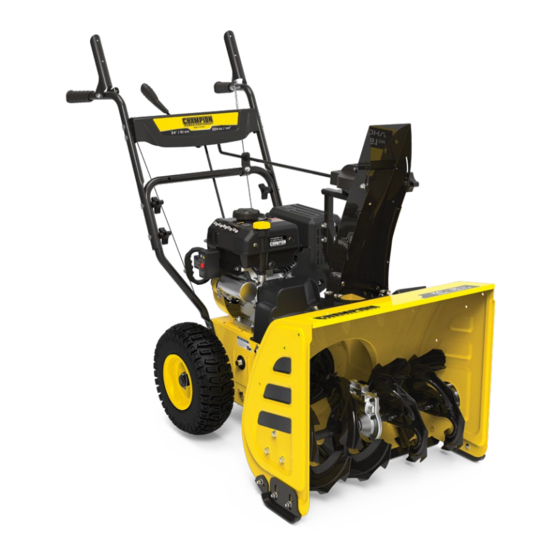

24 iN. 2-STAgE SNOwbLOwER
REGISTER YOUR PRODUCT ONLINE
at championpowerequipment.com
or visit championpowerequipment.com
READ AND SAVE THiS MANUAL. This manual contains important safety precautions which should be read and understood before operating the product. Failure to
do so could result in serious injury. This manual should remain with the product.
Specifications, descriptions and illustrations in this manual are as accurate as known at the time of publication, but are subject to change without notice.
REV 20200807
Champion Power Equipment, Inc., Santa Fe Springs, CA USA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 100679 and is the answer not in the manual?

Questions and answers

etta jane mcneil
May 7, 2025

how do i get a replacement key for my snow blower

0

Related Manuals for Champion Power Equipment 100679

Summary of Contents for Champion Power Equipment 100679

  • Page 1 This manual should remain with the product. Specifications, descriptions and illustrations in this manual are as accurate as known at the time of publication, but are subject to change without notice. REV 20200807 Champion Power Equipment, Inc., Santa Fe Springs, CA USA...

  • Page 2: Table Of Contents

    TAbLE Of CONTENTS 100679 - 24 iN. 2-STAgE SNOwbLOwER TAbLE Of CONTENTS Maintenance ..........Engine Maintenance ..........introduction ........... Oil Change ............

  • Page 3: Introduction

    100679 - 24 iN. 2-STAgE SNOwbLOwER iNTRODUCTiON SAfETY DEfiNiTiONS Congratulations on your purchase of a Champion Power Equipment The purpose of safety symbols is to attract your attention to (CPE) product. CPE designs, builds, and supports all of our possible dangers. The safety symbols, and their explanations, products to strict specifications and guidelines.

  • Page 4: Important Safety Instructions

    SAfETY iNSTRUCTiONS 100679 - 24 iN. 2-STAgE SNOwbLOwER iMPORTANT SAfETY iNSTRUCTiONS wARNiNg  Sparks can result in fire or electrical shock. wARNiNg  When servicing the engine: Cancer and Reproductive Harm – www.P65Warnings.ca.gov Disconnect the spark plug wire and place it where it cannot contact the plug.

  • Page 5: Training

    SAfETY iNSTRUCTiONS 100679 - 24 iN. 2-STAgE SNOwbLOwER Training – Only fill or drain gasoline outdoors in a well-ventilated area. – DO NOT pump gasoline directly into the snowblower at the gas 1. Read the Operator’s Manual completely before attempting to station.

  • Page 6: Operation

    SAfETY iNSTRUCTiONS 100679 - 24 iN. 2-STAgE SNOwbLOwER Operation 18. Keep all nuts, bolts and screws tight to be sure the equipment is in safe working condition prior to operation. 1. Do not put hands or feet near or under rotating parts. Keep 19.

  • Page 7: Safety Labels

    - changed to “87” octane. process magenta This artwork belongs to Champion Power Equipment. The contents are confidential and privileged and shall not be disclosed to or used by or for outside parties without the explicit consent of Champion Power Equipment.

  • Page 8: Safety Symbols

    SAfETY iNSTRUCTiONS 100679 - 24 iN. 2-STAgE SNOwbLOwER Safety Symbols Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to more safely operate the product.
  • Page 9 SAfETY iNSTRUCTiONS 100679 - 24 iN. 2-STAgE SNOwbLOwER SYmBOL mEANING hot Surface. To reduce the risk of injury or damage, avoid contact with any hot surface. Open Flame Alert. Fuel and its vapors are extremely flammable and explosive. Keep fuel away from smoking, open flames, sparks, pilot lights, heat, and other ignition sources.

  • Page 10: Operation Symbols

    SAfETY iNSTRUCTiONS 100679 - 24 iN. 2-STAgE SNOwbLOwER Operation Symbols Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to more safely operate the product.

  • Page 11: Quickstart Label Symbols

    5. Priming the Engine This artwork belongs to Champion Power Equipment. The contents are confidential and privileged and shall not be disclosed to or used by or for 5a. To start the COLD engine: Prime 3-5 times.

  • Page 12: Controls And Features

    CONTROLS AND fEATURES 100679 - 24 iN. 2-STAgE SNOwbLOwER CONTROLS AND fEATURES Read this operator’s manual before operating your snowblower. Familiarize yourself with the location and function of the controls and features. Save this manual for future reference. Snowblower 10. Impeller 1.
  • Page 13 CONTROLS AND fEATURES 100679 - 24 iN. 2-STAgE SNOwbLOwER Parts included Accessories 6 ft. (1.8 m) Electric Start Power Cord ......
  • Page 14 CONTROLS AND fEATURES 100679 - 24 iN. 2-STAgE SNOwbLOwER Part hardware Part hardware Needed hardware Reference Tool Needed Qty. Qty. Speed Control Clip (preassembled) (8-1) Lever M8×40 Hexagon flange bolt (9-1) Snow Discharge 12mm Wrench Chute M8 Hexagon flange lock nut...

  • Page 15: Assembly

    ASSEMbLY 100679 - 24 iN. 2-STAgE SNOwbLOwER ASSEMbLY 2–1 Your snowblower requires some assembly. This unit ships from 2–3 our factory with oil. It must be properly serviced with fuel and oil before operation. 2–2 If you have any questions regarding the assembly of your snowblower, call our Technical Support Team at 1-877-338-0999.

  • Page 16: Cables

    ASSEMbLY 100679 - 24 iN. 2-STAgE SNOwbLOwER Cables Upper Handle 1. Cables are disconnected from each other and found on the 1. Fold the upper handle up, making sure the cables pull tight base of the snowblower (near the auger housing) and on the (Fig 5).

  • Page 17: Speed Control Connecting Lever

    ASSEMbLY 100679 - 24 iN. 2-STAgE SNOwbLOwER 3. Discharge chute bracket should be placed forward as shown (for correct placement). Do not overtighten. Connect discharge chute guide to lower handle with 1 bolt (7-1), and 1 9–2 lock nut (7-2) (Fig. 7).

  • Page 18: Add Engine Oil

    ASSEMbLY 100679 - 24 iN. 2-STAgE SNOwbLOwER 3. Align the lever and the gear, and then connect the R-clip 1. Place the snowblower on a flat, level surface. (11-1). (Fig. 11B). 2. Remove the oil cap/dipstick and wipe it clean (Fig. 12A).

  • Page 19: Add Fuel

    ASSEMbLY 100679 - 24 iN. 2-STAgE SNOwbLOwER NOTiCE CAUTiON   Synthetic oil may be used after the first oil change. Using Use unleaded gasoline with a minimum octane rating of 87 synthetic oil does not decrease the recommended oil change and an ethanol content of 10% or less by volume.

  • Page 20: Operation

    OPERATiON 100679 - 24 iN. 2-STAgE SNOwbLOwER OPERATiON Starting the Engine 1. Make sure the engine key (safety lock out) is inserted into the wARNiNg  key hole. 2. To start a warm engine: (Fig. 14). Never use the snowblower without first reading and understanding the operating instructions, warnings and 2a.

  • Page 21: Stopping The Engine

    OPERATiON 100679 - 24 iN. 2-STAgE SNOwbLOwER Operation at High Altitude 4. Stand back and to the right of the unit, pull the starter grip lightly until you feel resistance then pull briskly. Return the The density of air at high altitudes is lower than at sea level.

  • Page 22: Drive System

    OPERATiON 100679 - 24 iN. 2-STAgE SNOwbLOwER Releasing the self-drive control handle Slower causes the machine to stop moving. Adjusting the self-propelled drive system: Auger control handle. Located on the 1. Release the self-drive control handle to bring the snowblower left side handle (Fig.

  • Page 23: Adjusting The Snow Shoes

    OPERATiON 100679 - 24 iN. 2-STAgE SNOwbLOwER Change discharge height: 1. Loosen the locking knob to adjust the snow discharge deflector to a suitable height (Fig. 20). 30mm Figure 21 Locking knob To adjust the shoes 1. Loosen the nuts.

  • Page 24: Maintenance

    MAiNTENANCE 100679 - 24 iN. 2-STAgE SNOwbLOwER MAiNTENANCE EVERY mONTh OR 20 hOURS — Change oil wARNiNg  Always disconnect the spark plug wire during times of EVERY 6 mONThS OR 100 hOURS inactivity, cleaning and maintenance. This will prevent any —...

  • Page 25: Cleaning And Adjusting The Spark Plug(S)

    MAiNTENANCE 100679 - 24 iN. 2-STAgE SNOwbLOwER 5. Reinstall the oil cap/dipstick securely. Capacity of engine oil: 7. Use a spark plug socket (not included) to firmly install the 16.9 fl. oz. (0.5 L). plug. 8. Attach the spark plug wire to the plug.

  • Page 26: Adjusting Self-Drive Control Handle Cable

    MAiNTENANCE 100679 - 24 iN. 2-STAgE SNOwbLOwER wARNiNg  No service must be carried out before: – The engine has stopped. 1/4" – 3/8" – The spark plug cable has been disconnected from the Bolt spark plug. Adjusting Self-Drive Control Handle Cable Check the slack of the tension and adjust accordingly.
  • Page 27 MAiNTENANCE 100679 - 24 iN. 2-STAgE SNOwbLOwER Figure 28B Figure 31A 3. Remove the 2 bolts (20 mm/30 mm) holding the belt guard (Fig. 29). Note the spring is loose at this point. Figure 31B 7. Slip the new auger drive belt into the compartment from the...
  • Page 28 MAiNTENANCE 100679 - 24 iN. 2-STAgE SNOwbLOwER Figure 32B Figure 35 8. Ensure belt is seated below the belt guide on the idler pulley 11. Reassemble the support rod by pushing back into place pivot arm (Fig. 33). and ensure that it is properly engaged into the friction disc assembly and replace the washer and clip (Fig.

  • Page 29: Replace Auger Drive Belt - Splitting

    MAiNTENANCE 100679 - 24 iN. 2-STAgE SNOwbLOwER Replace Auger Drive belt – Splitting The Snowblower body (Option 2) Tools required: – Size 10 wrench (included). – Size 12 wrench (included). – Size 13 wrench (not included). To remove and replace your snowblower’s drive belt, proceed as follows: 1.

  • Page 30: Repair Or Replace Friction Disk

    MAiNTENANCE 100679 - 24 iN. 2-STAgE SNOwbLOwER Repair or Replace friction Disk 8. Split the drive belt off the pulley. Remove and replace the belt in reverse order ensuring that the new belt is below the spring loaded idler pulley (Fig. 45).

  • Page 31: Lubrication

    MAiNTENANCE 100679 - 24 iN. 2-STAgE SNOwbLOwER 3. Remove the right wheel (2) by removing the axle pin on it 6. Unscrew the six M6 × 16 bolts (6) of the friction disc (Fig. 48B). assembly to discard the worn friction wheel rubber ring (7) and replace with a new one (Fig.

  • Page 32: Storage

    STORAgE 100679 - 24 iN. 2-STAgE SNOwbLOwER STORAgE Transporting If the engine has been running, allow it to cool for at least 15 Never store the machine with gasoline in the fuel tank in a minutes before loading the machine on the transport vehicle.

  • Page 33: Specifications

    SPECifiCATiONS 100679 - 24 iN. 2-STAgE SNOwbLOwER SPECifiCATiONS Oil Specifications DO NOT OVERFILL. Snowblower Specifications Type ............0W-30 Model ............

  • Page 34: Troubleshooting

    TROUbLESHOOTiNg 100679 - 24 iN. 2-STAgE SNOwbLOwER TROUbLESHOOTiNg Problem Cause Solution Repeat start attempts with throttle choke Engine flooded. OFF. Engine fails to start. Water in fuel. Drain tank and refill with fresh fuel. Check carefully the start procedure Other.
  • Page 35 Please register within ten (10) Consequential Damage days from date of purchase. Champion Power Equipment disclaims any obligation to cover any loss of time, use of this product, freight, or any incidental Repair/Replacement Warranty or consequential claim by anyone from using this product.
  • Page 36 THE UNITED STATES ENVIRONMENTAL PROTECTION AGENCY (U.S. EPA) AND THE CALIFORNIA AIR RESOURCES BOARD (CARB) EMISSION CONTROL SYSTEM WARRANTY Your Champion Power Equipment (CPE) engine complies with both the U.S. EPA and state of California Air Resources Board (CARB) emissions regulations.
  • Page 37 EMISSION CONTROL SYSTEM WARRANTY The following are specific provisions relative to your Emission Control System (ECS) Warranty Coverage. 1. APPLICABILITY: This warranty shall apply to 1995 and later model year California small off-road engines (SORE) (for other states, 1997 and later model year engines). The ECS Warranty Period shall begin on the date the new engine or equipment is delivered to its original, end-use purchaser, and shall continue for 24 consecutive months thereafter.
  • Page 38 You must take your CPE engine or the product on which it is installed, along with your warranty registration card or other proof of original purchase date, at your expense, to any Champion Power Equipment dealer who is authorized by Champion Power Equipment, Inc. to sell and service that CPE product during his normal business hours.
