Ara-Be | User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Ara-Be and is the answer not in the manual?

Questions and answers

Related Manuals for SB Acoustics Ara-Be

Summary of Contents for SB Acoustics Ara-Be

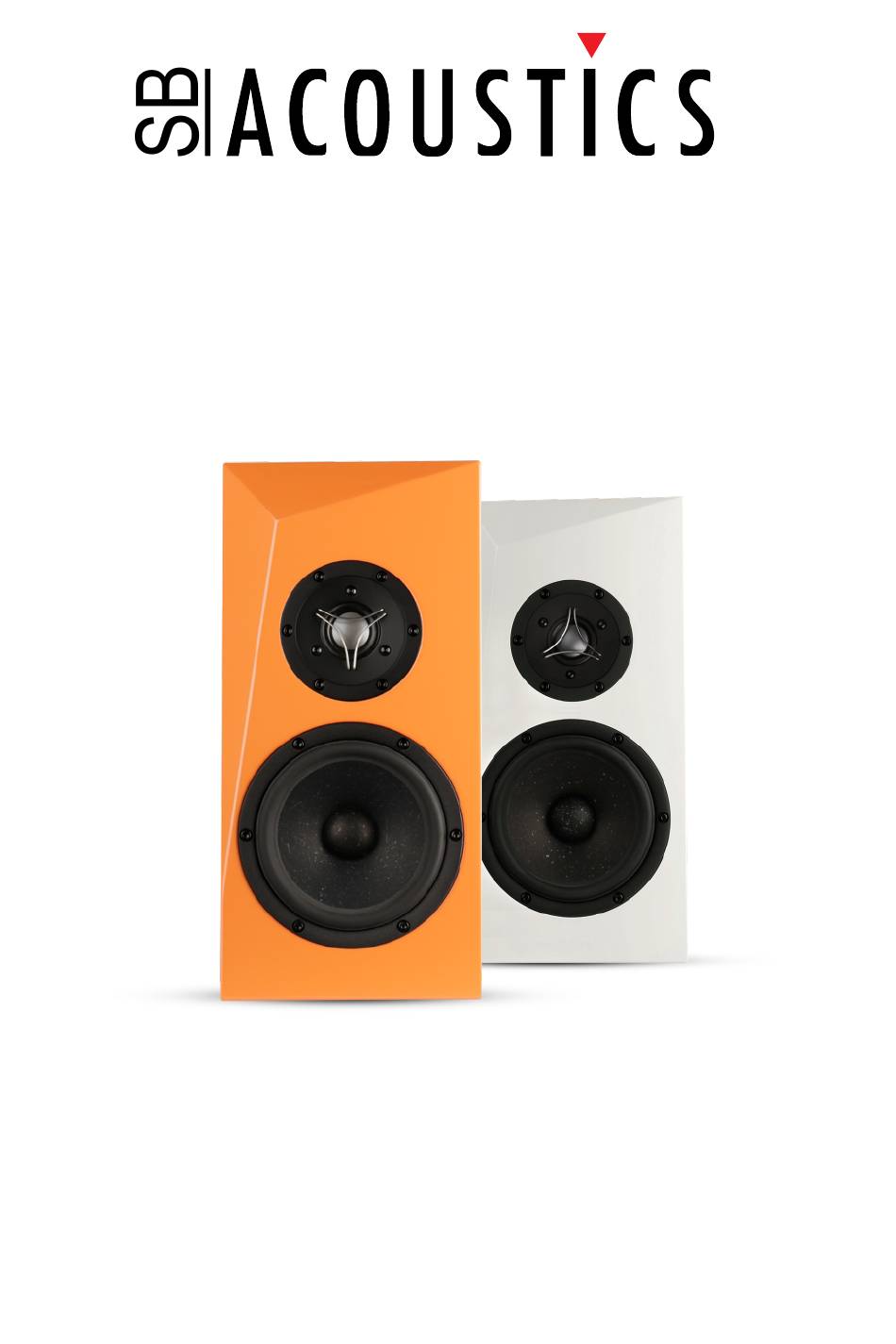

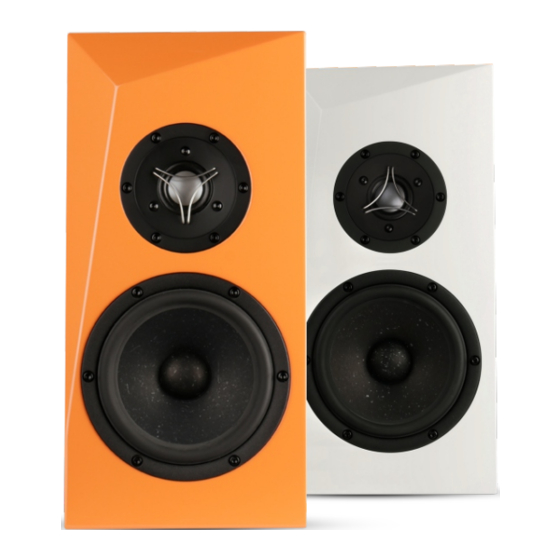

  • Page 1 Ara-Be | User Manual...
  • Page 2 Ara-Be | User Manual Technical Specications: Frequency range 45-30000 Hz +/-3 dB Sensitivity (2.83V / 1m) 87 dB Nominal impedance 4Ω Max SPL 105 dB Recommended amplier : 40-150 W Cross-over frequency 2300 Hz Speaker type 2-way Enclosure type Bass reex Port tuning frequency 36.5 Hz...
  • Page 3 Ara-Be | User Manual...
  • Page 4 Ara-Be | User Manual Mechanical Drawing (dimensions in mm).
  • Page 5 Ara-Be | User Manual...
  • Page 6 Ara-Be | User Manual...
  • Page 7 Ara-Be | User Manual...
  • Page 8 Ara-Be | User Manual Damping Material Position (dimensions in mm)
  • Page 9 Ara-Be | User Manual...
  • Page 10 Ara-Be | User Manual Parts List (each cabinet): High frequency driver Satori TW29BN / TW29BN-B (sold separately) .... 1 pc - Low frequency driver 6½" Satori MW16P-4 / MW16PNW-4 (sold separately) 1 pc - Ara crossover kit (sold separately) ..............
  • Page 11 Ara-Be | User Manual Assembly Instructions: 1. Take out the cabinet from the packaging and take out the raw damping material from the cabinet. 2. Cut the raw damping material to 7 pcs of damping according to the cutting pattern diagram.
  • Page 12 Ara-Be | User Manual 4. Mount the crossover with the 6 screws supplied. 5. Pass the input wire through the hole in the rear panel of the cabinet. 6. Seal the cable hole with hot melt glue.
  • Page 13 Ara-Be | User Manual 7. Pull the tweeter cable through the hole in cabinet bracing. 8. Place each damping part into the cabinet according to position the diagram. Add a bit of glue if needed to hold the damping material in place...
  • Page 14 Ara-Be | User Manual 9. Mount the terminal plate to the terminal hole at the back of the cabinet. 10. Hook up the cable to the tweeter and woofer terminals.
  • Page 15 Ara-Be | User Manual 11. Carefully place the drivers in the cabinet and fasten the screws. 12. Repeat for the other cabinet and your SB ACOUSTICS Ara Be are now complete. Enjoy!
  • Page 16 Rev.0: (07.06.21)
