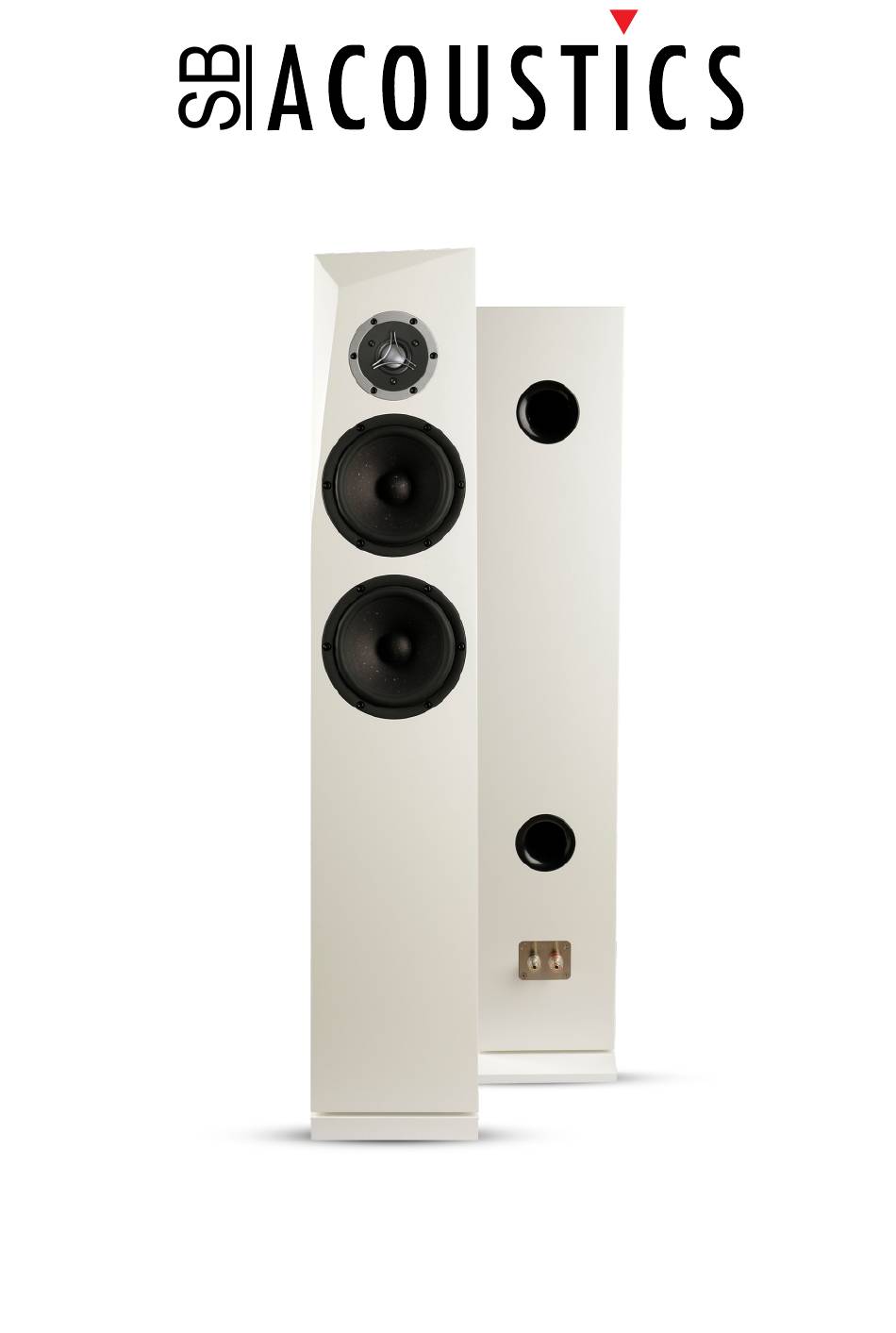

- Page 1 Rinjani-Be | User Manual...
- Page 2 Rinjani-Be | User Manual Technical Specications: Frequency range 42-30000 Hz +/-3 dB Sensitivity (2.83V / 1m) 89 dB Nominal impedance 4Ω Max SPL 107 dB Recommended amplier : 50-200 W Cross-over frequency 2300 Hz Speaker type 2½-way Floor Stand Enclosure type Bass reex...
- Page 3 Rinjani-Be | User Manual...
- Page 4 Rinjani-Be | User Manual Mechanical Drawing (dimensions in mm)
- Page 5 Rinjani-Be | User Manual...
- Page 6 Rinjani-Be | User Manual RINJANI KIT - EXPLODED VIEW...
- Page 7 Rinjani-Be | User Manual...
- Page 8 Rinjani-Be | User Manual Damping Material Position (dimensions in mm)
- Page 9 Rinjani-Be | User Manual...
- Page 10 Rinjani-Be | User Manual Parts List (each cabinet): - High frequency driver SATORI TW29BN / TW29BN-B (sold separately) ....1 pc - Low frequency driver 6½” SATORI MW16P-8 / MW16PNW-8 (sold separately) 2 pcs - Rinjani crossover kit (sold separately) ...............
- Page 11 Rinjani-Be | User Manual Assembly Instructions: 1. Unpack the cabinet from the packaging and take out the raw damping material from inside the cabinet. 2. Cut the raw damping material to 8 pieces of damping according to the cutting diagram.
- Page 12 Rinjani-Be | User Manual 4. Detach the pedestal by removing the four screws in each corner. 5. Place the crossover on top of the pedestal, with the orientation of the input cable towards the rear terminals and the speaker wires towards...
- Page 13 Manual | Rinjani-Be Kit 4. Detach the pedestal by loosen the four screws in each corner 5. Place the crossover on top of the pedestal, then put the input cable towards the rear terminal side and the speaker wire towards...
- Page 14 Rinjani-Be | User Manual 9. Mount the terminal panel into the terminal hole at the rear. 10. Mount the pedestal to the cabinet using all 12 screws. 11. Pull the three pairs of cables through the holes in each cabinet bracing.
- Page 15 Rinjani-Be | User Manual 12. Hook up the cables to the woofers and tweeter terminals. 13. Mount the drivers to the cabinet and carefully tighten the screws. 14. Reapeat the steps for the other speaker and you have completed your SB ACOUSTICS Rinjani-Be speakers.
- Page 16 Rev.0: (07.06.21)
