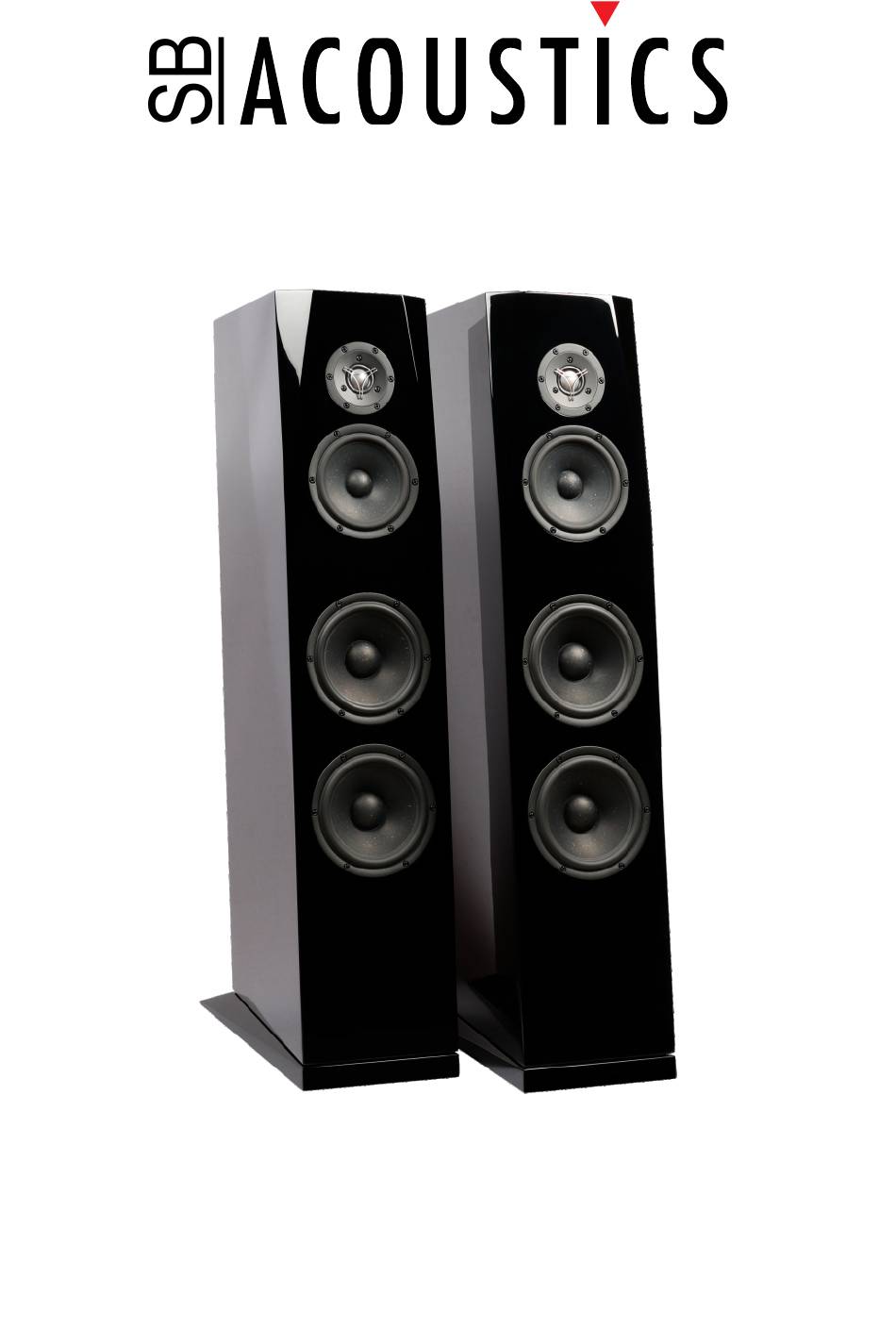

- Page 1 Sasandu | User Manual...
- Page 2 Sasandu | User Manual Technical Specications : Frequency range 32-32000 Hz +3/-6 dB Sensitivity (2.83V / 1m) 89 dB Nominal impedance 4Ω Max SPL 108 dB Recommended amplier : 100-200 W Cross-over frequencies 480 Hz & 2800 Hz Speaker type...
- Page 3 Sasandu | User Manual...
- Page 4 Sasandu | User Manual Mechanical Drawing (dimensions in mm)
- Page 5 Sasandu | User Manual...
- Page 6 Sasandu | User Manual SASANDU - EXPLODED VIEW Wood screw 4 x 16 mm for crossover (from crossover kit) Tweeter grille Midrange grille Woofer grille...
- Page 7 Sasandu | User Manual...
- Page 8 Manual | Sasandu Kit...
- Page 9 Manual | Sasandu Kit...
- Page 10 Manual | Sasandu Kit Damping Material Position (dimensions in mm)
- Page 11 Manual | Sasandu Kit Crossover Schematic ( Sasandu )
- Page 12 (sold separately) ..1 pc - Low frequency drivers 7.5" SATORI MW19P-8 or MW19PNW-8 (sold separately) 2 pcs - Sasandu crossover kit (sold separately) ............... 1 pc - Hex socket screw M4 x 20mm (for drivers) ............24 pcs - Hex socket screw M5 x 30mm (for pedestal) ............
- Page 13 Sasandu | User Manual Assembly Instructions: 1. Carefully remove the cabinet from the packaging. Locate the damping material inside the cabinet and set aside. 2. Cut the raw damping material into 18 pieces according to the cutting pattern diagram. 3.Place each damping part into the cabinet according to the position diagram.
- Page 14 Sasandu | User Manual 4. Detach the pedestal by loosening the four screws under the speaker cabinet. 5. Place the crossover onto the top of the pedestal, with the input cables towards the rear terminal side and the speaker wires towards the front panel.
- Page 15 Sasandu | User Manual 7. Pass the input cable through the terminal hole on the rear of the cabinet, then connect to the binding posts. 8. Mount the terminal panel onto the terminal hole at the back of the cabinet.
- Page 16 Sasandu | User Manual 10. Guide the four pairs of cables through the holes in each cabinet bracing. Pull the tweeter and midrange cables through the midrange chamber partition hole. 11. Seal the cable holes on the midrange chamber partition...
- Page 17 Sasandu | User Manual 12. Hook up the cables to the woofer, midrange and tweeter terminals. 13. Mount the drivers to the cabinet and gently fasten the screws. Take care not to over tighten.
- Page 18 Rev.0: (07.06.21)
