ANTAIRA STE-6104C Series Quick Start Manual

STE-6104C Series
4-Port Serial Device Server
Quick Start Guide
Version 1.1 March, 2011
This document is intended to provide customers with
brief descriptions about the product and assist customers
to get started. For detailed information and operation of
the product, please refer to the product user's manual in
the product CD or ANTAIRA website.
1. P
ACKAGING
Check whether your package contains following items:
◎
STE-6104C
◎
Quick Start Guide with Warranty Card
◎
Product CD
◎
7-pin Terminal Block ( 2ESDV-07P) x1
2. H D
ARDWARE ESCRIPTION
NOTE:
1. STE-6104C (RS-232/422/485)
2. Press the Default button of STE-6104C to reset to the
default value

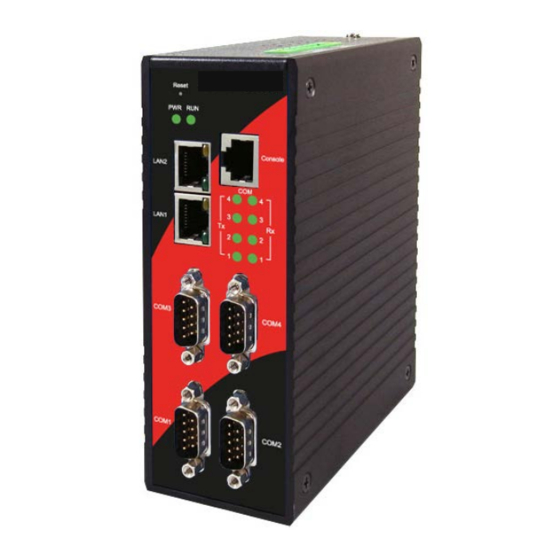

Figure 2.1. STE-6104C Series interfaces
LED Indicators:
Name Color Status
Off Power is not connected
Power Green
On Power is connected
Off Ethernet Disconnected
Green
Data is transmitting on
Blinking
LAN Ethernet for 100Mbps
Data is transmitting on
Orange Blinking
Ethernet for 10Mbps
No data is transmitting on
Off
COM port
COM Green
Data is transmitting on
Blinking
COM port
System is not ready or
Off
halt
RUN Green
AP firmware is running
Blinking
normally
Installation Procedures:
Step 1: Connect STE-6104C to power source
Step 2: Connect STE-6104C to the Ethernet network. Use
a standard straight-through or cross-over Ethernet
cable Always make sure the PC is on the same
network subnet as STE-6104C.
Step 3: Connect STE-6104C's serial port to a serial
device.
Step 4: Mount STE-6104C to a Din Rail.
3 S S
OFTWARE ETUP
Default Network Setting:
Default User Name/Password:
LAN1 IP: 10.0.50.100
User Name: admin
Gateway: 10.0.0.254
Password: null (leave it blank)
Subnet: 255.255.0.0
LAN2 IP：192.168.1.1
Gateway: 192.168.1.254
Subnet: 255.255.255.0
Auto IP (Dynamic IP):
A DHCP server can automatically assigns the IP address
and all the network settings. STE-6104C supports the
Description
