OWNER'S MANUAL

COLT - ENGLISH - OZME09E2

Table of Contents

Chapters

Table of Contents

Need help?

Do you have a question about the Colt 2009 and is the answer not in the manual?

Questions and answers

Summary of Contents for Mitsubishi MOTORS Colt 2009

Page 1 OWNER’S MANUAL COLT - ENGLISH - OZME09E2...
Page 2 Table of contents Overview General information Locking and unlocking Seat and seat belts Instruments and controls Starting and driving For pleasant driving For emergencies Vehicle care Maintenance Specifications...
Page 3 Overview Instruments and Controls E00100104085 Except for Clear Tec (LHD) Instruments P. 3-2 Combination headlamps and Windscreen wiper and washer dipper switch P. 3-31 switch P. 3-41 Turn-signal lever P. 3-37 Rear window wiper and washer Headlamp levelling switch P. 3-35 switch P.
Page 4 Overview Clear Tec (LHD) Instruments P. 3-2 Combination headlamps and dipper switch P. 3-31 Windscreen wiper and washer Turn-signal lever P. 3-37 switch P. 3-41 Headlamp levelling switch P. 3-35 Rear window wiper and washer switch Steering wheel audio remote control switch* P.
Page 5 Overview Except for Clear Tec (RHD) Instruments P. 3-2 Windscreen wiper and washer Combination headlamps and switch P. 3-41 dipper switch P. 3-31 Rear window wiper and washer Turn-signal lever P. 3-37 switch P. 3-47 Headlamp levelling switch P. 3-35 Cruise control switch* P.
Page 6 Overview Clear Tec (RHD) Instruments P. 3-2 Windscreen wiper and washer switch P. 3-41 Combination headlamps and Rear window wiper and washer dipper switch P. 3-31 switch P. 3-47 Turn-signal lever P. 3-37 Headlamp levelling switch P. 3-35 Cruise control switch* P. 4-50 Front fog lamp switch* Steering wheel audio P.
Page 7 Overview Audio* P. 5-23 Supplemental restraint Hazard warning flasher switch P. 3-38 system (SRS) - airbag (for front passenger’s seat) P. 2-36 Heater* P. 5-7 Automatic air Ventilators P. 5-2 conditioning* P. 5-13 Front passenger’s airbag ON-OFF switch P. 2-42 Accessory socket P.
Page 8 Overview Audio* P. 5-23 Hazard warning flasher switch P. 3-38 Supplemental restraint system (SRS) - airbag (for front passenger’s seat) P. 2-36 Heater* P. 5-7 Ventilators P. 5-2 Automatic air conditioning* P. 5-13 Fuses P. 8-30 Front passenger’s airbag ON-OFF switch P. 2-42 Accessory socket P.
Page 9 Overview Interior E00100203005 LHD (3-door models) Supplemental restraint system (SRS) - Curtain airbag* P. 2-51 Lock switch P. 1-21 Vanity mirror P. 5-61 Sun visors P. 5-61 Seat belts Room lamp/Map lamps P. 2-15 P. 5-63 Electric window control Inside rear-view switch P.
Page 10 Overview RHD (3-door models) Supplemental restraint system (SRS) - Curtain airbag* P. 2-51 Lock switch P. 1-21 Vanity mirror P. 5-61 Sun visors P. 5-61 Room lamp/Map lamps Seat belts P. 5-63 P. 2-15 Electric window control Inside rear-view switch P. 1-19 mirror P.
Page 11 Overview LHD (5-door models) Supplemental restraint system (SRS) - Curtain airbag* Lock switch P. 1-21 Vanity mirror P. 2-51 P. 5-61 Sun visors P. 5-61 Room lamp/Map lamps Seat belts P. 5-63 P. 2-15 Electric window control Inside rear-view switch P. 1-19 mirror P.
Page 12 Overview RHD (5-door models) Supplemental restraint system (SRS) - Curtain airbag* P. 2-51 Lock switch P. 1-21 Vanity mirror P. 5-61 Sun visors P. 5-61 Seat belts Room lamp/Map lamps P. 2-15 P. 5-63 Electric window control Inside rear-view switch P. 1-19 mirror P.
Page 13 Overview Luggage area (Except for vehicle with compact spare wheel) E00100401263 3-door models Luggage compartment lamp P. 5-64 Tyre repair kit P. 6-10 Towing hook P. 6-10...
Page 14 Overview 5-door models Luggage compartment lamp P. 5-64 Tyre repair kit P. 6-10 Towing hook P. 6-10...
Page 15 Overview Luggage area (Vehicle with compact spare wheel) E00100401276 3-door models Luggage compartment lamp P. 5-64 Towing hook P. 6-10 Spare wheel P. 6-24 Jack P. 6-20 Wheel nut wrench P. 6-10...
Page 16 Overview 5-door models Luggage compartment lamp P. 5-64 Towing hook P. 6-10 Wheel nut wrench P. 6-10 Jack P. 6-20 Spare wheel P. 6-24...
Page 17 Overview Exterior E00100503633 3-door models Electric window control P. 1-19 Outside rear-view mirrors Windscreen wipers P. 3-41 P. 4-10 Fuel tank filler P. 3 Bonnet P. 8-4 Locking and unlocking P. 1-9 Keyless entry system P. 1-5 Side turn-signal lamps P.
Page 18 Overview 3-door models Antenna P. 5-56 High-mounted stop lamps P. 8-41, 8-57 Stop and tail lamps P. 8-41, 8-51 Rear window wiper and washer P. 3-47 Rear fog lamp (LHD vehicles) P. 3-40, 8-41, 8-56 Reversing lamp Rear turn-signal lamps (RHD vehicles) P.
Page 19 Overview 5-door models Electric window control P. 1-19 Outside rear-view Windscreen wipers P. 3-41 mirrors P. 4-10 Fuel tank filler P. 3 Bonnet P. 8-4 Locking and unlocking P. 1-9 Keyless entry system P. 1-5 Side turn-signal lamps P. 3-37, 8-41, 8-47 Front turn-signal lamps P.
Page 20 Overview 5-door models Antenna P. 5-56 High-mounted stop lamps Stop lamps P. 8-41, 8-51 P. 8-41, 8-57 Rear turn-signal lamps P. 3-37, 8-41, 8-51 Rear window wiper and washer P. 3-47 Rear fog lamp (LHD vehicles) P. 3-40, 8-41, 8-51 Reversing lamp (RHD vehicles) Tail lamps P.
Page 22: Table Of Contents
General information Fuel selection ......Filling the fuel tank ......Installation of accessories .
Page 23: Fuel Selection
If the check engine warning lamp flashes, have the system checked as soon as possible at a MITSUBISHI MOTORS CAUTION Authorized Service Point. ● For Clear Tec FFV models, fuel that contains a mixture of ●...
Page 24: Filling The Fuel Tank
General information Filling the fuel tank ● For Clear Tec FFV models, the engine performance level will be the same regardless of whether unleaded petrol 95 E00200202012 RON or higher or high-quality Bio ethanol E 85 is used. WARNING ● For Clear Tec FFV models, when the vehicle is to be left unused for a long period of time, it is recommended that ●...
Page 25 General information Fuel tank capacity 47 litres Refueling 1. Before filling with fuel, stop the engine. 2. The fuel tank filler is located on the rear left side of your vehicle. The fuel tank filler door can be opened from inside the vehicle with the fuel tank filler door release lever located the side of the driver’s seat.
Page 26 General information 3. Open the fuel tank filler tube by slowly turning the cap 4. To fill with fuel correctly depends mainly on correct han- anticlockwise. dling of the fuel filler gun. Do not tilt the gun. Insert the gun in the tank port as far as it goes. CAUTION ●...
Page 27: Installation Of Accessories
● For Clear Tec FFV models, the fuel in the fuel tank is E00200300413 checked to determine the percentage of ethanol in the fuel We recommend you to consult your MITSUBISHI MOTORS in order to control the engine properly. Authorized Service Point.
Page 28: Modification/Alterations To The Electrical Or Fuel Systems
E00200400267 not only for MITSUBISHI MOTORS, but also a MITSUBISHI MITSUBISHI MOTORS has always manufactured safe, high MOTORS Authorized Service Point, to check whether the quality vehicles. In order to maintain this safety and quality, it...
Page 29: Genuine Parts
General information Genuine parts Used engine oils safety instructions and disposal information E00200500574 MITSUBISHI MOTORS has gone to great lengths to bring you E00200600025 a superbly crafted automobile offering the highest quality and dependability. WARNING Use MITSUBISHI MOTORS Genuine Parts, designed and ●...
Page 30: Disposal Information For Used Batteries
General information Disposal information for used batteries E00201300016 Your vehicle contains batteries and/or accumula- tors. Do not mix with general household waste. For proper treatment, recovery and recycling of used batteries, please take them to applicable col- lection points, in accordance with your national legislation and the Directives 2006/66/EC.
Page 32 Locking and unlocking Keys ........1- Electronic immobilizer (Anti-theft starting system).
Page 33: Keys
Locking and unlocking Keys NOTE ● The key number is stamped on the tag as indicated in the E00300101653 illustration. The key fits all locks. Make a record of the key number and store the key and key number tag in separate places, so that you can order a key in the event the original keys are lost.
Page 34: Electronic Immobilizer (Anti-Theft Starting System)
Locking and unlocking Electronic immobilizer The immobilizer indicator lamp comes on in the event of a malfunction in the system electronics. (Anti-theft starting system) E00300201508 The electronic immobilizer is designed to reduce significantly the possibility of vehicle theft. The purpose of the system is to immobilize the vehicle if an invalid start is attempted.
Page 35 (including keys of other vehicles) (Type C) In cases like these, remove the object or additional key from the vehicle key. Then try again to start the engine. If the engine does not start, we recommend you to con- tact your MITSUBISHI MOTORS Authorized Service Point.
Page 36: Keyless Entry System
Locking and unlocking Keyless entry system NOTE ● If you lose your key, order a key from your MITSUBISHI E00300301831 MOTORS Authorized Service Point as soon as possible. Press the remote control switch, and all doors and the tailgate To obtain a replacement or extra spare key, take your vehi- will be locked or unlocked as desired.
Page 37 Point for a replacement remote control switch. ● If you wish to add a remote control switch, we recom- mend you to contact your MITSUBISHI MOTORS Authorized Service Point. A maximum of 8 remote control switches are available for...
Page 38 Locking and unlocking Procedure for replacing the remote control 2. Insert a straight blade (or minus) screwdriver into the notch in the remote control switch case (B) and remove switch battery the old battery. E00309500031 1. With the MITSUBISHI mark facing you, insert a coin, etc., into the notch in the remote control switch case and use it to open the case.
Page 39 ● You may purchase a replacement battery at an electric + side appliance store. ● A MITSUBISHI MOTORS Authorized Service Point can replace the battery for you if you prefer. CAUTION ● When the remote control switch case is opened, be - side careful to keep water, dust, etc., out.
Page 40: Doors
Locking and unlocking Doors To lock or unlock from inside the vehicle E00300401890 CAUTION ● Make sure the doors are closed: driving with doors incompletely closed is dangerous. ● Never leave children in the vehicle unattended. ● Be careful not to lock the doors while the key is inside the vehicle.
Page 41 Locking and unlocking To lock without using the key Rear door (5-door models) Front passenger’s door Set the inside lock knob (1) to the locked position, and close the door (2). NOTE ● The driver’s door cannot be locked using the inside lock knob while the driver’s door is opened.
Page 42: Central Door Locks
Locking and unlocking Central door locks Front doors with key (LHD vehicles only) Turn the key in the driver’s door towards the front of the vehi- E00300801445 cle to lock the doors and the tailgate and towards the rear of the NOTE vehicle to unlock the doors and the tailgate.
Page 43: Dead Lock System
Locking and unlocking Dead Lock System Driver’s door with inside lock knob Set the inside lock knob on the driver’s door towards the front E00305100013 The Dead Lock System helps to prevent theft. When the key- of the vehicle to lock the doors and the tailgate. Set it towards less entry system has been used to lock all of the doors and the the rear of the vehicle to unlock the doors and the tailgate.
Page 44 Dead Lock System has been set. to flash for confirmation of system operation. For details, please contact a MITSUBISHI MOTORS Authorized Service Point. 1-13...
Page 45 Locking and unlocking Cancelling the system ● Even when it is not possible to use the keyless entry sys- tem to unlock the doors, it is possible to use the key to E00305300031 When the UNLOCK switch (B) of the keyless entry system is unlock a door.
Page 46: Child-Protection" Rear Doors (5-Door Models)
Locking and unlocking “Child-protection” rear doors CAUTION (5-door models) ● When driving with a child in the rear seat, please E00300900638 use the child protection to prevent accidental door opening which may cause an accident. 1- Lock 2- Free Child protection helps prevent doors from being opened acci- dentally, especially when small children are in the rear seat.
Page 47: Tailgate
Locking and unlocking Tailgate To lock or unlock from inside the vehicle The tailgate can be locked or unlocked by using the inside lock E00301400890 knob (driver side), regardless of the position of the ignition WARNING key. ● It is dangerous to drive with the tailgate open since carbon monoxide (CO) gas can enter the cabin.
Page 48 Locking and unlocking To open To close Pull the tailgate lever upward to open the tailgate. Pull the tailgate grip (A) downward as illustrated and release it before the tailgate closes completely. Gently slam the tailgate from the outside so that it is completely closed. 3-door models CAUTION ●...
Page 49 Locking and unlocking NOTE 5-door models ● Gas struts (B) are installed in the locations illustrated to support the tailgate. Please observe the following in order to prevent damage or faulty operation. • Do not hold the gas struts when closing the tailgate. Also, do not push or pull the gas struts.
Page 50: Manual Window Control (5-Door Models, Rear Door Window Only)
Locking and unlocking Manual window control Electric window control (5-door models, rear door window only) E00302200042 The electric windows can only be operated with the ignition E00302100083 switch in the “ON” position. Electric window control switch E00302301330 Each door window opens or closes while the corresponding switch is operated.
Page 51 Locking and unlocking NOTE ● Repeated operation with the engine stopped will run down the battery. Operate the window switches only while the engine is running. Driver’s switches The driver’s switches can be used to operate all door windows. A window can be opened or closed by operating the corre- sponding switch.
Page 52 Locking and unlocking Passenger’s switches Lock switch The passenger’s switches can be used to operate the corre- E00303100413 When this switch is operated, the passenger’s switches cannot sponding passenger’s door windows. be used to open or close the door windows and the driver’s Press the switch down for opening the window, and pull up the switch cannot open or close any door windows other than the switch for closing.
Page 54 Seat and seat belts Seat........2- Seat arrangement .
Page 55: Seat
Seat and seat belts Seat E00400101380 1-Front seat 2-Rear seat ● To adjust forward or backward → P. 2-5 ● Folding the rear seat → P. 2-12 ● To recline the seatback → P. 2-5 ● To adjust seat height* → P. 2-6 ●...
Page 56: Seat Arrangement
Seat and seat belts Seat arrangement E00400200603 By operating the seats select the desired seats arrangement. Normal usage How to stow large articles (Folding the rear seat)
Page 57: Seat Adjustment
Seat and seat belts Seat adjustment WARNING E00400300486 ● To minimize the risk of personal injury in the event Adjust the driver’s seat so that you are comfortable and that of a collision or sudden braking, the seatbacks you can reach the pedals, steering wheel, switches etc. while should always be in the almost upright position retaining a clear field of vision.
Page 58: Front Seat
Seat and seat belts Front seat To recline the seatback E00400600623 E00400400012 In order to recline the seatback, lean forward slightly, pull the To adjust forward or backward seatback lock lever up, and then lean backward to the desired position and release the lever. The seatback will lock in that E00400500505 Pull the seat adjusting lever and adjust the seat forward or position.
Page 59 Seat and seat belts To adjust seat height* To get in and out of the rear seat (3-door models) E00400700578 E00401000060 Adjust the seat height by repeatedly operating the lever. The lever (A) can be used to make getting in and out easier. Fold the seatback forward, then slide the entire seat forward.
Page 60 Seat and seat belts Heated seats* CAUTION E00401100625 The heated seats can be operated with the ignition switch in the ● The reclining mechanism of the seatback is spring “ON” position. loaded, causing it to return to the vertical position when the lock lever is operated.
Page 61: Head Restraints
Seat and seat belts Head restraints CAUTION E00403301181 ● If the following types of persons use the heated seats, they might become too hot or receive minor burns WARNING (red skin, heat blisters, etc.): ● Driving without the head restraints in place can •...
Page 62 Seat and seat belts To adjust the height WARNING Adjust the head restraint height so that the centre of the ● When a person is in the seating position of the rear restraint is as close as possible to eye level to reduce the seats, pull up the head restraint to a height at which chances of injury in the event of collision.
Page 63 Seat and seat belts To remove CAUTION Lift the head restraint with the height adjusting knob (A) ● Confirm that the height adjusting knob (A) is cor- pushed in. rectly adjusted as shown in the illustration, and also lift the head restraints to ensure that they do not come out of the seatback.
Page 64: Making A Luggage Area
Seat and seat belts Making a luggage area Folding the seatback forward (5-door models, except for vehicles with turbocharger) E00403400244 E00414500014 WARNING Front seat ● If required, always operate the seating before the To fold vehicle is in motion. Pull the seatback lock lever and fold the seatback forward until ●...
Page 65 Seat and seat belts Folding the rear seat To replace 1. Pull the seatback lock lever and raise the seatback until it E00403700335 To create luggage space, you can fold the rear seat. locks securely into place. 2. Push lightly on the seatback to confirm that it has actually NOTE been secured.
Page 66 Seat and seat belts 4. Pull the seatback lock lever (B) and fold the seatback for- CAUTION ward. ● Do not allow any person to sit on the folded seat, and do not place luggage on the seat cushion. The seat’s mounting fittings could bend under the weight, making it impossible for the seat to be retained on the vehicle.
Page 67 Seat and seat belts To return 2. Lift up the center buckle and pull it through the seat cush- ion while pushing the rear of the seat cushion under the 1. Raise the seatback until it locks. Next, push lightly on the seatback.
Page 68: Seat Belts
Seat and seat belts Seat belts WARNING E00404800607 ● Always place the shoulder belt over your shoulder To protect you and your passengers in the event of an accident, and across your chest. Never put it behind you or it is important that the seat belts are worn correctly while driv- under your arm.
Page 69 Seat and seat belts 3-point type seat belt WARNING (with emergency locking mechanism) ● Never hold a child in your arms or on your lap when E00404901009 travelling in this vehicle, even if you are wearing This type of belt requires no length adjustment. Once worn, the your seat belt.
Page 70 Seat and seat belts To unfasten CAUTION Hold the latch plate and push the button on the buckle. ● Never wear the lap portion of the belt across your abdomen. During accidents it can press sharply against abdomen and increase the risk of injury. ●...
Page 71 Seat and seat belts Seat belt reminder/warning lamp When the ignition key is turned to the “ON” position, the warn- ing lamp will come on and a tone will sound for about 6 sec- E00409800497 A tone and warning lamp are used to remind the driver and onds.
Page 72 Seat and seat belts Adjustable seat belt anchor (front seats) Rear seat belt storage E00405000055 E00405300380 The seat belt anchor height can be adjusted. When seat belt is not use, fold down or raise the rear seatback, Move the seat belt anchor down with the lock knob (A) store the rear seat belt to the holder.
Page 73: Pregnant Women Restraint
Seat and seat belts Pregnant women restraint Seat belt pre-tensioner system and force limiter system E00405600136 WARNING E00405700010 The driver’s seat and front passenger’s seat each have a seat belt equipped with a pre-tensioner system. ● Seat belts work for everyone, including pregnant women.
Page 74 ● If you need to scrap the vehicle, please consult a MITSUBISHI MOTORS Authorized Service Point. It is important to do so because unexpected activa- tion of the pre-tensioner seat belts could cause inju- ries.
Page 75: Child Restraint
Seat and seat belts Child restraint Caution for installing the child restraint on vehicle with front passenger airbag E00406401473 When transporting children in your vehicle, some type of child The label shown here is attached on vehicles with front passen- restraint system should always be used according to the size of ger airbag.
Page 76 Seat and seat belts NOTE WARNING ● If you have a rearward facing child restraint system that ● A REARWARD FACING CHILD RESTRAINT cannot be fitted to any seat other than the front passenger seat, be sure to turn OFF the front passenger’s airbag ON- must NOT be used in the front passenger seat if the front passenger’s airbag has not been deactivated.
Page 77 Seat and seat belts Infants and small children WARNING E00406600814 When transporting infants and small children in your vehicle, ● A FORWARD FACING CHILD RESTRAINT follow the instruction given below. should be used in the rear seat whenever possible; if used in the front seat, adjust the seat to the most rearward position and turn off the front passenger’s airbag ON-OFF switch.
Page 78 Seat and seat belts ● Before purchasing a child restraint system, try installing it NOTE ● Depending on the seating position in the vehicle and the in the rear seat to make sure there is a good fit. Because of the location of the seat belt buckles and the shape of the child restraint system that you have, the child restraint can seat cushion, it may be difficult to securely install some...
Page 79 Seat and seat belts Older children E00406700248 Children who have outgrown the child restraint system should be seated in the rear seat and wear a combination lap shoulder belt. The lap portion of the belt should be snug and positioned low on the abdomen so that it is below the top of the hip-bone.
Page 80 Seat and seat belts Suitability for various ISOFIX positions E00411400171 Vehicle ISOFIX positions Mass Group Size class Fixture Front Passenger Second Outboard carrycot ISO/L1 ISO/L2 -Up to 10 kg ISO/R1 -Up to 13 kg ISO/R1 ISO/R2 ISO/R3 -9 to 18 kg ISO/R2 ISO/R3 ISO/F2...
Page 81 ● X- ISOFIX position not suitable for ISOFIX child restraint systems in this mass group and/or this size class. IL (Genuine part information) Genuine part No. ECE No. MZ313200 E1-04301133 NOTE ● MITSUBISHI MOTORS Europe B.V. reserves the right to changes without any prior announcement. For detailed information, consult your MITSUBISHI MOTORS Authorised Service Point. 2-28...
Page 82 ● U- Suitable for “universal” category restraints approved for use in this mass group. ● UF- Suitable for forward-facing “universal” category restraints approved for use in this mass group. ● L- Suitable for particular child restraints (MITSUBISHI MOTORS genuine parts). ● B- Built-in restraint approved for this mass group.
Page 83 ● The above suitability table applies to retention of child restraints using seat belts. ● When MITSUBISHI MOTORS genuine part No. MZ313200 is used on the rear seat, it can also be retained by means of ISO- FIX child restraint mountings.
Page 84 Seat and seat belts Installing a child restraint system to the lower Tether anchorage locations There are 2 child restraint anchorage points located on the back anchorage (ISOFIX child restraint mountings) of the rear seatbacks. These are for fastening the child restraint and tether anchorage tether straps to the 2 rear seat seating positions.
Page 85 It is not necessary to retain the child restraint system using the injured as a result. Use only a MITSUBISHI vehicle’s seat belts. Only a MITSUBISHI MOTORS genuine MOTORS genuine child restraint system. child restraint system can be used.
Page 86 Seat and seat belts To install 2. Remove the head restraint from the location in which you wish to install a child restraint. 1. Insert the child restraint system’s connectors (A) into the 3. Latch the tether strap hook (F) of the child seat to the slit (B) in accordance with the instructions provided by tether anchor bar (G) and tighten the top tether strap hook the child restraint system’s manufacturer.
Page 87 Seat and seat belts Installing a child restraint system to a 3-point WARNING type seat belt (with emergency locking ● If there is any foreign material in or around the con- mechanism) nectors, remove it before installing the child E00408700529 restraint system.
Page 88: Seat Belt Inspection
● Do not attempt to repair or replace any part of the seat belt assemblies; we recommend that you have this work done by a MITSUBISHI MOTORS Authorized Service Point. Incorrect repair or replacement could reduce the effectiveness of the belts and could result in serious injury in the event of a collision.
Page 89: Supplemental Restraint System (Srs) - Airbag
Seat and seat belts Supplemental restraint system WARNING (SRS) - airbag ● IT IS VERY IMPORTANT TO ALWAYS PROP- E00407201670 ERLY WEAR YOUR SEAT BELT, EVEN WITH The information written in this supplemental restraint system AN AIRBAG: (SRS) section contains important points concerning the driver, •...
Page 90 Seat and seat belts WARNING WARNING ● IT IS VERY IMPORTANT TO BE PROPERLY ● Do not sit on the edge of the seat, or lean head or SEATED. chest close to the steering wheel or instrument panel. A driver or front passenger too close to the steering Do not put feet or legs on or against the instrument wheel or instrument panel during airbag deploy- panel.
Page 91 Seat and seat belts WARNING WARNING ● Infants and small children should never be unre- ● A REARWARD FACING CHILD RESTRAINT strained, stand up against the instrument panel or must NOT be used in the front passenger seat if the held in your arms or on your lap.
Page 92 Seat and seat belts NOTE WARNING ● If you have a rearward facing child restraint system that cannot be fitted to any seat other than the front passenger ● A FORWARD FACING CHILD RESTRAINT seat, be sure to turn OFF the front passenger’s airbag ON- should be used in the rear seat whenever possible;...
Page 93 Seat and seat belts Caution for installing the child restraint on How the supplemental restraint system works vehicle with front passenger airbag E00407301206 The SRS includes the following components: The label shown here is attached on vehicles with front passen- ger airbag.
Page 94 Seat and seat belts When the impact sensors detect an impact of sufficient frontal or side force, an automated circuit ignites materials in the infla- tor to generate gas and inflate the air bags. The air bags deployment produces a sudden, loud noise, and releases some smoke and powder, but these conditions are not injurious, and do not indicate a fire in the vehicle.
Page 95 Seat and seat belts Front passenger’s airbag ON-OFF switch Front passenger’s airbag off indicator lamp E00411500101 E00410100197 The front passenger’s airbag off indicator lamp is located in the The front passenger’s airbag ON-OFF switch can be used to meter. disable the front passenger’s airbag. If you have a child restraint system that cannot be fitted to any seat other than the front passenger seat, be sure to turn OFF the front passenger’s airbag ON-OFF switch before using it.
Page 96 ● To reduce risk of serious or fatal injury: seat. We recommend you to have the system • Always remove the key from the ignition switch inspected by a MITSUBISHI MOTORS Author- before operating a front passenger’s airbag ON- ized Service Point.
Page 97 Seat and seat belts Driver’s and passenger’s front air bag system 3. Insert the key into the ignition switch, and turn the igni- tion to “ON” position. The front passenger’s airbag off E00407400213 The driver’s air bag is located under the padded cover in the indicator lamp will stay on.
Page 98 Seat and seat belts Deployment of front airbags E00407501367 The front airbags ARE DESIGNED TO DEPLOY when… Head-on collision with a solid wall at speed of Moderate to severe frontal impact within the shaded approximately 25 km/h (16 mph) or higher area between the arrows The front airbags are designed to deploy when the vehicle suf- Because frontal collisions can easily move you out of position,...
Page 99 Seat and seat belts The front airbags MAY NOT DEPLOY when… Collision with a utility pole, tree or other narrow objects With certain types of frontal collisions, the vehicle’s body structure is designed to absorb the shock to help protect the occupants from harm.
Page 100 Seat and seat belts The front airbags ARE NOT DESIGNED TO DEPLOY Rear end collisions when… The front airbags are not designed to deploy in conditions where they cannot typically provide protection to the occupant. Such conditions are shown in the illustration. Because the front airbags do not protect the occupant in all types of collisions, be sure to always properly wear your seat belts.
Page 101 Seat and seat belts The front airbags MAY DEPLOY when… Collision with an elevated median/island or kerb The front airbags may deploy if the bottom of the vehicle suf- fers a moderate to severe impact (undercarriage damage). Examples of some typical conditions are shown in the illustra- tion.
Page 102 Once the airbags have deployed, they will not work again. They must promptly be replaced, and we rec- ommend you to have the entire airbag system inspected by a MITSUBISHI MOTORS Authorized Service Point. WARNING ● Do not attach accessories to, or put them in front of, the windscreen.
Page 103 Seat and seat belts Side air bag system* The label shown here is attached to the seatbacks with a side air bag. E00407600084 The side air bags (A) are contained in the driver and front pas- senger seatbacks. The side air bag is designed to inflate only on the side of the vehicle that is impacted, even with no passenger in the front seat.
Page 104 Seat and seat belts Curtain air bag system* Deployment of side air bags and curtain air bags E00409100067 E00407701024 The curtain air bags are contained in the front pillars, rear pil- The side air bags and curtain air bags ARE lars and roof side rail.
Page 105 Seat and seat belts The side air bags and curtain air bags MAY NOT Side impacts in an area away from the passenger compart- DEPLOY when… ment With certain types of side collisions, the vehicle’s body struc- ture is designed to absorb the shock to help protect the occu- pants from harm.
Page 106 Seat and seat belts The side air bags and curtain air bags ARE NOT Oblique side impacts DESIGNED TO DEPLOY when… The side air bags and curtain air bags are not designed to deploy in conditions where they cannot usually provide protec- tion to the occupant.
Page 107 Seat and seat belts Because the side air bags and curtain air bags do not protect the WARNING occupant in all types of collisions, be sure to always properly wear your seat belts. ● The side air bags and curtain air bags inflate with great force.
Page 108 Seat and seat belts WARNING WARNING ● Do not allow a child to kneel on the passenger seat ● Do not allow any rear seat occupant to hold onto the facing the passenger’s side door, since the side air seatback of either front seat, in order to reduce risk bags and curtain air bags inflate with great force.
Page 109 ● We recommend work around and on the side air bags and curtain air bags system to be done by a MITSUBISHI MOTORS Authorized Service Point. Improper work could result inadvertent deployment of a side air bags and curtain air bags, or could render a side air bags and curtain air bags inopera- tive;...
Page 110 When the ignition key is turned properly, and we recommend you to have it to the “ON” or “START” position, the warning lamp should inspected by a MITSUBISHI MOTORS Authorized illuminate for several seconds and then should go out. This Service Point immediately.
Page 111 ● If you junk or scrap the vehicle, we urge you to first take near the components of the SRS to be performed by the vehicle to a MITSUBISHI MOTORS Authorized a MITSUBISHI MOTORS Authorized Service Service Point so that the SRS can be rendered safe.
Page 112 Instruments and controls Instruments.......3- Multi-information display ....3- Indicator and warning lamps .
Page 113: Instruments
Instruments and controls Instruments E00500100762 1- Tachometer 2- Multi-information display 3- Speedometer 4- Multi-information meter switch...
Page 114 Instruments and controls Speedometer Indication for km/h and mph The speedometer indicates the vehicle’s speed in miles per E00500200819 hour (mph) and kilometers per hour (km/h). Indication for km/h The speedometer indicates the vehicle’s speed in kilometers per hour (km/h).
Page 115 Instruments and controls Tachometer E00500300735 The tachometer indicates the engine speed (r/min). The tachometer can help you obtain more economical driving and also warns you of excessive engine speeds. CAUTION ● While driving, watch the tachometer to make sure that the engine speed indicator does not rise into the red zone (excessive engine rpm).
Page 116: Multi-Information Display
Instruments and controls Multi-information display E00519900362 Always stop the vehicle in a safe place before operating. The following information is included on the multi-information display: odometer, tripmeter, service reminder, fuel remaining, outside temperature, allshift lever position driving range, momentary and average fuel consumption and average speed.
Page 117 Instruments and controls Information display (when the ignition switch is “OFF”) E00528200013 Each time you lightly press the multi-information meter switch, the display switches in the following order.
Page 118 Instruments and controls NOTE 1- Odometer ● Both tripmeters can count up to 9999.9 km 2- Tripmeter (6200 miles) (9999.9 miles). 3- Tripmeter When a tripmeter goes past 9999.9 km (6200 miles) 4- Service reminder (distance) (9999.9 miles), it returns to 0.0 km (0 miles) (0.0 miles). 5- Service reminder (month) ●...
Page 119 Instruments and controls Information display (when the ignition switch is “ON”) E00528300014 Each time you lightly press the multi-information meter switch in the meter or MODE/SET switch in the audio (if so equipped), the display switches in the following order. A: Lightly press the multi-information meter switch B: Lightly press the MODE/SET switch...
Page 120 Instruments and controls Tripmeter 1- Odometer 2- Tripmeter E00528000011 The operation method is the same as when the 3- Tripmeter ignition switch is “OFF”. 4- Service reminder (distance) Refer to “Tripmeter” for further details on page 5- Service reminder (month) 3-7.
Page 121 Instruments and controls ● When you refuel, the driving range display Average fuel consumption display* is updated. E00521700295 This displays the average fuel consumption (in However, if you only add a small amount of L/100 km (62 miles), km/L, or mpg) from the fuel, the correct value will not be displayed.
Page 122 Instruments and controls ● If the ignition switch is at “ACC” or Average speed display* “LOCK” for about 4 hours or longer, the E00521600308 This displays the average speed (km/h or mph) average fuel consumption display is auto- from the last reset to the present time. matically reset.
Page 123 Instruments and controls Frozen road warning NOTE ● “---” is displayed when the average speed E00528500016 If the outside air temperature drops below cannot be measured. approx. 3°C, the alarm sounds and the outside air ● The initial (default) setting is “Auto reset temperature warning symbol flashes for about 10 mode”.
Page 124 Instruments and controls Fuel remaining display NOTE ● It may take several seconds to stabilise the display after E00522200138 This displays the amount of fuel remaining. refilling the tank. ● If fuel is added with the ignition switch in the “ON” posi- tion, the fuel gauge may incorrectly indicate the fuel level.
Page 125 Displays the approximate time until the next periodic inspec- segment displayed) when the ignition switch is turned to the tion that MITSUBISHI MOTORS recommends. “---” is dis- “ON” position, the last segment of the fuel gauge flashes. If the played when the inspection time has arrived.
Page 126 Instruments and controls 2. Alerts the driver when the inspection time has arrived. We Distance recommend that you consult a MITSUBISHI MOTORS Authorized Service Point. At that time, when the ignition switch is switched from “OFF” to “ON”, “ ” is displayed for 30 seconds on the information display.
Page 127 Instruments and controls 3. After your vehicle is inspected at a MITSUBISHI 1. When you lightly press the multi-information meter MOTORS Authorized Service Point, it displays the time switch a few times, the information display switches to until the next periodic inspection. the service reminder display.
Page 128 ● When “---” is displayed, after a certain distance and a cer- tain period of time, the display is reset and the time until the next periodic inspection is displayed. ● If you accidentally reset the display, we recommend that you consult a MITSUBISHI MOTORS Authorized Serv- ice Point. 3-17...
Page 129 Instruments and controls Changing the function settings Changing the reset mode for average fuel consumption and average speed (when the ignition switch is “ON”)* E00522900281 E00522700146 The mode conditions for the average fuel consumption and The multi-information display fuel consumption unit, average average speed display can be switched between “Auto reset”...
Page 130 Instruments and controls 2. Press and hold the MODE/SET switch for about 2 seconds 3. Lightly press the MODE/SET switch while the icon is or more to display “A” and make it flash. flashing to change the display from “A” to “B”. (If there is no operation for about 10 seconds with flash- The icon will stop flashing if there is no operation for ing, the display returns to the previous display.)
Page 131 Instruments and controls Changing the fuel consumption display unit Manual reset mode • While the average fuel consumption or average speed is E00523000306 The display unit for fuel consumption can be switched. The being displayed, if you hold down the MODE/SET distance, speed, and amount units are also switched to match switch, the average fuel consumption and average speed the selected fuel consumption unit.
Page 132 Instruments and controls 2. Press and hold the MODE/SET switch for about 2 seconds 3. Lightly press the MODE/SET switch while the icon is or more to display “L/100 km (62 miles)” and make it flashing to change the display from “L/100 km (62 flash.
Page 133 Instruments and controls Changing the temperature unit NOTE ● The display units for the momentary fuel consumption, E00523100206 The display unit for temperature can be switched. the average fuel consumption are switched, but the units 1. When you lightly press the multi-information meter for the indicating needle (speedometer), the odometer, the switch a few times, the information display switches to tripmeter, the driving range and the average speed will...
Page 134 Instruments and controls 2. Press and hold the multi-information meter switch for about 2 seconds or more to display “°C” and make it flash. (If there is no operation for about 10 seconds with flash- ing, the display returns to the previous display.) 3.
Page 135: Indicator And Warning Lamps
Instruments and controls Indicator and warning lamps E00501501731 13- Supplemental restraint system (SRS) warning lamp 1- Turn-signal indicator lamps/Hazard warning indicator lamps → P. 2-57 → P. 3-25 14- Auto Stop & Go (AS&G) OFF indicator lamp* → P. 4-24 2- Front fog lamp indicator lamp* →...
Page 136: Indicator Lamps
Instruments and controls Indicator lamps High-beam indicator lamp E00501800072 E00501600012 This indicator lamp illuminates when the high Turn-signal indicator lamps/Hazard beam is used. warning indicator lamps E00501700286 These indicator lamps blink in the following sit- Front fog lamp indicator lamp* uations.
Page 137: Warning Lamps
Instruments and controls Warning lamps Low coolant temperature indicator lamp E00502400017 Brake warning lamp E00502200028 When the engine coolant temperature is low, this E00502501099 indicator lamp illuminates and then goes out This lamp illuminates when the ignition switch when the temperature rises to roughly 40 °C or is turned to the “ON”...
Page 138 Avoid hard braking and high- speed driving. Stop the vehicle in a safe place and we recommend you consult a MITSUBISHI MOTORS Authorized Service Point. 3-27...
Page 139 Instruments and controls Check engine warning lamp CAUTION E00502601393 This lamp is part of an onboard diagnostic sys- ● Prolonged driving with this lamp on tem which monitors the emissions, engine or may cause further damage to the emis- automated manual transmission control system / sion control system.
Page 140 Instruments and controls Charge warning lamp Oil pressure warning lamp E00502700036 E00502800053 This lamp illuminates when the ignition switch This lamp illuminates when the ignition switch is turned to the “ON” position, and the lamp goes is turned to the “ON” position, and the lamp goes off after the engine has started.
Page 141 Instruments and controls High coolant temperature warning Door-ajar warning lamp lamp E00503300723 This lamp illuminates when a door or the tailgate E00503000023 is either open or incompletely closed. This lamp illuminates and a buzzer sounds if the A buzzer sounds if the vehicle speed exceeds coolant temperature becomes excessively high.
Page 142: Combination Headlamps And Dipper Switch
Instruments and controls Combination headlamps and dipper switch Type 1 Rotate the switch to turn on the lamps. E00506000923 Headlamps NOTE ● Do not leave the headlamps and other lamps on for a long time while the engine is stationary (not running). A run- down battery could result.
Page 143 Instruments and controls Type 2 NOTE ● If the front fog lamps (if so equipped) turn on when they Rotate the switch to turn on the lamps. are supposed to with the switch in the “AUTO” position, the lamps turn off automatically with the engine switch off.
Page 144 Instruments and controls Lamp monitor buzzer Dipper (High/Low beam change) E00506100067 E00506200127 If the driver’s door is opened when the ignition key is in the When the lamp switch is in the “ ” position, the beam “LOCK” or “ACC” position or removed from the ignition changes from high to low (or low to high) each time the lever is switch while the lamps are on, a buzzer will sound to remind pulled to (1).
Page 145: Coming Home Light
“ON” or “ACC” position before the function can be operated again. ● It is possible to change the operating interval for the head- lamps and to disable the function. For details, we recommend that you consult a MITSUBISHI MOTORS Authorized Service Point. 3-34...
Page 146: Headlamp Levelling Switch
Instruments and controls Headlamp levelling switch E00506400695 The angle of the headlamp beam varies depending upon the load carried by the vehicle. The headlamp levelling switch (A) can be used to adjust the headlamp illumination distance (when the lower beam is illu- minated) so that the headlamps’...
Page 147 Instruments and controls Except for vehicles with turbocharger Vehicles with turbocharger Vehicle Vehicle condition condition Switch Switch “0” “2” “3” “3” “0” “1” “2” “2” position position ●:1 person ●:1 person :Full luggage loading :Full luggage loading Switch position 0- Driver only/Driver + 1 front passenger Switch position 0- Driver only/Driver + 1 front passenger Switch position 2- 5 passengers (including driver) Switch position 1- 5 passengers (including driver)
Page 148: Turn-Signal Lever
Instruments and controls Turn-signal lever NOTE ● If the lamp flashes unusually quickly, the bulb in a turn- E00506501000 signal lamp may have burned out. We recommend you to The turn-signal lamps flash when the lever is operated (with have the vehicle inspected. the ignition switch in the “ON”...
Page 149: Hazard Warning Flasher Switch
Instruments and controls Hazard warning flasher switch NOTE ● While the hazard warning lamps are blinking due to hav- E00506600727 ing manually pushed the switch, the Emergency stop sig- Use the hazard warning flasher switch when the vehicle has to nal does not operate.
Page 150 Instruments and controls Front fog lamp switch ● In case of vehicles with Daytime Running Lamp, the front fog lamp can be operated even if the lamp switch is set to E00506800820 The front fog lamps illuminate only when the headlamps or tail the “...
Page 151: Rear Fog Lamp Switch
Instruments and controls Rear fog lamp switch Type 2 E00506900296 The rear fog lamps illuminate only when the headlamps or front fog lamps (if so equipped) turn on. Push the switch to turn on the rear fog lamp, and push the switch again to turn it off.
Page 152: Wiper And Washer Switch
Instruments and controls Wiper and washer switch E00507101191 CAUTION ● If the washer is used in cold weather, the washer fluid sprayed against the glass may freeze, which may hinder visibility. Warm the glass with the defroster or rear window demister before using the washer.
Page 153 The wipers will continue to operate while the 2- Slow lever is held in the “ ” position. NOTE ● The speed-sensitive function of the windscreen wipers can be deactivated. For further information, please contact your authorized MITSUBISHI MOTORS dealer. 3-42...
Page 154 Instruments and controls Vehicle with rain sensor Rain sensor* Can only be used when the ignition switch is in the “ON” posi- E00526400138 The windscreen wipers can be operated with the ignition tion. switch in the “ON” or “ACC” position. If the lever is put in the “---”...
Page 155 To make the wipers operate again, place the lever in the “1” or “2” position. ● Contact an authorized MITSUBISHI MOTORS dealer when replacing the windscreen or reinforcing the glass around the sensor. 3-44...
Page 156 ” position. ther information, please contact your authorized MITSUBISHI MOTORS dealer. • Automatic operation (rain droplet-sensitive) can be changed to intermittent operation (vehicle speed-sensi- tive). • Automatic operation (rain droplet-sensitive) can be changed to intermittent operation (except vehicle speed- sensitive).
Page 157 Heat the glass with the defroster or demister before using the washer. NOTE ● It is possible to disable the function that causes the wipers to operate when washer fluid is sprayed. For details, we recommend you to consult a MITSUBISHI MOTORS Authorized Service Point. 3-46...
Page 158 For details, we recommend you to consult with the ignition switch in the “ON” or “ACC” position. a MITSUBISHI MOTORS Authorized Service Point. Turn the knob, and the rear window wiper and washer will • It is possible to disable the function that causes the wip- operate.
Page 159: Rear Window Demister Switch
Instruments and controls Rear window demister switch Precautions to observe when using wipers and washers E00507900990 The rear window demister switch can be operated with the E00507600014 ● If the moving wipers become blocked by ice or other ignition switch in the “ON” position. deposits on the glass, the motor may burn out even if the Push the switch to turn on the rear window demister.
Page 160: Horn Switch
Instruments and controls Horn switch CAUTION E00508000581 ● The demister switch is not to melt snow but to clear Pressing the “ ” mark on the steering wheel, causes the horn mist. Remove snow before use of the demister to sound. switch.
Page 162 Starting and driving Economical driving ......4- Traction control system (TCL)/Active Driving, alcohol and drugs....4- stability control system (ASC)*.
Page 163: Economical Driving
Starting and driving Economical driving Speed The higher the vehicle speed, the more fuel is consumed. Avoid E00600100763 For economical driving, there are some technical requirements driving at full speed. Even a slight release of the accelerator that have to be met. The prerequisite for low fuel consumption pedal will save a significant amount of fuel.
Page 164: Driving, Alcohol And Drugs
Starting and driving Driving, alcohol and drugs Safe driving techniques E00600200012 E00600300390 Drunk driving is one of the most frequent causes of accidents. Driving safety and protection against injury cannot be fully Your driving ability can be seriously impaired even with blood ensured.
Page 165 Starting and driving Floor mats Carrying children in the vehicle ● Never leave your vehicle unattended with the key and WARNING children inside the vehicle. Children may play with the driving controls and this could lead to an accident. ● Keep floor mats clear of the pedals by correctly lay- ●...
Page 166: Running-In Recommendations
Starting and driving Running-in recommendations Vehicles with manual transmission E00600401747 During the running-in period for the first 1,000 km (620 miles), Speed limit it is advisable to drive your new vehicle using the following Shift 1100 models 1300 models precautions as a guideline to aid long life as well as future point economy and performance.
Page 167: Parking Brake
Starting and driving Parking brake Speed limit E00600501113 To park the vehicle, first bring it to a complete stop, fully 1500 models Shift point engage the parking brake, and then move the gearshift lever to Except for vehicles Vehicles with 1st (for uphill) or “R”...
Page 168 Starting and driving CAUTION CAUTION ● When you intend to apply the parking brake, firmly ● Before driving, be sure that the parking brake is press the brake pedal to bring the vehicle to a com- fully released and the brake warning lamp is off. plete stop before pulling the parking brake lever.
Page 169: Parking
Starting and driving Parking Parking with the engine running Never leave the engine running while you take a short E00600601228 sleep/rest. Also, never leave the engine running in a closed or Parking on a hill poorly ventilated place. To prevent the vehicle from rolling into the street, follow these procedures: WARNING Parking facing downhill...
Page 170: Steering Wheel Height Adjustment
Starting and driving Steering wheel height adjustment WARNING E00600700466 ● When releasing the tilt lock lever, move it to the To adjust the steering wheel height, release the tilt lock lever release position (2) and hold the steering wheel by while holding the steering wheel by hand, and raise or lower hand to prevent it falling to the lowest position.
Page 171: Inside Rear-View Mirror
Starting and driving Inside rear-view mirror Outside rear-view mirrors E00600800047 E00600900442 The lever (A) at the bottom of the mirror can be used to adjust Compound curved-surface mirror the mirror to reduce the glare from the headlamps of vehicles (LHD vehicles only) behind you during night driving.
Page 172 Starting and driving However, the outer side of the boundary line provides a wider Manual remote-controlled outside rear-view mirrors vision than an ordinary door mirror. Adjust the mirror position by operating the lever as indicated WARNING by the arrows. ● The sense of distance that you get from an object you see on the inner side of the mirror boundary line differs from the sense of distance that you get from an object you see on the outer side.
Page 173 Starting and driving Electric remote-controlled outside rear-view mirrors 2. Adjust the mirror by moving the switch left, right, up or down. E00610900054 The electric remote-controlled outside rear-view mirrors can be operated when the ignition switch is in the “ON” or “ACC” position.
Page 174 Starting and driving To fold the mirror Heated mirror* E00601100454 E00601200413 The outside mirror can be folded in towards the side window to When the rear window demister switch is pressed, the outside prevent damage when parking in narrow areas. rear-view mirrors are demisted or defrosted.
Page 175: Ignition Switch
Starting and driving Ignition switch NOTE ● For vehicles equipped with the Daytime Running Lamp, E00601401500 when the ignition switch is in the “ON”, the headlamp low beams etc. are turned on. Refer to “Headlamps” on page 3-31. ● Your vehicle equipped with an electronic immobilizer, to start the engine, the ID code which the transponder inside the key sends must match the one registered to the immo- bilizer computer.
Page 176: Steering Wheel Lock
Starting and driving Steering wheel lock CAUTION E00601500605 ● Do not remove the ignition key from the ignition switch while driving. The steering wheel will locked, causing loss of control. ● If the engine is stopped while driving, the brake ser- vomechanism will cease to function and braking efficiency will deteriorate.
Page 177: Starting
Starting and driving Starting NOTE ● If the front wheels are turned, the anti-theft lock may E00601600912 sometimes make it difficult to turn the key from “LOCK” Tips for starting to “ACC”. Firmly turn the steering wheel to the left or to ●...
Page 178 Starting and driving Starting the engine CAUTION E00601701688 This vehicles is equipped with an electronically controlled fuel ● Never attempt to start the engine by pushing or pull- injection system which is automatically controlled. When start- ing the vehicle. This can be very dangerous. ing the engine, do not depress the accelerator pedal.
Page 179 Starting and driving 6. Turn the ignition key to the “ON” position and make cer- Vehicles with automated manual transmission tain that all warning lamps are functioning properly before 1. Insert the ignition key and fasten the seat belt. starting the engine. 2.
Page 180: Auto Stop & Go (As&G) System
Starting and driving Auto Stop & Go (AS&G) system 6. Turn the ignition key to the “START” position without depressing the accelerator pedal, and release it when the E00627400022 engine starts. The Auto Stop & Go (AS&G) system automatically stops and restarts the engine without operating the ignition switch when NOTE the vehicle is stopped, such as at a traffic light or in a traffic...
Page 181 Starting and driving 1. Stop the vehicle. 2. Release the clutch pedal. The “ ” indicator lamp in the While depressing the brake pedal, fully depress the clutch meter will illuminate and the engine will stop automati- pedal and place the gearshift lever in the “N” (Neutral) cally.
Page 182 Starting and driving CAUTION CAUTION • Do not move the gearshift lever to a position other ● Observe the following precautions when the engine than the “N” (Neutral) position. If the gearshift lever is moved to a position other is stopped automatically. Otherwise, an unexpected accident might occur when the engine restarts auto- than the “N”...
Page 183 Starting and driving NOTE • Check engine warning lamp is illuminated or the “ ” ● In the following cases, the Auto Stop & Go (AS&G) sys- indicator lamp is blinking tem will not operate and the engine will not stop automat- ically even if the vehicle is stopped.
Page 184 Starting and driving Automatically restarting the engine CAUTION E00627600011 Depress the clutch pedal while the gearshift lever is in the “N” ● In the following cases, the engine will restart auto- matically even if the engine was stopped by the Auto (Neutral) position.
Page 185 ” indicator lamp will be illuminated in the meter. system is malfunctioning and will not operate. To reactivate the Auto Stop & Go (AS&G) system, press the We recommend you to consult a MITSUBISHI MOTORS “Auto Stop & Go (AS&G) OFF” switch; the indicator lamp Authorized Service Point.
Page 186: Manual Transmission
Starting and driving Manual transmission NOTE ● If it is hard to shift into 1st, depress the clutch pedal again; E00602000232 the shift will then be easier to make. The shift pattern is shown on the gearshift lever knob. Be sure ●...
Page 187 Starting and driving Changing gears Possible driving speed E00610600178 E00610801005 Always use care to change the gear with the vehicle speed matched to the engine speed. Proper shifting will improve fuel Speed limit economy and prolong engine life. 1100 models 1300 models Avoid shifting down at high speed, as this may cause excessive Shift point...
Page 188 Starting and driving Speed limit 1500 models Shift point Except for vehicles Vehicles with with turbocharger turbocharger 1st gear 45 km/h (28 mph) 50 km/h (31 mph) 2nd gear 85 km/h (53 mph) 95 km/h (59 mph) 3rd gear 130 km/h (81 mph) 135 km/h (84 mph) 4th gear 170 km/h (110 mph)
Page 189: Automated Manual Transmission
Starting and driving Automated manual transmission E00612500038 An automated manual transmission is a transmission in which operation of the clutch and shifting of gears are performed automatically under electronic control. The transmission has 6 forward gears and 1 reverse gear. It is possible to choose between an automatic mode and a man- ual mode by using the allshift lever (A).
Page 190 Starting and driving Allshift lever position and multi-information display E00612600055 Multi-information display Allshift lever position Description Power is not transmitted. This is the only position where the engine can be N (Neutral) started. R (Reverse) This position is used for reversing. automatic Gearshifts are performed automatically at all vehicle speeds (from a stand- mode*...
Page 191 Starting and driving Moving the allshift lever E00612700014 The allshift lever is operated as follows; Moving the allshift lever between “N”(Neutral) position ↔ ↔ “S”(Stand by) position, “N”(Neutral) position “R”(Reverse) position E00613700053 1. Bring the vehicle to a complete stop. 2.
Page 192 Starting and driving Choosing between automatic mode and manual mode NOTE ● When you turn the ignition switch to the “ACC” or E00612800057 Whether the vehicle is stationary or in motion, choosing “LOCK” position, the mode selection used until that between automatic mode and manual mode is allowed.
Page 193 Starting and driving Performing gearshifts (manual mode) + (UP SHIFT) Push the allshift lever forward once to shift up one gear. E00612900061 1. Choose the manual mode using the allshift lever. Refer to - (DOWN SHIFT) “Choosing between automatic mode and manual mode” Push the allshift lever backward once to shift down one on page 4-31.
Page 194: How To Drive A Vehicle With Automated Manual Transmission
Starting and driving How to drive a vehicle with automated NOTE ● If the brake pedal is not depressed when the allshift lever manual transmission is moved, a gearshift will not take place. At this time, the E00613000014 driver is notified by a “0” on the multi-information dis- Starting from a standstill play.
Page 195 Starting and driving Starting from a standstill on an uphill slope Driving 1. To prevent unwanted movement of the vehicle, release the E00613200058 brake pedal while leaving the parking brake applied. WARNING 2. Gently apply pressure to the accelerator pedal. As you feel the vehicle starts to move, release the parking brake and ●...
Page 196 Starting and driving Driving downhill NOTE When driving downhill, shift down to an appropriate gear in ● When “ ” and the allshift lever position display are order to use engine braking. flashing alternately, an upshift is recommended. When On long downward slopes, repeated use of the brake pedal can “...
Page 197 Starting and driving Waiting 4. When you are ready to start moving again, first confirm that the allshift lever is in the “S” (Stand by) position or E00613300059 1. With the allshift lever in the “S” (Stand by) position, “R” (Reverse) position and that an “A”, “1”, or “R” is firmly depress the brake pedal.
Page 198 Starting and driving Parking 4. Stop the engine. E00613400034 1. Bring the vehicle to a complete stop. CAUTION 2. While depressing the brake pedal, securely apply the ● When leaving the vehicle, be sure to stop the engine parking brake. and remove the key from the ignition switch.
Page 199: Braking
Starting and driving Braking If the power brake unit or either of the two brake hydraulic sys- tems stops working properly, the rest of the brake system will E00607000947 still work, but the vehicle will not slow down as quickly. All parts of the brake system are critical for safety.
Page 200: Emergency Stop Signal System
Starting and driving Emergency stop signal system When driving downhill It is important to take advantage of engine braking by shifting E00626000021 This is a device that reduces the possibility of rear end colli- to a lower shift position while driving on steep downhill roads sions by the rapid and automatic blinking of the hazard warn- in order to prevent the brakes from overheating.
Page 201: Brake Assist System
Starting and driving Brake assist system NOTE ● [Activating condition for the emergency stop signal E00627000031 system] The brake assist system is a device assisting drivers who can- It activates when all of the following conditions are met. not depress the brake pedal firmly when it is necessary to do so •...
Page 202: Anti-Lock Brake System (Abs)
Starting and driving Anti-lock brake system (ABS) NOTE ● The brake assist system will not operate if the brake pedal E00607100791 is not depressed either suddenly or with more force than Environmental conditions can have an effect on braking. Dur- usual.
Page 203 If tyre types or sizes are mixed, ABS may not func- brake. This will result in reduced braking perform- tion properly. ● Never install a limited slip differential, which is not ance. MITSUBISHI MOTORS genuine parts, as the ABS may not function properly. recommend consult MITSUBISHI MOTORS Authorized Service Point.
Page 204 If the battery has been charged but the ABS warning lamp continues to illuminate or illuminates intermittently, we recommend you to consult a MITSUBISHI MOTORS Authorized Service Point. If the ABS warning lamp and brake warning lamp illuminate at the same time CAUTION ●...
Page 205 Starting and driving NOTE ● Immediately after the vehicle starts moving after engine start up, a whining sound of a motor will be heard from the engine compartment. If the brake pedal is depressed at that moment, a brake pedal pulsating is felt. This whining sound and pulsation are due to the self-diag- nosis operation of the ABS and does not indicate a mal- function.
Page 206: Electric Power Steering System
Starting and driving Electric power steering system ● The ABS becomes operative after the vehicle has acceler- ated to a speed in excess of approximately 10 km/h (6 E00607400026 mph). It stops operating when the vehicle decelerates to a The electric power steering system reduces the effort required speed below approximately 10 km/h (6 mph).
Page 207 “ON” position and goes off after a few seconds. vehicle is driven, we recommend you to have the power steering inspected by a MITSUBISHI MOTORS Author- ized Service Point. CAUTION ●...
Page 208: Traction Control System (Tcl)/Active Stability Control System (Asc)
Starting and driving Traction control system (TCL)/ NOTE ● Immediately after the vehicle starts moving after engine Active stability control system (ASC) start up, a whining sound of a motor will be heard from E00611700033 the engine compartment. If the brake pedal is depressed at The traction control system (TCL)/active stability control sys- that moment, a brake pedal pulsating is felt.
Page 209 Starting and driving Traction control system (TCL) Active stability control system (ASC) E00611800021 E00612000020 On slippery surfaces, the traction control system (TCL) pre- The active stability control system (ASC) is designed to help vents the drive wheels from excessive spinning, thus helping maintain the vehicle’s control in slippery conditions, or during the vehicle to start moving from a stop.
Page 210 If the indicator lamp remains on even after your (TCL) or active stability control system (ASC) is operating. vehicle is driven a short distance after starting the engine, recommend consult MITSUBISHI MOTORS Authorized Service Point. 4-49...
Page 211: Cruise Control
Starting and driving Cruise control CAUTION E00609100623 ● If the vehicle is towed with the ignition switch in the Cruise control is an automatic speed control system that keeps “ON” position and only the front wheels or only the a set speed. It can be activated at about 40 km/h or more. rear wheels raised off the ground, the traction con- CAUTION trol system (TCL) may operate, resulting in an acci-...
Page 212 Starting and driving Cruise control switches NOTE ● When operating the cruise control switches, press the cruise control switches correctly. The set speed driving may be deactivated automatically if two or more switches of the cruise control are pressed at the same time. A- “ON OFF”...
Page 213 Starting and driving To activate the cruise control NOTE ● If the cruise control is on when the ignition switch is E00609300700 1. With the ignition switch in the “ON” position, press the turned to “LOCK” or “ACC” position, cruise control will “ON OFF”...
Page 214 Starting and driving To increase the set speed 2. Accelerate or decelerate to your desired speed, then press and release the “COAST SET” switch (B) when the E00609400479 There are 2 ways to increase the set speed. “CRUISE” indicator lamp is illuminated. The vehicle will then maintain the desired speed.
Page 215 Starting and driving Accelerator pedal To decrease the set speed While driving at the set speed, use the accelerator pedal to E00609500409 There are 2 ways to decrease the set speed. reach your desired speed and then press the “COAST SET” switch (B) and release the switch momentarily to set a new “COAST SET”...
Page 216 Starting and driving Brake pedal To temporarily increase or decrease the speed While driving at the set speed, use the brake pedal, which dis- E00609600149 engages the cruise control, then press the “COAST SET” To temporarily increase the speed switch (B) and release the switch momentarily to set a new Depress the accelerator pedal as you would normally.
Page 217 Starting and driving To temporarily decrease the speed To deactivate the cruise control Depress the brake pedal to decrease the speed. To return to the E00609700889 The set speed driving can be deactivated as follows: previously set speed, press the “ACC RES” switch (C). ●...
Page 218 Starting and driving ● When the active stability control system (ASC) starts To resume the set speed operating. (if so equipped) E00609800457 If the set speed driving is deactivated by the condition Refer to “Traction control system (TCL)/Active stability described in “To deactivate” on page 4-56, you can resume the control system (ASC)”...
Page 219: Cargo Loads
In order to tow a trailer with your vehicle, have a trailer towing Cargo loads precautions device that meets all relevant regulations in your area, mounted consult a MITSUBISHI MOTORS Authorized Service Point. CAUTION The regulations concerning the towing of a trailer may differ from country to country.
Page 220 Starting and driving Maximum towable weight with brake and Towing bar mounting specifications maximum trailer-nose weight See the following table for fixing points (A) for the towing bar. Never exceed the maximum towable weight with brake and the maximum trailer-nose weight as listed in the specifications. (Refer to page 9-9.) If you tow a trailer at an altitude of more than 1,000 m above sea-level, reduce your weight by 10 % of the gross combina-...
Page 221 Starting and driving 3-door models 111 mm 435 mm 195 mm 470 mm 80 mm 506 mm 452 mm 458 mm 425 mm 442 mm 410 mm 193 mm 443 mm 10 mm 450 mm 222 mm 464 mm (unladen) 111 mm 370 mm (laden) 456 mm...
Page 222 Starting and driving 5-door models 111 mm 278 mm 275 mm 436 mm 70 mm 470 mm 452 mm 504 mm 425 mm 458 mm 410 mm 442 mm 443 mm 193 mm 450 mm 9.5 mm 473 mm (unladen) 222.5 mm 378 mm (laden) 456 mm...
Page 223 Starting and driving Operating hints ● Do not let the clutch slip and do not increase the engine speed more than necessary when starting. ● Be sure that the driving speed does not exceed the 100 km/h (62 mph) for trailer operation. It is also recommended that you obey the local regulations in case driving speed with a trailer is limited to less than 100 km/h (62 mph).
Page 224 For pleasant driving Air outlets....... .5- Heater*........5- Automatic air conditioning* .
Page 225: Air Outlets
For pleasant driving Air outlets Air flow and direction adjustments E00700200635 E00700100647 Push section (A) of the air outlet to open it. Close the air outlets by pushing section (B). Open Close 1- Central air outlets 2- Side air outlets NOTE ●...
Page 226 For pleasant driving Changing the mode selection Change the direction of the airflow by turning the air outlet itself. E00700301141 To change the position and amount of air flowing from the air outlets, turn the mode selection dial. (Refer to “Mode selection dial”...
Page 227 For pleasant driving Face position Foot/Face position Air flows only to the upper part of the passenger compartment. Air flows to the upper part of the passenger compartment, and flows to the leg area. * : Optional equipment NOTE ● When the dial is set to position (1), air flows mostly to the upper part of the passenger compartment.
Page 228 For pleasant driving Foot position Foot/Demister position Air flows mainly to the leg area. Air flows to the leg area, the windscreen and the door win- dows. * : Optional equipment * : Optional equipment NOTE ● With the dial set to position (1), air flows mostly to the leg area.
Page 229 For pleasant driving Demister position Demister/Face position Air flows mainly to the windscreen and the door windows. Air flows to the windscreen, the door windows and the upper part of the passenger compartment. NOTE ● With the dial set to position (1), air flows mostly to the windscreen.
Page 230: Heater
For pleasant driving Heater Blower speed selection dial E00700700210 E00700500090 Select the blower speed by turning the blower speed selection The heater can only be used while the engine is running. dial clockwise or anticlockwise. Control panel The blower speed will gradually increase as the dial is turned to the right.
Page 231 For pleasant driving Temperature control dial Mode selection dial E00700900300 E00701100325 The temperature control dial is used to adjust the air tempera- To change the amount of air flowing from the air outlets, turn ture. the mode selection dial. (Refer to “Changing the mode selec- Turn it clockwise to increase the temperature and anticlock- tion”...
Page 232 For pleasant driving Air selection switch CAUTION E00701300662 ● Normally, use the outside position to keep the wind- To change the air selection, simply press the air selection screen and side windows clear and quickly remove switch. fog or frost from the windscreen. ●...
Page 233 For pleasant driving Operating the heater system Combination of unheated air and heated air E00702000389 E00701800393 Select the mode selection dial to the position shown in the Heating illustration and set the air selection switch (A) to the outside Set the mode selection dial to the “ ”...
Page 234 For pleasant driving Demisting of the windscreen and door windows For ordinary demisting Use this setting to keep the windscreen and door windows clear E00702100683 of mist, and to keep leg area heating (when driving in rain or CAUTION snow). ●...
Page 235 For pleasant driving Introduction of outside air For quick demisting E00702200352 To introduce air into the vehicle during hot weather, set the air selection switch (A) to the outside position and set the temper- ature control dial to the positions shown in the illustration. Be sure to set the temperature control dial all the way to the left.
Page 236: Automatic Air Conditioning
For pleasant driving Automatic air conditioning NOTE ● There is an interior air temperature sensor (A) inside the E00702400022 vehicle. The air conditioning can only be used while the engine is run- Never place anything on top of the sensor, since doing so ning.
Page 237 For pleasant driving Blower speed selection dial Temperature control dial E00702800329 E00703000490 Select the blower speed by turning the blower speed selection The temperature control dial is used to adjust the cabin temper- dial clockwise or anticlockwise. ature. Turn it clockwise to increase the temperature and anti- The blower speed will gradually increase as the dial is turned clockwise to reduce the temperature.
Page 238 For pleasant driving Mode selection dial Air selection switch E00703200447 E00703400641 To change the amount of air flowing from the air outlets, turn To change the air selection, simply press the air selection the mode selection dial. (Refer to “Changing the mode selec- switch.
Page 239 For pleasant driving NOTE CAUTION ● For vehicles with automatic air conditioning, an automatic fresh/recirculation control function is included to improve ● Normally, use the outside position to keep the wind- the efficiency of the air conditioning. If the outside air screen and side windows clear and quickly remove temperature rises, the air conditioning automatically fog or frost from the windscreen.
Page 240 If the air conditioning indicator lamp flashes again after a while, consult a MITSUBISHI MOTORS Authorised Service Point. If the air conditioning indicator lamp no longer flashes, there is no problem.
Page 241 For pleasant driving Operating the air conditioning system Cooling E00722000024 E00704100834 Heating Set the mode selection dial to the “ ” position and set the air selection switch (A) to the outside position. Turn the temperature control dial clockwise or anticlockwise to the desired temperature.
Page 242 For pleasant driving Combination of unheated air and heated air Demisting of the windscreen and door windows E00722100025 E00722200055 Select the mode selection dial to the position shown in the CAUTION illustration and set the air selection switch (A) to the outside position.
Page 243 For pleasant driving For ordinary demisting For quick demisting Use this setting to keep the windscreen and door windows clear of mist, and to keep leg area heating (when driving in rain or snow). 30° 1. Set the mode selection dial to the position shown in the illustration.
Page 244: Important Operation Tips For The Air Conditioning
For pleasant driving Important operation tips for the air ● For Clear Tec models, if the mode selection dial is set to the demister position shown in the illustration (within conditioning ±15° of the center), the Auto Stop & Go (AS&G) system E00708300948 will not operate and the engine will not stop automatically ●...
Page 245: Air Purifier
For pleasant driving Air purifier Air conditioning system refrigerant and lubricant recommendations E00708400024 An air filter has been incorporated into this air conditioning so If the air conditioning seems less effective than usual, the cause that dirt and dust are cleaned from the air. might be a refrigerant leak.
Page 246: Lw/Mw/Fm Electronic Tuning Radio With Cd Player
For pleasant driving LW/MW/FM electronic tuning radio Volume and tone control panel with CD player E00708600882 E00708501673 The audio system can be used when the ignition switch is in the “ON” or “ACC” position. NOTE ● To listen to the audio system while the engine is stopped, turn the ignition key to the “ACC”...
Page 247 For pleasant driving To adjust the volume BAL (Left/Right balance control) Press the audio adjust button (6) either to balance E00708700463 the volume of sound from the left and the right speakers. VOL (Volume control) Turn the VOL knob (2) clockwise to increase the volume; NOTE anticlockwise to decrease the volume.
Page 248 For pleasant driving To enter audio tone settings into the memory It is possible to enter the audio adjustment condition (SCV, BASS, TRE, FADE, BAL) into the memory. 1. Make the desired adjustments in the audio adjust mode. Refer to “To adjust the tone” on page 5-24. 2.
Page 249 For pleasant driving Radio control panel and display E00708900931 1- PWR (On-Off) switch 2- Memory select buttons 3- FM/AM (FM/MW/LW selection) button 4- TUNE/SEEK (Down-step/Down-seek) button 5- TUNE/SEEK (Up-step/Up-seek) button 6- ST (Stereo) indicator 7- FM (FM1/FM2/FM3) indicators 8- Preset memory number display 9- Frequency display window 5-26...
Page 250 For pleasant driving To listen to the radio To enter frequencies into the memory E00716100974 E00709000711 1. Press the PWR switch (1) to turn the audio system on and Manual setting off. You can assign to the memory select buttons (2) a maximum of Press the FM/AM button (3) to turn on the radio if a CD is 18 stations in the FM band (6 FM1, 6 FM2 and 6 FM3 stations) being played.
Page 251 For pleasant driving Follow the steps described below. NOTE ● If you press the FM/AM button (3) for 2 seconds or longer 1. Press either the TUNE/SEEK button (4 or 5) to tune the frequency to be entered in the memory. while tuning in the FM1 or FM2 band, the radio will auto- 2.
Page 252 For pleasant driving Radio data system (RDS) E00709200348 1- PWR (On-Off) switch 2- Memory select buttons 3- TUNE/SEEK (Down-step/Down-seek) button 4- TUNE/SEEK (Up-step/Up-seek) button 5- FM/AM (FM/MW/LW selection) button 6- TP (Traffic program) button 7- PTY (Program type) button 8- Menu button 9- RDS (Radio data system) indicator 10- AF (Alternative frequencies) indicator 11- TP (Traffic program identification) indicator...
Page 253 For pleasant driving REG (Regional) function RDS uses PI (program identification) signal and AF (alterna- tive frequency) list transmitted in addition to the normal FM E00721100015 REG function limits to receive the stations broadcasting broadcasting programs, and picks up the FM stations that are regional programs.
Page 254 For pleasant driving PTY (Program type) 28. FOLK M (Folk music) 29. DOCUMENT E00721300264 RDS broadcasts are classified according to program type 30. TEST (PTY) as follows. Use the TUNE/SEEK button (3 or 4) to 31. ALARM select your desired PTY. 1.
Page 255 For pleasant driving To search for a broadcast of desired program type: NOTE ● If the TUNE/SEEK button (3 or 4) is pressed for more 1. Press the PTY button (7). 2. Press the TUNE/SEEK button (3 or 4) for less than 1 sec- than 1 second, the radio will try to find out another broad- ond at a time to select your desired PTY.
Page 256 For pleasant driving To change the language of PTY display E00721500194 You can select your favourite language among English, French, German, Swedish, Spanish and Italian. 1. Press the MENU button (8) to select the language of PTY display mode. Refer to “Function setup mode” on page 5-36. 2.
Page 257 For pleasant driving Traffic information E00721600225 The radio will automatically tune in to traffic information broadcasts while receiving FM broadcasts or playing compact discs. To select this function, follow the instructions below. 1. Press the TP button (6). The display will show “TP” (11). If the RDS data can be read, the display will show “RDS”...
Page 258 For pleasant driving TP (Traffic information Programme) search function Emergency broadcasts E00721800155 E00721700183 The traffic information programme standby function is turned on (with the TP indicator (11) shown on the display) and after about 45 seconds since the RDS indicator (9) turns off due to weak signal or the tuning station is changed over from a TP station to a station which does not broadcast traffic informa- tion, the sound will beep 5 times and seeks out a TP station in...
Page 259 For pleasant driving Function setup mode E00722500348 It is possible to change the following functions: ● AF ● CT ● REG ● TP-S ● PI-S ● PHONE IN ● MUTE ● Language of PTY display 1. Press the “MENU” button to select the function setup mode.
Page 260 For pleasant driving 2. Press the “MENU” button repeatedly to select the mode NOTE you wish to change. The order is: AF → CT → REG → ● Although “PHONE IN (PH)” and “MUTE” appear on the TP-S → PI-S → PHONE IN (PH) → MUTE → Language display, the PHONE IN and MUTE functions are inopera- of PTY display →...
Page 261 For pleasant driving 3. Select the desired setting for each mode to be turned ON and OFF as shown below. The setting will be shown on the display. Example NOTE ● After selecting a mode, you can leave the function setup mode by taking either of the following steps: •...
Page 262 For pleasant driving CD control panel and display (MP3 compatible type) E00709500950 music CDs MP3 CDs 16- RPT (Repeat-mode) indicator 1- PWR (On-Off) switch 17- RDM/D-RDM (Random-mode) indicator 2- CD eject button 18- Track play time display 3- Disc-loading slot 19- FOLDER indicator 4- FOLDER (Folder down) button 20- MP3 indicator...
Page 263 For pleasant driving To listen to a CD To fast forward/reverse the disc To fast forward or reverse, use the TRACK buttons (11). E00709601554 1. Insert the disc with the label facing up. Fast forward When a disc is inserted, the CD player will begin playing You can fast forward by holding down the side of the even if the radio is being used.
Page 264 For pleasant driving To listen an MP3 CD 1. Insert a disc containing MP3 files into the slot. When a disc is inserted, the CD player will begin playing This CD player allows you to play MP3 (MPEG Audio Layer- even if the radio being used.
Page 265 For pleasant driving NOTE Folder selection order/MP3 file playback order (Example) ● While listening to a disc on which CD-DA (CD-Digital Audio) and MP3 files have both been recorded, you can switch between reading of the CD-DA, and reading of the Root folder (root directory) MP3 files by pressing the CD button (9) for 2 seconds or longer (until you hear a beep).
Page 266 For pleasant driving To select a desired folder (MP3 CDs only) To select a desired track You can select your desired folder by pressing the FOLDER You can select your desired track by using the TRACK button buttons (4 or 5). (11).
Page 267 For pleasant driving To repeat a track To change the order of tracks for playback Press the RPT/RDM button (10) while the track is playing. Random playback for a disc (music CDs only) “RPT” will appear on the display. To exit the repeat mode, Press the RPT/RDM button (10) two times.
Page 268 For pleasant driving CD text The CD player can display disc and track titles for discs encoded with disc and track title information. Press the TEXT button (6) repeatedly to make selections in the following sequence: disc name → track name → normal display mode. Disc name NOTE Track name...
Page 269 For pleasant driving MP3 title NOTE ● The display can show up to 11 characters. If a disc name The CD player can display folder and track titles for discs or track name has more than 11 characters, press the encoded with folder and track information.
Page 270: To Use The External Audio Input Function
For pleasant driving To use the external audio input function ID3 tag information The CD player can display ID3 tag information for files that E00732200348 have been recorded with ID3 tag information. 1. Press the TEXT button (6) for 2 seconds or longer to switch to the ID3 tag information.
Page 271 For pleasant driving You can listen to commercially available audio equipment, NOTE ● The connected audio equipment cannot be operated with such as a portable audio system, from your vehicle’s speakers, by connecting the audio equipment to the auxiliary audio con- the vehicle’s audio system.
Page 272: Steering Wheel Audio Remote Control Switches
For pleasant driving Steering wheel audio remote Turning on the power Press the power switch (3) to turn on the power. When you turn control switches the power on, the mode that was selected when the power was E00710000447 last turned off appears. To turn off the power, press and hold The remote control switch is located on the left side of the down the power switch (3) for about 2 seconds until you hear a steering wheel.
Page 273 For pleasant driving To listen to a CD Press the mode selector button (3) and select CD mode. To fast-forward/reverse the disc To fast-forward/reverse the disc, press the fast-forward button (4) or the fast-reverse button (5). Fast-forward You can fast-forward the disc by holding down the fast-for- ward button (4).
Page 274: Error Codes
For pleasant driving Error codes E00710100972 If an error code (1) appears in the display, take action in accordance with the table below. Error display Problem Item Repair NO DISC No disc inserted Disc is not in CD player. Insert disc. Disc is not loaded correctly, or conden- Insert disc with label facing up.
Page 275 Error display Problem Item Repair Communication error between external Communication or Consult a MITSUBISHI MOTORS Authorised device and audio equipment. power supply error Service Point. Power supply error of external device. NO MP3 file in the MP3 CD mode was selected even though...
Page 276: Handling Compact Discs
For pleasant driving Handling compact discs E00723000207 ● Use only the type of compact discs that have the mark shown in the illustration below. (Playback of CD-R or CD-RW discs may cause problems.) ● The use of damaged compact discs (such as cracked discs) or low-quality compact discs (such as warped discs or burrs on the discs) such as those illustrated will damage the CD player.
Page 277 For pleasant driving ● In the following circumstances, moisture can form on ● To clean a disc, use a soft, clean, dry cloth. Wipe directly discs and inside the audio system, preventing normal from the centre hole towards the outer edge. Do not wipe operation.
Page 278 For pleasant driving ● Do not put additional labels (A) or stickers (B) on com- Notes on CD-Rs/RWs pact discs. Do not use any compact disc on which a label E00725100026 ● You may have trouble playing back some CD-R/RW discs or sticker has started to peel off or any compact disc that recorded on CD recorders (CD-R/RW drives), either due has stickiness or other contamination left by a peeled-off...
Page 279: Antenna
For pleasant driving Antenna Digital clock E00710500396 E00711800338 Roof antenna To display the clock To remove the roof antenna, unscrew it by turning it anticlock- Press the (CLOCK) button to switch the clock mode. To wise. exit the clock mode, press the (CLOCK) button.
Page 280 For pleasant driving To adjust the clock NOTE ● While the clock mode is selected, the display will switch Automatic mode and manual mode is available for digital to the applicable operation display whenever the CD clock adjustment: player, external audio input mode or radio is operated. Select the automatic mode or the manual mode by performing Then, if no entries are made for 7 seconds, the display will the following operations:...
Page 281 For pleasant driving 3. Press the Menu button (B) repeatedly to select the CT NOTE ● Although “PHONE IN (PH)” and “MUTE” appear on the (Clock Time) mode. The order is: AF → CT → REG → TP-S → PI-S → display, the PHONE IN and MUTE function is inopera- PHONE IN (PH) →...
Page 282 For pleasant driving Automatic mode 4. Select the desired setting for each mode to be turned ON and OFF. The automatic mode can set the local time automatically by using the signal from the local RDS stations. Refer to “Radio data system (RDS)”...
Page 283 For pleasant driving Manual mode NOTE ● When using the manual mode to adjust the clock, set the The manual mode is also available in case the “Automatic “CT” function to “OFF”. If the “CT” function is set to mode” shows the incorrect time when the adjacent local RDS “ON”, the time will automatically be corrected using the stations are located in a different time zone.
Page 284: Sun Visors
For pleasant driving Sun visors Vanity mirror E00711201010 E00711300708 A vanity mirror is fitted to the back of the sun visor. Driver’s side 1- To eliminate front glare 2- To eliminate side glare Passenger’s side 5-61...
Page 285: Accessory Socket
For pleasant driving Accessory socket CAUTION E00711601085 ● Be sure to use a “plug-in” type accessory operating The accessory socket can be used while the ignition switch is at 12 V and at 120 W or less. in either the “ON” or “ACC” position. When using the socket, make sure the total power Open the cap to uncover the socket.
Page 286: Interior Lamps
● The dimming period is adjustable. For further information, we recommend you to consult a MITSUBISHI MOTORS Authorized Service Point. ● If you leave the lamps on without running the engine, you will run down the battery. Before you leave the vehicle, make sure that all the lamps are off.
Page 287 For pleasant driving Map lamps Luggage compartment lamp Push the map lamp cover to turn on the lamp. Push it again to E00712700480 The luggage compartment lamp (A) is located on left-hand side turn it off. (3-door models) or the right-hand side (5-door models) of the luggage compartment.
Page 288: Storage Spaces
For pleasant driving Storage spaces 5-door models E00713101244 CAUTION ● Never leave lighters, cans of carbonated drink, and spectacles in the cabin when parking the vehicle in hot sunshine. The cabin will become extremely hot, so lighters and other flammable items may catch fire and unopened drink cans (including beer cans) may rupture.
Page 289 For pleasant driving 3-door models 5-door models 1- Luggage floor boxes 2- Luggage floor lid* 3- Glove box, Cool box* 5-66...
Page 290 For pleasant driving Glove box Pen holder, coin holder and card holder The glove box contains a pen holder (B), a coin holder (C) and E00717600963 To open the glove box, pull the lid towards you while pressing card holder (D). the lever (A).
Page 291 For pleasant driving Cool box* 1. Set the cool box dial (B) inside the glove box to the position. E00721900084 The cool box (A) is located inside the glove box. You can put plastic and other bottles in the box. The cool box can be operated when the air conditioning is operating.
Page 292 For pleasant driving Luggage floor lid (5-door models)* 2. Select the desired blower speed by turning the dial (C). 3. Select the desired temperature by turning the temperature E00734400025 Raise the luggage floor lid to store articles in the luggage com- control dial (D).
Page 293 For pleasant driving To refit NOTE ● Raise the luggage floor lid (A) and insert it between the To return the luggage floor lid to its original position, perform rear seat and the support (B) to hold it in place. the steps in reverse.
Page 294 For pleasant driving Luggage floor boxes 5-door models E00718700554 The box for storing articles is located inside the luggage com- partment. 3-door models 1- Luggage floor box (Front) 2- Luggage floor box (Rear) NOTE ● For vehicles with the luggage floor lid (5-door models), securely retain the lid before raising the luggage floor boards.
Page 295 For pleasant driving To use 5-door models Raise the luggage floor board. 3-door models 5-72...
Page 296: Cup Holder
For pleasant driving Cup holder For the rear seat E00716900099 E00714500671 The cup holder is located in front of the rear-center seat. CAUTION ● Do not drink beverages while driving the vehicle; doing so could distract you and result in an accident. ●...
Page 297: Rear Shelf Panel
For pleasant driving Rear shelf panel To remove Unsnap by lifting the shelf panel pivoting points. E00715400071 3-door models The rear shelf panel is provided in the luggage area. To stow Stow the removed rear shelf panel in the luggage compartment. NOTE ●...
Page 298 For pleasant driving 5-door models To remove 1. Unsnap by lifting the rear shelf panel pivoting points. The rear shelf panel is provided in the luggage area. The rear shelf panel can be locked in the upright position. To lock To stow Stow the removed rear shelf panel in the luggage compartment.
Page 299: Coat Hooks
For pleasant driving Coat hooks E00725600382 There are 2 hooks on the rear pillar intended to hang clothes WARNING ● Do not put a hanger or any heavy or pointed object on the coat hook. If the curtain air bag would be activated, any such item could be propelled away with great force and could prevent the curtain air bag from inflating correctly.
Page 300 For emergencies If the vehicle breaks down ....6- Emergency starting ......6- Engine overheating .
Page 301: If The Vehicle Breaks Down
For emergencies If the vehicle breaks down Emergency starting E00800100710 E00800501900 If the vehicle breaks down on the road, move it to the shoulder If the engine cannot be started because the battery is weak or and use the hazard warning flashers and/or the warning triangle dead, the battery from another vehicle can be used with jumper etc.
Page 302 For emergencies 2. You could be injured if the vehicles move. Set the parking 4. Connect one end of one jumper cable to the positive (+) brake firmly on each vehicle. Put an automatic transmis- terminal of the discharged battery (A), and the other end sion in “P”...
Page 303 For emergencies 5. Connect one end of the other jumper cable to the negative CAUTION (-) terminal of the booster battery (B), and the other end to the engine block of the vehicle with the discharged battery ● Use care not to get the jumper cable caught in the at the point farthest from the battery.
Page 304 For emergencies 7. After the engine is started, disconnect the cables in the CAUTION reverse order. ● Do not attempt to start the engine by pulling or WARNING pushing the vehicle. It could damage your vehicle. ● Charging the battery while it is installed in the vehi- ●...
Page 305: Engine Overheating
For emergencies Engine overheating WARNING E00800601839 ● Be careful of hot steam, which could be blowing off If the high coolant temperature warning lamp flashes while the the reserve tank cap. engine is running, the engine may be overheating. If this ●...
Page 306 For emergencies 4. After the high coolant temperature warning lamp has gone 5. Check the coolant level in the reserve tank. off, stop the engine. Except for vehicles with turbocharger The coolant level in this tank should be kept between the “LOW”...
Page 307 For emergencies Vehicles with turbocharger 6. Add coolant to the radiator and/or reserve tank if neces- The reserve tank lid is equipped with a dipstick. sary (refer to the “Maintenance” section). Remove the dipstick and wipe it with a clean cloth. Rein- CAUTION sert the dipstick as far as it goes.
Page 308: Tools, Jack And Tyre Repair Kit
For emergencies Tools, jack and tyre repair kit Except for vehicles with compact spare wheel E00800901089 Storage The storage location of the tools, jack and tyre repair kit should be remembered in case of an emergency. Vehicles with compact spare wheel 1- Tyre repair kit 2- Tyre compressor 3- Towing hook...
Page 309 For emergencies Tools Tyre repair kit* E00801900799 E00802200207 This kit enables emergency repair of a small puncture in the tread area of a tyre that has run over a nail, screw, or similar object. 1- Wheel nut wrench* 2- Towing hook 1- 80 km/h (50 mph) and 50 3- Tyre compressor mph labels...
Page 310 ● The tyre sealant can cause health damage if swal- listed below. If any of these situations occurs, please con- tact a MITSUBISHI MOTORS Authorized Service Point lowed. If you accidentally swallow it, drink as much water as possible and immediately have yourself or other specialist.
Page 311 For emergencies ● Immediately wash out any clothes contaminated with the • The tyre is punctured in the side wall (A), not in the tread (B). tyre sealant. Before repairing a tyre, first stop your vehicle in a safe, flat location.
Page 312 For emergencies 5. Take out the tyre sealant bottle and the compressor. 7. Take the valve cap (D) off the tyre valve (E). NOTE ● In cold conditions (when the ambient temperature is 0 °C or lower). Warm the bottle inside the vehicle. 6.
Page 313 For emergencies 8. Unwind the bottle hose (F) from around the bottle (G). 9. Pull out the compressor’s hose (H) from the bottom of the compressor and securely attach it to the valve (I) of the bottle. 6-14...
Page 314 For emergencies 10. Install the bottle (J) onto the compressor (K). 11. Securely attach the bottle hose (F) to the tyre valve (N). Remove the “max. 80 km/h (50 mph)” or “max. 50 mph” label from the bottle; this must be displayed on the instru- ment panel in the driver’s field of view.
Page 315 For emergencies 13. Turn ON the compressor switch (Q) and inflate the tyre to the specified pressure. Check and adjust the tyre pressure with reference to the air pressure gauge (R) on the com- pressor (I). If you overinflate the tyre, release air by press- ing the pressure release switch (S) on the compressor or by loosening the hose’s end fitting.
Page 316 ● The compressor is designed to run on a vehicle’s 12V ● If you sense any abnormality while driving, stop the power supply. Do not connect it to any other power vehicle and contact a MITSUBISHI MOTORS source. Authorized Service Point or other specialist. Other- ●...
Page 317 10 minutes or 5 km (3 miles), then check the tyre pressure again. If the tyre pressure has again dropped below the specified level, stop driving the vehicle and contact a MITSUBISHI MOTORS Author- ized Service Point or other specialist. 6-18...
Page 318 MITSUBISHI MOTORS Authorized Service Point or tures can be repaired with the tyre repair kit, in particular other specialist and have the tyre repaired/replaced. cuts or perforations with a diameter of more than 4 mm or away from the tyre’s tread.
Page 319 For emergencies Jack* 3. Take out the jack from its designated position. E00802000423 To remove 1. For vehicles with luggage floor lid, open the luggage floor lid. Refer to “Luggage floor lid” on page 5-71. 2. Lift the carpet, then remove the luggage floor boads (A). 6-20...
Page 320: Jacking Up The Vehicle
For emergencies Jacking up the vehicle To store 1. Retract the jack, then return it to its original position. E00801001218 1. Park the vehicle on level and stable ground. 2. Set the parking brake firmly. 3. On vehicles with manual transmission, turn the ignition To expand key to the “LOCK”...
Page 321 For emergencies 5. To prevent the vehicle from rolling when it is raised on the 6. Place the jack under one of the jacking points (C) shown jack, place chocks or blocks (A) at the tyre that is diago- in the illustration. Use the jacking point closest to the tyre nally opposite from the tyre (B) you are changing.
Page 322 For emergencies 7. Holding the jack in position by hand, turn the handle until 8. Slowly turn the jack handle until the tyre is raised slightly the flange portion (D) fits in the groove (E) at the top of off the ground surface. the jack.
Page 323: Spare Wheel
For emergencies Spare wheel CAUTION E00801101394 ● The pressure should be periodically checked and Check the air pressure of the spare tyre frequently and make maintained at the specified pressure while the tyre is sure it is ready for emergency use at any time. stowed.
Page 324 For emergencies CAUTION CAUTION ● Do not use tyre chain with your compact spare ● The compact spare tyre should not be used on any wheel. Because of the smaller tyre size, a tyre chain other wheels, nor should standard tyres, snow tyres, will not fit properly.
Page 325 For emergencies To remove 3. Remove the clamp (B) which secures the spare wheel by turning it anticlockwise. Take out the spare wheel. 1. For vehicles with luggage floor lid, open the luggage floor cargo lid. Refer to “Luggage floor lid” on page 5-71. 2.
Page 326: How To Change A Tyre
For emergencies How to change a tyre 5. To prevent the vehicle from rolling when it is raised on the jack, place chocks or blocks (A) at the tyre that is diago- E00801202086 nally opposite from the tyre (B) you are changing. Before changing a tyre, first stop your vehicle in a safe, flat location.
Page 327 For emergencies 6. Get the spare wheel, jack, and wheel nut wrench ready. 7. On vehicles with wheel covers, first remove the covers (refer to “Wheel covers” on page 6-33). Then loosen the wheel nuts with the wheel nut wrench. Do not remove the wheel nuts yet.
Page 328 For emergencies 10. Clean out any mud, etc. on the hub surface (C), hub bolts WARNING (D) or in the installation holes (E) in the wheel, and then mount the spare tyre. ● Mount the spare wheel with the valve stem (F) fac- ing outboard.
Page 329 For emergencies 11. Finger-tighten the wheel nuts. (Turn them clockwise.) Wheel nuts with caps Tighten the wheel nuts until the tapered parts of the wheel nuts make light contact with the seats of the wheel holes and the wheel is not loose. Tighten the wheel nuts in the same way with a compact spare wheel.
Page 330 For emergencies Vehicle with aluminium wheels CAUTION ● Never apply oil to either the wheel bolts or the nuts Normal wheels or they will tighten too much. 12. Lower the vehicle slowly and then tighten the nuts in the order shown in the illustration until each nut has been tightened to the torque listed here.
Page 331 For emergencies CAUTION CAUTION ● Never use your foot or a pipe extension for extra ● The tyre pressure should be periodically checked force in the wheel nut wrench. If you do so, you will and maintained at the specified pressure while the tighten the nut too much.
Page 332 For emergencies Wheel covers* CAUTION E00801300298 ● Use the wheel nut wrench until the wheel cover To remove comes completely off. If you try to use your hands, 1. Wrap the tip of the wheel nut wrench (if so equipped) or they may be hurt by the edge of the wheel cover.
Page 333: Towing
If towing is necessary, we recommend you to have it done by 4. Gently tap around the circumference of the wheel cover at your MITSUBISHI MOTORS Authorized Service Point or a the top (F), then press the wheel cover into place.
Page 334 For emergencies Towing the vehicle by a tow truck CAUTION ● This vehicle must not be towed by a tow truck using sling lift type equipment (Type A) as illustrated. Using a sling lift will damage the bumper and front end.
Page 335 For emergencies Towing with rear wheels off the ground (Type B) Emergency towing Place the gearshift lever (manual transmission) or the allshift If towing service is not available in an emergency, your vehicle lever (automated manual transmission) in the “N” (Neutral) may be temporarily towed by a rope secured to the towing position.
Page 336 For emergencies If your vehicle is to be towed by another vehicle 3. Use the wheel nut wrench (B) to securely mount the tow- ing hook (C). 1. Take out the towing hook and wheel nut wrench (if so If your vehicle does not have a wheel nut wrench, equipped).
Page 337 For emergencies 4. Secure the tow rope to the front towing hook. 6. Place the gearshift lever (manual transmission) or the allshift lever (automated manual transmission) in the “N” CAUTION (Neutral) position. With a vehicle that has an automated manual transmis- ●...
Page 338 For emergencies 8. During towing make sure that close contact is maintained 9. When towing is finished, remove the towing hook and between the drivers of both vehicles, and that the vehicles store it in the specified location. (Refer to “Tools, jack and travel at low speed.
Page 339 For emergencies If your vehicle tows another vehicle NOTE ● Your vehicle should only be used to tow another vehicle if The rear towing hook (A) is located as shown in the illustra- the weight of the other vehicle is less than your vehicle. tion.
Page 340: Operation Under Adverse Driving Conditions
For emergencies Operation under adverse driving conditions WARNING E00801701840 ● When attempting to rock your vehicle out of a stuck If your vehicle becomes stuck in sand, mud or position, be sure that the area around the vehicle is snow clear of people and physical objects.
Page 341 For emergencies On a flooded road On a snow-covered or frozen road ● Avoid flooded roads. Water could enter the brake discs, ● When driving on a snow-covered or frozen road, it is rec- resulting in temporarily ineffective brakes. In such cases, ommended that you use snow tyres or tyre chains.
Page 342 Vehicle care Vehicle care precautions ....7- Cleaning the interior of your vehicle ...7- Cleaning the exterior of your vehicle.
Page 343 Vehicle care Vehicle care precautions CAUTION E00900100665 ● Cleaning products can be dangerous. Some are poi- In order to maintain the value of your vehicle, it is necessary to sonous. Others can burst into flame if you strike a perform regular maintenance using the proper procedures. match or drop them on a hot part of the vehicle.
Page 344 Vehicle care Cleaning the interior of your vehicle Upholstery E00900500135 E00900200347 1. To maintain the value of your new vehicle, handle the After cleaning the interior of your vehicle with water, cleaner upholstery carefully and keep the interior clean. or similar, wipe and dry in a shady, well-ventilated area. Use a vacuum cleaner and brush to clean the seats.
Page 345 Vehicle care Cleaning the exterior of your vehicle Genuine leather* E00900600569 E00900700010 1. Lightly wipe off with gauze or other soft cloth soaked If the following is left on your vehicle, it may cause corrosion, with a 5 % aqueous solution of neutral detergent. discolouration and stains, wash the vehicle as soon as possible.
Page 346 Vehicle care CAUTION CAUTION ● If your vehicle has rain sensor wipers, place the ● After washing the vehicle, drive the vehicle slowly while lightly depressing the brake pedal several wiper switch lever in the “ ” (OFF) position to times in order to dry out the brakes.
Page 347 Vehicle care During cold weather CAUTION Salt and other chemicals spread on the roads in some areas in ● Do not use petrol or paint thinners to remove road winter can have a damaging effect on the vehicle body. You tar or other contamination to the vehicle surface.
Page 348 Vehicle care Cleaning plastic parts Aluminium wheels* E00901300550 E00901500086 Use a sponge or chamois leather. 1. Remove dirt using a sponge while sprinkling water on the If car wax adheres to a rough grey or black surface on the wheel. bumper, moulding or lamps, the surface will become white.
Page 349 Vehicle care Window glass Engine compartment E00901600104 E00902100265 The window glass can normally be cleaned using only a Clean the engine compartment at the beginning and end of sponge and water. winter. Pay particular attention to flanges, crevices and periph- Glass cleaner can be used to remove oil, grease, dead insects, eral parts where dust containing road chemicals and other cor- etc.
Page 350 Maintenance Service precautions ......8- Catalytic converter ......8- Bonnet .
Page 351: Service Precautions
Always use automotive jack We recommend you to have the periodic inspection and main- stands. tenance performed by a MITSUBISHI MOTORS Authorized ● Improper handling of components and materials Service Point or another specialist. In the event a malfunction...
Page 352: Catalytic Converter
Maintenance Catalytic converter The catalytic converter itself gets hot quickly, and may be dam- aged if overheated. The following points should be noted in E01000200996 order to prevent the igniting of unburned petrol within the cata- For ordinary use, there are no particular precautions except that lytic converter.
Page 353: Bonnet
Maintenance Bonnet Raise the bonnet while pressing the safety lock. E01000301721 NOTE To open ● Only open the bonnet when the wipers are in the parked position. Failure to do so may cause paint/body damage. Pull the release lever towards you to unlock the bonnet.
Page 354 Maintenance To close Support the bonnet by inserting the support bar in its slot. Unlatch the support bar (A) and clip it in its holder. Slowly lower the bonnet to a position about 30 cm above the closed position, then let it drop. CAUTION ●...
Page 355: Engine Oil
Maintenance Engine oil E01000401807 To check and refill engine oil The engine oil used has a significant effect on the engine’s per- formance, service life and startability. Be sure to use oil of the recommended quality and appropriate viscosity. All engines consume a certain amount of oil during normal operation, and engine oil consumption is greatly influenced by payload, engine speed, etc.
Page 356 Maintenance 1100 models 1500 models with turbocharger NOTE 1300/1500 models ● The engine oil will deteriorate rapidly if the vehicle is subjected to severe conditions (for example, repeated operation on rough roads, in mountainous regions, on roads with many uphill and downhill gradients, or over short distances).
Page 357 Maintenance Selection of engine oil Vehicles with turbocharger (Except for Clear Tec & Clear Tec FFV) Except for vehicles with turbocharger ● Select engine oil of the proper SAE viscosity number according to the atmospheric temperature. ● Use engine oil conforming to the following classification: •...
Page 358 Maintenance Selection of engine oil NOTE ● Use of additives is not recommended since they may (Clear Tec & Clear Tec FFV) reduce the effectiveness of additives already included in the engine oil. It may result in failure of the mechanical assembly.
Page 359: Engine Coolant
Maintenance Engine coolant Vehicles with turbocharger Check the coolant level in the reserve tank. The reserve tank lid E01000501390 is equipped with a dipstick. To check the coolant level A translucent coolant reserve tank is located in the engine com- Remove the dipstick and wipe it with a clean cloth.
Page 360 Maintenance To add coolant Anti-freeze The engine coolant contains an ethylene glycol anti-corrosion The cooling system is a closed system and normally the loss of agent. The cylinder head and water pump housing are cast alu- coolant should be very slight. A noticeable drop in the coolant minium alloy, and periodic changing of the engine coolant is level could indicate leakage.
Page 361: Washer Fluid
Maintenance Washer fluid CAUTION E01000700702 ● Do not use alcohol or methanol anti-freeze or any Check the washer fluid level in the container. engine coolants mixed with alcohol or methanol If the level is low, replenish the container with washer fluid. anti-freeze.
Page 362: Brake Fluid/Clutch Fluid
Maintenance Brake fluid/Clutch fluid The fluid in the master cylinder should be checked when doing other work under the bonnet. The brake system should also be E01000800035 checked for leaks at the same time. The brake fluid (A) and the clutch fluid (B) share a reservoir If the fluid level falls markedly in a short period of time, it indi- tank.
Page 363: Battery
Maintenance Battery Checking battery electrolyte level The inside of the battery is divided into several compartments. E01001201655 The condition of the battery is very important for quick starting Checking the electrolyte level in each cell after removing the of the engine and proper functioning of the vehicle’s electrical cap.
Page 364 Maintenance During cold weather If the part marked (A) inside each cell is below the surface of the electrolyte (B), the electrolyte level is normal. Top up the The capacity of the battery is reduced at low temperatures. This electrolyte with distilled water if necessary. Do not add overfill is an inevitable result of its chemical and physical properties.
Page 365 Maintenance NOTE WARNING ● Open the terminal cover (A) before disconnecting or con- necting the positive (+) terminal of the battery. ● Keep sparks, cigarettes, and flames away from the ● Loosen the nut (B), and then disconnect the battery cable battery because the battery could explode.
Page 366 Maintenance NOTE CAUTION ● Keep the terminals clean. After the battery is connected, ● Never disconnect the battery with the ignition apply terminal protection grease. To clean the terminals, use lukewarm water. switch in the “ON” position; doing so could damage ●...
Page 367: Tyres
Maintenance Tyres E01001300226 WARNING ● Driving with tyres that are worn, damaged or improperly inflated can lead to a loss of control or blow out of the tyres which can result in a collision with serious or fatal injury. Tyre inflation pressures E01001402032 Normal At trailer towing...
Page 368 Maintenance Wheel condition Check that the wheel nuts are tightened correctly. Refer to the section entitled “For emergencies” for information concerning E01001800407 replacement of the tyres. NOTE ● The mark and the location of the tyre tread wear indicators are different depending on the tyre manufacturer. Replacing tyres and wheels E01007200038 CAUTION...
Page 369 Maintenance Tyre rotation Tyres that do not have arrows showing rotation direction E01001900121 Tyre wear varies with vehicle conditions, road surface condi- tions and individual driver’s driving habits. To equalize the wear and help extend tyre life, it is recommended to rotate the tyres immediately after discovery of abnormal wear, or when- Front ever the wear difference between the front and rear tyres is rec-...
Page 370 CAUTION Before fitting tyre chains, we recommend you to consult a ● Avoid the combined use of different types of tyres. MITSUBISHI MOTORS Authorized Service Point. The Max. This can affect driving safety. chain height is as follows. 8-21...
Page 371 Maintenance The speed limit for tyre chains is 50 km/h (31 mph). Remove Max. chain Item Tyre size Wheel size the tyre chains as soon as possible on snow free roads. height [mm] WARNING 14x5.5 J 175/65R14* Except for Clear Tec ●...
Page 372: Clutch Pedal Free Play
Maintenance Clutch pedal free play CAUTION E01002200222 ● Do not install a tyre chain on an emergency wheel Press down the clutch pedal with your fingers until initial which is compact in size. If one of the front wheels resistance is felt. has punctured, replace it with one of the rear wheels This distance should be within the specified range.
Page 373: Brake Pedal Free Play
Maintenance Brake pedal free play Parking brake lever stroke E01002300281 E01005800388 Stop the engine, depress the brake pedal several times, and Pull the parking brake lever up to check the number of “clicks” press down the pedal with your fingers until initial resistance is that the ratchet makes.
Page 374: Wiper Blades
Maintenance Wiper blades Wiper blade rubber replacement E01002600473 Windscreen wiper blade (driver’s side) If the blades are frozen to the windscreen or rear window, do 1. Lift the wiper arm off the windscreen. not operate the wipers until the ice has melted and the blades 2.
Page 375 Maintenance 3. Attach the retainers (C) to a new wiper blade. 5. Push the wiper blade until the hook (B) engages securely with the stopper (A). 4. Insert the wiper blade into the arm, starting with the oppo- site end of the blade from the stopper. Make sure the hook (B) is fitted correctly in the grooves in the blade.
Page 376 Maintenance Windscreen wiper blade (passenger’s side) 4. Firmly insert the retainer (C) into the groove (D) in the wiper blade. 1. Lift the wiper arm off the windscreen. Refer to the illustration to ensure that the retainers are cor- 2. Pull the wiper blade downward to disengage it from the rectly aligned as you insert them into the groove.
Page 377: General Maintenance
If replacement becomes nec- Fuel, engine coolant, oil and exhaust gas leakage essary, please consult a MITSUBISHI MOTORS Authorized Look under the body of your vehicle to check for fuel, engine Service Point or another specialist.
Page 378: For Cold And Snow Weather
Maintenance For cold and snow weather Meter, gauge and indicator/warning lamps operation E01002800172 Run the engine to check the operation of all meters, gauges, Ventilation slots and indicator/warning lamps. The ventilation slots in front of the windscreen should be If there is anything wrong, we recommend you to have your brushed clear after a heavy snowfall so that the operation of the vehicle inspected.
Page 379: Fuse Links
Maintenance Fuse links Fuses E01002900030 E01003001963 The fuse links will melt to prevent a fire if a large current Fuse block location attempts to flow through certain electrical systems. To prevent damage to the electrical system due to short- In case of a melted fuse link, we recommend you to have your circuiting or overloading, each individual circuit is provided vehicle inspected.
Page 380 Maintenance Fuse load capacity The fuse capacities and the names of the electrical systems pro- tected by the fuses are shown on the back of the cover in a LHD vehicle and on the behind the cover at the back of the glove box in a RHD vehicle.
Page 381 Maintenance Passenger compartment fuse location (LHD) Passenger compartment fuse location (RHD) 8-32...
Page 382 Maintenance Symbol Electrical system Capacity Symbol Electrical system Capacity Headlamp high beam (right) 10 A Ignition switch 40 A — — — Electric window system 40 A — — — Radiator fan 40 A Outside rear-view mirrors 7.5 A Automated manual transmission 40 A Rear fog lamp 7.5 A...
Page 383 Maintenance Identification of fuse Symbol Electrical system Capacity Gauge 7.5 A Capacity Colour Relay 7.5 A 7.5 A Brown STOP Stop lamps 15 A 10 A Air conditioning 7.5 A 15 A Blue 20 A Yellow — — — 30 A Green ●...
Page 384 Maintenance Fuse replacement 1. Before replacing a fuse, always turn off the electrical cir- cuit concerned and place the ignition switch in the “LOCK” position. 2. Remove the fuse puller from the cover. (Refer to “To remove the cover” on page 8-37, 8-38.) 8-35...
Page 385 Maintenance 3. Referring to the fuse load capacity table, check the fuse 4. Insert a new fuse of the same capacity by using the fuse pertaining to the problem. puller and insert the fuse at the same place in the fuse block.
Page 386 Maintenance To remove the cover (LHD vehicles) 2. Remove the fuse puller (C) from the cover (B). E01006800066 1. Turn the clips (A) anticlockwise, then remove the cover (B). 8-37...
Page 387 Maintenance To remove the cover (RHD vehicles) 3. Remove the fuse puller (C) from the cover (B). E01006800079 1. Open the glove box. 2. Press the tab (A) and remove the cover (B). 8-38...
Page 388 Maintenance To replace the cover (LHD vehicles) 2. Turn the clips (B) clockwise to retain the cover. E01006900096 1. Align the cover hooks (A) with the holes in the vehicle panel, then press the cover into place. 8-39...
Page 389: Replacement Of Lamp Bulbs
Maintenance Replacement of lamp bulbs To replace the cover (RHD vehicles) E01006900100 E01003100433 Align the tabs (A) on the cover with the holes, then press the Before replacing a bulb, ensure the lamp is off. Do not touch cover into place. the glass part of the new bulb with your bare fingers;...
Page 390 Maintenance Bulb capacity Rear (3-door models) E01003200043 When replacing a bulb, use a new bulb with the same wattage and colour. Outside E01003302048 Front 1- Headlamps, high/low beam: 60/55 W (H4) 2- Front turn-signal lamps: 21 W (P21W) 3- Position lamps: 5 W (W5W) 4- Front fog lamps*: 55 W (H11) 5- Side turn-signal lamps: 5 W (WY5W) Codes in parentheses indicate bulb types.
Page 391 Maintenance Inside Rear (5-door models) E01003401332 3-door models 6- High-mounted stop lamps: 5 W (W5W) 7- Stop and tail lamps (3-door models): 21/5 W (P21/5W) Stop lamps (5-door models): 16 W (W16W) 8- Rear turn-signal lamps (3-door models): 21 W (P21W) Rear turn-signal lamps (5-door models): 21 W (PY21W) 9- Rear fog lamp (3-door models, driver’s side): 21 W (P21W) Reversing lamp (3-door models, passenger’s side): 21 W...
Page 392 Maintenance Headlamps 5-door models E01003501261 1. Turn the cover (A) anticlockwise to remove it. Front 1- Room lamps & map lamps: 5 W 2- Luggage compartment lamp: 10 W 8-43...
Page 393 Maintenance 2. Disconnect the connector (B). 3. Unhook the spring (C) which secures the bulb, and then remove the headlamp bulb. 8-44...
Page 394 Maintenance 4. To install the bulb, perform the removal steps in reverse. CAUTION NOTE ● Handle halogen lamp bulb with care. The gas inside ● When installing the bulb, align the upper part as illus- halogen lamp bulb is highly pressurized, so drop- trated then press the bulb into place.
Page 395 Maintenance Position lamps Front turn-signal lamps E01003700732 E01003800687 1. Disconnect the headlamp connector. (Refer to “Head- 1. Turn the bulb socket anticlockwise to remove it. And lamps” on page 8-43.) remove the bulb from the socket by turning it anticlock- 2.
Page 396 Maintenance Side turn-signal lamps 2. Remove the socket and bulb assembly together by turning it anticlockwise, and then remove the bulb by pulling out. E01003900369 1. Remove the lamp housing by levering it towards the front of the vehicle. Front 3.
Page 397 Maintenance Front fog lamps* 2. Remove the lamp mounting screws (B) and pull the entire lamp bracket out. E01004001276 1. Remove the bezel (A). 8-48...
Page 398 Maintenance 3. Push the connector (C) to disconnect and remove the fog 4. Remove the entire socket and bulb assembly (D) by turn- lamp. ing it anticlockwise. 8-49...
Page 399 Maintenance 5. To install the bulb, perform the removal steps in reverse. CAUTION NOTE ● Handle halogen lamp bulb with care. The gas inside ● When mounting the lamp unit, align the holes in the lamp halogen lamp bulb is highly pressurized, so drop- unit with the pins (E) on the vehicle body.
Page 400 Maintenance Rear combination lamps 2. Pull out the connector (B) while pressing the tab (C). E01004201050 3-door models 1. Remove the screws (A) (2 locations), and then remove the lamp unit. 8-51...
Page 401 Maintenance 3. Remove the screws (D) (3 locations), and then remove the 4. Remove the bulb by turning it anticlockwise while press- bulb holder. ing in. E- Rear turn-signal lamp F- Stop lamp 8-52...
Page 402 Maintenance 5-door models 5. To install the bulb, perform the removal steps in reverse. 1. Remove the screws (A) (2 locations), and then remove the NOTE lamp unit. ● When mounting the lamp unit, align the pins (G) on the lamp unit with the holes in the body.
Page 403 Maintenance 2. Push the tab (B) inward with a straight blade (or minus) 3. Undo the clips (D) (6 locations) one by one, starting at the screwdriver, and undo the lock in the direction of the top and finishing at the bottom. (Pull each clip in the arrow (C), thereby freeing the rear combination lamp unit direction of the arrow to undo it.) Then, remove the bulb from the connector.
Page 404 Maintenance 4. Remove the bulb by turning it anticlockwise while press- 5. To install the bulb, perform the removal steps in reverse. ing in (except for stop lamp) or by pulling out (stop lamp). NOTE ● When mounting the lamp unit, align the pins (I) on the lamp unit with the hole and the clip in the body.
Page 405 Maintenance Reversing lamp (passenger’s side)/Rear fog lamp 2. Remove the socket and bulb assembly (C) together by turning it anticlockwise, and then remove the bulb by (driver’s side) turning it anticlockwise while pressing in. E01004400228 3-door models 1. Press the tab (A) and remove the cover (B). 3.
Page 406 Maintenance High-mounted stop lamps 2. Remove the screws (C) (2 locations) and remove the bulb holder, then pull out the bulb. E01004500519 3-door models 1. Open the tailgate and remove the clips (A) (2 locations). To remove each clip, press part (B) of the clip then pry around the clip to get the clip out.
Page 407 Maintenance To reinstall 5-door models Reverse the above removal procedure. When refitting each of 1. Open the tailgate and remove the covers (A) (2 locations). the clips of the lid, push the clip into the lid with the pin pressed inward (as illustrated). Then, push in the pin to lock the clip in place.
Page 408 Maintenance 2. Push the hooks (B) (2 locations) into the holes and remove 3. Gently close the tailgate, remove the lamp assembly, and the high-mounted stop lamp. (Close the tailgate to cause remove the connector (C), then remove the lamp body. the lamp assembly to come out.) 8-59...
Page 409 Maintenance Licence plate lamp 4. Undo the clips (D) and remove the bulb holder, then pull out the bulb. E01004600800 1. Remove the lamp assembly by levering it out with a straight blade (or minus) screwdriver. 5. To install the bulb, perform the removal steps in reverse. 8-60...
Page 410 Maintenance 2. Remove the socket and bulb assembly together by turning 3. To install the bulb, perform the removal steps in reverse. it anticlockwise, and then remove the bulb by pulling out. NOTE ● When installing the lamp, insert tab (A) first, then align and insert tab (B).
Page 411 Maintenance Room lamps & map lamps Luggage compartment lamp E01004700478 E01005300370 1. Insert a straight blade (or minus) screwdriver into the 1. Insert a straight blade (or minus) screwdriver into the notch of the lens and pry gently to remove the lens. notch of the lens and pry gently to remove the lens.
Page 412 Maintenance 5-door models NOTE ● Wrap a piece of cloth around the tip of the screwdriver in order to avoid scratching the lens. 3. To install the bulb, perform the removal steps in reverse. 8-63...
Page 414 Specifications Vehicle labeling ......9- Vehicle dimensions ......9- Vehicle performance .
Page 415: Vehicle Labeling
Specifications Vehicle labeling Vehicle information code plate The vehicle information code plate is riveted as shown in the E01100102251 illustration. Vehicle identification number: (VIN) The vehicle identification number: (VIN) is stamped as shown 3-door models in the illustration.
Page 416 Specifications The plate shows model code, engine model, transmission 5-door models model and body colour code, etc. Please use this number when ordering replacement parts. 1- Model code 2- Engine model code, Exterior code 3- Transmission model code 4- Approval number 5- Chassis number 6- Maximum gross vehicle weight 7- Body colour code,...
Page 417 Specifications Vehicle identification number plate Engine number (RHD vehicles only) The engine number is stamped on the engine cylinder block as shown in the illustration. The vehicle identification number is stamped on the plate riv- eted to the left front corner of the instrument panel pad. It is 1100 models visible from outside of the vehicle through the windscreen.
Page 418 Specifications 1300 models, 1500 models (Except for vehicles with turbocharger) 1500 models (Vehicles with turbocharger) *: Front of the vehicle...
Page 419: Vehicle Dimensions
Specifications Vehicle dimensions E01100201734 3-door models Front track 1,460 mm Overall width 1,695 mm Front overhang 845 mm Wheel base 2,500 mm Rear overhang 535 mm Overall length 3,880 mm Ground clearance (unladen) 154 mm Overall height (unladen) 1,520 mm Rear track 1,445 mm...
Page 420 Specifications 5-door models Front track 1,460 mm Overall width 1,695 mm Front overhang 845 mm Wheel base 2,500 mm Rear overhang 595 mm Overall length 3,940 mm Ground clearance (unladen) 154 mm Overall height (unladen) 1,550 mm Rear track 1,445 mm...
Page 421: Vehicle Performance
Specifications Vehicle performance E01100301416 1500 models Item 1100 models 1300 models Except for vehicles with Vehicles with turbocharger turbocharger Maximum speed 165 km/h (100 mph) 180 km/h (110 mph) 190 km/h (120 mph) 210 km/h (130 mph) Body 5.4 m Minimum turning radius Wheel...
Page 422: Vehicle Weight
Specifications Vehicle weight E01100403277 3-door models 1300 models 1500 models 1100 models Manual transmission Except for Automated Vehicles Item vehicles manual with Except for Except for with Clear Tec Clear Tec transmission turbocharger Clear Tec Clear Tec turbocharger Without 935 kg 940 kg 940 kg 945 kg...
Page 423 Specifications 5-door models 1300 models 1500 models 1100 models Manual transmission Except for Automated Vehicles Item vehicles manual with Except for Except for with Clear Tec Clear Tec transmission turbocharger Clear Tec Clear Tec turbocharger Without 965 kg 970 kg 970 kg 975 kg 975 kg...
Page 424: Engine Specifications
Specifications Engine specifications E01100601914 1500 models Item 1100 models 1300 models Except for vehicles with Vehicles with turbocharger turbocharger Four-cylinder, in line, Three-cylinder, in line, Four-cylinder, in line, Four-cylinder, in line, water cooled four-cycle, water cooled four-cycle, water cooled four-cycle, water cooled four-cycle, Engine type double overhead cam-...
Page 425: Transmission Specifications
Specifications Transmission specifications E01100701276 1300 models 1500 models 1100 models Manual transmission Automated Except for Item Vehicles with manual vehicles with Except for Except for turbocharger Clear Tec Clear Tec transmission turbocharger Clear Tec Clear Tec 1st gear ratio 3.308 3.308 3.308 3.308...
Page 426: Electrical System
80 A FR7SE, FR7SE, FR7SE, BOSCH FR7SI30 FR7SI30 — — FR7NPP33 FR7NPP33 FR7NPP33 Spark plug type ILZFR6C- — — ILZFR6C-K *: Optional equipment NOTE ● For Clear Tec models, contact an authorized MITSUBISHI MOTORS dealer when replacing the battery. 9-13...
Page 427: Tyres And Wheels
Specifications Tyres and wheels E01100902031 Item 1100 models, 1300 models Tyre 175/65R14 82T 185/55R15 82H* 195/50R15 82H 205/45R16 83H Size 14x5 1/2J 15x6J 16x6 1/2J Wheel Offset 46 mm *: For Clear Tec models only 1500 models Item Except for vehicles with turbocharger Vehicles with turbocharger Tyre 195/50R15 82H...
Page 428: Other Specifications
Specifications Other specifications E01101000950 Item 1100 models, 1300 models 1500 models Fuel control Electric controlled injection Fuel system Fuel pump Electric motor type Clutch Dry single disc clutch, hydraulic action Steering system Rack and pinion type, electric power assisted Front Independent type, MacPherson strut, coil spring Suspension Rear...
Page 429: Fuel Consumption
Specifications Fuel consumption E01101100427 Except for Clear Tec & Clear Tec FFV Extra-urban Combined Urban conditions conditions Fuel Fuel Fuel Item consumption consumption consumption (L/100 km (L/100 km (L/100 km (g/km) (g/km) (g/km) (62 miles)) (62 miles)) (62 miles)) With 175/65R14 tyres 1100 models With 195/50R15 or 205/45R16 tyres...
Page 430 Specifications Clear Tec & Clear Tec FFV Combined Urban conditions Extra-urban conditions Fuel Fuel Fuel Item consumption consumption consumption (L/100 km (L/100 km (L/100 km (g/km) (g/km) (g/km) (62 miles)) (62 miles)) (62 miles)) 1100 With 175/65R14 or Clear Tec models 185/55R15 tyres With 175/65R14 or...
Page 431 Specifications Refill capacities E01101302494 (LHD) 1100 models 1300 models, 1500 models 1500 models (RHD) 1100 models 1300 models, 1500 models 1500 models : Except for vehicles with turbocharger : Vehicles with turbocharger 9-18...
Page 432 Specifications Item Quantity Lubricants Washer fluid 5.16 litres — Oil pan 3.0 litres 1100 models Oil filter 0.2 litre Oil pan 4.0 litres 1300 models, 1500 models Engine oil Oil filter 0.2 litre Refer to page 8-6 Oil pan 3.3 litres Oil filter 0.3 litre 1500 models...
Page 434 Alphabetical index Charge warning lamp 3-29 Discharged battery (Emergency starting) 6-2 Specification 9-13 Accessory socket 5-62 Bonnet 8-4 Accessory (Installation) 6 Brake Active stability control system (ASC) 4-47 Anti-lock brake 4-41 Indicator lamp 4-49 Brake assist system 4-40 Additional equipment 8-29 Braking 4-38 Air bag 2-36 Fluid 8-13, 9-18...
Page 435 Alphabetical index Genuine leather 7-4 Interior of your vehicle 7-3 Plastic, vinyl leather, etc 7-3 Economical driving 4-2 Clock 5-56 Electric power steering system 4-45 Clutch Electric remote-controlled outside rear-view mirrors 4-12 Fluid 8-13 Electric window control 1-19 Pedal free play 8-23 Electrical system 9-13 Combination headlamps and dipper switch 3-31 Electronic immobilizer (Anti-theft starting system) 1-3...
Page 436 Alphabetical index Fluid capacities and lubricants 9-18 Glove box 5-67 For cold and snow weather 8-29 Front fog lamps Bulb capacity 8-41 Handling of compact discs 5-53 Indicator lamp 3-25 Hazard warning flasher switch 3-38 Replacement 8-48 Hazard warning indicator lamps 3-25 Switch 3-39 Head restraints 2-8 Front passenger?s airbag ON-OFF switch 2-42...
Page 437 Alphabetical index Indicator and warning lamps 3-24 Luggage floor boxes 5-71 Indicator lamps 3-25 Luggage floor cargo 5-69 Inside rear-view mirror 4-10 LW/MW/FM electronic tuning radio with CD player 5-23 Installation of accessories 6 Instruments 3-2 Interior lamps 5-63 Manual transmission 4-25 Oil 9-18 Map lamps 5-64 Jack 6-20...
Page 438 Alphabetical index Parking brake 4-6 Rear-view mirror Parking brake lever stroke 8-24 Inside 4-10 Position lamps Outside 4-10 Bulb capacity 8-41 Replacement of lamp bulbs 8-40 Replacement 8-46 Reversing lamps Power brakes 4-38 Bulb capacity 8-41 Power steering Replacement 8-51, 8-56 System 4-45 Room lamp 5-63 Precautions to observe when using wipers and washers 3-48...
Page 439 Alphabetical index Side turn-signal lamps Replacement 8-51 Bulb capacity 8-41 Tailgate 1-16 Replacement 8-47 Tank capacity 4 Snow tyres 8-21 Tools 6-10 Spare wheel 6-24 Storage 6-9 Spark plug 9-13 Towing 6-34 Specifications 9-2 Traction control system (TCL) 4-47 Speedometer 3-3 Indicator lamp 4-49 Starting 4-16 Trailer towing 4-58...
Page 440 Alphabetical index Vanity mirror 5-61 Vehicle care precautions 7-2 Vehicle information code plate 9-2 Vehicle labeling 9-2 Vehicle performance 9-8 Vehicle weight 9-9 Ventilators 5-2 Warning lamps 3-26 Washer Fluid 8-12, 9-18 Switch 3-41, 3-46, 3-47 Washing 7-4 Waxing 7-6 Weatherstripping 8-29 Weight 9-9 Wheel...

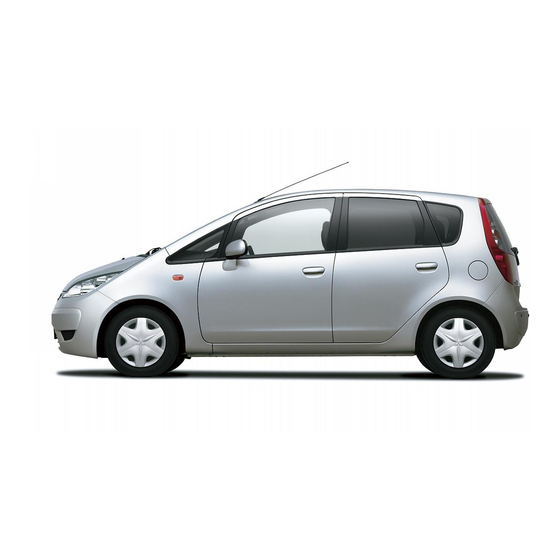

Mitsubishi MOTORS Colt 2009 Owner's Manual

General Information

Locking and Unlocking

Table of Contents

Table of Contents

Table of Contents

Table of Contents

For Emergencies

Table of Contents

Quick Links

Chapters

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mitsubishi MOTORS Colt 2009

Summary of Contents for Mitsubishi MOTORS Colt 2009

Table of Contents
