Mitsubishi MOTORS Colt 2000 Workshop Manual Supplement

Table of Contents

Quick Links

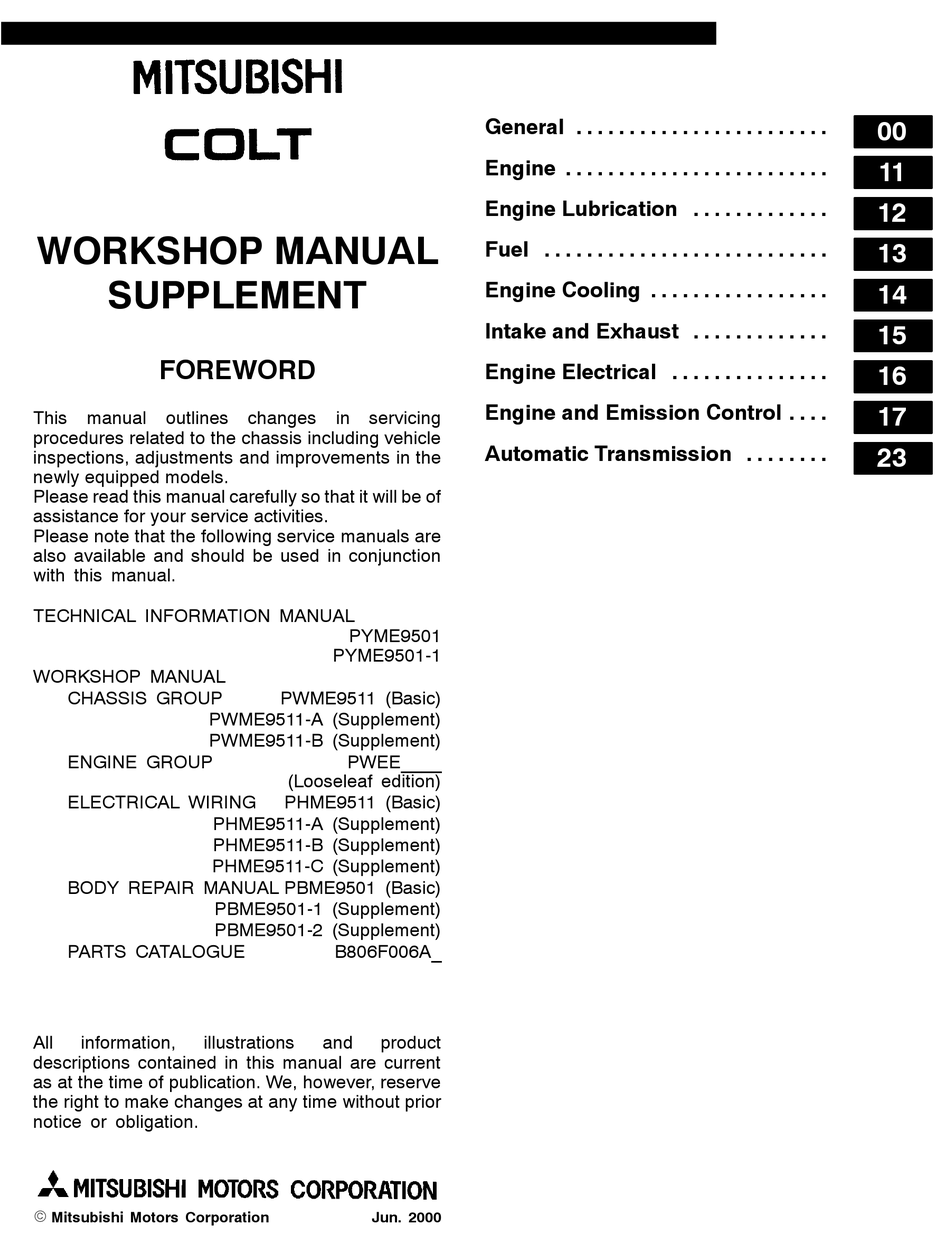

WORKSHOP MANUAL

SUPPLEMENT

FOREWORD

This

manual

outlines changes

procedures related to the chassis including vehicle

inspections, adjustments and improvements in the

newly equipped models.

Please read this manual carefully so that it will be of

assistance for your service activities.

Please note that the following service manuals are

also available and should be used in conjunction

with this manual.

TECHNICAL INFORMATION MANUAL

WORKSHOP MANUAL

CHASSIS GROUP

PWME9511-A (Supplement)

PWME9511-B (Supplement)

ENGINE GROUP

ELECTRICAL WIRING

BODY REPAIR MANUAL PBME9501 (Basic)

PARTS CATALOGUE

All

information,

illustrations

descriptions contained in this manual are current

as at the time of publication. We, however, reserve

the right to make changes at any time without prior

notice or obligation.

Mitsubishi Motors Corporation

in servicing

PYME9501

PYME9501-1

PWME9511 (Basic)

PWEE____

(Looseleaf edition)

PHME9511 (Basic)

PHME9511-A (Supplement)

PHME9511-B (Supplement)

PHME9511-C (Supplement)

PBME9501-1 (Supplement)

PBME9501-2 (Supplement)

B806F006A_

and

product

Jun. 2000

General . . . . . . . . . . . . . . . . . . . . . . . .

Engine . . . . . . . . . . . . . . . . . . . . . . . . .

Engine Lubrication . . . . . . . . . . . . .

Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . .

Engine Cooling . . . . . . . . . . . . . . . . .

Intake and Exhaust . . . . . . . . . . . . .

Engine Electrical . . . . . . . . . . . . . . .

Engine and Emission Control . . . .

Automatic Transmission . . . . . . . .

Table of Contents

Chapters

Table of Contents

Troubleshooting
