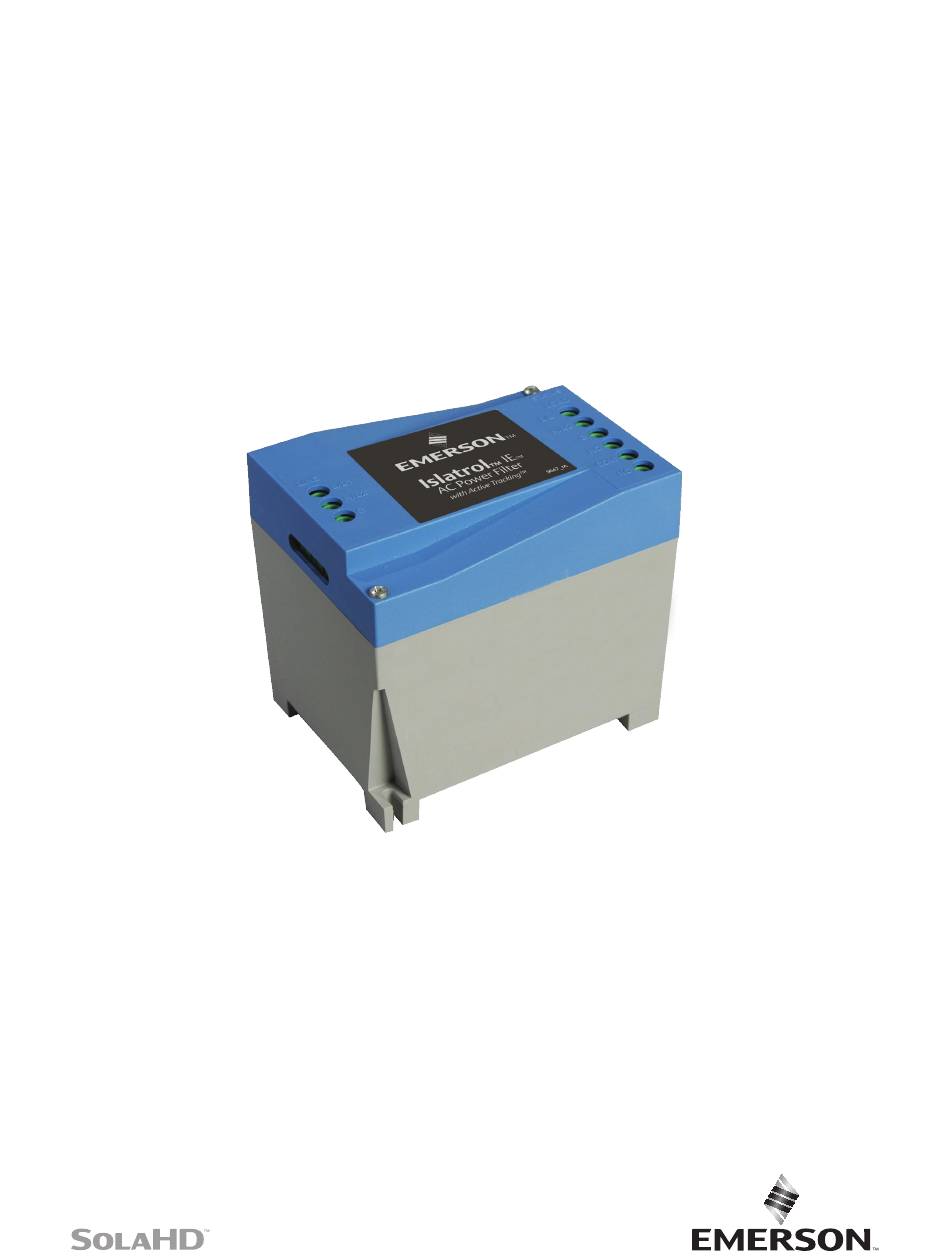

- Page 1 Surge Protective Devices IE Series...
- Page 2 IE Series Page: B...
-
Page 3: Safety Information
IE Series Safety Information Important Information Read these instructions carefully and look at the equipment to become familiar with the device before trying to install, operate, service or maintain it. The following special messages may appear throughout this bulletin or on the equipment to warn of potential hazards or to call attention to information that clarifies or simplifies a procedure. - Page 4 IE Series Introduction The IE Series offers high frequency noise filter capabilities with surge protection for loads up to 20 A of continuous current. This product is a DIN or flange mounted device that helps to protect industrial critical loads.
-
Page 5: Installation
IE Series Installation 1. Turn off all power supplying this equipment before working on or inside equipment. 2. Confirm that the unit has the same voltage rating and configuration as the power system voltage and power system voltage to which it will be connected. - Page 6 IE Series Voltage, Current and Power Configurations Fuse/Circuit Breaker Ampacity Required Wire Size Range Catalog Number Load Current (AWG) Torque (lb-in.) Suggest Single-Phase Models (120 VAC) IE103 3.0 A 3.0 A 3.75 A IE105 5.0 A 5.0 A 6.25 A 12 - 14 12.1 lb-in.
- Page 7 IE Series Table 2: General Specifications Wiring Power Terminal Operating / Storage Catalog Mounting (Copper Connection Torque Temperature Numbers Wire) IE103 4 lb-in. IE105 18–12 AWG (0.45 IE110 N•m) IE120 DIN rail or Line / Neutral / +32 °F to +77 °F (0 °C to +25 °C)
-
Page 8: Diagnostic Operation
IE Series Figure 3: Connections and Wiring LINE INPUT FROM SOURCE LINE LOAD L/L1 L/L1 TO LOAD OR N/L2 N/L2 EQUPMENT RELAY TO PROTECT CONTACTS NO COM NC TO REMOTE INDICATION IF NEEDED Diagnostic Operation DANGER HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH •... - Page 9 IE Series Dimensions (in. / [mm]) and weights (lb. / kg.) 3.83 in. 3.83 [97.2 mm] [97.2] 3.06 3.06 in. 4.06 in. 4.06 [77.7 mm] [103.1 mm] [77.7] [103.1] Weights Catalog Numbers (lb./kg.) IE103 0.94 lb. (0.42 kg) IE105 0.95 lb. (0.43 kg) IE110 1.2 lb.
-
Page 10: Technical Support
IE Series Technical Support Website: www.solahd.com Technical Support E-Mail: solahd.technicalservices@emerson.com Toll-Free: (800) 377-4384 USA: (847) 268-6651 Warranty Please refer to the “Terms & Conditions of Sale” document. While every precaution has been taken to ensure accuracy and completeness in this manual, Appleton Grp LLC d/b/a Appleton Group assumes no responsibility, and disclaims all liability for damages resulting from use of this information or for any errors or omissions. - Page 11 IE Series Page: 8...
- Page 12 Appleton Grp LLC d/b/a Appleton Group. SolaHD is a registered trademark of Appleton Grp LLC. Islatrol and Active Tracking (and The Active Tracking Filter) trademarks owned by ASCO Power Technologies, L.P. All other marks are the property of their respective owners. © 2021 Emerson Electric Co. All rights reserved. United States...
