Mechanical Considerations; Mechanical Drawing; Note On Mechanical Drawings - Laird RM024 User Manual

RM024 User Manual
Version 2.3
M
ECHANICAL

Mechanical Drawing

The pluggable versions of the RM024 consist of the surface mount RM024 on a pluggable adapter board.
RM024 –C versions which only feature an U.FL connector and no integrated antenna are the same
dimensions as below with the stub for the antenna connector removed. For the surface mount units, this
means the module is 32.38 mm long. For the pluggable units, the module is 33.02 mm long.

Note on Mechanical Drawings:

All dimensions are in millimeters

PC board material is 0.79 mm thick FR4

Provide clearance of at least 1.5 mm around the module to be free of other components and features

Module should not exceed 260˚C during reflow soldering


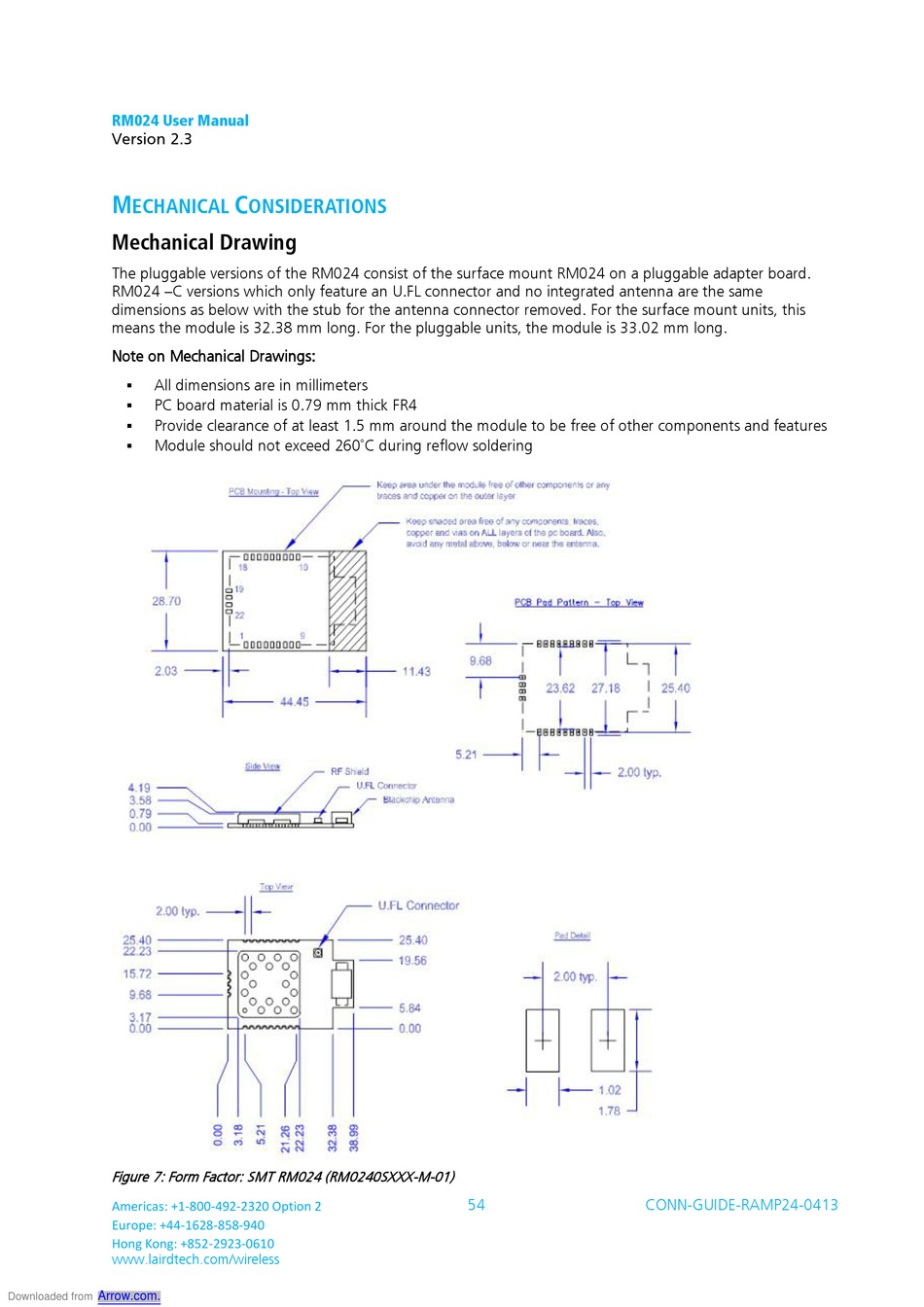

Figure 7: Form Factor: SMT RM024 (RM0240SXXX-M-01)
