Summary of Contents for Pulsar Axion XQ38 LRF

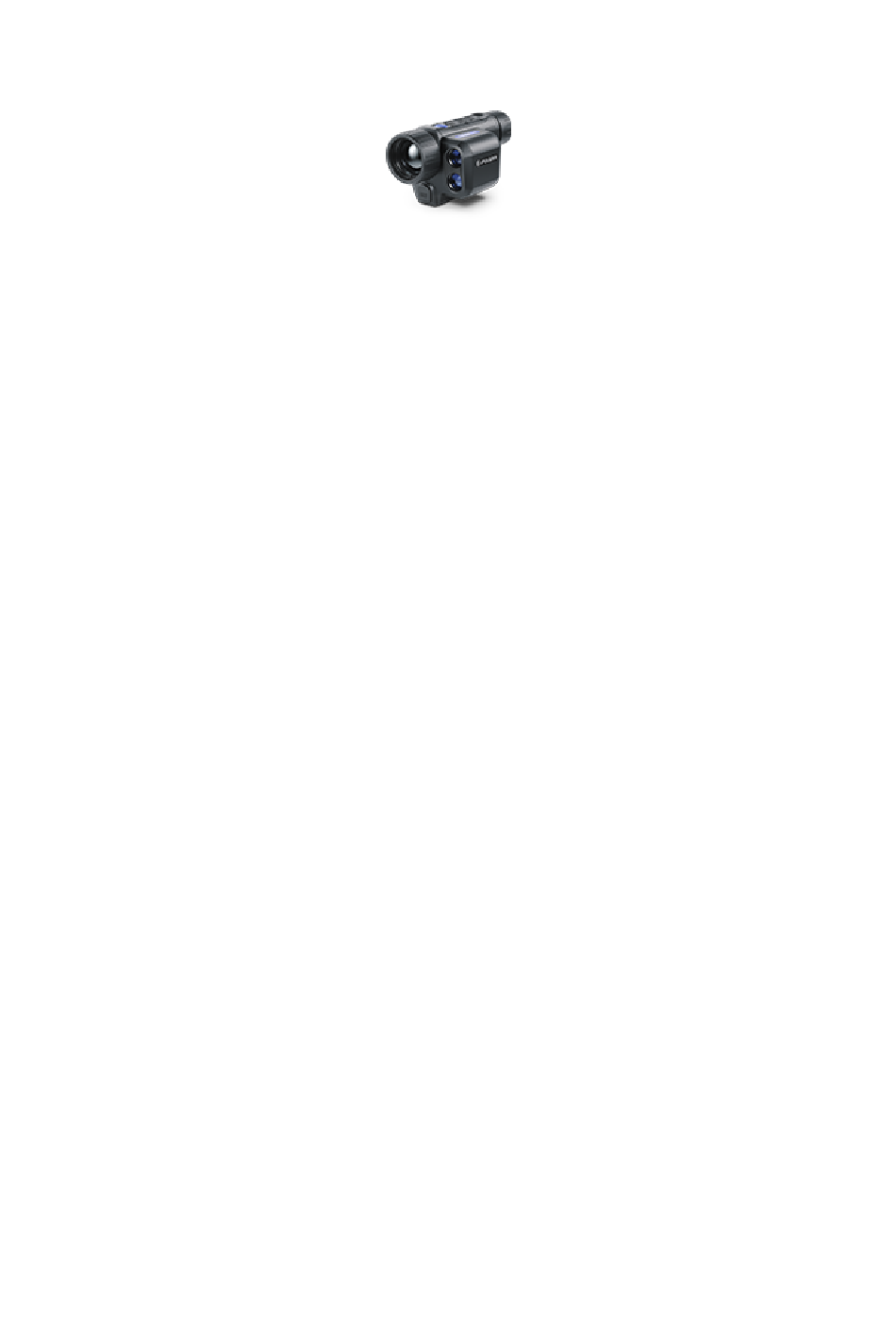

  • Page 1 Axion XQ LRF Manual...

  • Page 2: Table Of Contents

    Content Description Package Contents Specifications Features Components and Controls Button Operation Using the Battery Pack Battery Charging Battery Installation Precautions Recommendations for Use External Power Supply Powering on and Image Setting Microbolometer Calibration Discrete Digital Zoom Image Detail Boost Status Bar Quick Menu Functions Main Menu Functions Enter the Main Menu...

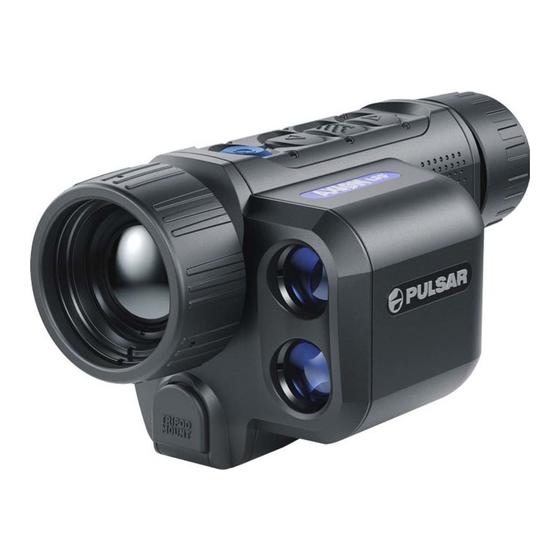

  • Page 3: Description

    Description Axion XQ LRF thermal imaging monoculars are designed for use both at night-time and during the day and provide exceptional image quality even in adverse weather conditions (fog, smog, rain) and beyond obstacles like branches, tall grass, dense foliage, etc. known to hinder target detection.

  • Page 4: Package Contents

    Package Contents Axion XQ LRF thermal monocular APS 5 rechargeable battery 2 battery-locking covers Battery charger Power adapter USB Type-C cable Carrying case Hand strap Quick reference user manual Lens cleaning cloth Warranty information Tripod adapter...

  • Page 5: Specifications

    Specifications XQ38 LRF Model XQ38 LRF 77428 Microbolometer Type uncooled Resolution, Pixels 384x288 Pixel Pitch, µm Frame Rate, Hz Optical Characteristics Optical Magnification, x Smooth Digital Zoom 3.5-14 Digital Zoom, x Lens Focus, mm Relative Aperture, D/f' Minimum Focus Distance, m Eye Relief Diameter, mm Angular Field of View (Horizontal x 9.8x7.4...
  • Page 6 Linear Field of View, m at 100 m 17.2 Eyepiece Focus Range, Diopter +4 / -5 Detection Distance for Deer-Sized 1350/1476 Objects, m/y Display Type AMOLED Resolution, Pixels 1024x768 Operational Characteristics Power Supply, V 3 - 4.2 Battery Type/Capacity/Nominal Output APS 5 Li-ion Battery Pack / 4900 mAh Voltage / DC 3.7 V...
  • Page 7 Measurement Accuracy, m * Depends on the characteristics of the object under observation and environmental conditions.

  • Page 9: Features

    Features 384x288 microbolometer sensor resolution 17-micron pixel pitch 1024x768 AMOLED display resolution Compact and lightweight Functional and ergonomic design 8-color display palette 3 calibration modes: Manual, Semi-Automatic, Automatic Detection range up to 1350 m/1475 yds Smooth digital zoom 3.5-14x 4 observation modes: Forest, Rocks, Identification, User Integrated laser rangefinder Display-Off function Defective pixel repair...

  • Page 10: Components And Controls

    Components and Controls 1. Eyepiece focus ring 2. DOWN/LRF button 3. MENU button 4. UP/ZOOM button 5. Power ON/OFF/CALIBRATION button 6. Lens focus ring 7. Lens cover 8. Tripod adapter socket 9. USB Type-C connector 10. Laser rangefinder LED indicator displays the current status of the device: LED Indicator Operating Mode Device is turned on...
  • Page 11 The device is turned on/battery charge < 10%...

  • Page 12: Button Operation

    Button Operation Operation Button Power device on short press Power device off long press for 3 secs Turn display o? long press for less than 3 secs Turn display on short press Calibrate the microbolometer short press Switch observation modes short press Control discrete digital zoom long press...

  • Page 13: Battery Charging

    Battery Charging The Axion XQ LRFthermal imager comes with an APS 5 rechargeable Lithium-ion battery. APS 5 batteries support USB Power Delivery fast charging technology when using a standard charging set (charger, USB Type-C cable, power adapter). Before first use, make sure the battery is fully charged.
  • Page 14 Option 1 1. Installthe APS 5 battery (11) in the battery compartment (19) of the device. 2. Connect the USB cable (16) to the USB Type-C connector (9) of the device. 3. Connect the other end of the USB cable (16) to the Power Adapter (15). 4.
  • Page 15 Option 2 1. Insert the APS 5 battery (11) along the guide into the APS 5 charger (12) slot as far as it will go. The APS charger is supplied with your device and sold separately. 2. Connect the plug of the USB Type-C cable (16) to the USB Type-C connector of the Power Adapter(15).
  • Page 16 Note:Two batteries can be charged at the same time, a second slot is provided for it. LED indication (13) in the battery Battery Level charging mode Battery charge level is from 0% to 25% Battery charge level is from 26% to Battery charge level is from 51% to Battery charge level is from 81% to Battery is fully charged.

  • Page 17: Battery Installation

    Battery Installation 1. Put the Lock-cover (18) on the rechargeable APS 5 battery (11). 2. Insert the APS 5 battery (11) along the guide into the battery compartment (19). 3. Lock the battery (11) by turning the Lock-cover (18)clockwise until it stops. 4.

  • Page 18: Precautions

    Precautions Always use the APS 5 charger supplied with the device (or purchased separately) to charge APS 5 batteries. Using an unsuitable charger can cause irreparable damage to the battery and fire. Do not charge the battery immediately after exposure to a cold environment. Let the battery warm for at least 30 minutes before charging.

  • Page 19: Recommendations For Use

    Recommendations for Use The batteries should be partially charged (50 to 80 %) for long-term storage. Charge at an ambient temperature of 0°C to +35°C (32°F to 95°F) or the lifespan of the battery will decrease significantly. Using the battery at sub 0°C (<32°F) ambient temperature decreases battery capacity. This is normal and not a defect.

  • Page 20: External Power Supply

    External Power Supply External power can be supplied from an external source, such as a Power Bank (5-15 V). 1. Connect the external power source to the USB Type-C connector (9) on the device. 2. The device will switch to draw power from the external source while the ?PS5 battery is gradually recharged.

  • Page 21: Powering On And Image Setting

    Powering on and Image Setting 1. Open the lens cover (7). The lens cover can be secured to the strap using the built-in magnet. 2. Press the ON/OFF (5)button briefly to turn on the device. 3. Adjust the eyepiece focus ring (1) of the device until the symbols on the display are sharp.

  • Page 22: Microbolometer Calibration

    Microbolometer Calibration Calibration eliminates image flaws (such as vertical bars, phantom images, grainy field of view, etc.) by equalizing the microbolometer background temperature. During calibration, the image on the display briefly freezes for up to 1 second. There are three calibration modes: Manual (M), Semi-Automatic (SA) and Automatic (A). Select the required mode in the Calibration Mode menu item.

  • Page 23: Discrete Digital Zoom

    Discrete Digital Zoom The device functionality allows you to quickly increase the base magnification by 2 or 4 times as well as return to the base magnification. Press and hold theUP (4) button to change the digital zoom. To see the button operation scheme click here.

  • Page 24: Image Detail Boost

    Image Detail Boost https://www.youtube.com/embed/GNezJKveMRc The Image Detail Boost function increases the contour sharpness of heated objects to improve the image detail. The results of the function depend on the selected mode and the observation conditions: the higher the object contrast the more noticeable the effect. This option is enabled by default but can be disabled in the main menu.

  • Page 25: Status Bar

    Status Bar The status bar at the bottom of the display shows current operating statuses via icons, including: Color Mode (shown only when the Black Hot color mode is selected) Observation Mode Calibration Mode (in Automatic calibration mode a countdown timer will appear instead of the calibration mode icon 3 seconds before automatic calibration begins).

  • Page 26: Quick Menu Functions

    Quick Menu Functions The basic settings (adjusting brightness and contrast, using the Smooth Digital Zoom) can be changed using the quick access menu. Enter the menu by briefly pressing the MENU (3). A short press of the ?ENU (3) button enables you to toggle between functions, as described below.

  • Page 27: Enter The Main Menu

    Enter the Main Menu 1. Enter the main menu with a long press of the MENU (3) button. 2. Press the UP (4) / DOWN (2) buttons to move through the menu items. 3. Press the MENU (3) button briefly to select the menu item. 4.
  • Page 28 To see the button operation scheme click here.

  • Page 29: Mode

    Mode Observation mode selection There are four observation modes: Forest (mode for low temperature contrast conditions), Rocks (mode for high temperature contrast conditions), Identification (high detail mode), and User (personalized brightness and contrast settings mode). Option 1: Press the UP (4) button briefly to switch the observation mode Option 2: 1.

  • Page 30: Image Detail Boost

    Image Detail Boost Enable/disable Image Detail Boost: 1. Press and hold the MENU (3) button to enter the main menu. 2. Use the UP (4) / DOWN (2) buttons to select Image Detail Boost icon 3. Press theMENU (3) button briefly to turn the function on / off. To see the button operation scheme click here.

  • Page 31: Color Modes

    Color Modes Color palette selection White Hot is the default display mode. To select an alternative palette, do the following: 1. Press and hold the MENU (3) button to enter the main menu. 2. Use the UP (4) / DOWN (2) buttons to select Color Modes icon .
  • Page 32 Red Hot Red Monochrome Rainbow Ultramarine Violet Sepia To see the button operation scheme click here.

  • Page 33: Calibration Mode

    Calibration Mode Calibration mode selection. There are three calibration modes:Manual, Semi-Automatic and Automatic. 1. Press and hold the MENU (3) button to enter the main menu. 2. Use the UP (4) / DOWN (2) buttons to select the Calibration Mode icon.

  • Page 34: Pip Mode

    PiP Mode Picture in Picture mode. 1. Press and hold the MENU (3) button to enter the main menu. 2. Use the UP (4) / DOWN (2) buttons to select the PiP Mode icon . 3. Press the MENU (3) button briefly to turn on / off. To see the button operation scheme click here.

  • Page 35: Icon Brightness

    Icon Brightness Adjust brightness level of the icons and screensavers (Pulsar, Display off) on the display. 1. Press and hold the MENU (3) button to enter the main menu. 2. Use the UP (4) / DOWN (2) buttons to select the Icon Brightness icon.

  • Page 36: General Settings

    General Settings This menu section allows you to change the interface language, set the date, time, units of measure, and also return the device to factory default settings. 1. Press and hold the MENU (3) button to enter the main menu. 2.
  • Page 37 Units of Measure Rangefinder units of measure 1. Press the MENU (3) button briefly to enter the Units of Measure menu item. 2. Press the UP (4) / DOWN (2) buttons to select either Meters or Yards as the unit of measure.

  • Page 38: Rangefinder

    Rangefinder Menu item Rangefinder contains settings for the built-in laser rangefinder. 1. Press and hold the MENU (3) button to enter the main menu. 2. Select the submenu Rangefinder with the UP (4) / DOWN (2) buttons. 3. Press the MENU (3) button briefly to enter the submenu. Reticle Type 1.

  • Page 39: Device Information

    Device Information This menu item allows the user to view the following information about the device: SKU Number Firmware Version Device Name Hardware Version Device Serial Number Service Information To display information, do the following: 1. Press and hold the MENU (3) button to enter the main menu. 2.

  • Page 40: Built-In Laser Rangefinder

    Built-In Laser Rangefinder The Axion XQ LRFthermal imager is equipped with an integrated laser rangefinder. Single Measurement Mode 1. Press the ON/OFF (5) button briefly to power the device on. 2. Activate the rangefinder by pressing the DOWN (2) button briefly. A red mark appears on the display.
  • Page 41 Additional Information: The accuracy and distance of the measurement depends on the reflection coefficient of the object surface and weather conditions. The reflection coefficient depends on the texture, color, size and shape of the object. Generally, lighter colored objects and those with a shiny surface will have a higher reflection coefficient.

  • Page 42: Display-Off Function

    Display-Off Function This function deactivates the image transmission to the display by minimizing its brightness. This allows the user to remain unseen. However, the device stays on. When this function is in use, the device switches to the standby mode, which allows it to be switched on instantly.

  • Page 43: Pip Function

    PiP Function The PiP (Picture-in-Picture) function allows you to see both the main image and a magnified image in a dedicated window. To turn on and off the PiP function see the PiP Mode section. Press and hold the UP (4) button to change the magnification ratio in the PiP The zoomed image is displayed in a dedicated window, while the image in the rest of the screen is displayed at base magnification (3.5x).

  • Page 44: Usb Connection

    USB Connection Connecting the device to a computer used as an external power source: 1. Connect one end of the USB cable to the device USB Type-C port (9) and the other end to the port on your computer. 2. Switch the device on with a short press of the ON/OFF (5)button. 3.

  • Page 45: Installing The Device On A Tripod

    Installing the Device On a Tripod 1. Open the cover (21) of the socket (8). 2. Attach the tripod adaptor (20) to the socket (8). 3. Rotate the adaptor handle clockwise until it stops. 4. Secure the adaptor with the device on a tripod.

  • Page 46: Technical Inspection

    Technical Inspection It is recommended to carry out a technical inspection before each use of the device. Check the following: The device appearance (there should be no cracks on the body). The state of the objective, eyepiece and rangefinder lenses (there should be no cracks, grease spots, dirt or other deposits).

  • Page 47: Technical Maintenance And Storage

    Technical Maintenance and Storage Maintenance should be carried out at least twice a year and include the following steps: Wipe the exterior metal and plastic surfaces with a cotton cloth to remove dust and dirt. Clean the electrical contacts of the rechargeable battery on the device using a non-greasy organic solvent.

  • Page 48: Troubleshooting

    Troubleshooting ☐ The device does not turn on Possible cause The battery is completely discharged. Solution Charge the battery. ☐ The device does not operate from an external power source Possible cause The USB cable is damaged. Solution Replace the USB cable. Possible cause The external power supply is discharged.
  • Page 49 manual. ☐ Black screen after calibration Solution If the image does not clear after calibration, you need to recalibrate. ☐ Poor quality image. There is noise or ghost images of previous scenes or objects Possible cause Manual calibration has been performed with the lens cover open. Solution Check theCalibration...
  • Page 50 Possible cause You are looking through glass. Solution Remove the glass or change the viewing position to avoid it. ☐ Poor image quality / Detection range reduced Possible cause These problems may occur during observation in adverse weather conditions (snow, rain, fog, etc.).
  • Page 51 Solution Do not stress the device when measuring. Possible cause Distance to the object exceeds 1000 m. Solution Pick an object at a distance not longer than 1000m. Possible cause Low reflection ratio (i.e. leaves of trees). Solution Pick an object with higher reflection ratio (see point Additional Informationin section Built-In Laser Rangefinder).

  • Page 52: Legal Compliances And Disclaimers

    Legal Compliances and Disclaimers Attention! A license is required for Axion Thermal Imager when exporting outside your country. Electromagnetic compatibility.This product complies with the requirements of European standard EN 55032: 2015, Class A. Warning!Operation of this equipment in a residential environment could cause radio interference.
