Summary of Contents for Pulsar Axion 2 LRF

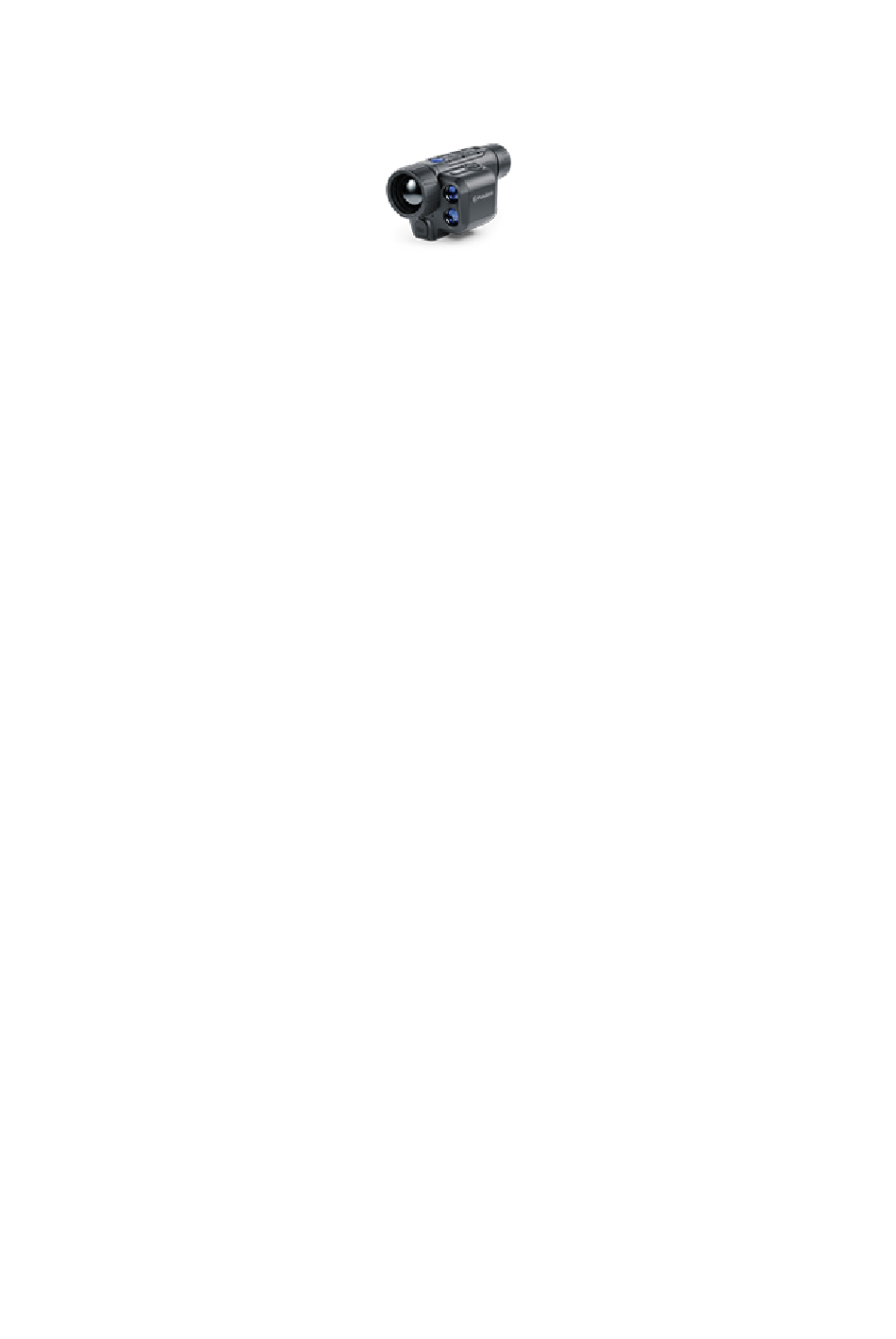

  • Page 1 Axion 2 LRF Manual...

  • Page 2: Table Of Contents

    Content Specifications About the device Description Package Contents Features Components and Controls Power supply Precautions Recommendations for Battery Use Battery Charging Battery Installation External Power Supply Getting Started Powering on and Image Settings Button Operation Interface Status Bar Quick Menu Main Menu Enter the Main Menu Colour Modes...
  • Page 3 Defective Pixel Repair Restore Default Pixel Map Device Information Functions Amplification Level Video Recording and Photography Laser Rangefinder Discrete Digital Zoom PiP Function Display-Off Function Wi-Fi Function Installing the Device on a Tripod USB Connection Software Stream Vision 2 Firmware Update Maintenance Technical Inspection Technical Maintenance and Storage...

  • Page 4: Specifications

    Specifications XQ35 Model XQ35 77479 Microbolometer   Type uncooled Resolution, Pixels 384x288 Pixel Pitch, µm Frame Rate, Hz Optical Characteristics   Optical Magnification, x Smooth Digital Zoom Digital Zoom, x x1, x2, x4 Lens Focus, mm Relative Aperture, D/f' Minimum Focus Distance, m/y 5 / 5.47 Eye Relief Diameter, mm/inch 4 / 0.16...
  • Page 5   Display Type AMOLED Resolution, Pixels 640x400   Operational Characteristics Power Supply, V 3 - 4.2 Battery Type/Capacity/Nominal APS 5 Li-ion Battery Pack / Output Voltage 4900 mAh / DC 3.7 V External Power Supply 5 V, 9 V (USB Type-C) Battery Run Time at t=22°C, hours* Degree of Protection, IP Code...
  • Page 6 Measurement Accuracy, m * Actual battery life may vary depending on the use of Wi-Fi and the built-in video recorder. ** Reception range may vary depending on various factors: obstacles, other Wi-Fi networks. *** Depends on the characteristics of the object under observation and environmental conditions.
  • Page 7 XG35 Model XG35 77477   Microbolometer Type uncooled Resolution, Pixels 640x480 Pixel Pitch, µm Frame Rate, Hz   Optical Characteristics Optical Magnification, x Smooth Digital Zoom 2.5-20 Digital Zoom, x x1, x2, x4, x8 Lens Focus, mm Relative Aperture, D/f' Minimum Focus Distance, m/y 5 / 5.5 Eye Relief Diameter, mm/inch...
  • Page 8 Power Supply, V 3 - 4.2 Battery Type/Capacity/Nominal APS 5 Li-ion Battery Pack / Output Voltage 4900 mAh / DC 3.7 V External Power Supply 5 V, 9 V (USB Type-C) Battery Run Time at t=22°C, hours* Degree of Protection, IP Code IPX7 (IEC60529) Operating Temperature Range,...
  • Page 9 *** Depends on the characteristics of the object under observation and environmental conditions.

  • Page 11: Description

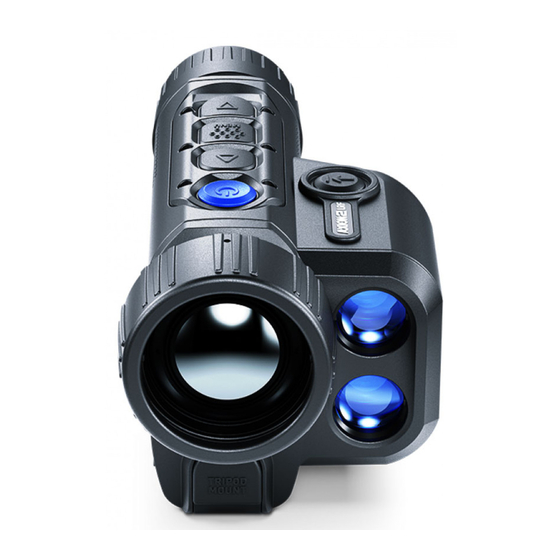

    Axion 2 LRF thermal imagers are equipped with a built-in laser rangefinder with a range of up to 1000 m and a measurement accuracy of ± 1 m. To get started, see the sections:...

  • Page 12: Package Contents

    Package Contents Axion 2 LRF thermal monocular APS 5 rechargeable battery 2 battery-locking covers Power adapter USB Type-C cable Carrying case Hand strap Quick reference user manual Lens cleaning cloth Warranty information Tripod adapter...

  • Page 13: Features

    Features Compact and lightweight Functional and ergonomic design 8-colour display palette 3 calibration modes: Manual, Semi-Automatic, Automatic Detection range up to 1300 m/1422 yds Smooth digital zoom 2-8x Three levels of sensitivity enhancement: Normal, High, Ultra Integrated laser rangefinder Display-Off function Defective pixel repair Updatable firmware Wide operating temperature range (-25°С...

  • Page 14: Components And Controls

    Components and Controls   1. Eyepiece focus ring 2. LED indicator 3. DOWN/REC button 4. MENU button 5. UP/ZOOM button 6. Power ON/OFF/CALIBRATION button 7. Lens focus ring 8. Lens cover 9. USB Type-C connector...
  • Page 15 10. Tripod adapter socket 11. Laser rangefinder 12. LRF button LED indicator (2) displays the current status of the device: LED Indicator Operating Mode Device is turned on The device is turned on/video recording The device is turned on/battery charge < 10% The device is turned on/video recording/battery charge <...

  • Page 16: Precautions

    Precautions Always use the APS 5 charger (purchased separately) to charge APS 5 batteries. Using an unsuitable charger can cause irreparable damage to the battery and fire. Do not charge the battery immediately after exposure to a cold environment. Let the battery warm for at least 30 minutes before charging.

  • Page 17: Recommendations For Battery Use

    Recommendations for Battery Use The batteries should be partially charged (50 to 80 %) for long-term storage. Charge at an ambient temperature of 0°C to +35°C (32°F to 95°F) or the lifespan of the battery will decrease significantly. Using the battery at sub 0°C (<32°F) ambient temperature decreases battery capacity.

  • Page 18: Battery Charging

    Battery Charging The Axion 2 LRFthermal imager comes with an APS 5 rechargeable Lithium- ion battery. APS 5 batteries support USB Power Delivery fast charging technology when using a standard charging set (charger*, USB Type-C cable, power adapter). Before first use, make sure the battery is fully charged.
  • Page 19 Image not found or type unknown...
  • Page 21 Image not found or type unknown   Install the APS 5 battery (15) in the battery compartment (14) of the device. 2. Connect the USB cable (19) to the USB Type-C connector (9) of the device. 3. Connect the other end of the USB cable (19) to the Power Adapter (20).
  • Page 22 Option 2...
  • Page 23 Image not found or type unknown...
  • Page 24   1. Insert the APS 5 battery (15) along the guide into the APS 5 charger* (16) slot as far as it will go. 2. Connect the plug of the USB Type-C cable (19) to the USB Type-C connector of the Power Adapter(20). 3.
  • Page 25 6. Wait until the battery is fully charged (LED indication (18): Note: Two batteries can be charged at the same time, a second slot is provided for it. LED indication (18) in the Battery Level battery charging mode Battery charge level is from 0% to 25% Battery charge level is from 26% to 50%...
  • Page 26 Battery is fully charged. It can be disconnected from the charger. Defective battery. Do not use the battery! * Available separately ** Standby mode is when the batteries are in the charger but the Power Adapter is not connected. In this mode, the indicators are only on for 10 seconds.

  • Page 27: Battery Installation

    Battery Installation   1. Put the Lock-cover (13) on the rechargeable APS 5 battery (15). 2. Insert the APS 5 battery (15) along the guide into the battery compartment (14). 3. Lock the battery (15) by turning the Lock-cover (13)clockwise until it stops.

  • Page 28: External Power Supply

    External Power Supply Show device diagram External power can be supplied from an external source, such as a Power Bank (5 V, 9 V). 1. Connect the external power source to the USB Type-C connector (9) on the device. 2. The device will switch to draw power from the external source while the АPS5 battery is gradually recharged.
  • Page 29 external power source and the АPS5 battery is not connected. 5. The device automatically switches to the APS 5 battery when the external power supply is disconnected. Attention! Charging APS 5 batteries from an external source at temperatures below 0°C (<32°F) can reduce battery life. When using external power, connect the power bank to the device only after it has been turned on and working (warming) for at least several minutes.

  • Page 30: Powering On And Image Settings

    Powering on and Image Settings Show device diagram 1. Open the lens cover (8). The lens cover can be secured to the strap using the built-in magnet. 2. Press the ON/OFF (6)button briefly to turn on the device. 3. Adjust the eyepiece focus ring (1) of the device until the symbols on the display are sharp.
  • Page 31 select the desired calibration mode: Manual (M), Semi-Automatic (SA) or Automatic (A). 6. Calibrate the image by briefly pressing the ON/OFF (6)button.If the SA or A calibration mode has been selected the microbolometer is closed with an internal shutter automatically. However, if the M calibration mode has been selected you must close the lens cover before calibrating manually.

  • Page 32: Button Operation

    Button Operation Operation Button Power device on short press Power device off long press for 3 secs long press for less than 3 Turn display off secs Turn display on short press Calibrate the microbolometer short press Switching amplification levels short press Control discrete digital zoom long press...

  • Page 33: Quick Menu

    Exit menu (switch to viewing long press mode) Quick Menu Button Enter quick menu short press Switch between quick menu short press options Increase value short press Decrease value short press Exit quick menu long press...

  • Page 34: Colour Modes

    Status Bar The status bar at the bottom of the display shows current operating statuses via icons, including: Colour Mode (shown only when the Black Hot colour mode is selected) Amplification level Smoothing Filter (displayed when the function is on) Calibration Mode (in Automatic calibration mode a countdown timer ...
  • Page 35 Quick Menu Show device diagram The basic settings (adjusting brightness and contrast) can be changed using the quick access menu. Enter the menu by briefly pressing the MENU (4). A short press of the МENU (4) button enables you to toggle between functions, as described below.
  • Page 36 Image not found or type unknown Brightness  – press the UP (5)/DOWN (3) buttons to change display brightness from 0 to 20. Contrast  – press the UP (5)/DOWN (3) buttons to change image contrast from 0 to 20.
  • Page 37 Note:display brightness and contrast settings are saved in the memory when the device is turned off. Smooth Digital Zoom  – press the UP (5)/DOWN (3) button to change the value of the digital zoom from 2 to 8. The digital zoom changes in 0.1 increments.
  • Page 38 Amplification Level Show device diagram Sensitivity enhancement levels (Normal , High , Ultra are software algorithms that enhance the quality of detection and recognition in various observation conditions. When the temperature contrast decreases (fog, precipitation, high humidity), it is recommended to increase the amplification level.
  • Page 39 Video Recording and Photography Show device diagram Axion 2 LRFthermal imagers feature video recording and photography of the image being observed to the internal memory card. Before using this feature please set the date and time (see General Settings section). The built-in recorder operates in two modes – Video and Photo.
  • Page 40 Video mode. Video recording 1. Switch to Video mode by pressing and holding the DOWN/REC (3) button. 2. The icon and the remaining recording time in HH:MM (Hours:Minutes) format are displayed in the upper left corner, for example 4:20. 3. Press the DOWN/REC (3) button briefly to start video recording. 4.

  • Page 41: General Settings

    Photo Mode. Capturing an image 1. Switch to the Photomode by pressing and holding the DOWN/REC (3)  button. 2. Press the DOWN/REC (3) button briefly to take a photo. The icon    flashes – the photo file is being saved to the built-in SD card. Notes: You can enter and operate the menu during video recording.
  • Page 42 Laser Rangefinder Show device diagram The Axion 2 LRFthermal imager is equipped with an integrated laser rangefinder.
  • Page 43 Single Measurement Mode 1. Press the ON/OFF (6) button briefly to power the device on. 2. Activate the rangefinder by pressing the LRF (12) button briefly. A red mark appears on the display. 3. Place the rangefinder’s reticle on the target. Press the LRF (12) button briefly to measure the distance to the object once.
  • Page 44 of the main menu. To select a unit of measurement (meters or yards) go to Units of Measure  subsection of the General Settings section. When you turn on the rangefinder, the PiP window turns off. Additional Information: The accuracy and distance of the measurement depends on the reflection coefficient of the object surface and weather conditions.
  • Page 45 Discrete Digital Zoom Show device diagram The device functionality allows you to quickly increase the base magnification by 2 or 4 times as well as return to the base magnification.
  • Page 46 Press and hold theUP/ZOOM (5) button to change the digital zoom.
  • Page 47 PiP Function Show device diagram The PiP (Picture-in-Picture) function allows you to see both the main image and a magnified image in a dedicated window.
  • Page 48 To turn on and off the PiP function see the PiP Mode section. Press and hold the UP (5) button to change the magnification ratio in the PiPwindow. The zoomed image is displayed in a dedicated window, while the image in the rest of the screen is displayed at base magnification (2x).
  • Page 49 Display-Off Function Show device diagram This function deactivates the image transmission to the display by minimizing its brightness. This allows the user to remain unseen. However, the device stays on. When this function is in use, the device switches to the standby mode, which allows it to be switched on instantly.
  • Page 50 1. When the device is on, press and hold the ON/OFF (6) button. The display will turn off, the current time and the "Display off"icon will appear. 2. Turn the display back on with a short press of theON/OFF (6) button. 3.
  • Page 51 Wi-Fi Function The device has a function enabling wireless communication with external devices (smartphone or tablet) via Wi-Fi. Turn on the wireless module in the WI-Fi Activation menu option. Wi-Fi is displayed in the status bar as follows: Indication on the status bar Connection Status Wi-Fi is switched off Wi-Fi connection is in progress...
  • Page 52 Installing the Device on a Tripod   1. Open the cover (22) of the socket (10). 2. Attach the tripod adaptor (21) to the socket (10). 3. Rotate the adaptor handle clockwise until it stops. 4. Secure the adaptor with the device on a tripod.
  • Page 53 USB Connection Show device diagram...
  • Page 54   1. Connect one end of the USB cable to the USB Type-C port (9) of your device and the other end to the USB port of your PC / laptop. 2. Turn the device on with a short press of the ON/OFF(6) button (a device that has been turned off cannot be detected by your computer).
  • Page 55 Memory Card (external memory) In this mode the device is detected by the computer as a flash card. This mode is designed for work with the files saved in the device's memory. The device's functions are not available in this mode; the device turns off automatically.
  • Page 56 Stream Vision 2 Install the Stream Vision 2 application to download files, update firmware, control the device by remote control and broadcast images from your device to a smartphone or a tablet via WiFi. We recommend using the latest version – Stream Vision 2. You can find further guidelines on Stream Vision 2 here.
  • Page 57 Android https://e.issuu.com/embed.html?d=stream_vision_2_quick_guide_for_android_en&hideIss https://e.issuu.com/embed.html?d=stream_vision_2_quick_guide_for_ios_en&hideIssuuLo...
  • Page 58 Pulsar device is connected to phone, please turn on mobile data transfer (GPRS/3G/4G) to download update; if your Pulsar device is not connected to your phone but is already listed in “Settings” > “My devices” section, you may use Wi-Fi to download update.
  • Page 59 Technical Inspection It is recommended to carry out a technical inspection before each use of the device. Check the following: The device appearance (there should be no cracks on the body). The state of the objective, eyepiece and rangefinder lenses (there should be no cracks, grease spots, dirt or other deposits).
  • Page 60 Technical Maintenance and Storage Maintenance should be carried out at least twice a year and include the following steps: Wipe the exterior metal and plastic surfaces with a cotton cloth to remove dust and dirt. To avoid damage to the paint coating, do not use chemically active substances, solvents, etc.
  • Page 61 Troubleshooting The device does not turn on Possible cause The battery is completely discharged. Solution Charge the battery. The device does not operate from an external power source Possible cause The USB cable is damaged. Solution Replace the USB cable.  ...
  • Page 62 Possible cause Calibration is required. Solution Perform image calibration according to the Calibration Mode section of the manual. Black screen after calibration Solution If the image does not clear after calibration, you need to recalibrate. Poor quality image. There is noise or ghost images of previous scenes or objects Possible cause Manual calibration has been performed with the lens cover open.
  • Page 63 Possible cause The device was exposed to static charges during operation. Solution When the exposure to static charges is over, the device may either reboot automatically or require to be switched off and on again. The image of the object being observed is missing Possible cause You are looking through glass.
  • Page 64 In positive temperature conditions, objects being observed (surroundings and background) heat up differently because of thermal conductivity, thereby generating a high temperature contrast. Consequently, the image quality produced by the thermal imager will be better. In low-temperature conditions, objects being observed (background) will cool down to roughly the same temperature, which leads to a greatly reduced temperature contrast and a degraded image quality.
  • Page 65 The device has a 5 GHz network enabled, but the smartphone only supports 2.4 GHz. Solution Switch the device's Wi-Fi bandwidth to 2.4 GHz.   More information on solving problems with connection to Stream Vision 2 by following the link. Wi-Fi signal is missing or interrupted Possible cause Smartphone or tablet is out of range of a strong Wi-Fi signal.
  • Page 66   Possible cause The device is not being held steadily when measuring. Solution Keep the device steady when measuring.   Possible cause Distance to the object exceeds 1000 m. Solution Pick an object at a distance not longer than 1000m.  ...
  • Page 67 Legal Compliances and Disclaimers Attention! A license is required for Axion Thermal Imager when exporting outside your country. Electromagnetic compatibility.This product complies with the requirements of European standard EN 55032: 2015, Class A. Warning!Operation of this equipment in a residential environment could cause radio interference.
  • Page 68 This product is subject to change in line with improvements to its design. Repair of the device is possible within 5 years.
