Summary of Contents for Pulsar Axion 2 LRF XQ35

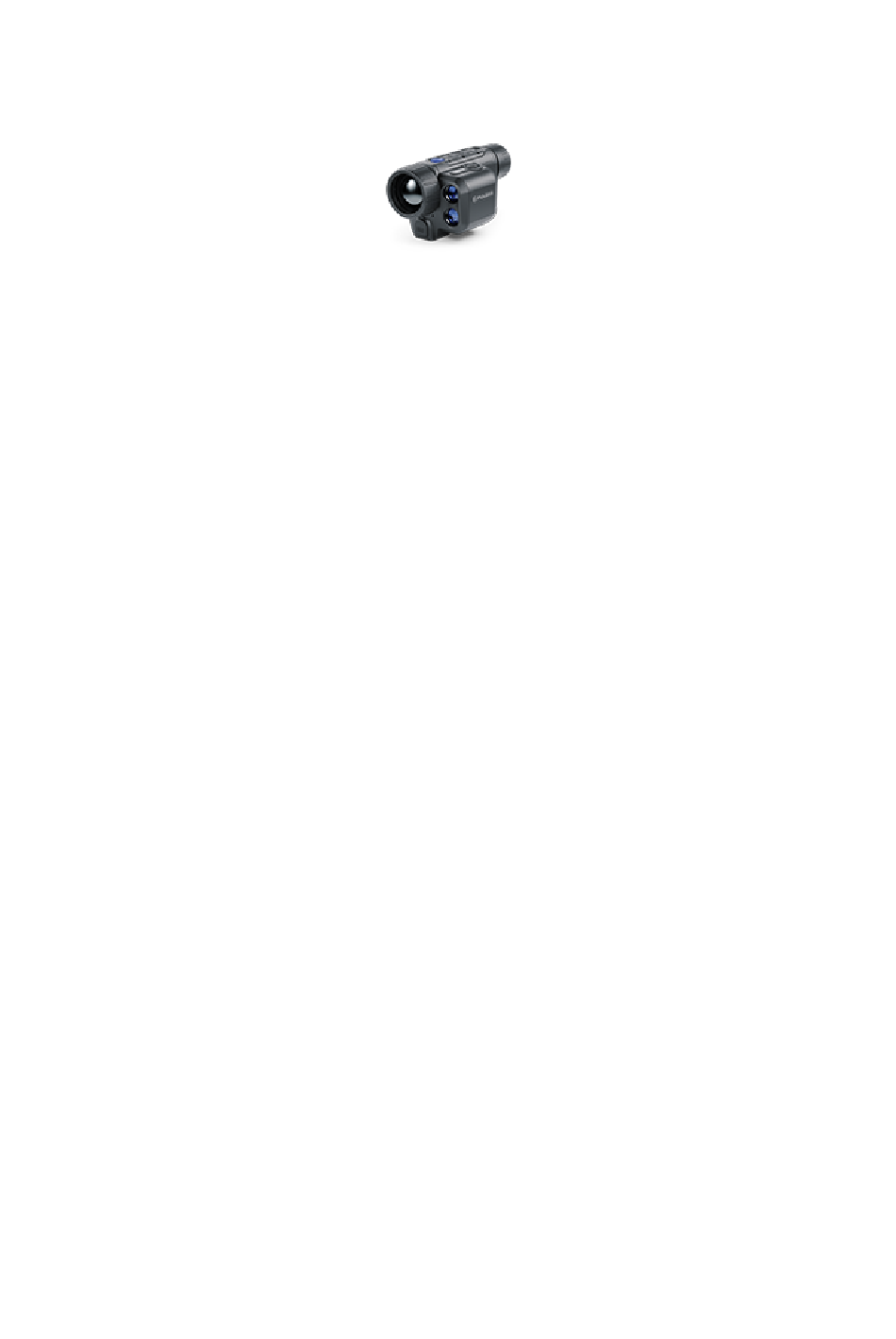

  • Page 1 Axion 2 LRF 说明书...
  • Page 2 內容 About the device Description Package Contents Features Components and Controls Power supply Battery Charging Battery Installation External Power Supply Precautions Recommendations for Use Getting Started Powering on and Image Setting Button Operation Interface Status Bar Quick Menu Main Menu Enter the Main Menu Color Modes Smoothing Filter...
  • Page 3 Functions Amplification Level Video Recording and Photography Laser Rangefinder Discrete Digital Zoom PiP Function Display-Off Function Wi-Fi Function Installing the Device on a Tripod USB Connection Software Stream Vision 2 Firmware Update Maintenance Technical Inspection Technical Maintenance and Storage Troubleshooting Specifications Legal Compliances and Disclaimers...

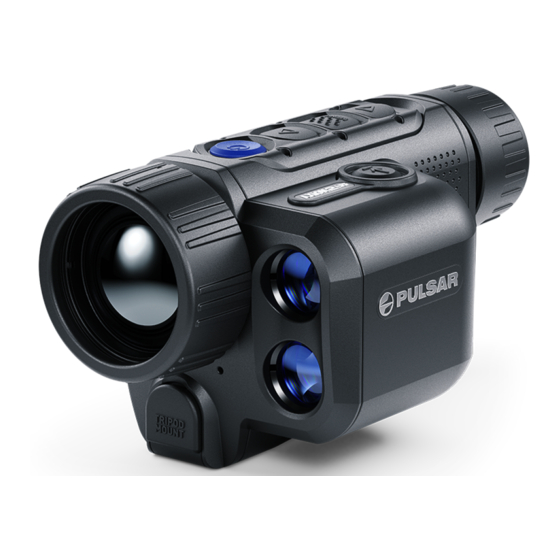

  • Page 4 Description Axion 2 LRFthermal imaging monoculars are designed for use both at night-time and during the day and provide exceptional image quality even in adverse weather conditions (fog, smog, rain) and beyond obstacles like branches, tall grass, dense foliage, etc. known to hinder target detection.

  • Page 5: Package Contents

    Package Contents Axion 2 LRF thermal monocular APS 5 rechargeable battery 2 battery-locking covers Power adapter USB Type-C cable Carrying case Hand strap Quick reference user manual Lens cleaning cloth Warranty information Tripod adapter...
  • Page 6 Features Compact and lightweight Functional and ergonomic design 8-color display palette 3 calibration modes: Manual, Semi-Automatic, Automatic Detection range up to 1300 m/1422 yds Smooth digital zoom 2-8x Three levels of sensitivity enhancement: Normal, High, Ultra Integrated laser rangefinder Display-Off function Defective pixel repair Updatable firmware Wide operating temperature range (-25°С...

  • Page 7: Components And Controls

    Components and Controls   1. Eyepiece focus ring 2. LED indicator 3. DOWN/REC button 4. MENU button 5. UP/ZOOM button 6. Power ON/OFF/CALIBRATION button 7. Lens focus ring 8. Lens cover 9. Tripod adapter socket 10. USB Type-C connector 11. Laser rangefinder 12.
  • Page 8 LED indicator (2) displays the current status of the device: LED Indicator Operating Mode Device is turned on The device is turned on/video recording The device is turned on/battery charge < 10% The device is turned on/video recording/battery charge < 10%...

  • Page 9: Battery Charging

    Battery Charging The Axion 2 LRFthermal imager comes with an APS 5 rechargeable Lithium-ion battery. APS 5 batteries support USB Power Delivery fast charging technology when using a standard charging set (charger*, USB Type-C cable, power adapter). Before first use, make sure the battery is fully charged.
  • Page 11 Image not found or type unknown   1. Install the APS 5 battery (15) in the battery compartment (14) of the device. 2. Connect the USB cable (19) to the USB Type-C connector (9) of the device. 3. Connect the other end of the USB cable (19) to the Power Adapter (20). 4.
  • Page 12 Image not found or type unknown...
  • Page 13   1. Insert the APS 5 battery (15) along the guide into the APS 5 charger* (16) slot as far as it will go. 2. Connect the plug of the USB Type-C cable (19) to the USB Type-C connector of the Power Adapter(20).
  • Page 14 Note: Two batteries can be charged at the same time, a second slot is provided for it. LED indication (18) in the battery Battery Level charging mode Battery charge level is from 0% to Battery charge level is from 26% to Battery charge level is from 51% to Battery charge level is from 81% to Battery is fully charged.
  • Page 15 ** Standby mode is when the batteries are in the charger but the Power Adapter is not connected. In this mode, the indicators are only on for 10 seconds. Attention! When using a Power Adapter that does not support USB Power Delivery fast charging technology, the flicker frequency of the LED indicators decreases by a factor of 3 and the charge time increases.

  • Page 16: Battery Installation

    Battery Installation   1. Put the Lock-cover (13) on the rechargeable APS 5 battery (15). 2. Insert the APS 5 battery (15) along the guide into the battery compartment (14). 3. Lock the battery (15) by turning the Lock-cover (13)clockwise until it stops. 4.

  • Page 17: External Power Supply

    External Power Supply Show device diagram External power can be supplied from an external source, such as a Power Bank (5 V, 9 V). 1. Connect the external power source to the USB Type-C connector (9) on the device. 2. The device will switch to draw power from the external source while the АPS5 battery is gradually recharged.
  • Page 18 Attention!  C harging APS 5 batteries from an external source at temperatures below 0°C (<32°F) can reduce battery life. When using external power, connect the power bank to the device only after it has been turned on and working (warming) for at least several minutes.
  • Page 19 Precautions Always use the APS 5 charger (purchased separately) to charge APS 5 batteries. Using an unsuitable charger can cause irreparable damage to the battery and fire. Do not charge the battery immediately after exposure to a cold environment. Let the battery warm for at least 30 minutes before charging.

  • Page 20: Recommendations For Use

    Recommendations for Use The batteries should be partially charged (50 to 80 %) for long-term storage. Charge at an ambient temperature of 0°C to +35°C (32°F to 95°F) or the lifespan of the battery will decrease significantly. Using the battery at sub 0°C (<32°F) ambient temperature decreases battery capacity.
  • Page 21 Powering on and Image Setting Show device diagram 1. Open the lens cover (8). The lens cover can be secured to the strap using the built-in magnet. 2. Press the ON/OFF (6)button briefly to turn on the device. 3. Adjust the eyepiece focus ring (1) of the device until the symbols on the display are sharp.
  • Page 22 must close the lens cover before calibrating manually. 7. Select the required amplification level (“Normal” , “High” , “Ultra” ) by briefly pressing the UP (5) button. 8. Enter the main menu with a long press of the MENU (4) button and select the desired color palette (for more details see the ...

  • Page 23: Button Operation

    Button Operation Operation Button Power device on short press Power device off long press for 3 secs Turn display off long press for less than 3 secs Turn display on short press Calibrate the microbolometer short press Switching amplification levels short press Control discrete digital zoom long press...
  • Page 24 Increase value short press Decrease value short press Exit quick menu long press...

  • Page 25: Status Bar

    Status Bar The status bar at the bottom of the display shows current operating statuses via icons, including: Color Mode (shown only when the Black Hot color mode is selected) Amplification level Smoothing Filter (displayed when the function is on) Calibration Mode (in Automatic calibration mode a countdown timer ...
  • Page 26 Quick Menu Show device diagram The basic settings (adjusting brightness and contrast) can be changed using the quick access menu. Enter the menu by briefly pressing the MENU (4). A short press of the МENU (4) button enables you to toggle between functions, as described below.
  • Page 27 Image not found or type unknown Brightness  – press the UP (5)/DOWN (3) buttons to change display brightness from 0 to 20. Contrast  – press the UP (5)/DOWN (3) buttons to change image contrast from 0 to Note:display brightness and contrast settings are saved in the memory when the device...
  • Page 28 is turned off. Smooth Digital Zoom  – press the UP (5)/DOWN (3) button to change the value of the digital zoom from 2 to 8. The digital zoom changes in 0.1 increments. Press and hold the MENU (4) button to exit the menu or wait for 10 seconds to exit automatically.
  • Page 29 Amplification Level Show device diagram Sensitivity enhancement levels (Normal , High , Ultra ) are software algorithms that enhance the quality of detection and recognition in various observation conditions. When the temperature contrast decreases (fog, precipitation, high humidity), it is recommended to increase the amplification level. To optimize the image, activate the Smoothing Filter in the main menu.
  • Page 30 Video Recording and Photography Show device diagram Axion 2 LRFthermal imagers feature video recording and photography of the image being observed to the internal memory card. Before using this feature please set the date and time (see  G eneral Settings section).
  • Page 31 1. Switch to Video mode by pressing and holding the DOWN/REC (3) button. 2. The icon and the remaining recording time in HH:MM (Hours:Minutes) format are displayed in the upper left corner, for example 4:20. 3. Press the DOWN/REC (3) button briefly to start video recording. 4.
  • Page 32 1. Switch to the Photomode by pressing and holding the DOWN/REC (3)  b utton. 2. Press the DOWN/REC (3) button briefly to take a photo. The icon   flashes – the photo file is being saved to the built-in SD card. Notes: You can enter and operate the menu during video recording.

  • Page 33: Laser Rangefinder

    Laser Rangefinder Show device diagram The Axion 2 LRFthermal imager is equipped with an integrated laser rangefinder.
  • Page 34 Single Measurement Mode 1. Press the ON/OFF (6) button briefly to power the device on. 2. Activate the rangefinder by pressing the LRF (12) button briefly. A red mark appears on the display. 3. Place the rangefinder’s reticle on the target. Press the LRF (12) button briefly to measure the distance to the object once.
  • Page 35 When you turn on the rangefinder, the PiP window turns off. Additional Information: The accuracy and distance of the measurement depends on the reflection coefficient of the object surface and weather conditions. The reflection coefficient depends on the texture, color, size and shape of the object. Generally, lighter colored objects and those with a shiny surface will have a higher reflection coefficient.
  • Page 36 Discrete Digital Zoom Show device diagram The device functionality allows you to quickly increase the base magnification by 2 or 4 times as well as return to the base magnification.
  • Page 37 Press and hold theUP/ZOOM (5) button to change the digital zoom.

  • Page 38: Pip Function

    PiP Function Show device diagram The PiP (Picture-in-Picture) function allows you to see both the main image and a magnified image in a dedicated window.
  • Page 39 To turn on and off the PiP function see the PiP Mode section. Press and hold the UP (5) button to change the magnification ratio in the PiPwindow. The zoomed image is displayed in a dedicated window, while the image in the rest of the screen is displayed at base magnification (2x).
  • Page 40 Display-Off Function Show device diagram This function deactivates the image transmission to the display by minimizing its brightness. This allows the user to remain unseen. However, the device stays on. When this function is in use, the device switches to the standby mode, which allows it to be switched on instantly.
  • Page 41 off, the current time and the "Display off"icon will appear. 2. Turn the display back on with a short press of theON/OFF (6) button. 3. When you press and hold the ON/OFF (6) button, the display shows the "Display off" icon with a countdown.
  • Page 42 Wi-Fi Function The device has a function enabling wireless communication with external devices (smartphone or tablet) via Wi-Fi. Turn on the wireless module in the WI-Fi Activation menu option. Wi-Fi is displayed in the status bar as follows: Indication on the status bar Connection Status Wi-Fi is switched off Wi-Fi connection is in progress...
  • Page 43 Installing the Device on a Tripod   1. Open the cover (22) of the socket (10). 2. Attach the tripod adaptor (21) to the socket (10). 3. Rotate the adaptor handle clockwise until it stops. 4. Secure the adaptor with the device on a tripod.

  • Page 44: Usb Connection

    USB Connection Show device diagram...
  • Page 45   1. Connect one end of the USB cable to the USB Type-C port (9) of your device and the other end to the USB port of your PC / laptop. 2. Turn the device on with a short press of the ON/OFF(6) button (a device that has been turned off cannot be detected by your computer).
  • Page 46 mode, the device remains in the Off state. Turn the device On for further operation.
  • Page 47 Stream Vision 2 Install the Stream Vision 2 application to download files, update firmware, control the device by remote control and broadcast images from your device to a smartphone or a tablet via WiFi. We recommend using the latest version – Stream Vision 2. You can find further guidelines on Stream Vision 2 here.

  • Page 48: Firmware Update

    3. Launch Stream Vision 2 and go to section “Settings”. 4. Select your Pulsar device and press “Check firmware update”. 5. Wait for the update to download and install. Pulsar device will reboot and will be ready to operate. Important: if your Pulsar device is connected to phone, please turn on mobile data transfer (GPRS/3G/4G) to download update;...

  • Page 49: Technical Inspection

    Technical Inspection It is recommended to carry out a technical inspection before each use of the device. Check the following: The device appearance (there should be no cracks on the body). The state of the objective, eyepiece and rangefinder lenses (there should be no cracks, grease spots, dirt or other deposits).
  • Page 50 Technical Maintenance and Storage Maintenance should be carried out at least twice a year and include the following steps: Wipe the exterior metal and plastic surfaces with a cotton cloth to remove dust and dirt. To avoid damage to the paint coating, do not use chemically active substances, solvents, etc.

  • Page 51: Troubleshooting

    Troubleshooting The device does not turn on Possible cause The battery is completely discharged. Solution Charge the battery. The device does not operate from an external power source Possible cause The USB cable is damaged. Solution Replace the USB cable.  ...
  • Page 52 Perform image calibration according to the Calibration Mode section of the manual. Black screen after calibration Solution If the image does not clear after calibration, you need to recalibrate. Poor quality image. There is noise or ghost images of previous scenes or objects Possible cause Manual calibration has been performed with the lens cover open.
  • Page 53 Possible cause You are looking through glass. Solution Remove the glass or change the viewing position to avoid it. Poor image quality / Detection range reduced Possible cause These problems may occur during observation in adverse weather conditions (snow, rain, fog, etc.). The image quality during the device operation at below zero temperatures is worse than at positive temperatures Possible cause...
  • Page 54 Possible cause The device is in an area with too many Wi-Fi networks that may be causing signal interference. Solution To ensure a stable Wi-Fi connection, relocate the device to an area with fewer or no Wi-Fi networks.   P ossible cause The device has a 5 GHz network enabled, but the smartphone only supports 2.4 GHz.
  • Page 55 Make sure that: the lenses are not blocked by your hand or fingers; the lenses are clean.   P ossible cause The device is not being held steadily when measuring. Solution Do not stress the device when measuring.   P ossible cause Distance to the object exceeds 1000 m.

  • Page 56: Specifications

    Specifications XQ35 Model XQ35 77479   Microbolometer Type uncooled Resolution, Pixels 384x288 Pixel Pitch, µm Frame Rate, Hz   Optical Characteristics Optical Magnification, x Smooth Digital Zoom Digital Zoom, x x1, x2, x4 Lens Focus, mm Relative Aperture, D/f' Minimum Focus Distance, m/y 5 / 5.47 Eye Relief Diameter, mm/inch 4 / 0.16...
  • Page 57 Resolution, Pixels 640x400   Operational Characteristics Power Supply, V 3 - 4.2 Battery Type/Capacity/Nominal APS 5 Li-ion Battery Pack / 4900 mAh Output Voltage / DC 3.7 V External Power Supply 5 V, 9 V (USB Type-C) Battery Run Time at t=22°C, hours* Degree of Protection, IP Code IPX7 (IEC60529)
  • Page 58 conditions.
  • Page 59 XG35 Model XG35 77477   Microbolometer Type uncooled Resolution, Pixels 640x480 Pixel Pitch, µm Frame Rate, Hz   Optical Characteristics Optical Magnification, x Smooth Digital Zoom 2.5-20 Digital Zoom, x x1, x2, x4, x8 Lens Focus, mm Relative Aperture, D/f' Minimum Focus Distance, m/y 5 / 5.5 Eye Relief Diameter, mm/inch...
  • Page 60 External Power Supply 5 V, 9 V (USB Type-C) Battery Run Time at t=22°C, hours* Degree of Protection, IP Code IPX7 (IEC60529) Operating Temperature Range, °C / -25 … +40 / -13 – +104 °F Dimensions, mm/inch 152x74x75 / 5.98x2.91x2.95 Weight (without battery), kg/oz 0.35 / 12.34  ...
  • Page 62 Legal Compliances and Disclaimers Attention! A license is required for Axion Thermal Imager when exporting outside your country. Electromagnetic compatibility.This product complies with the requirements of European standard EN 55032: 2015, Class A. Warning!Operation of this equipment in a residential environment could cause radio interference.
