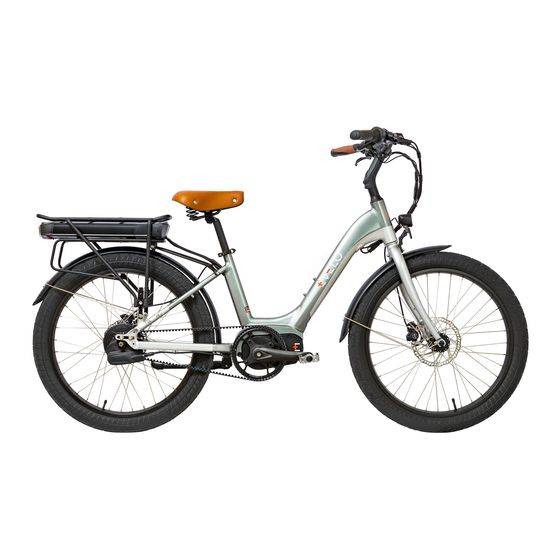

Assembly of Evelo Galaxy 500
The focus of this document is to assist with the assembly of your new EVELO Delta X.
The scope is intentionally narrow – The "User Guide" that was included with your bike
covers a much broader spectrum of topics: fit adjustments, battery care, controls etc.
Our Team is here to help 7 days a week!
Watch the Assembly
contact@evelo.com | 877-991-7272
Instructions Video
Feel Free to reach out!
Advertisement
Table of Contents
Related Manuals for Evelo Galaxy 500
Summary of Contents for Evelo Galaxy 500
- Page 1 Assembly of Evelo Galaxy 500 The focus of this document is to assist with the assembly of your new EVELO Delta X. The scope is intentionally narrow – The “User Guide” that was included with your bike covers a much broader spectrum of topics: fit adjustments, battery care, controls etc.
- Page 2 Carefully remove all packing material from Tools and User Guides will be in the small bike, avoid using sharp objects as to protect black Evelo box. The Pedals will be in a the paint. small cardboard box. ASSEMBLY OF EVELO GALAXY 500...
- Page 3 Install Fender and Headlight Remove the screw in the Front Fork. Thread Headlight and Fender onto screw. Replace nut and tighten. Remove black cap from front wheel skewer and leave the inner spring in place. ASSEMBLY OF EVELO GALAXY 500...
-
Page 4: Install Front Wheel
Insert skewer through front wheel assembly as shown. On the other side of the wheel, replace cap and spring, tighten partially. Remove plastic tab in the disc brake. Put front wheel into place. Once tightened, lock in place with lever. ASSEMBLY OF EVELO GALAXY 500... - Page 5 Install Front Wheel Lower kickstand to keep bike upright. Remove bolts from each side of fork and attach lower fender support struts. Repeat for the other side. ASSEMBLY OF EVELO GALAXY 500...
-
Page 6: Install Handlebars
Remove the screws on top of the stem faceplate. Place handlebars in cradle and align with center. Replace cover and screws on top of handlebars. Handlebars should align with front wheel. To adjust ,loosen screws on sides of stem. ASSEMBLY OF EVELO GALAXY 500... -
Page 7: Install Pedals
There is an L and an R stamped into the end of each pedal for reference. It is important to note that the pedals are threaded differently. The right pedal screws in clockwise and the left pedal screws in counter-clockwise. right pedal left pedal ASSEMBLY OF EVELO GALAXY 500... -
Page 8: Adjust Seat Height
Adjust Seat Height Adjust Seat Height with the lever. ASSEMBLY OF EVELO GALAXY 500... -
Page 9: Use Of Battery
Two copies of the key come attached to Flip the power switch on the bottom of the handlebars. the battery When the power is on, press button to check battery level. Power up and you’re ready to ride! ASSEMBLY OF EVELO GALAXY 500... -
Page 10: Serial Number Location
Serial Number Location To register your bike on our website, you will need to record the serial number. It is located on the headtube of your bike, just above the front fork. ASSEMBLY OF EVELO GALAXY 500... - Page 11 There is considerable additional information in your “User Guide”. Of course, if you ever have questions, our team is ready to help! Our Team is here to help 7 days a week! contact@evelo.com | 877-991-7272 Feel Free to reach out!
