Micronix PP-18 Series Reference Manual

Piezo positioner stage
Hide thumbs Also See for PP-18 Series:

Advertisement

Quick Links

PP-18
S e r i e s
Piezo Positioner Stage
Reference Manual
(Open and Closed Loop Versions)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PP-18 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Micronix PP-18 Series

  • Page 1 PP-18 S e r i e s Piezo Positioner Stage Reference Manual (Open and Closed Loop Versions)
  • Page 2 PP-18 Piezo Positioner Stage Reference Manual Rev 1.3 MICRONIX USA, LLC Tel: 949-480-0538 Fax: 949-480-0538 Email: info@micronixusa.com http://micronixusa.com...
  • Page 3: Table Of Contents

    Maintenance ............................................10 Units and Conventions .......................................... 10 Appendix Electrical Connections ........................................... 11 A.1.1 DB-9 Standard Male Motor Connector ..................................11 A.1.2 Encoder Pinout ........................................... 11 2 Phase Piezo Motor Wiring Diagram ....................................11 Resolution ............................................. 12 MICRONIX USA,LLC Rev: 1.3 www.micronixusa.com...
  • Page 4: Introduction

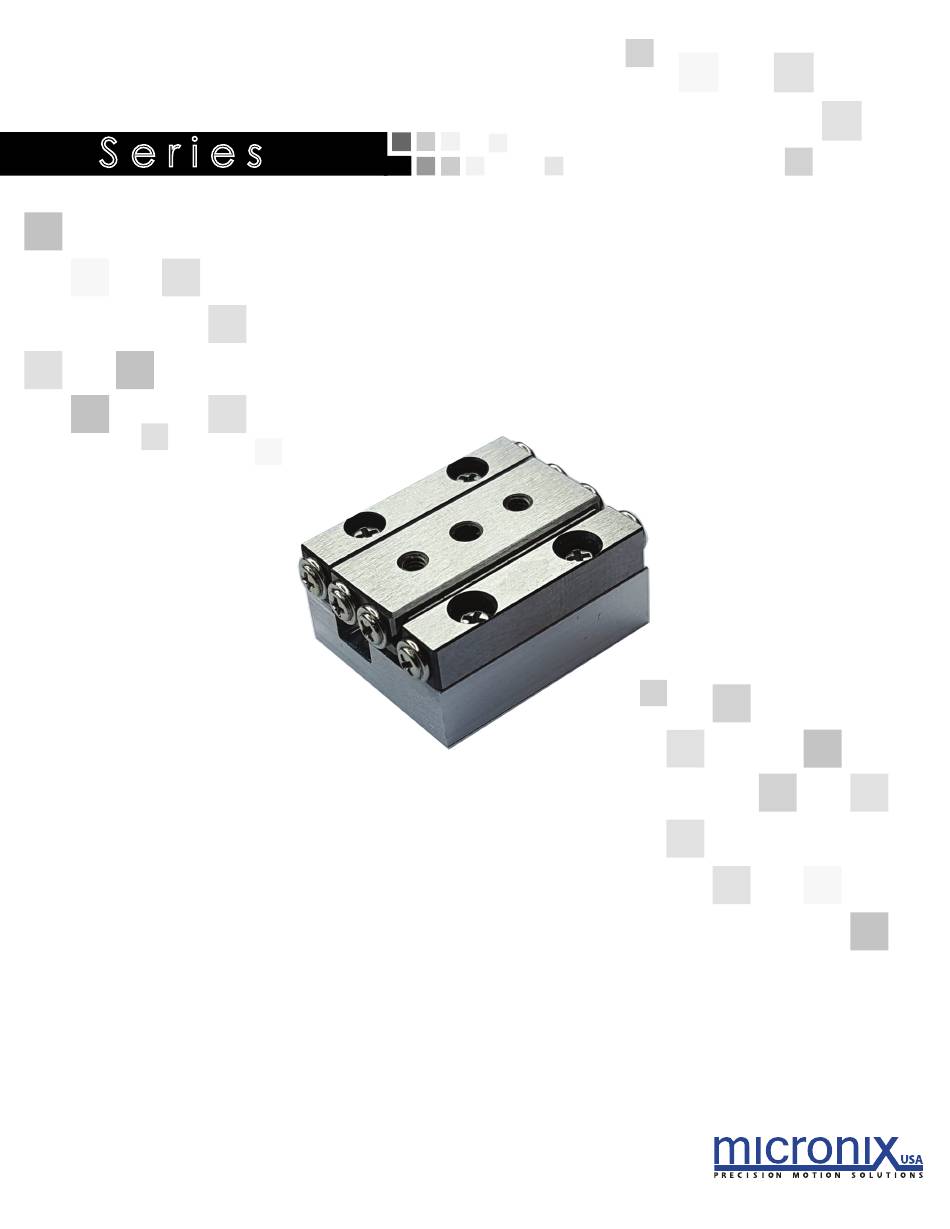

    Travel range of up to 51m ▪ Load capacity up to 0.5 kg horizontally, 0.15 kg vertically ▪ 40 nm closed loop resolution standard ▪ Bearing Base PP-18 20mm Open Loop (Shown in center position) MICRONIX USA,LLC Rev: 1.3 www.micronixusa.com...
  • Page 5: Recommended Controllers

    PP-18 Piezo Positioner Stage Reference Manual Recommended Controllers The following controller that is available from MICRONIX USA for piezo stages: MMC-10 ▪ Technical Data Motor PM-002 Speed Max. (mm/sec) Resolution Typical (nm) 40 (digital encoder), Bi-directional Repeatability (nm) ± 200 (digital encoder)
  • Page 6: Model Configurations

    Piezo Positioner Stage Reference Manual Model Configurations PP-18 Order Numbers PP-18- Order No. Piezo Motor PM-002 12mm Travel 18mm Travel 26mm Travel 51mm Travel Digital (RS-422) None Atmospheric Contact MICRONIX USA for custom applications and stacking configurations. MICRONIX USA,LLC Rev: 1.3 www.micronixusa.com...
  • Page 7: Preparing To Install The

    Locate away from water, heat, and electrical noise ▪ Package Contents If product is damaged or there are missing components, contact MICRONIX USA immediately. Do not discard product packaging in case of return shipment. Package Should Contain: PP-18 Linear Stage ▪...
  • Page 8: Installing The Pp-18

    Align Base with a Clearance hole. Align Base with remaining Install a M2 Socket Head Cap clearance hole and install second Screw and Dowel Pins M2 Socket Head Cap Screw Travel 12mm 16 18mm 16 26mm 36 51mm 50 MICRONIX USA,LLC Rev: 1.3 www.micronixusa.com...
  • Page 9: X-Y Mounting

    Hole. Install M2 Philips Flat Head Clearance Hole. Install M2 Socket M2 Socket Head Cap Screw Screw Head Cap Screw Direction of Travel Note: For stages assembled in an XY configuration in factory do not require disassembly for base mounting MICRONIX USA,LLC Rev: 1.3 www.micronixusa.com...
  • Page 10: Connecting The Pp-18

    PP-18 Cable (Male Dsub 15 Pin Connector, 1.5m, Silver Braided Cable) Motor Cable (Female Dsub 15 Pin to Male Dsub 9 Pin, 1.5m, White Teflon cable) Encoder Cable (Female Dsub 15 Pin to Female Dsub 9 Pin, 1.5m, White Teflon cable) MMC-10 Controller MICRONIX USA,LLC Rev: 1.3 www.micronixusa.com...
  • Page 11: Dimensions

    PP-18 Piezo Positioner Stage Reference Manual Dimensions PP-18 with Digital Encoder Stacking Configurations Configurations Examples (Additional Configurations available upon request) Using Z-Bracket (P/N: 430753) and XY-Bracket (P/N: 430757) X-Y-Z PP-18 MICRONIX USA,LLC Rev: 1.3 www.micronixusa.com...
  • Page 12: Supplementary Information

    Reference Manual Supplementary Information Maintenance The PP-18 series of linear piezo stages utilizes a maintenance free design. Do not • modify the stage or perform any maintenance unless specifically instructed to do so by MICRONIX USA personal. If the stage is not performing up to the original specifications, please contact MICRONIX USA.
  • Page 13: Appendix

    Phase 1 Phase 2 White Green Ground Black Green Housing Shield A.1.2 Encoder Pinout Function Digital Grey Brown Index+ Violet White Grey Index- White Violet White Blue White Brown Blue 2 Phase Piezo Motor Wiring Diagram MICRONIX USA,LLC Rev: 1.3 www.micronixusa.com...
  • Page 14: Resolution

    PP-18 Piezo Positioner Stage Reference Manual Resolution All closed loop stages are supplied with 1.2 mm scales. The digital encoder head interpolates the scale period to a higher resolution. MICRONIX USA,LLC Rev: 1.3 www.micronixusa.com...
