Humidifier fitting

Advertisement

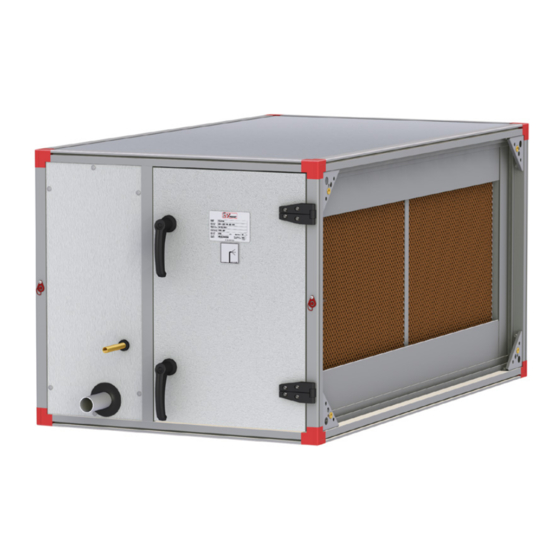

Humidifier fitting (code MIE-EF)

The fitting is selected together with an evaporative
humidifier (code EFEF) with cold humidifying surfaces
that can also be used for evaporative cooling.
The fitting consists of a humidifier block, water
reservoir, water distribution system and housing front
section for integration into the standard module (code
EMM).
• The water reservoir is made from stainless steel.
Spraybars and pipe parts are made from PVC
plastic.
• The humidifier is made from a specially
impregnated composite material.
• Two different versions of the humidifier are
available:
circulating water or direct water.
A droplet eliminator is also available.
• The humidifier is available with two different
humidification rates:
max. 85% (FA6-85) or max. 95% FA6-95).
• A pump is included as standard for humidifiers
using circulating water.
For further information on humidifiers, see
FA6, product sheet

Accessories for fitting

• Mounted damper motor (code KJST-04)
• Water trap (code MIET-CL-04)
Integral attenuation (dB)
Octave band
intermediate
frequency (Hz)
63
125
85%
3
2
EFEF
95%
3
2
1 (2)
Flexomix MIE-EF
Munters
at ivprodukt.se.
250
500
1,000
2,000
4,000
2
3
5
6
12
3
3
5
7
13
IV Produkt's continuous product development may give rise to specification changes without prior notice.
Technical data, sizes 150–950

Configuration MIE-EF

Sizes 150–600
Sizes 740–950

Configuration humidifier

Circulating water

Water consumption

Circulating water
The total water consumption is determined by the
amount of evaporated and bled-off water respectively.
To calculate the water consumption, see
Technical manual
Direct water
Total water consumption (T) for direct water:
Size
150
190
240
300, 360
8,000
15
480, 600
16
740
750
850
950
Product sheet
Operation and Maintenance
Direct water
at ivprodukt.se.
Configuration
FA6-85
FA6-95
6.3
6.3
8.0
8.0
8.5
8.5
10.0
10.0
12.0
12.0
15.0
15.0
12.0
12.0
15.0
15.0
12.0
12.0
Munters FA6
2015-01-07
