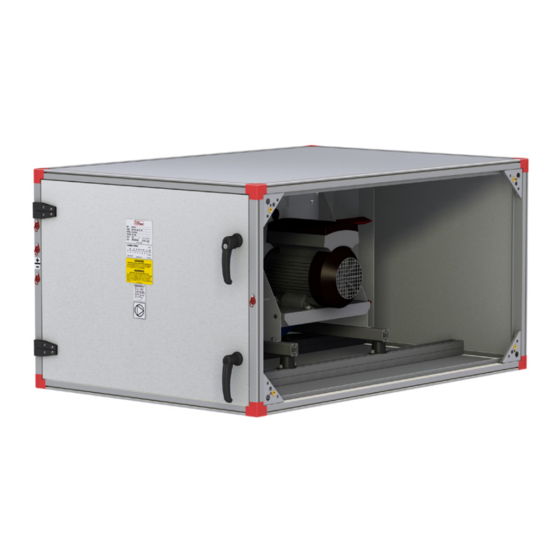

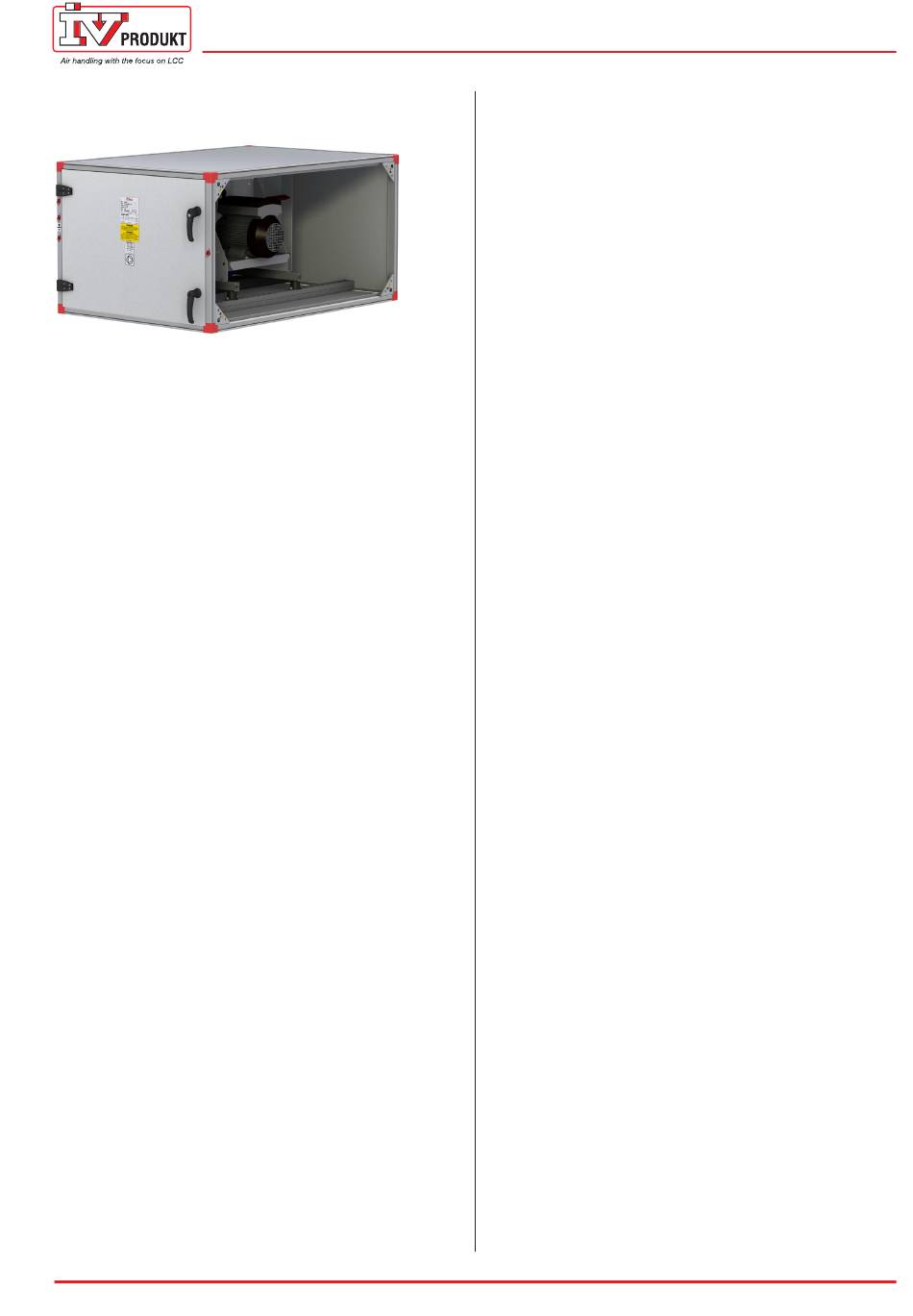

Fan fitting (code MIE-FD)
The MIE-FD fan fitting consists of mounting components
and a front casing panel. Together with optional type ELFD
fan and other functional sections in the Flexomix series,
the unit is included as a supply air or extract air fan in air
handling systems.
• The direct-driven fan is supplied with any of the fol-
lowing types of motor:
- EC-motor including mounted frequency inverter.
- motor type F1 including mounted frequency
inverter
- motor to efficiency class eff1/IE2, for connection to
external frequency inverter. Motors for impeller size
025-071 have thermo-contact, motors for impeller
size 080-090 have a thermistor.
• The fan and motor unit are mounted on slide rails to
facilitate servicing.
• The air temperature should not exceed 50 °C to ad-
equately cool the motor.
• Fan and motor are very effectively vibrationisolated
from the casing by means of a vibration-isolating
outlet connection and rubber antivibration mount-
ings sized according to the fans operating condi-
tions. The normal resonance frequency is 7-10 Hz.
• The design of some of the components in the fan
system does not conform to corrosion resistance
class C4.
Continuous product development at IV Produkt may give rise to specification changes without notice.
Flexomix 060-950
Accessories for the MIE-FD
Connection frame, large (code
Connection frame, maximal (code
• Flexible connection, large (code EMMT-03-a-1)
• Flexible connection, maximal (code EMMT-03-a-2)
• Steel spring anti-vibration mountings (sizes 360−950))
(code MIET-FD-03-a-d)
• Flow meter, manometer type (code MIET-AF-09-d-DD)
• Flow meter, electronic (code MIET-AF-10)
EMMT-02-a-1)
EMMT-02-a-2)
DU14.F.110907.05.EN
