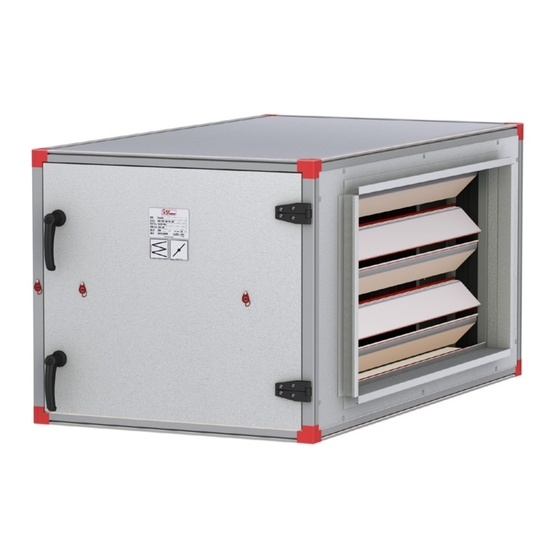

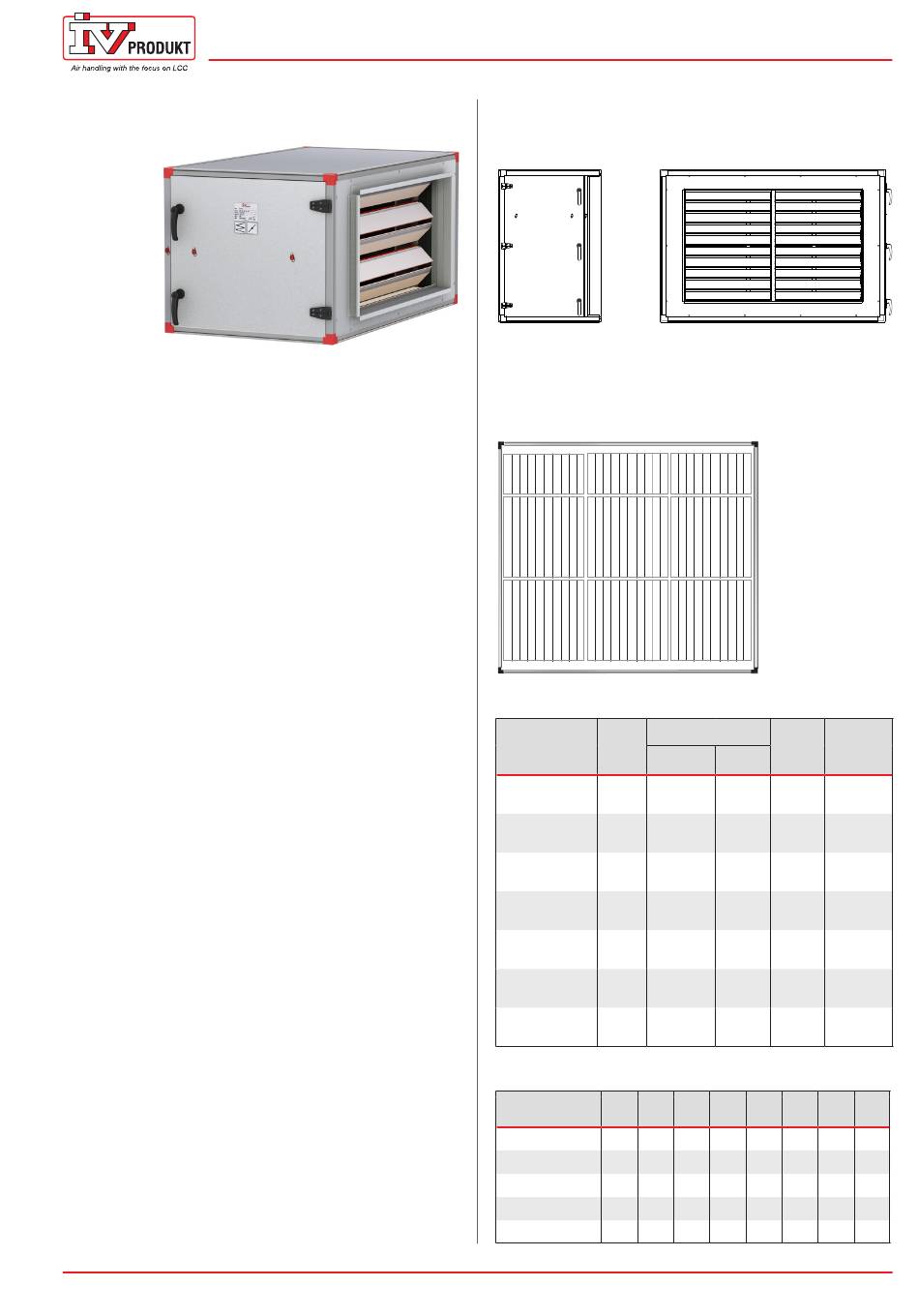

Inlet fitting (code MIE-ID)
The MIE-ID fitting is
designed
to be used
for inlets of
outdoor air
or extract air.
The fitting
consists of
dampers,
assembly
rails for
filter cassettes,
connection gable and a housing front section for
integration into the standard module (code EMM).
MIE-ID is fitted with deep-folded disposable filters
made of synthetic material in class G4, M5 or M6,
deep-folded disposable filters made of glass fibre
material in class F7-F9, deep-folded carbon filters with
integrated pre-filters in class C7 or a washable, knitted
aluminium filter.
• The damper is manufactured from aluminium profiles
and complies with the requirements for corrosion class
C4 in accordance with SS-EN ISO 12944-2.
• The damper blades are powered by plastic
cogwheels and a hose gasket made of silicon
rubber creates a seal between the blades.
• Tightness class 3 in accordance with SS-EN1751
(VVS AMA-98).
• Permitted temperature: -40 to +80˚C.
Permitted differential pressure: max. 1400 Pa.
• The filters are mounted on rails and can easily be
removed and replaced.
• Filter slide rails are available in acid-proof, stainless
steel.
• The filter slide rails are fitted with effective sealing
strips.
• The model FB filter inserts are locked with eccentric
rails.
• Measurement outlets are available for connecting
differential pressure gauge.
• The inlet is fitted as standard with a connection
gable.
Accessories for fitting
• Mounted damper (code KJST-04)
• Set of filters (code ELEF)
Filter section accessories
• Filter monitor, U-tube manometer (code MIET-FB-01)
• Filter monitor, Kytölä manometer (code MIET-FB-02)
• Filter monitor, Magnehelic manometer (code MIET-
FB-03)
2014-11-10
Flexomix MIE-ID
IV Continuous product development may give rise to specification changes without notice.
Technical data, size 950
Configuration
Damper
Required torque = 13 Nm
Filter
Size (cross-section) 950
Dimensions (mm)
No. of
Filter type filters W × H
3 592 × 287
Bag filter G4
6 592 × 592
3 592 × 287
Bag filter M5
6 592 × 592
3 592 × 287
Bag filter M6
6 592 × 592
3 592 × 287
Bag filter F7–F9
6 592 × 592
3 292 × 596
Panel filter P4
6 596 × 596
3 287 × 592
Aluminium filter
6 592 × 592
3 287 × 592
Carbon filter C7
6 592 × 592
Insert damping (dB)
Octave band interme-
diate frequency (Hz) 63 125
G4 − −
M5, M6 2 3
F7-F9 3 3
Aluminium filter 1 1
C7 − −
Product sheet
Operation and Maintenance
No. of Filter
bags/ area, total
Length filters (m²)
360 6
18,0
360 6
534 6
32,1
534 6
534 8
40,8
534 8
534 10
49,8
534 10
48
– 2,7
48
25
– 2,7
25
292
– 58,5
292
250 500 1000 2000 4000
1 2 3 3 5
6 8 14 17 19
6 8 14 17 19
1 2 3 3 5
− 1 1 2 2
8000
6
21
21
6
3
1 (3)
