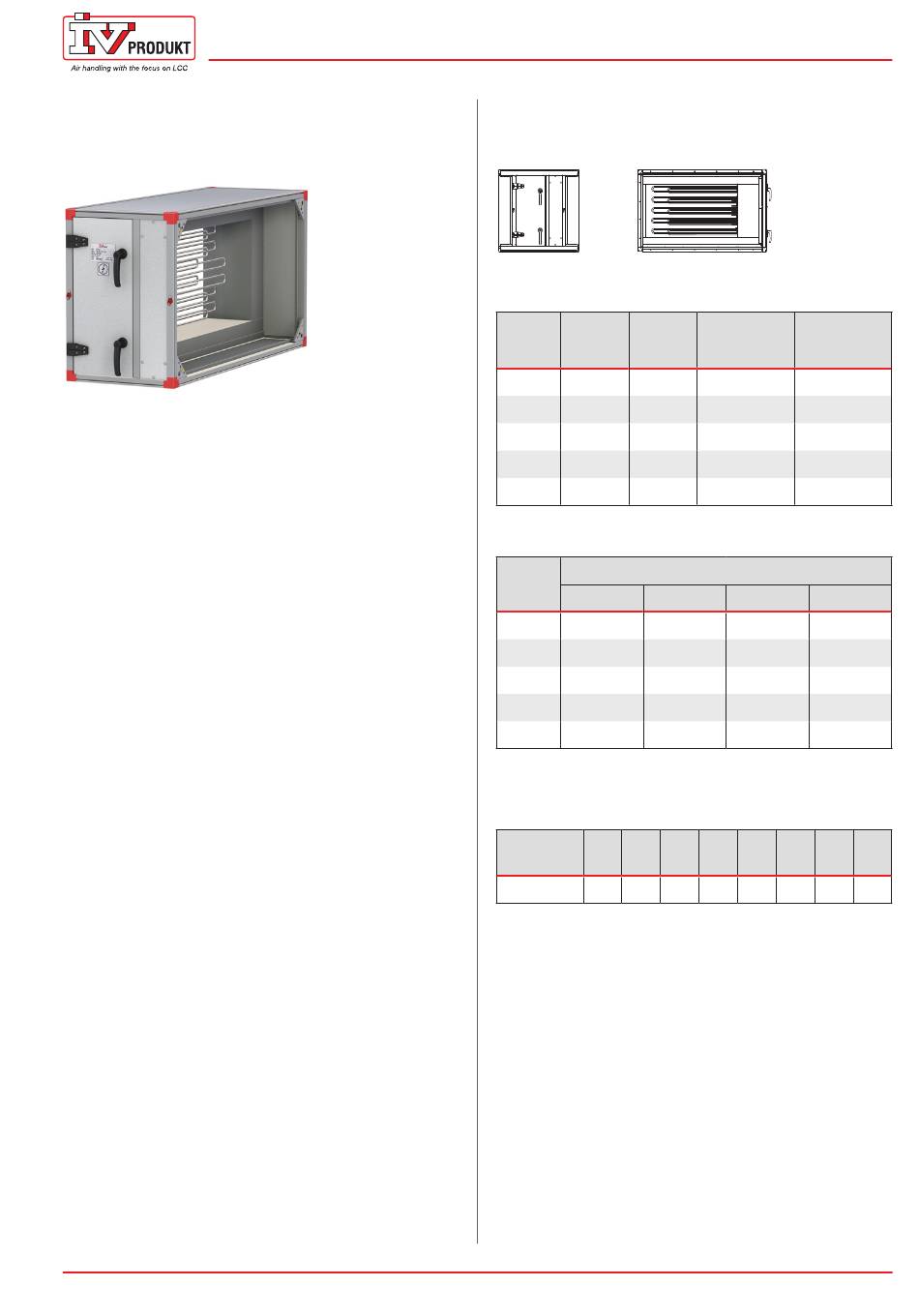

IV Produkt Flexomix MIE-EL Operation And Maintenance

Electric air heater fitting

(code MIE-EL)

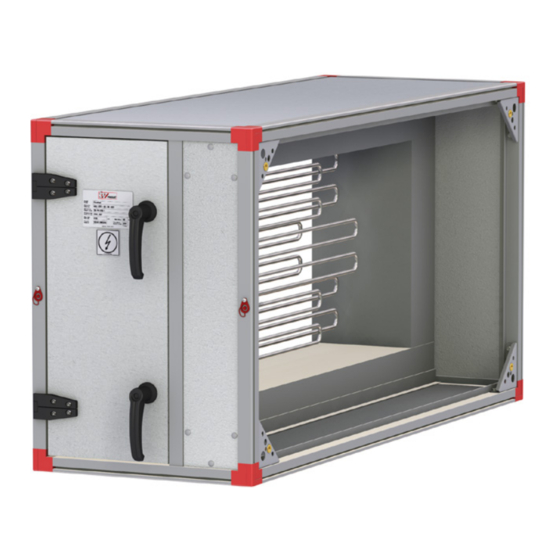

MIE-EL coil fitting is designed for electric air heater
(code ELEE). The fitting consists of assembly rails,
Inspection doors and a housing front section for inte-
gration into the standard module (code EMM).
The electric air heater (code ELEE) is an electric heater
in a high-temperature design.
• The heating rods consist of stainless pipe elements
SS 2337 / AISI 321.
• The heater has double over-temperature guards
that cut the power if there is a risk of overheating.
One of the guards is reset manually.
• Protection IP43 in accordance with SS-EN 60529.
• Also available with integrated control equipment
(HS) for power control.
• There are up to five output variants per size avail-
able as standard. Other outputs may, however, be
supplied to specification.
2014-11-04
Flexomix MIE-EL
IV Continuous product development may give rise to specification changes without notice.

Technical data, size 060

Configuration

Electrical data

Min. air Total
Output flow output
variant (m³/s) (kW)
01 0.2
3.0
02 0.2 6.0
03 0.2 13.0
04 0.2 24.0
05 0.2 30.0

Power stage HT (without control system)

Output
variant 1
01 3.0
02 6.0
03 13.0
04 24.0
05 2.0

Insert damping (dB)

Octave band
intermediate
frequency (Hz) 63 125
ELEE 1 1
Product sheet
Operation And Maintenance
Rated Rated
current (A) current (A)
2×400V~50Hz 3×400V~50Hz
10 –
– 8.7
– 18.8
– 34.6
– 43.3
Output steps (kW)
2 3
– –
– –
– –
– –
4.0 8.0 16.0
250 500 1000 2000 4000
1 1 1 1 1
4
–
–
–
–
8000
1
1 (2)
