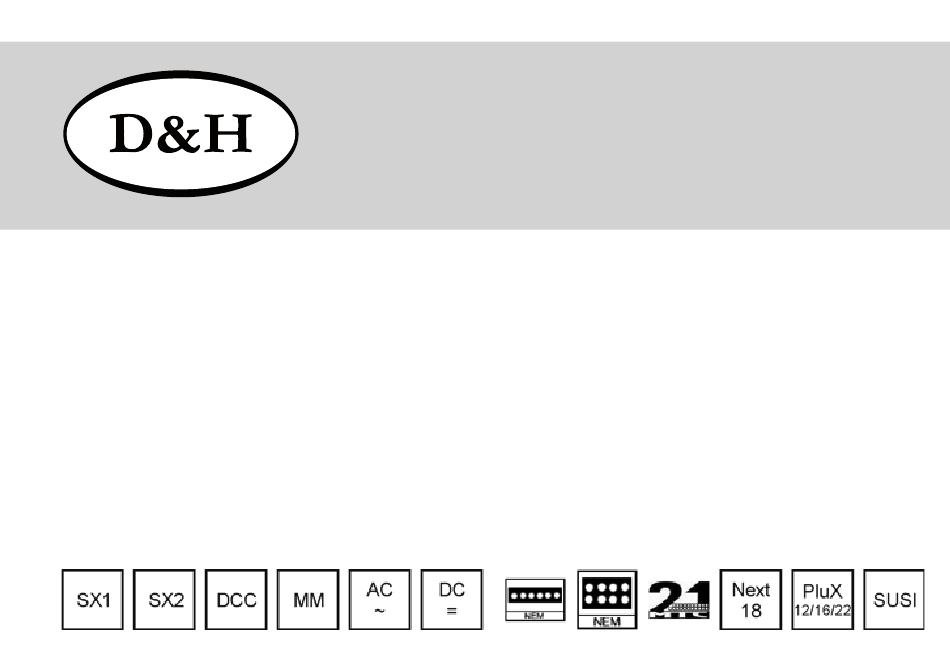

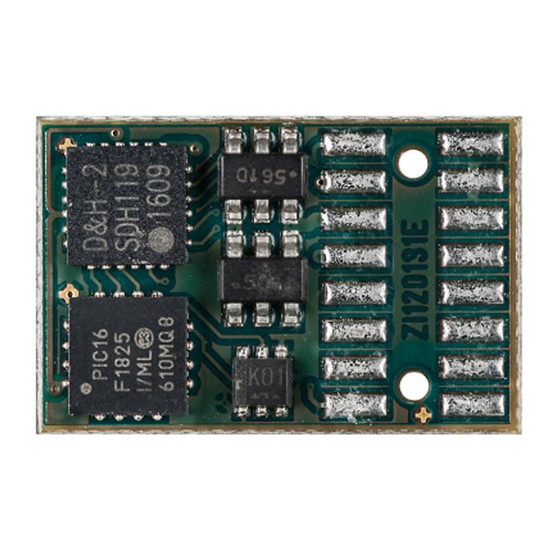

  • Page 1 Doehler & Haass Locomotive decoder Locomotive function decoder Locomotive decoder Locomotive function decoder DH05C PD05A FH05B DH10C PD06A FH18A DH12A PD12A FH22A DH14B PD18A DH16A PD21A DH18A DH21A DH22A...

  • Page 2: Table Of Contents

    Warranty ..............................5 Support and help ............................ 5 Locomotive decoder DH05C / DH10C / DH12A / DH14B / DH16A / DH18A / DH21A / DH22A / PD05A / PD06A / PD12A / PD18A / PD21A ..................6 Functions ..............................30 5.1.1 Limitations of the PD series compared to our DH decoder series ............
  • Page 3 Fahrzeug-/Funktionsdecoder Locomotive/Locomotive function decoder Contents ab Firmware-Version 1.11 from firmware version 3.12 System format DCC ........................... 52 Functions ............................. 52 Setting options ............................. 53 8.2.1 List of supported CV ..........................54 Operation ............................. 68 System format Märklin-Motorola (MM) ..................68 Functions .............................

  • Page 4: Introduction

    3.12 ab Firmware-Version 1.11 1 Introduction The locomotive decoders supports various data formats and operating modes: Decoder SX1, SX2 DCC MM1, MM2 DC-analog AC-analog DH05C, DH10C, DH12A, DH14B, DH16A, DH18A DH21A, DH22A FH05B, FH18A FH22A PD05A PD06A PD12A, PD18A, PD21A Our decoders can be used for normal direct current motors as well for coreless motors.

  • Page 5: Safety Instructions

    Fahrzeug-/Funktionsdecoder Locomotive/Locomotive function decoder ab Firmware-Version 1.11 from firmware version 3.12 2 Safety instructions This product is not suitable for children under 14 years. It might be swallowed by children under 3 years! An improper use involves a risk of injury due to sharp edges and points. 3 Warranty The functioning of every decoder is fully tested before delivery.

  • Page 6: Locomotive Decoder Dh05C / Dh10C / Dh12A / Dh14B / Dh16A / Dh18A / Dh21A / Dh22A / Pd05A / Pd06A / Pd12A / Pd18A / Pd21A

    Locomotive/Locomotive function decoder Fahrzeug-/Funktionsdecoder from firmware version 3.12 ab Firmware-Version 1.11 5 Locomotive decoder DH05C 1 generation Specifications DH05C Dimensions [mm] 13,2 x 6,8 x 1,4 Total load 0,5 A Maximum motor current 0,5 A 18 V Maximum operating voltage...
  • Page 7 Fahrzeug-/Funktionsdecoder Locomotive/Locomotive function decoder ab Firmware-Version 1.11 from firmware version 3.12 DH05C (2 generation) Specifications DH05C Dimensions [mm] after publication Total load 0,5 A Maximum motor current 0,5 A Maximum operating voltage 30 V Function outputs for light: LV, LR (dimmable)
  • Page 8 Locomotive/Locomotive function decoder Fahrzeug-/Funktionsdecoder from firmware version 3.12 ab Firmware-Version 1.11 DH10C (1 generation) Specifications DH10C Dimensions [mm] 14,2 x 9,3 x 1,5 Total load 1,0 A Maximum motor current 1,0 A Maximum operating voltage 30 V Function outputs for light: LV, LR (dimmable) each 150 mA Function outputs: AUX1, AUX2 (dimmable) each 300 mA...
  • Page 9 Fahrzeug-/Funktionsdecoder Locomotive/Locomotive function decoder ab Firmware-Version 1.11 from firmware version 3.12 DH10C (2 generation) Specifications DH10C Dimensions [mm] 12,7 x 8,9 x 1,4 Total load 1,5 A Maximum motor current 1,5 A Maximum operating voltage 30 V Function outputs for light: LV, LR (dimmable) each 150 mA Function outputs: AUX1, AUX2 (dimmable) each 300 mA...
  • Page 10 Locomotive/Locomotive function decoder Fahrzeug-/Funktionsdecoder from firmware version 3.12 ab Firmware-Version 1.11 DH12A Specifications DH12A Dimensions [mm] 14,5 x 8,0 x 3,0 Total load 1,5 A Maximum motor current 1,5 A Maximum operating voltage 30 V Function outputs for light: LV, LR (dimmable) each 150 mA Function outputs: AUX1, AUX2 (dimmable) each 300 mA...
  • Page 11 Fahrzeug-/Funktionsdecoder Locomotive/Locomotive function decoder ab Firmware-Version 1.11 from firmware version 3.12 DH14B Specifications DH14B Dimensions [mm] 18,5 x 9,2 x 1,7 Total load 1,0 A Maximum motor current 1,0 A Maximum operating voltage 30 V Function outputs for light: LV, LR (dimmable) each 150 mA Function outputs: AUX1, AUX2 (dimmable) each 300 mA...
  • Page 12 Locomotive/Locomotive function decoder Fahrzeug-/Funktionsdecoder from firmware version 3.12 ab Firmware-Version 1.11 DH16A (1 generation) Specifications DH16A Dimensions [mm] 16,7 x 10,9 x 2,8 Total load 1,5 A Maximum motor current 1,5 A Maximum operating voltage 30 V Function outputs for light: LV, LR (dimmable) each 150 mA Function outputs: AUX1, AUX2 (dimmable) each 300 mA...
  • Page 13 Fahrzeug-/Funktionsdecoder Locomotive/Locomotive function decoder ab Firmware-Version 1.11 from firmware version 3.12 DH16A (2 generation) Specifications DH16A Dimensions [mm] after publication Total load 1,5 A Maximum motor current 1,5 A Maximum operating voltage 30 V Function outputs for light: LV, LR (dimmable) each 150 mA Function outputs: AUX1, AUX2 (dimmable) each 300 mA...
  • Page 14 Locomotive/Locomotive function decoder Fahrzeug-/Funktionsdecoder from firmware version 3.12 ab Firmware-Version 1.11 DH18A (1 generation) Specifications DH18A Dimensions [mm] 13,5 x 9,0 x 2,8 Total load 1,0 A Maximum motor current 1,0 A Maximum operating voltage 30 V Function outputs for light: LV, LR (dimmable) each 150 mA Function outputs: AUX1, AUX2 (dimmable) each 300 mA...
  • Page 15 Fahrzeug-/Funktionsdecoder Locomotive/Locomotive function decoder ab Firmware-Version 1.11 from firmware version 3.12 DH18A (2 generation) Specifications DH18A Dimensions [mm] 9,7 x 8,9 x 2,8 Total load 1,5 A Maximum motor current 1,5 A Maximum operating voltage 30 V Function outputs for light: LV, LR (dimmable) each 150 mA Function outputs: AUX1, AUX2 (dimmable) each 300 mA...
  • Page 16 Locomotive/Locomotive function decoder Fahrzeug-/Funktionsdecoder from firmware version 3.12 ab Firmware-Version 1.11 DH21A (1 generation) Specifications DH21A-4 Dimensions [mm] 20,7 x 15,8 x 5,2 Total load 2,0 A Maximum motor current 2,0 A Maximum operating voltage 30 V Switching voltage at AC analog: Max.
  • Page 17 Fahrzeug-/Funktionsdecoder Locomotive/Locomotive function decoder ab Firmware-Version 1.11 from firmware version 3.12 DH21A (1 generation) 21 pin interface M1, M2 ....Motor connection 1, 2 G1, G2 ....Track connection 1, 2 LV, LR ....Front light, rear light (each 150 mA) AUX1, AUX2 ..
  • Page 18 Locomotive/Locomotive function decoder Fahrzeug-/Funktionsdecoder from firmware version 3.12 ab Firmware-Version 1.11 DH21A (2 generation) Specifications DH21A-0/2/3/4 DH21A-5 Dimensions [mm] 20,7 x 15,8 x 5,2 20,7 x 15,8 x 5,2 Total load 2,0 A 2,0 A Maximum motor current 2,0 A 2,0 A Maximum operating voltage 30 V...
  • Page 19 Fahrzeug-/Funktionsdecoder Locomotive/Locomotive function decoder ab Firmware-Version 1.11 from firmware version 3.12 DH21A (2 generation) 21 pin interface M1, M2 ....Motor connection 1, 2 G1, G2 ....Track connection 1, 2 GPIO LV, LR ....Front light, rear light (each 150 mA) AUX1, AUX2 ..
  • Page 20 Locomotive/Locomotive function decoder Fahrzeug-/Funktionsdecoder from firmware version 3.12 ab Firmware-Version 1.11 DH22A (1 generation) Specifications DH22A Dimensions [mm] 20,7 x 15,8 x 5,2 Total load 2,0 A Maximum motor current 2,0 A Maximum operating voltage 30 V Switching voltage at AC analog: Max.
  • Page 21 Fahrzeug-/Funktionsdecoder Locomotive/Locomotive function decoder ab Firmware-Version 1.11 from firmware version 3.12 DH22A (1 generation) PluX22 interface M1, M2 ....Motor connection 1, 2 G1, G2 ....Track connection 1, 2 GPIO AUX3 LV, LR ....Front light, rear light (each 150 mA) ZCLK ZDAT AUX1, AUX2 ..
  • Page 22 Locomotive/Locomotive function decoder Fahrzeug-/Funktionsdecoder from firmware version 3.12 ab Firmware-Version 1.11 DH22A (2 generation) DH22A Specifications Dimensions [mm] 20,7 x 15,8 x 5,2 Total load 2,0 A Maximum motor current 2,0 A Maximum operating voltage 30 V Switching voltage at AC analog: Max.
  • Page 23 Fahrzeug-/Funktionsdecoder Locomotive/Locomotive function decoder ab Firmware-Version 1.11 from firmware version 3.12 DH22A (2 generation) PluX22 interface M1, M2 ....Motor connection 1, 2 G1, G2 ....Track connection 1, 2 GPIO AUX3 LV, LR ....Front light, rear light (each 150 mA) ZCLK ZDAT AUX1, AUX2 ..
  • Page 24 Locomotive/Locomotive function decoder Fahrzeug-/Funktionsdecoder from firmware version 3.12 ab Firmware-Version 1.11 PD05A (1 generation) Specifications PD05A Dimensions [mm] 5,0 x 7,9 x 2,5 Total load 0,5 A Maximum motor current 0,5 A 18 V Maximum operating voltage Function outputs for light: LV, LR (dimmable) each 150 mA Connecting options PD05A-0...
  • Page 25 Fahrzeug-/Funktionsdecoder Locomotive/Locomotive function decoder ab Firmware-Version 1.11 from firmware version 3.12 PD05A (2 generation) Specifications PD05A Dimensions [mm] 5,2 x 8,0 x 2,5 Total load 0,5 A Maximum motor current 0,5 A Maximum operating voltage 30 V Function outputs for light: LV, LR (dimmable) each 150 mA Connecting options Without connection wires...
  • Page 26 Locomotive/Locomotive function decoder Fahrzeug-/Funktionsdecoder from firmware version 3.12 ab Firmware-Version 1.11 PD06A Specifications PD06A Dimensions [mm] 6,8 x 11,4 x 2,8 Total load 0,5 A Motor voltage Maximum motor current 0,2 A Maximum operating voltage 18 V Function outputs for light: LV, LR (dimmable) each 150 mA Function outputs: AUX1, AUX2 (dimmable) each 300 mA...
  • Page 27 Fahrzeug-/Funktionsdecoder Locomotive/Locomotive function decoder ab Firmware-Version 1.11 from firmware version 3.12 PD12A PD12A Specifications Dimensions [mm] 24,2 x 11,0 x 2,4 Total load 1,0 A Maximum motor current 1,0 A Maximum operating voltage 30 V Function outputs for light: LV, LR (dimmable) each 150 mA Function outputs: AUX1, AUX2 (dimmable) each 300 mA...
  • Page 28 Locomotive/Locomotive function decoder Fahrzeug-/Funktionsdecoder from firmware version 3.12 ab Firmware-Version 1.11 PD18A Specifications PD18A Dimensions [mm] 23,8 x 10,8 x 2,0 Total load 1,0 A Maximum motor current 1,0 A Maximum operating voltage 30 V Function outputs for light: LV, LR (dimmable) je 150 mA Function outputs: AUX1, AUX2 (dimmable) je 300 mA...
  • Page 29 Fahrzeug-/Funktionsdecoder Locomotive/Locomotive function decoder ab Firmware-Version 1.11 from firmware version 3.12 PD21A Specifications PD21A Dimensions [mm] 21,2 x 15,5 x 2,9 Total load Maximum motor current Maximum operating voltage 30 V Function outputs for light: LV, LR (dimmable) each 150 mA Connecting options PD21A-4 21 pin socket board for direct plugging (mTc21)

  • Page 30: Functions

    Locomotive/Locomotive function decoder Fahrzeug-/Funktionsdecoder from firmware version 3.12 ab Firmware-Version 1.11 5.1 Functions • Operation can be controlled either by conventional DC command stations or by digital central units supporting the formats SelecTRIX 1 and 2, DCC format or MM1/MM2 standard •...

  • Page 31: Limitations Of The Pd Series Compared To Our Dh Decoder Series

    Fahrzeug-/Funktionsdecoder Locomotive/Locomotive function decoder ab Firmware-Version 1.11 from firmware version 3.12 The update (free software download from the internet) is possible in the installed state of the decoder on the track (no need to open the engin) and is done either via the FCC digital centre or the programmer. If no corresponding hardware is available, the company Doehler &...

  • Page 32: Installation Of The Decoder

    Locomotive/Locomotive function decoder Fahrzeug-/Funktionsdecoder from firmware version 3.12 ab Firmware-Version 1.11 The PD06A vehicle decoder for miniature motors is our particularly small vehicle decoder for SX1, SX2 and DCC operation. • No support for MM mode • No support of SX1 programming (but SX1 operation is possible through SX2 parameter programming) •...

  • Page 33: Connection Of The Decoder

    In case your locomotive is equipped with an interface according to NEM 651, you should take the decoder DH05C-1, DH10C-1, DH10C-2 or PD05A-1. They have already the appropriate connections for this plug. Short the ribbon cable up to 5 mm and remove the rest of insulation.
  • Page 34 Locomotive/Locomotive function decoder Fahrzeug-/Funktionsdecoder from firmware version 3.12 ab Firmware-Version 1.11 Variants with interfaces: In case your locomotive is equipped with a 12 pin interface (PluX12), you should take the decoder DH12A or PD12A-4. They have already the appropriate connections for this plug. The decoder can be inserted into the interface without any problem now.
  • Page 35 Fahrzeug-/Funktionsdecoder Locomotive/Locomotive function decoder ab Firmware-Version 1.11 from firmware version 3.12 For above variant 9 connect the decoder wires according to the following diagram (see also graphic below): red wire ....with the right track wire black wire ....with the left track wire orange wire ....with the motor wire, which was connected to the right track wire gray wire ....with the motor wire, which was connected to the left track wire white wire ....with the front light in driving direction...

  • Page 36: Check After Installation

    Locomotive/Locomotive function decoder Fahrzeug-/Funktionsdecoder from firmware version 3.12 ab Firmware-Version 1.11 The wires of an additionally connected SUSI module are connected according to the following scheme: red wire ......SUSI supply voltage (ZVS) blue wire ....... SUSI clock (ZCLK) gray wire ....... SUSI data (ZDAT) black wire .....
  • Page 37 Notes...

  • Page 38: Locomotive Function Decoder Fh05B / Fh18A / Fh22A

    Locomotive/Locomotive function decoder Fahrzeug-/Funktionsdecoder from firmware version 3.12 ab Firmware-Version 1.11 6 Locomotive function decoder FH05B (1 generation) FH05B Specifications Dimensions [mm] 13,7 x 7,8 x 1,5 Total load 0,5 A Maximum operating voltage 30 V Function outputs for light: LV, LR (dimmable) each 150 mA Function outputs AUX1, AUX2 (dimmable) each 300 mA...
  • Page 39 Fahrzeug-/Funktionsdecoder Locomotive/Locomotive function decoder ab Firmware-Version 1.11 from firmware version 3.12 FH05B (2 generation) Specifications FH05B Dimensions [mm] after publication Total load 0,5 A Maximum operating voltage 30 V Function outputs for light: LV, LR (dimmable) each 150 mA Function outputs AUX1, AUX2 (dimmable) each 300 mA AUX1 Function outputs AUX3, AUX4, AUX5, AUX6...
  • Page 40 Locomotive/Locomotive function decoder Fahrzeug-/Funktionsdecoder from firmware version 3.12 ab Firmware-Version 1.11 FH18A (1 generation) Specifications FH18A Dimensions [mm] 10,4 x 9,7 x 3,2 Total load 1,0 A Maximum operating voltage 30 V Function outputs for light: LV, LR (dimmable) each 150 mA Function outputs AUX1, AUX2 (dimmable) each 300 mA Function outputs AUX3, AUX4, AUX5, AUX6...
  • Page 41 Notes FH18A (2 generation) Specifications FH18A Dimensions [mm] 9,7 x 8,9 x 2,8 Total load 1,5 A Maximum operating voltage 30 V Function outputs for light: LV, LR (dimmable) each 150 mA Function outputs AUX1, AUX2 (dimmable) each 300 mA Function outputs AUX3, AUX4, AUX5, AUX6 unamplified *) With SUSI interface (if AUX3/AUX4 deactivated)
  • Page 42 Locomotive/Locomotive function decoder Fahrzeug-/Funktionsdecoder from firmware version 3.12 ab Firmware-Version 1.11 FH22A FH22A Specifications Dimensions [mm] 16,1 x 15,8 x 3,3 Total load 2,0 A Maximum operating voltage 30 V Switching voltage at AC analog: Max. 45 V peak = 30 V eff. LV, LR (dimmable) each 150 mA AUX1, AUX2 (dimmable)
  • Page 43 Fahrzeug-/Funktionsdecoder Locomotive/Locomotive function decoder ab Firmware-Version 1.11 from firmware version 3.12 FH22A PluX22 interface G1, G2 ....Track connection 1, 2 LV, LR ....Front light, rear light (each 150 mA) GPIO AUX3 AUX1, AUX2 ..Additional function 1, 2 (each 300 mA) ZCLK ZDAT AUX3, AUX4 ..

  • Page 44: Functions

    Locomotive/Locomotive function decoder Fahrzeug-/Funktionsdecoder from firmware version 3.12 ab Firmware-Version 1.11 6.1 Functions • Operation can be controlled either by conventional DC command stations or by digital central units supporting the formats SelecTRIX 1 and 2, DCC format or MM1/MM2 standard. •...

  • Page 45: Installation Of The Locomotive Function Decoders

    Fahrzeug-/Funktionsdecoder Locomotive/Locomotive function decoder ab Firmware-Version 1.11 from firmware version 3.12 The locomotive function decoder correspond functionally completely with the decoders described in point 5. Only features in direct connection with the engine control are missing. This fact is marked in the setting options of the corresponding system format.
  • Page 46 Locomotive/Locomotive function decoder Fahrzeug-/Funktionsdecoder from firmware version 3.12 ab Firmware-Version 1.11 5 In case your locomotive is equipped with an interface according to NEM 652, you need for FH18A the connecting adapter N18-G-2. It has already the appropriate connection cables for this socket with an 8 pin plug. The decoder can be inserted into the interface without any problem now.
  • Page 47 Fahrzeug-/Funktionsdecoder Locomotive/Locomotive function decoder ab Firmware-Version 1.11 from firmware version 3.12 The connections of the SUSI interface for the sound or function modules are at FH05B on the underside of the decoder, at FH18A on the adapter N18-G and at FH22A-4 on the PluX22 plug respectively on the adapter P22-3. Connect these modules according to the following diagram: red wire ......

  • Page 48: Check After Installation

    Locomotive/Locomotive function decoder Fahrzeug-/Funktionsdecoder from firmware version 3.12 ab Firmware-Version 1.11 Notice: In case of an incorrect wiring of the light or track wire, there is no need to solder off the wires, as the assignement can be interchanged electronically by programming (see setting options of the respective system format: CV51 or. par031, par033).

  • Page 49: Setting Options

    Fahrzeug-/Funktionsdecoder Locomotive/Locomotive function decoder ab Firmware-Version 1.11 from firmware version 3.12 7.2 Setting options All locomotive parameters can be varied by programming freely at any time. Please take the programming informations out of the instructions of your programming device. Instructions for “Function Mapping“ by default see Doehler & Haass website: https://doehler-haass.de/cms/pages/haeufige-fragen.php Wie sieht das standardmäßige „Function Mapping“...
  • Page 50 Locomotive/Locomotive function decoder Fahrzeug-/Funktionsdecoder from firmware version 3.12 ab Firmware-Version 1.11 Activation of AFB (Automatic acceleration/deceleration control) and additional channel Function with AFB without AFB Without additional channel With ZK*) without function mapping With ZK*) with function mapping Without ZK*) with function mapping –...

  • Page 51: Operation

    Fahrzeug-/Funktionsdecoder Locomotive/Locomotive function decoder ab Firmware-Version 1.11 from firmware version 3.12 Note for connected SUSI modules: The supply voltage of the SUSI module (red wire) is connected to the ZVS connection of the decoder: Nothing else needs to be observed. The supply voltage of the SUSI module (red wire) is connected to the VS terminal of the decoder: For SX1 programming, a connected SUSI module must be removed.

  • Page 52: System Format Dcc

    Locomotive/Locomotive function decoder Fahrzeug-/Funktionsdecoder from firmware version 3.12 ab Firmware-Version 1.11 System format DCC 8.1 Functions Short address ........... 1-27 Long address .......... 0001-9999 Speed steps ..........14, 28,126 Speed steps (internal) ........127 Front light/rear light (dimmable) ......yes Additional functions (dimmable) ......2 Functions total .............

  • Page 53: Setting Options

    Fahrzeug-/Funktionsdecoder Locomotive/Locomotive function decoder ab Firmware-Version 1.11 from firmware version 3.12 Setting options The features of a locomotive operated in the DCC operating mode can be varied by programming the “Configuration Variables“ (CV) freely at any time. The programming procedure is described in the instructions of your programming device. Instructions for “Function Mapping“...

  • Page 54: List Of Supported Cv

    Locomotive/Locomotive function decoder Fahrzeug-/Funktionsdecoder from firmware version 3.12 ab Firmware-Version 1.11 8.2.1 List of supported CV The abbreviation FH* refers to the decoder types FH05B, FH18A and FH22A. The abbreviation PD* refers to decoder types PD05A, PD06A, PD12A, PD18A and PD21A. Name and definition Range Standard...
  • Page 55 Fahrzeug-/Funktionsdecoder Locomotive/Locomotive function decoder ab Firmware-Version 1.11 from firmware version 3.12 Name and definition Range Standard 0-15 MM settings (not relevant to PD*) Bit 0-2: 0 = MM-operation deaktivated 1 = MM-operation without additional address 2 = MM-operation with one additional address 3 = MM-operation with two additional addresses 4 = MM-operation with three additional addresses 5 = MM-operation with four additional addresses...
  • Page 56 Locomotive/Locomotive function decoder Fahrzeug-/Funktionsdecoder from firmware version 3.12 ab Firmware-Version 1.11 Name and definition Range Standard 0-255 Extended address 0-255 CV17 contains the most significant byte; CV18 contains the least significant byte. Only, if activated by CV29/Bit 5=1. Consist address 0-255 Several compound locomotives run under this address (1-127) 0, 128...
  • Page 57 Fahrzeug-/Funktionsdecoder Locomotive/Locomotive function decoder ab Firmware-Version 1.11 from firmware version 3.12 Name and definition Range Standard Check-back settings Function Value 0..Channel 1 (Locomotive address) allowed ..1 1..Channel 2 (POM readout etc.) allowed ..2 2..Dynamic channel utilization ......4 Configuration register 0-255 Function...
  • Page 58 Locomotive/Locomotive function decoder Fahrzeug-/Funktionsdecoder from firmware version 3.12 ab Firmware-Version 1.11 Name and definition Range Standard Function mapping F7 (see supplement 1) 0-255 0-255 Function mapping F8 (see supplement 1) 0-255 Function mapping F9 (see supplement 1) 0-255 Function mapping F10 (see supplement 1) Function mapping F11 0-255...
  • Page 59 Fahrzeug-/Funktionsdecoder Locomotive/Locomotive function decoder ab Firmware-Version 1.11 from firmware version 3.12 Name and definition Range Standard 0-31 Dimming LV/LR 0 = dark … 31 = full brightness 0-31 Dimming low beam light (see CV156) 0 = dark … 31 = full brightness 0-31 Dimming AUX1 0 = dark …...
  • Page 60 Locomotive/Locomotive function decoder Fahrzeug-/Funktionsdecoder from firmware version 3.12 ab Firmware-Version 1.11 Name and definition Range Standard 0-127 Maximum speed step in two part brake sections (see CV60) Only with brake diode 0-255 Forward trim 0 = deactivated, smaller 128 = reduction, higher 128 = enhancement of the speed 0-255 Backward trim (see CV66)
  • Page 61 Fahrzeug-/Funktionsdecoder Locomotive/Locomotive function decoder ab Firmware-Version 1.11 from firmware version 3.12 Name and definition Range Standard 120 Timer for switch off AUX4 0-250 Each 100 ms, 0 = deactivated 121 Function mapping LV+LR on / AUX1+AUX2 off 0-255 Bit 0 = F1 … Bit 7 = F8 122 Function mapping AUX1+AUX2 on / LV+LR off 0-255 Bit 0 = F1 …...
  • Page 62 Locomotive/Locomotive function decoder Fahrzeug-/Funktionsdecoder from firmware version 3.12 ab Firmware-Version 1.11 Name and definition Range Standard 131 Function mapping low beam light 0-29 (not relevant to PD*) 0 = deactivated, 1 … 28 = F1 … F28, 29 = F0 (light) Only valid if CV137/Bit 4=1 132 Function mapping shunting gear 0-29...
  • Page 63 Fahrzeug-/Funktionsdecoder Locomotive/Locomotive function decoder ab Firmware-Version 1.11 from firmware version 3.12 Name and definition Range Standard 138 Timer for approach 0-250 (not relevant to PD*) Each 100 ms, 0 = no driving away 139 Timer for waiting 0-250 (not relevant to PD*) Each 100 ms, 0 = no waiting 140 Timer for driving away 0-250...
  • Page 64 Locomotive/Locomotive function decoder Fahrzeug-/Funktionsdecoder from firmware version 3.12 ab Firmware-Version 1.11 Name and definition Range Standard 145 Conditions for LV 0-161 (not relevant to PD*) Function Value Default value (always on, if function key on) Only forward Only backward Only while standing Only while driving Only at F0 (light) off Only at F0 (light) on...
  • Page 65 Fahrzeug-/Funktionsdecoder Locomotive/Locomotive function decoder ab Firmware-Version 1.11 from firmware version 3.12 Name and definition Range Standard 153 Initial mapping 0-255 (not relevant to PD*) Function Value Function Value 0..LV .......1 4 ..AUX3 ........16 1..LR ......2 5 ..AUX4 ........32 2..AUX1 ......4 6 ..
  • Page 66 261 Decoder number (read only) FH05B = 41, DH05C = 52, DH10C = 102, DH12A = 120, PD12A = 130, PD05A = 131, PD06A = 132, PD21A = 133, PD18A = 134, DH14B = 141, DH16A = 160, FH18A = 170, DH18A = 180, FH22A = 192, DH21A = 200, DH22A = 202 Complete table see: www.doehler-haass.de/„Häufige Fragen“...
  • Page 67 Fahrzeug-/Funktionsdecoder Locomotive/Locomotive function decoder ab Firmware-Version 1.11 from firmware version 3.12 Name and definition Range Standard 409 Function interchange F9 (as CV401) 0-29 410 Function interchange F10 (as CV401) 0-29 411 Function interchange F11 (as CV401) 0-29 412 Function interchange F12 (as CV401) 0-29...

  • Page 68: Operation

    Locomotive/Locomotive function decoder Fahrzeug-/Funktionsdecoder from firmware version 3.12 ab Firmware-Version 1.11 8.3 Operation Put the locomotive on the programming track and readout the locomotive address (CV01). The default value should be 3. Program the desired locomotive address and start runnig the locomotive keeping these setting values. After the first check you can vary the parameters of the engine freely according to your requirements.

  • Page 69: Programming With Märklin Central Unit 6020/6021

    Fahrzeug-/Funktionsdecoder Locomotive/Locomotive function decoder ab Firmware-Version 1.11 from firmware version 3.12 Notice to address range: In MM operation address values from 1 to 255 are allowed. In DCC operation for DCC CV01 only values from 1 to 127 are allowed. Values from 128 lead to operating the decoder only by MM, i.e. DCC operation is no longer possible. DCC “Service Mode“...
  • Page 70 Locomotive/Locomotive function decoder Fahrzeug-/Funktionsdecoder from firmware version 3.12 ab Firmware-Version 1.11 • Revert the driving direction with the driving controller (turn the driving controller to the left beyond the keystroke until your hear a click), hold the controller and and push GO button. •...
  • Page 71 Fahrzeug-/Funktionsdecoder Locomotive/Locomotive function decoder ab Firmware-Version 1.11 from firmware version 3.12 • Enter now the hundredth and ten‘s digit of the new CV value. Example: Value 135 is to be written: Enter ‘13‘. • Activate the reversion of the driving direction for confirmation. The lighting flashes long - short - short – short (periodically) •...

  • Page 72: System Format Selectrix 2 (Sx2)

    Locomotive/Locomotive function decoder Fahrzeug-/Funktionsdecoder from firmware version 3.12 ab Firmware-Version 1.11 10 System format SelecTRIX 2 (SX2) 10.1 Functions Speed steps ..........127 Speed steps (internal) ........127 Front light/rear light (dimmable) ....yes Additional functions (dimmable) ....... 2 Functions total ..........16 Operation with brake diodes ......

  • Page 73: List Of Supported Parameters

    Fahrzeug-/Funktionsdecoder Locomotive/Locomotive function decoder ab Firmware-Version 1.11 from firmware version 3.12 10.2.1 List of supported parameters The abbreviation FH* refers to the decoder types FH05B, FH18A and FH22A. Name and definition Range Standard 001 Address unit position 0-99 002 Address hundreds digit 0-99 003 Address for SX1 0-255...
  • Page 74 Locomotive/Locomotive function decoder Fahrzeug-/Funktionsdecoder from firmware version 3.12 ab Firmware-Version 1.11 Name and definition Range Standard 009 Consist address hundreds digit Currently without function 011 Acceleration time 0-255 The value corresponds to the time in seconds from start to maximum speed and should be set to at least 8 (s.
  • Page 75 Fahrzeug-/Funktionsdecoder Locomotive/Locomotive function decoder ab Firmware-Version 1.11 from firmware version 3.12 Name and definition Range Standard 023 Consist mode F0, F9-F12 Currently without function 024 Switch off function for LV 0-255 Bit 0 = F1 ... Bit 7 = F8 025 Switch off function for LR 0-255 Bit 0 = F1 ...
  • Page 76 Locomotive/Locomotive function decoder Fahrzeug-/Funktionsdecoder from firmware version 3.12 ab Firmware-Version 1.11 Name and definition Range Standard 032 Interchange of motor connections (not relevant to FH*) 0, 1 0 = normal, 1 = interchanged 033 Interchange of light connections 0, 1 0 = normal, 1 = interchanged 043 Settings 0-31...
  • Page 77 Fahrzeug-/Funktionsdecoder Locomotive/Locomotive function decoder ab Firmware-Version 1.11 from firmware version 3.12 Name and definition Range Standard 054 Motor frequency (not relevant to FH*) 0-15 Function Value 0..0 = 32 kHz, 1 = 16 kHz ................1 1..0 = 16/32 kHz, 1 = low frequency ............2 2..proportional part limitation ..............
  • Page 78 Locomotive/Locomotive function decoder Fahrzeug-/Funktionsdecoder from firmware version 3.12 ab Firmware-Version 1.11 Standard Name and definition Range 068 Function mapping F6 0-255 (see supplement 1) 069 Function mapping F7 (see supplement 1) 0-255 070 Function mapping F8 (see supplement 1) 0-255 071 Function mapping F9 0-255 (see supplement 1)
  • Page 79 Fahrzeug-/Funktionsdecoder Locomotive/Locomotive function decoder ab Firmware-Version 1.11 from firmware version 3.12 Name and definition Range Standard 083 Dimming AUX1 0-31 0 = dark … 31 = full brightness 084 Dimming AUX2 0-31 0 = dark … 31 = full brightness 085 Function mapping F2(r) (see supplement 1) 0-255...
  • Page 80 Locomotive/Locomotive function decoder Fahrzeug-/Funktionsdecoder from firmware version 3.12 ab Firmware-Version 1.11 Name and definition Range Standard 089 Dimming mask for low beam light (see par082) 0-15 Function Value Function Value 0..LV ......1 4 ..Currently without function ..16 1..
  • Page 81 102 Decoder number (read only) FH05B = 41, DH05C = 52, DH10C = 102, DH12A = 120, PD12A = 130, PD05A = 131, PD06A = 132, PD21A = 133, PD18A = 134, DH14B = 141, DH16A = 160, FH18A = 170, DH18A = 180, FH22A = 192, DH21A = 200, DH22A = 202 Complete table see: www.doehler-haass.de/„Häufige Fragen“...
  • Page 82 Locomotive/Locomotive function decoder Fahrzeug-/Funktionsdecoder from firmware version 3.12 ab Firmware-Version 1.11 Name and definition Range Standard 142 Switch off function for AUX4 0-255 Bit 0 = F1 … Bit 7 = F8 143 Switch off function for AUX5 0-255 Bit 0 = F1 … Bit 7 = F8 144 Switch off function for AUX6 0-255 Bit 0 = F1 …...
  • Page 83 Fahrzeug-/Funktionsdecoder Locomotive/Locomotive function decoder ab Firmware-Version 1.11 from firmware version 3.12 Name and definition Range Standard 156 Settings (not relevant to PD05A/PD06A) 0-255 Function Value 6..Coupling process and timer deactivated ......64 7..Coupling process only in shunting gear ......128 160 Conditions for low beam light 0-161 (see par161) 161 Conditions for LV...
  • Page 84 Locomotive/Locomotive function decoder Fahrzeug-/Funktionsdecoder from firmware version 3.12 ab Firmware-Version 1.11 Name and definition Range Standard 166 Conditions for AUX4 0-250 (see par161) 167 Conditions for AUX5 0-127 (see par161) 168 Conditions for AUX6 (see par161) 0-127 169 Initial mapping 0-255 (not relevant to PD05A/PD06A) Function...

  • Page 85: Operation

    Fahrzeug-/Funktionsdecoder Locomotive/Locomotive function decoder ab Firmware-Version 1.11 from firmware version 3.12 Name and definition Range Standard 410 Function interchange F10 (as par401) 0-29 411 Function interchange F11 (as par401) 0-29 412 Function interchange F12 (as par401) 0-29 10.3 Operation Put the locomotive on the programming track and readout the locomotive address of the decoder (par001+par002). The ground value should be 1001.

  • Page 86: Supplement 1: Notes To Function Mapping

    Locomotive/Locomotive function decoder Fahrzeug-/Funktionsdecoder from firmware version 3.12 ab Firmware-Version 1.11 Supplement 1: Notes to Function Mapping If you want to activate a function enter the value of the corresponding output according to the following table. In case you want to activate several different functions simultanously you must add up the related values. Output values: RG/AUX6 ABL/AUX5...
  • Page 87 Fahrzeug-/Funktionsdecoder Locomotive/Locomotive function decoder ab Firmware-Version 1.11 from firmware version 3.12 Switch off function (CV113-116, CV125-128, par024-027, par141-par144) This function gives you the option for deactivating the output (e.g. frontal driving cab light off), despite of activated output (e.g. LV by function F0). Example: A typical situation where to apply the switch off function is the push pull operation.

  • Page 88: Supplement 2: Speed Characteristics

    Locomotive/Locomotive function decoder Fahrzeug-/Funktionsdecoder from firmware version 3.12 ab Firmware-Version 1.11 Supplement 2: Speed characteristics Speed step characteristic *), Maximum speed characteristic (see CV48 / par051) (see CV05 / par013) in shunting gear Linear ......0 (see CV61 / par018) Strongly curved ....

  • Page 89: Supplement 3: Unamplified Function Outputs

    Fahrzeug-/Funktionsdecoder Locomotive/Locomotive function decoder ab Firmware-Version 1.11 from firmware version 3.12 Supplement 3: Unamplified function outputs As in case the unamplified function outputs (logic level 0 V - 5 V, max. 20 mA) cannot switch higher loads, switching amplifiers (MOSFET, bipolar transistors or the like) must be provided for consumers, which either require a higher supply voltage (>...

  • Page 90: Supplement 4: Electric Coupling / Freewheeling Diode

    Locomotive/Locomotive function decoder Fahrzeug-/Funktionsdecoder from firmware version 3.12 ab Firmware-Version 1.11 Supplement 4: Electric coupling / Freewheeling diode Electric couplings – i.e. couplings, which can automatically uncouple remotely –- are magnetic articles and therefore inductive consumers. When switiching off the current they may generate by the coil of the magnetic product a high voltage with opposite polarity (up to several hundred volts) by self induction.
  • Page 91 Fahrzeug-/Funktionsdecoder Locomotive/Locomotive function decoder ab Firmware-Version 1.11 from firmware version 3.12 Please make sure that the function output you have chosen for connecting the electric coupling has a sufficiently high capacity! We recommend the connections AUX3 and AUX4 of our decoders, which are designed for currents up to 1 A. Hint: Use the coupling functions of our decoders (timer for switching off AUX*) to make sure that the function output will be switched off in any case according to a maximum activation time specified by you.

  • Page 92: Automatic Coupling Procedure ("Coupling Waltz")

    Locomotive/Locomotive function decoder Fahrzeug-/Funktionsdecoder from firmware version 3.12 ab Firmware-Version 1.11 Automatic coupling procedure (“coupling waltz“) Principle function If a locomotive with attached wagon train has been driven into the station in forward driving and now the wagon train should be uncoupled, the locomotive must approach the wagon train backwards to relieve the coupling. Then the cou- pling must be activated by relaxed towing hook.
  • Page 93 Fahrzeug-/Funktionsdecoder Locomotive/Locomotive function decoder ab Firmware-Version 1.11 from firmware version 3.12 Using the coupling function of our decoder it must be ensured that the function output will be switched off in any case according to a maximum activation time specified by you. Otherwise the destruction of the electric coupling is possible.
  • Page 94 Locomotive/Locomotive function decoder Fahrzeug-/Funktionsdecoder from firmware version 3.12 ab Firmware-Version 1.11 Operating the couplings with 2 function keys Should the couplings be connected for example to AUX3 (in front) and AUX4 (at the rear), times are to be entered at AUX3 and AUX4.

  • Page 95: Supplement 5: Constant Braking Distance

    Fahrzeug-/Funktionsdecoder Locomotive/Locomotive function decoder ab Firmware-Version 1.11 from firmware version 3.12 Supplement 5: Constant braking distance Function of the “braking ramp” Set the desired braking method in CV27 / par91. Set in CV48 / par051 the linear characteristic (value = 0). Make sure that CV154 / par096 contains the value 0.

  • Page 96: Supplement 6: Decoder Recognition (Type And Firmware Version)

    Locomotive/Locomotive function decoder Fahrzeug-/Funktionsdecoder from firmware version 3.12 ab Firmware-Version 1.11 Supplement 6: Decoder detection Which decoder is it? Please read out the CV261. You can determine the decoder by the read out value with the help of the listing of the CV261 in the CV table of this description.
  • Page 97 Fahrzeug-/Funktionsdecoder Locomotive/Locomotive function decoder ab Firmware-Version 1.11 from firmware version 3.12 km/h CV135 CV136 km/h CV135 CV136 none no matter...
  • Page 98 Locomotive/Locomotive function decoder Fahrzeug-/Funktionsdecoder from firmware version 3.12 ab Firmware-Version 1.11 Märklin ® is a registered trademark of the company Gebr. Märklin & Cie. GmbH, D-73033 Göppingen Motorola ® is a registered trademark of the company Motorola Inc., Schaumburg, Illinois, USA RailCom ®...
  • Page 99 Notes...
  • Page 100 Company Stamp Doehler & Haass Steuerungssysteme GmbH & Co. KG © 2021 Doehler & Haass c/o Frau Barbara Karpati Changes and errors reserved Ludwig-Braille-Strasse 3 D-81379 Muenchen Tel. +49 (0)89 13 93 72 21 technik@doehler-haass.de www.doehler-haass.de Edition 5/2021...

This manual is also suitable for:
