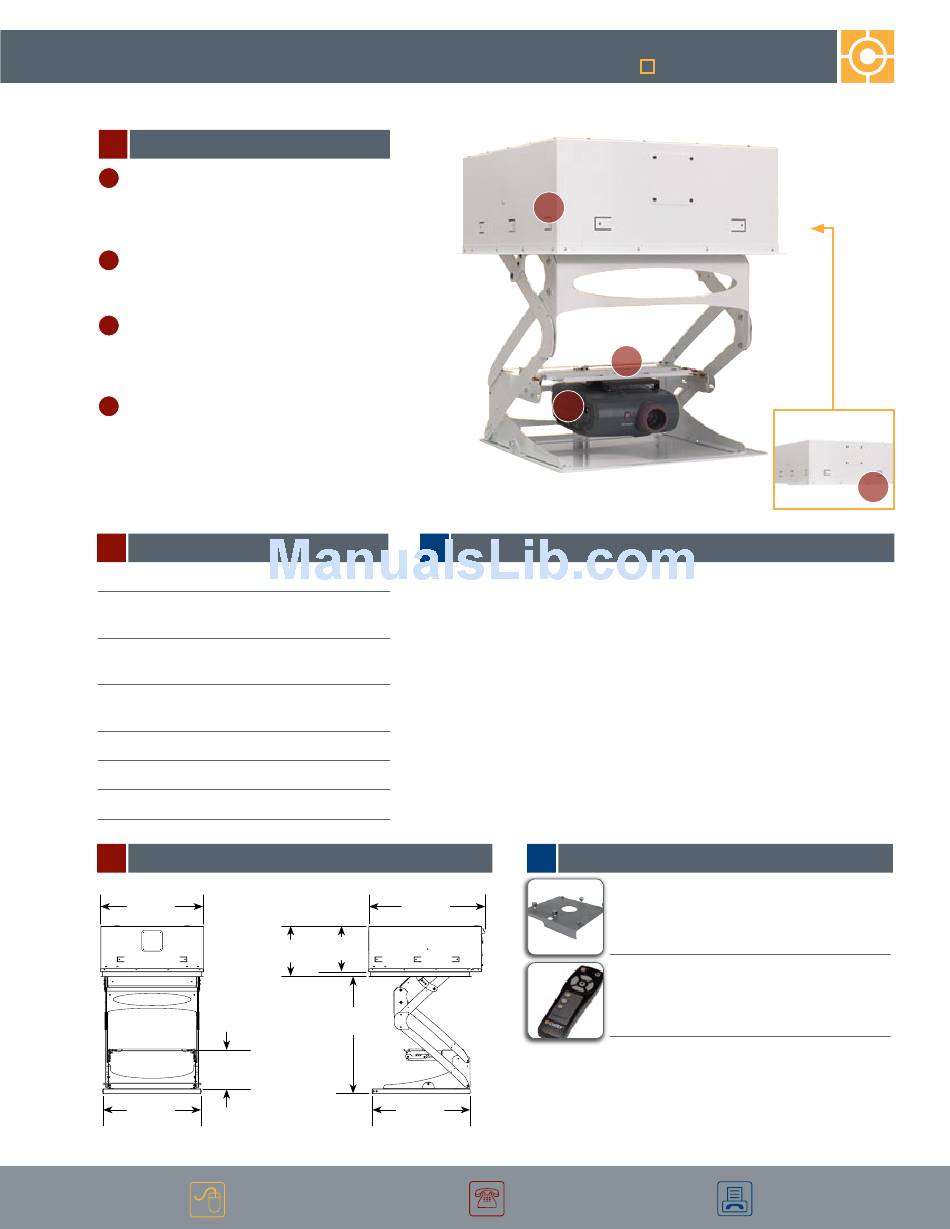

FEATUREs
EXtEnDED trAvEl
1
requries only 11" (279 mm) of clearance above
ceiling for 36" (91.4 mm) of downward travel
with three stopping positions.
PrECisE Positioning
2
vertical projector cradle adjustment and
fore/aft, left/right projector positioning.
QuiCk ConnECt/DisConnECt
3
convenient lamp and filter access on most
projectors. Maintains registration even when
disconnected.
MultiPlE instAllAtion oPtions
4
Mounting options include: three 0.38" (10 mm)
threaded rods with SMA651 accessory, 1-1/2"
npt threaded extension column with SMA601
accessory, side mounting with built-in joist
tabs, and by suspending with cables using the
SMA651 accessory.
sPECIFICATIOns
Extension
36" (914 mm)
Max Projector
20.5 x 9.25 x 22.75"
size
(635 x 279 x 698 mm)
Ceiling Opening
25.5 x 28"
(641 x 710 mm)
Ceiling Closure
24 x 24"
(610 x 610 mm)
Roll/Pitch/Yaw
+/-2º, +/-15º, +/-10º
Weight Capacity
35 lbs (15.9 kg)
Color
White
TECHnICAL DRAWInGs
25.12"
(638 mm)
12.25"
(311 mm)
current: 9.26" (235 mm)
Max: 9.91" (252 mm)
Min: 7.78" (198 mm)
23.88"
(607 mm)
CliCk
www.chiefmfg.com
WHAT YOU nEED TO KnOW
multIple contRol optIons
Choose from single momentary push button, low voltage controller,
and internal and external wiring options. Also accepts 5–30V AC/DC for
triggering commands. AMX/Crestron control compatibility.
VoltaGe optIons
120V or 230V (for 230V order the sL236I), current draw of .75 amps
flexIble InstallatIon
Independent roll, pitch and yaw
sHIps fullY assembled
28.31"
(719 mm)
11.12"
(282 mm)
36"
(914 mm)
23.88"
(607 mm)
automated mounts
sl236
SMArt-lift
4
3
2
RECOMMEnDED ACCEssORIEs
slb
Projector Interface Bracket
n
(required)
IR10
Infrared Remote Control
n
For a complete list of automated mount accessories see page 81.
CAll
800.582.6480
1
FAX
77
877.894.6918
