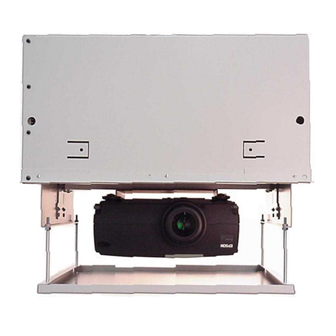

CHIEF SL-150 Specifications

automated mounts
sl150
3
WHAT YOU nEED TO KnOW
multIple contRol optIons
Choose from single momentary push button, low voltage controller,
and internal and external wiring options. Also accepts 5–30V AC/DC for
triggering commands. AMX/Crestron control compatibility.
VoltaGe optIons
120V or 230V (for 230V order the sL150I), current draw of .9 amps
flexIble InstallatIon
Independent roll, pitch and yaw
WIRe moRe tHan one deVIce
RECOMMEnDED ACCEssORIEs
slb Projector Interface Bracket
n
(required)
IR10 Infrared Remote Control
n
For a complete list of automated mount accessories see page 81.
CliCk
76
www.chiefmfg.com
SMArt-lift
4
2
1
CAll
800.582.6480
FEATUREs
PrECisE Positioning
1
vertical projector cradle adjustment and
fore/aft projector positioning.
QuiCk ConnECt/DisConnECt
2
convenient lamp and filter access on most
projectors. Maintains registration even when
disconnected.
low ProFilE
3
requires only 11" (279 mm) of clearance above
ceiling. provides 8.25" (210 mm) of downward
travel.
MultiPlE instAllAtion oPtions
4
Mounting options include: three 0.38" (10 mm)
threaded rods, 1-1/2" npt threaded
extension column with SMA601 accessory,
and side mounting with built-in joist tabs.
sPECIFICATIOns
Extension
Max Projector
size
Ceiling Opening
Ceiling Closure
Roll/Pitch/Yaw
Weight Capacity
Color
TECHnICAL DRAWInGs
26.16"
(665 mm)
11.05"
(281 mm)
10.5"
3x 2.89"
(267 mm)
(73 mm)
both Sides
both Sides
19.51"
(496 mm)
2.87"
both Sides
(73 mm)
both Sides
8.25" (210 mm)
18 x 9.5 x 22.25"
(458 x 241 x 565 mm)
22 x 25.75"
(558 x 654 mm)
19.6 x 22.4"
(499 x 594 mm)
+/-2º, +/-20º, +/-5º
35 lbs (15.9 kg)
White
3x Ø .25"
(6 mm)
both Sides
8.25"
(210 mm)
Max
FAX
877.894.6918
