- Page 1 VOYAGER Manual November 2020...
-
Page 2: Table Of Contents
VOYAGER User Manual Table of Content Voyager App Technical specs What is in the Box: Interface Charging/StandBy WiFi Control Setting Voyager network over BLE Factory Reset/Shelf Mode Using Voyagers with Spout or Syphon streaming DMX specification... -
Page 3: Voyager App
Voyager App To control Voyagers, it is necessary to download the Voyager app available on Google Play Store, Apple App Store or www.digitalsputnik.com Opening the latest release of the app will cause all connected Voyagers to update auto- matically. -
Page 4: Technical Specs

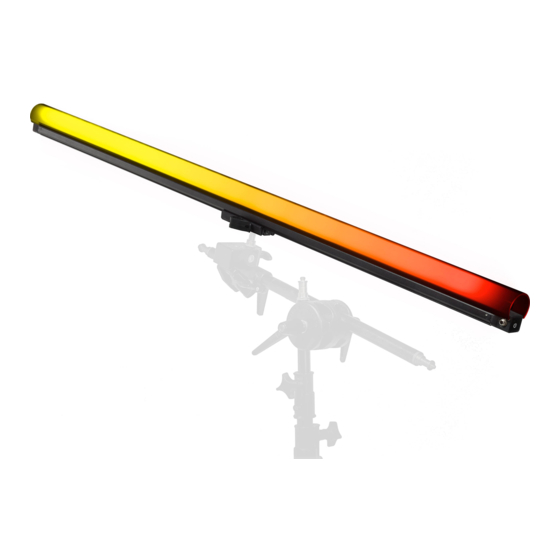

VOYAGER User Manual Technical specs Technical specs 4 ft. Dimensions: 1226x62x50mm (44"x 2.5"x 2") Resolution: 83 pixels Weight: 2.2kg (4.86lbs) Power draw: 40W Battery: 90Wh 2 ft. Dimensions: 610x62x50mm (24"x 2.5"x 2") Resolution: 42 pixels Weight: 1.1kg (2.43lbs) Power draw: 20W Battery: 45Wh Input on light: 19VDC 4.74A... -
Page 5: What Is In The Box
Voyager supports the DS Voyager Mount. DS Voyager Mount - Claw type mount that can attach itself to the back of the Voyager. You can loosen or tighten the spring loaded latch by twisting the latches head. Mount supports 1/4 and 3/8 threading. -
Page 6: Interface
Power and WiFi Program buttons while ger is booted and ready for use. the Voyager is ON for 10 seconds to fully shut down and enter the Voyager into Shelf Mode. This is also the factory reset procedure. The unit must be con- Holding the Power Button for less than 2 seconds nected to its adapter to be powered back on. - Page 7 Voyager is booting (takes about 40 seconds). Red: Voyager is OFF. Yellow: Voyager is charging/StandBy. No Light: Voyager is complete OFF due to 1st LED: battery being dead or in Power Mode SHELF MODE 3rd LED: WiFi Modes (please see the WiFi...
-
Page 8: Charging/Standby
VOYAGER User Manual Charging/StandBy Charging / StandBy A Voyager can be charged while being ac- The Voyager’s built-in battery will last 2 tively used. hours and 30 mins on white color and 6 hours on full primary colors all at full inten- Plugging a powered-off Voyager to a char- sity. -
Page 9: Wifi Control
Voyager. The SSID (Network Open the Voyager app. Press “Add Lamps” name) of the Voyager is its serial number to add client Voyagers to the scene. (DS026XXXXXXXXXX). Use the password dsputnik for connecting. - Page 10 More tests will follow over time. using the Voyager App. In the Setup button > Lamp Settings > *Se- *This action does not require to connect each Voyager lect lamp/lamps* to be made into clients > individually. It is recommended to turn Voyagers into WiFi Setup >...
-
Page 11: Setting Voyager Network Over Ble
VOYAGER User Manual Client status via Bluetooth Setting Voyager network over BLE Voyager network can be set over Bluetooth Low Energy (BLE) from “Add lamps” menu. If lamps are found over BLE, extra button “Add by BLE” will appear. From there you can select lamps and assign them to a net- work by setting SSID and password. -
Page 12: Factory Reset/Shelf Mode
Voyager to shelf mode if preparing it for storage or travel. The Voyager must be connected to its pow- er adapter to boot on after a factory reset. Factory reset will also alter WiFi settings:... -
Page 13: Using Voyagers With Spout Or Syphon Streaming
After installation to start streaming from After Effects: • Start After Effects • Start Voyager Controller, select lamps you would like to stream onto and under “Set FX” select Spout/Syhpon Stream from the effect list. • Now everything that is played on After Effects will be displayed on lamps. -
Page 14: Dmx Specification
VOYAGER User Manual General overview DMX specification Voyagers accept two DMX modes: RGBT and ITSH which are explained in the tables below. DMX packets can be sent via sACN or ArtNet. DMX mode can be selected from the “Set DMX” menu. Voyagers will display their starting universe and DMX channel when DMX mode is applied and lamps are selected.
