VOYAGER Manual
April 2019

Advertisement

loading
Need help?

Need help?

Do you have a question about the VOYAGER and is the answer not in the manual?

Questions and answers

Related Manuals for Digital Sputnik VOYAGER

Summary of Contents for Digital Sputnik VOYAGER

  • Page 1 VOYAGER Manual April 2019...

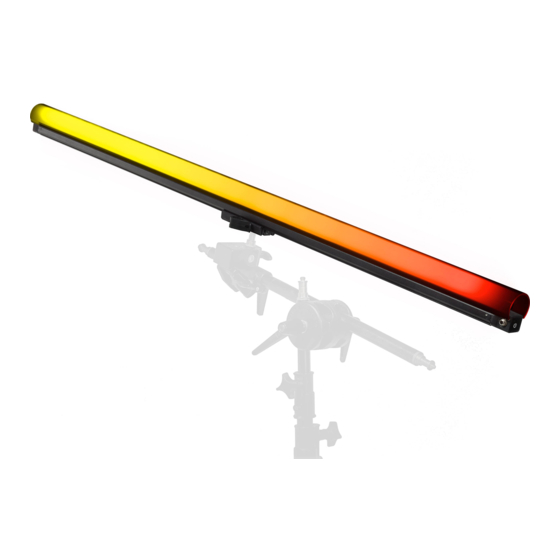

  • Page 2 VOYAGER User Manual Voyager App The Voyager Smart Light is a fixture combining light source, battery, and remote control into one. All that is required is a smartphone, tablet or computer to act as interface. Voyager App To control Voyagers, it is necessary to...

  • Page 3: Technical Specs

    VOYAGER User Manual Technical specs Technical specs 4 ft. Dimensions: 1226x62x50mm (44"x 2.5"x 2") Resolution: 83 pixels Weight: 2.2kg (4.86lbs) Power draw: 40W Battery: 90Wh 2 ft. Dimensions: 610x62x50mm (24"x 2.5"x 2") Resolution: 42 pixels Weight: 1.1kg (2.43lbs) Power draw: 20W Battery: 45Wh Input on light: 19VDC 4.74A...

  • Page 4: What Is In The Box

    Voyager supports the DS Voyager Mount. DS Voyager Mount - Claw type mount that can attach itself to the back of the Voyager. You can loosen or tighten the spring loaded latch by twisting the latches head. Mount supports ¾ and " threading.
  • Page 5 The overall amount of LEDs coming on will button for 3 seconds. indicate the remaining battery life. When turning Voyager ON the Power Sta- tus LED (1st led) turns from RED to GREEN and the shader given to Voyager prior shut- down will be displayed.
  • Page 6 Green: Unit is a Client and is connected to a network. Red: Unit is a client and cannot automatically find a network to connect to or has connection problems. *This feature will not work when Voyager is in shelf mode.
  • Page 7 *To boot from StandBy hold down the power standby mode. button for 3 seconds as usual. The StandBy mode is indicated by a yellow *Switching Voyager off while charging, will put the unit into StandBy mode first diode when checking the Voyager’s status.

  • Page 8: Wifi Control

    To toggle between WiFi modes, use the When using 2 or more units. Choose any program button (side button). Pressing the Voyager, and set it to Router mode -iden- program button (side button) for 4 seconds tifiable by a Blue third diode when briefly will cause the Voyager to toggle between pressing the power button-.
  • Page 9 This can be achieved using the to follow the naming convention of a Router Voyager App. Voyager. If you name your router’s network as DS026XXXXXXXXXX_M, all Voyagers In the Setup tab > Lamp Settings > Select set to Client mode will automatically con- lamp/lamps* to be made into clients >...
  • Page 10 VOYAGER User Manual Client status via Bluetooth Client status via Bluetooth It is also possible to verify a Voyagers WiFi connection when in "Client" mode via Bluetooth. For this, open your device’s Bluetooth list and lamps in client mode will show up: Lamps SSID (DS026XXXXXXXXXX)->...

  • Page 11: Wifi Reset

    WiFi reset has been seconds. It is the same procedure as for registered. setting a Voyager to shelf mode if prepar- Only a WiFi reset will restore the default ing it for storage or travel. communication settings: The Voyager must be connected to its pow- er adapter to boot on after a factory reset.
